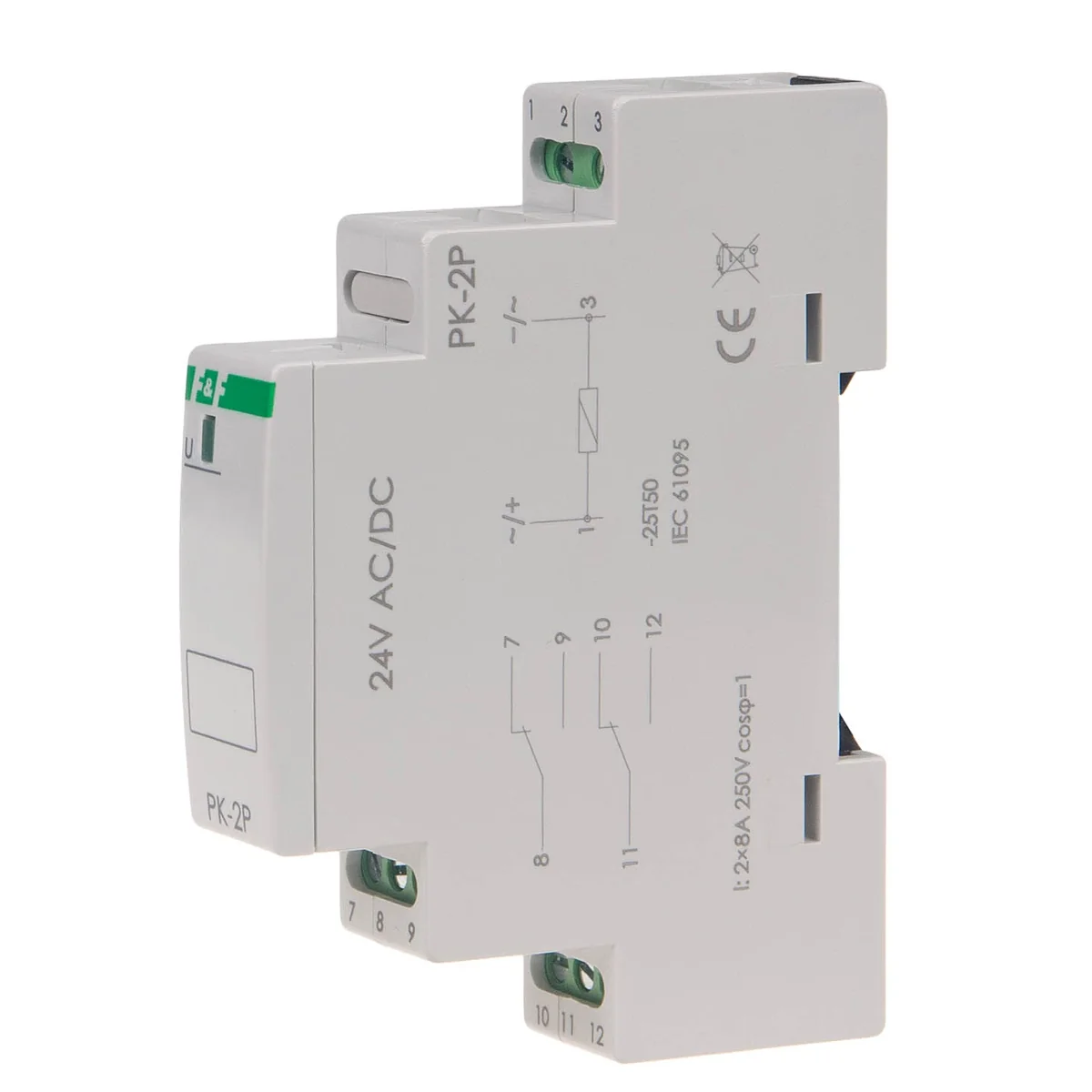

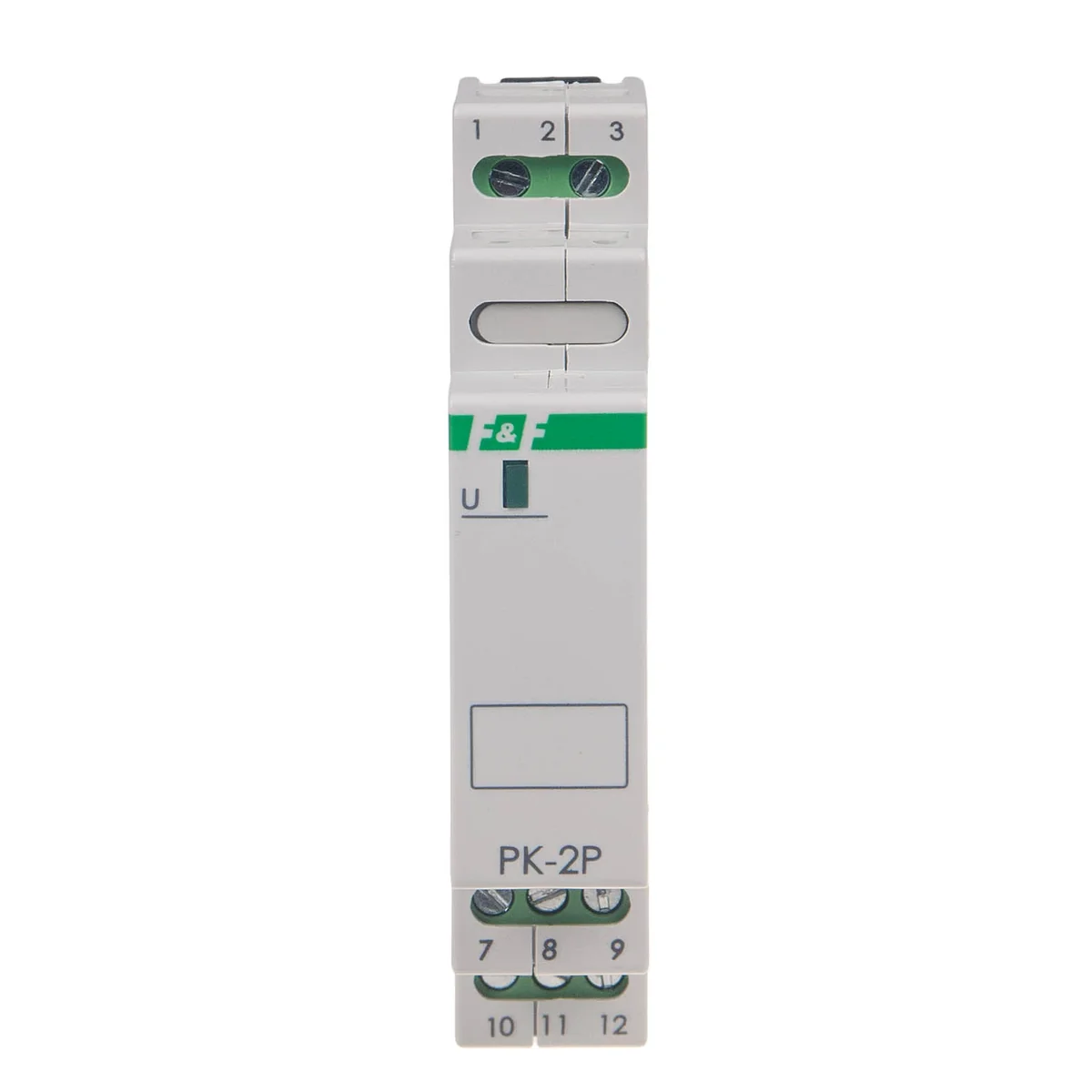

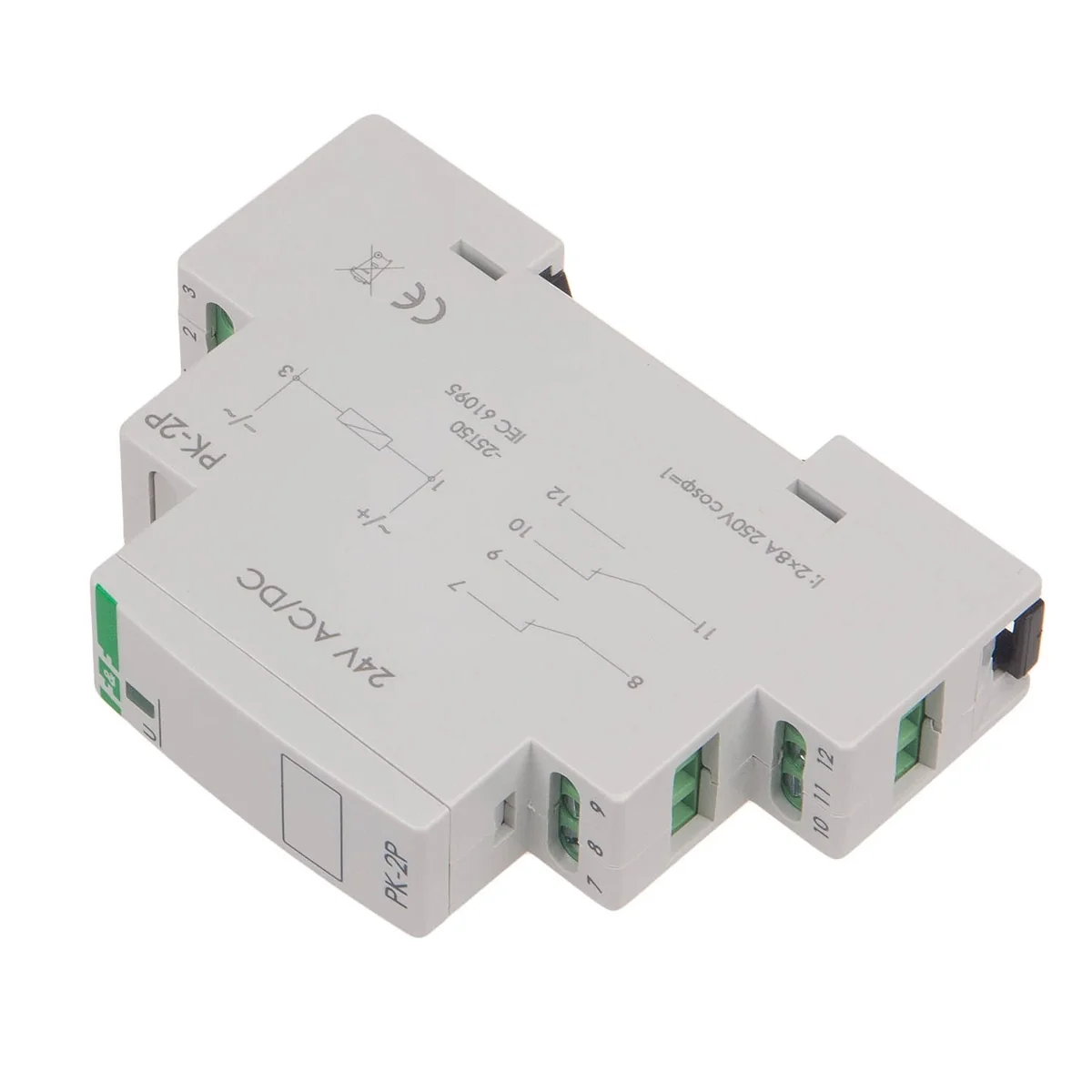

Electromagnetic relay PK-2P 24V PK-2P-24V

local index:
APE003FIFQ
Catalog No:
PK-2P-24V
EAN code:
5908312595663
Manufacturer: F&F
Installation: On the TH-35 rail
Rated voltage [V]: 24
Current consumption[mA]: 25
Price:
14,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 30 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Electromagnetic relay in a single-module housing for direct mounting on a TH-35 rail.

Technical data

  • Installation
    On the TH-35 rail
  • Current consumption[mA]
    25
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0, 1
  • PKWIU
    27.12.24.0
  • Rated voltage [V]
    24
  • Level of security
    IP20
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • Insulation voltage [V]
    400

Other technical data

  • Type of electric connection
    Screw connection
  • Rated control supply voltage AC 50 Hz
    24 ... 24 V
  • Number of contacts as change-over contact
    2
  • Degree of protection (IP)
    IP20
  • Depth
    65 mm
  • With detachable clamps
    no
  • Rated control supply voltage DC
    24 ... 24 V
  • Type of switch contact
    Double contact
  • Height
    90 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,057
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
