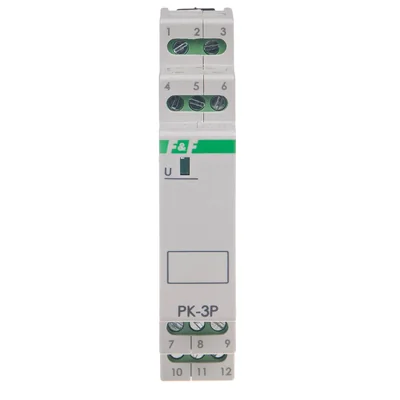

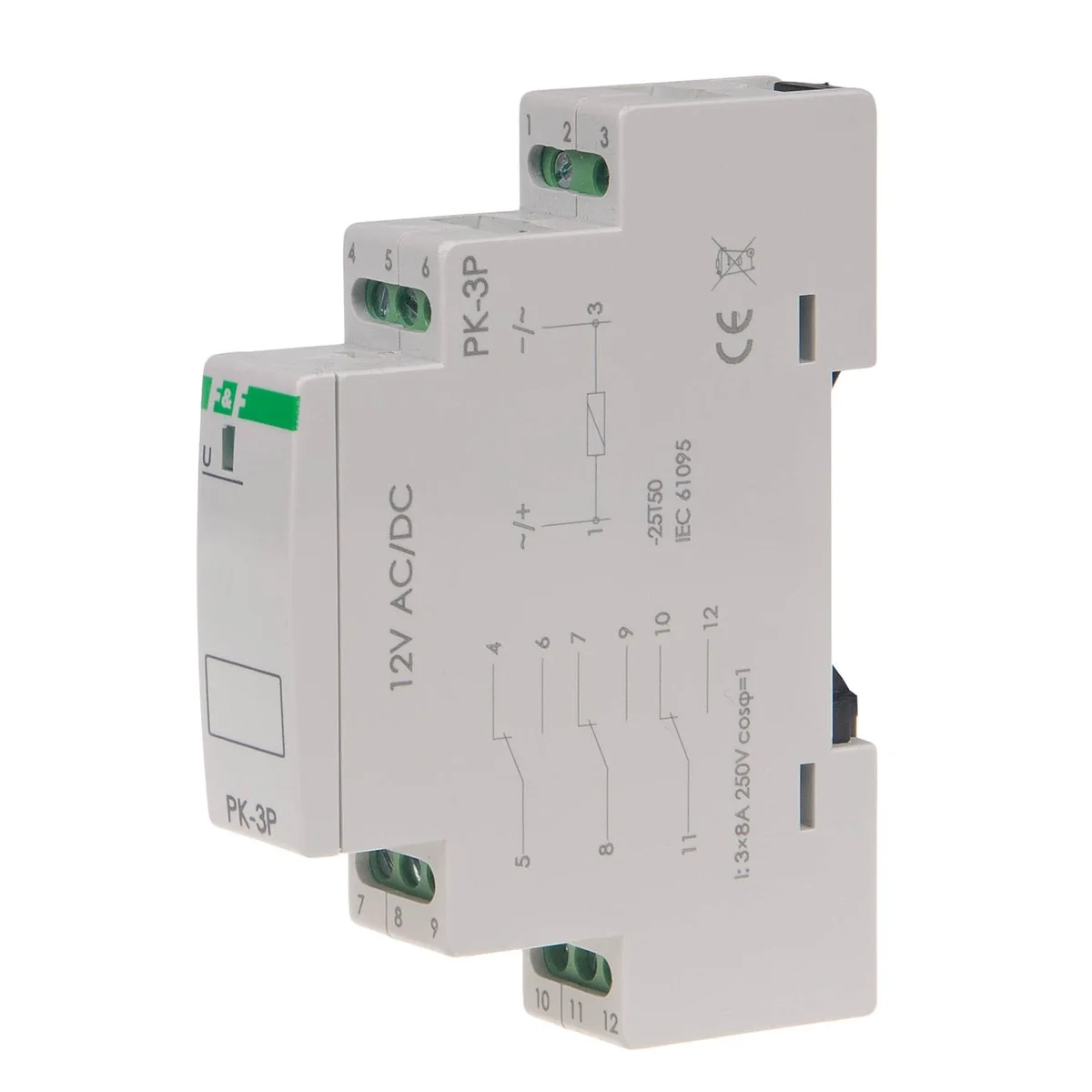

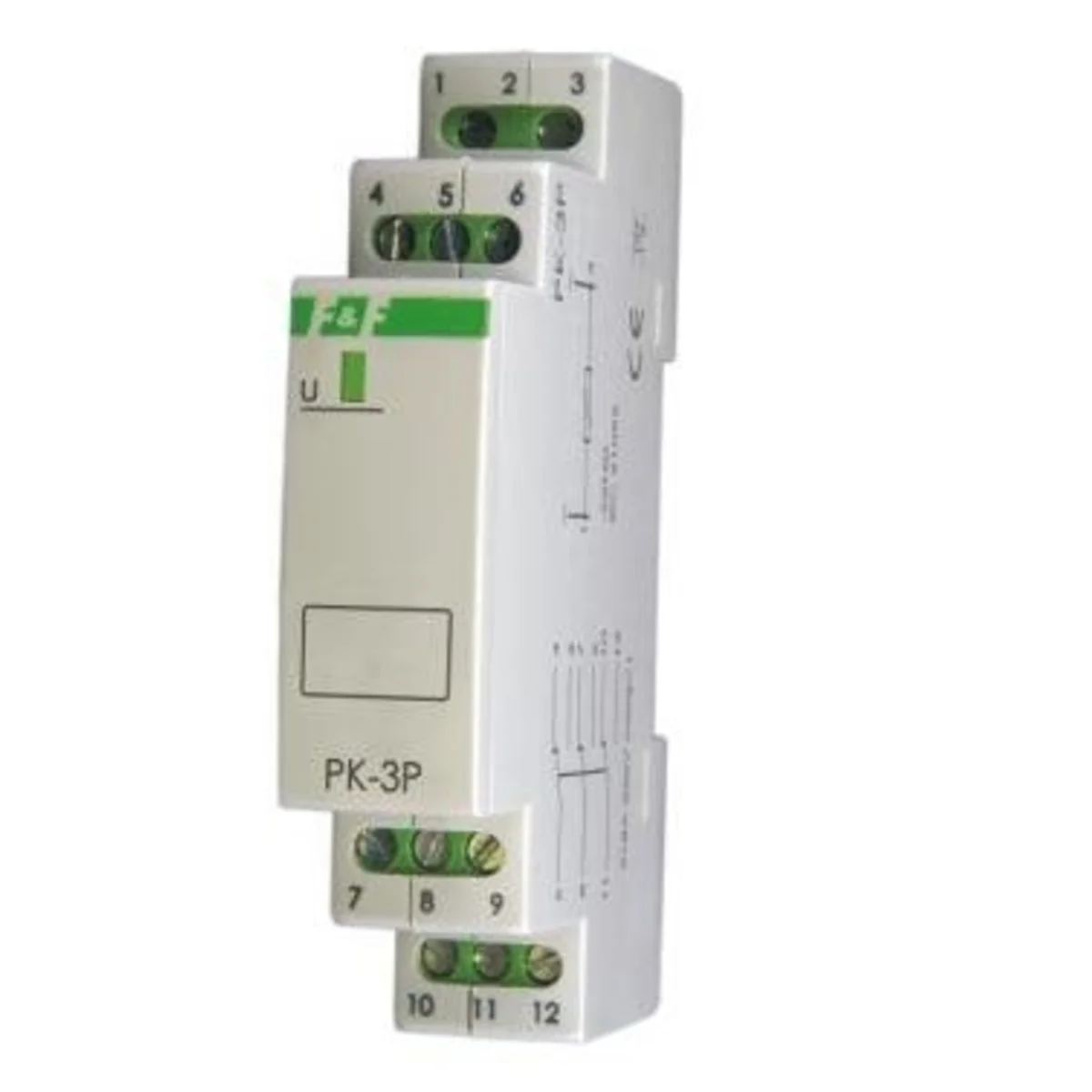

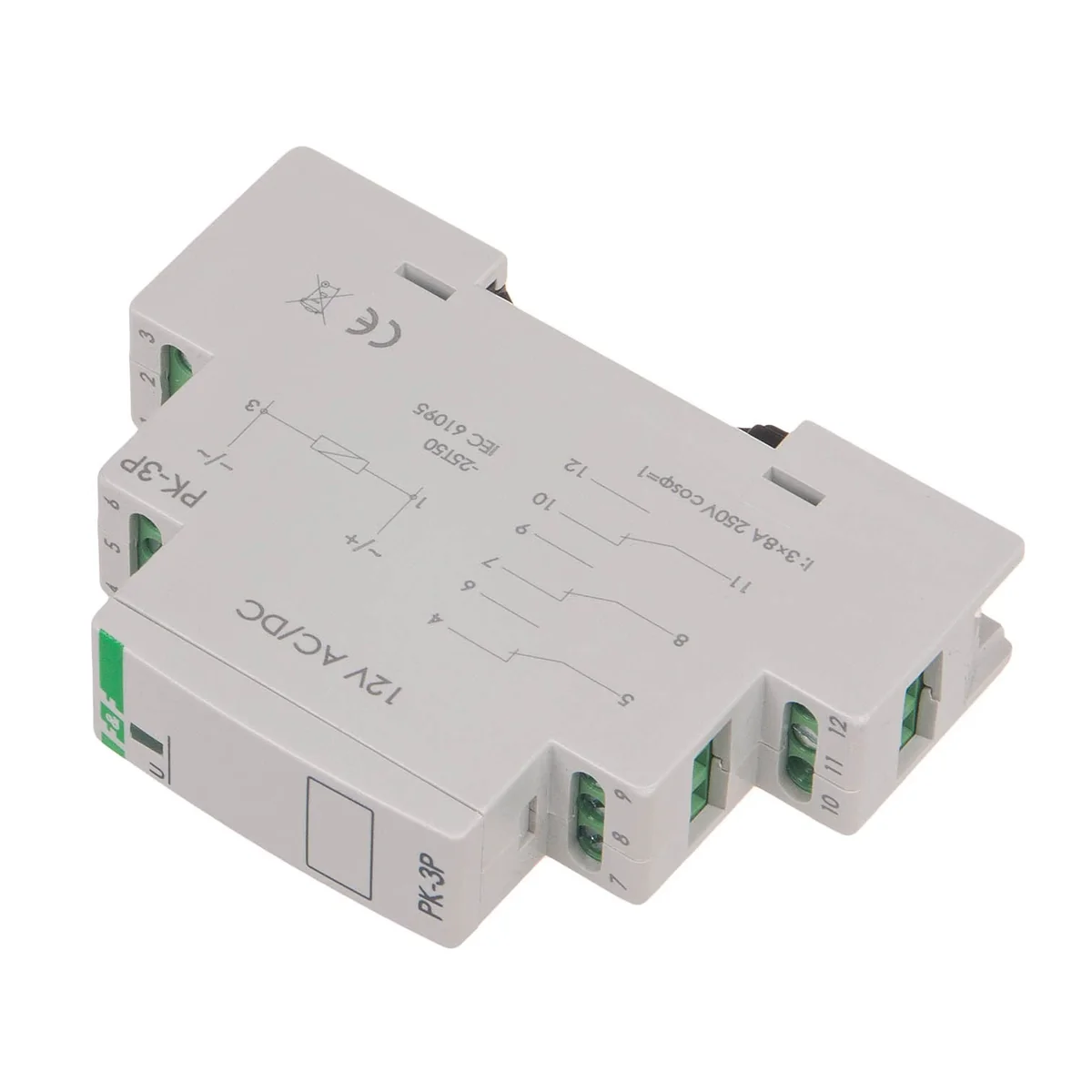

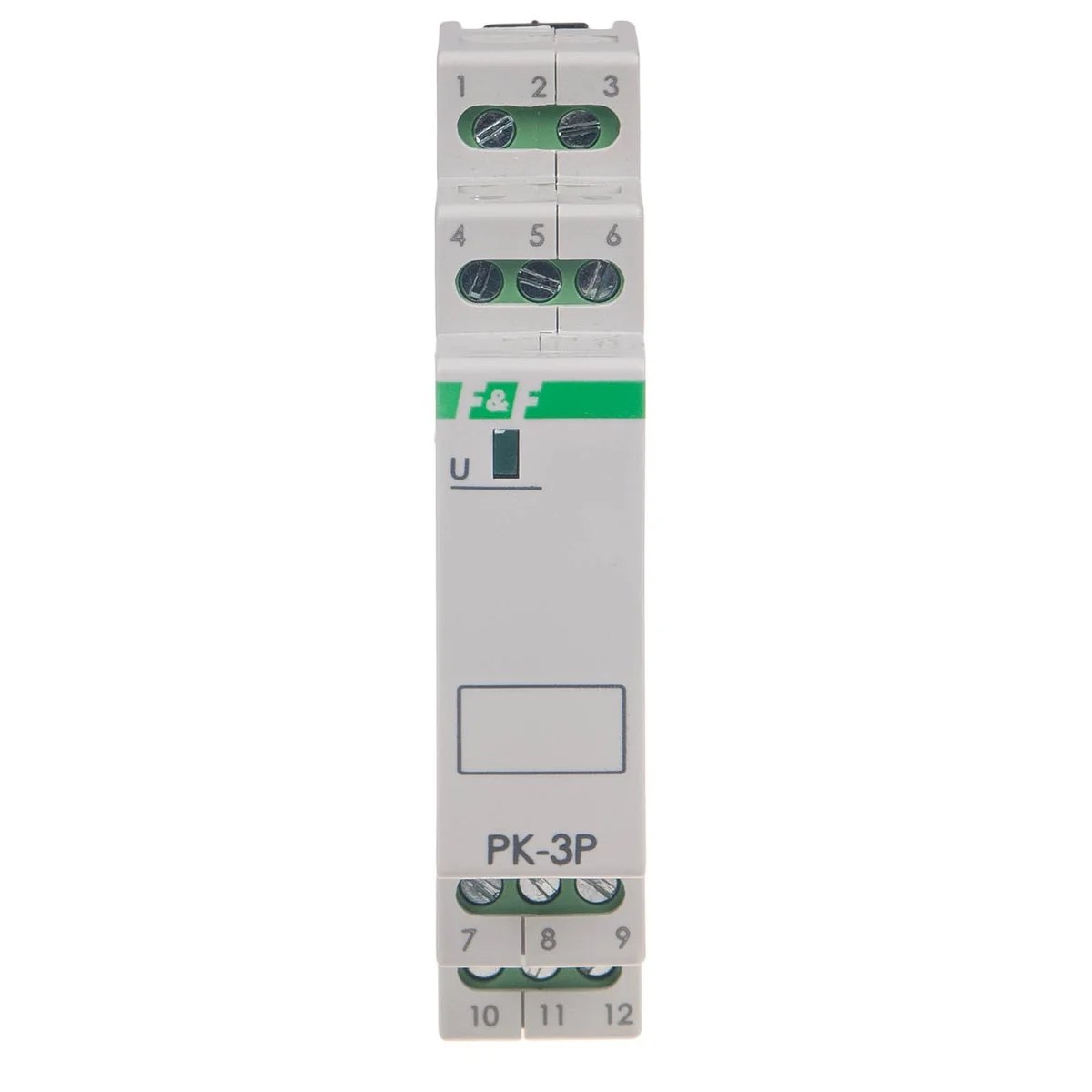

Electromagnetic relay 8A 12V 3 contacts PK-3P-12V
local index:
APE037FIFQ
Catalog No:
PK-3P-12V
EAN code:
5908312592341
Price:
17,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relay in a single-module housing for direct mounting on a TH-35 rail.
Technical data
-
Shutdown time [ms]max 20
-
load current [A]3x <8
-
Working temperature [°C]-25-50
-
Package height [mm]150
-
Package weight [kg]0.2
-
Power indicatorLED
-
Rated voltage [V]12
-
Level of securityIP20
-
Dimensions1 module (18mm)
-
Package width [mm]20
-
Tripping time [ms]max 40
-
PKWIU27.12.24.0
Other technical data
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 50 Hz12 ... 12 V
-
Number of contacts as change-over contact3
-
Degree of protection (IP)IP20
-
Depth65 mm
-
With detachable clampsNo
-
Rated control supply voltage DC12 ... 12 V
-
Type of switch contactOther
-
Height90 mm
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,086 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
