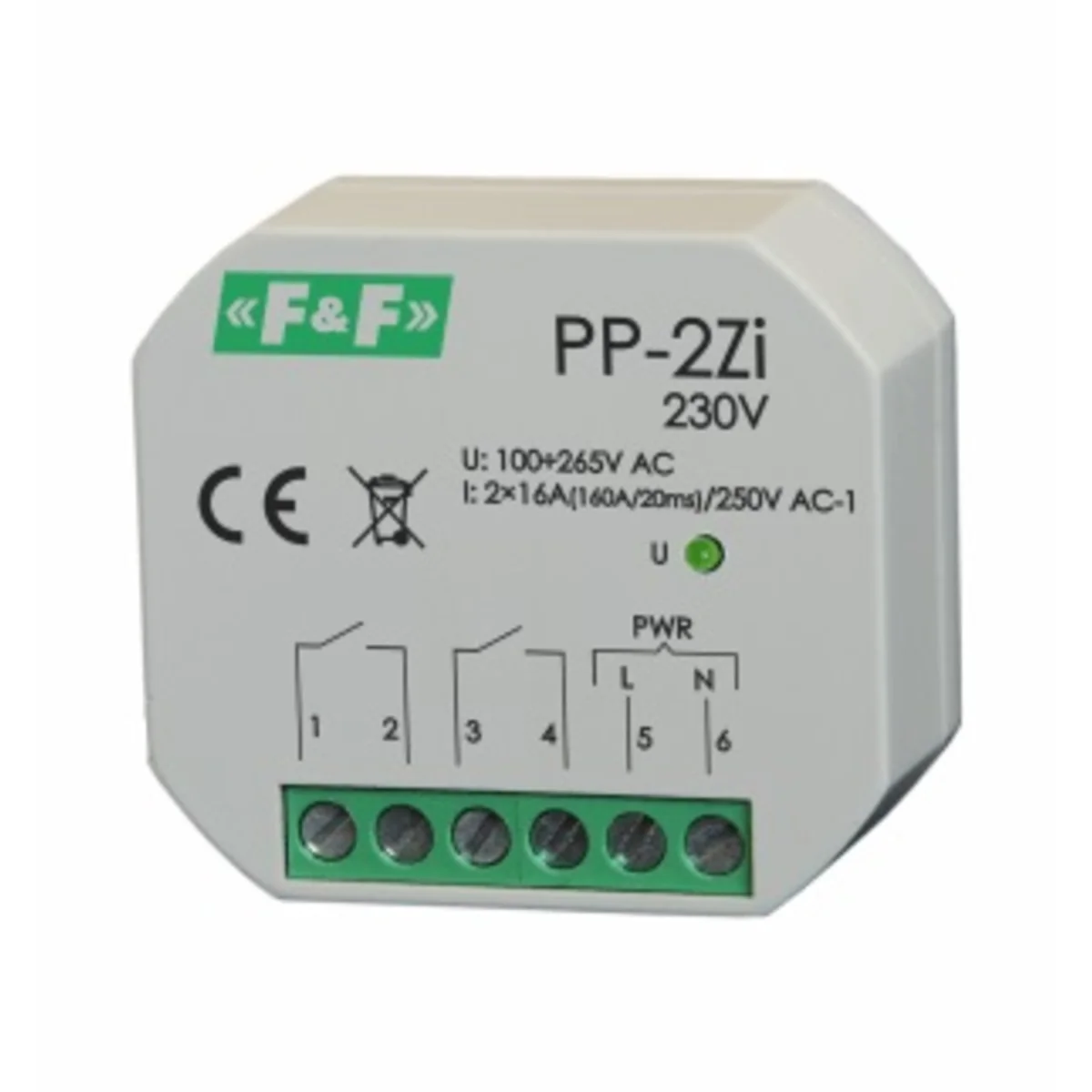

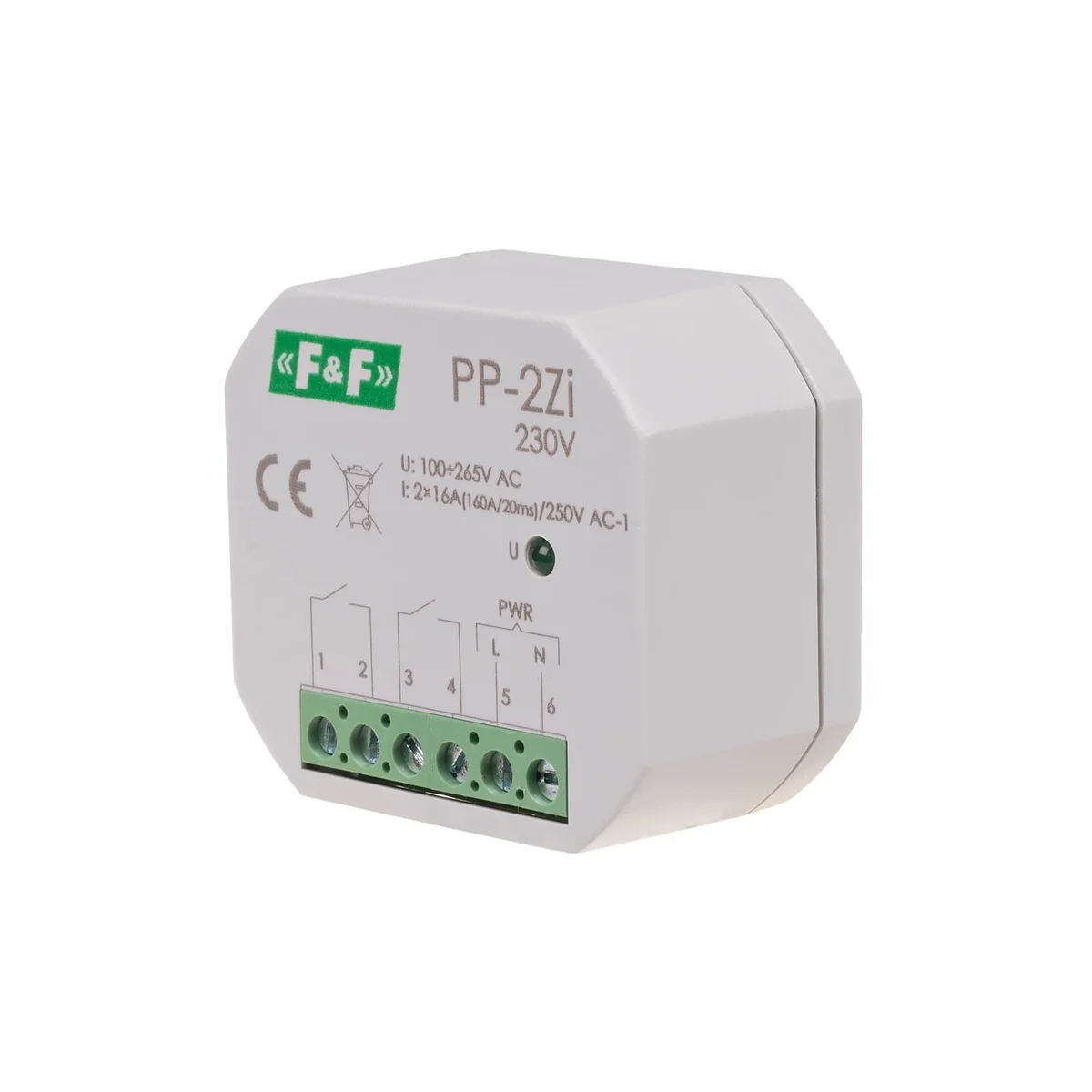

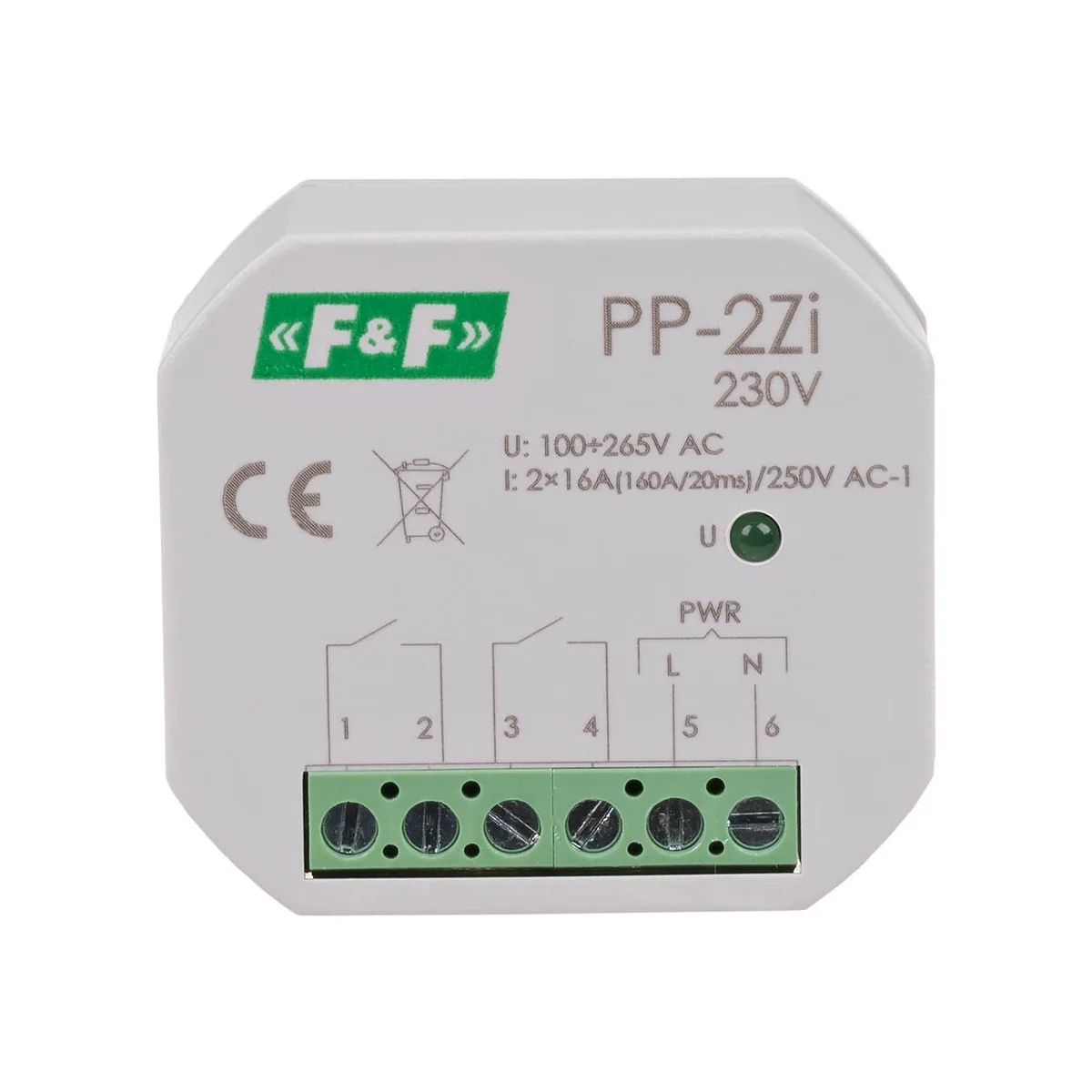

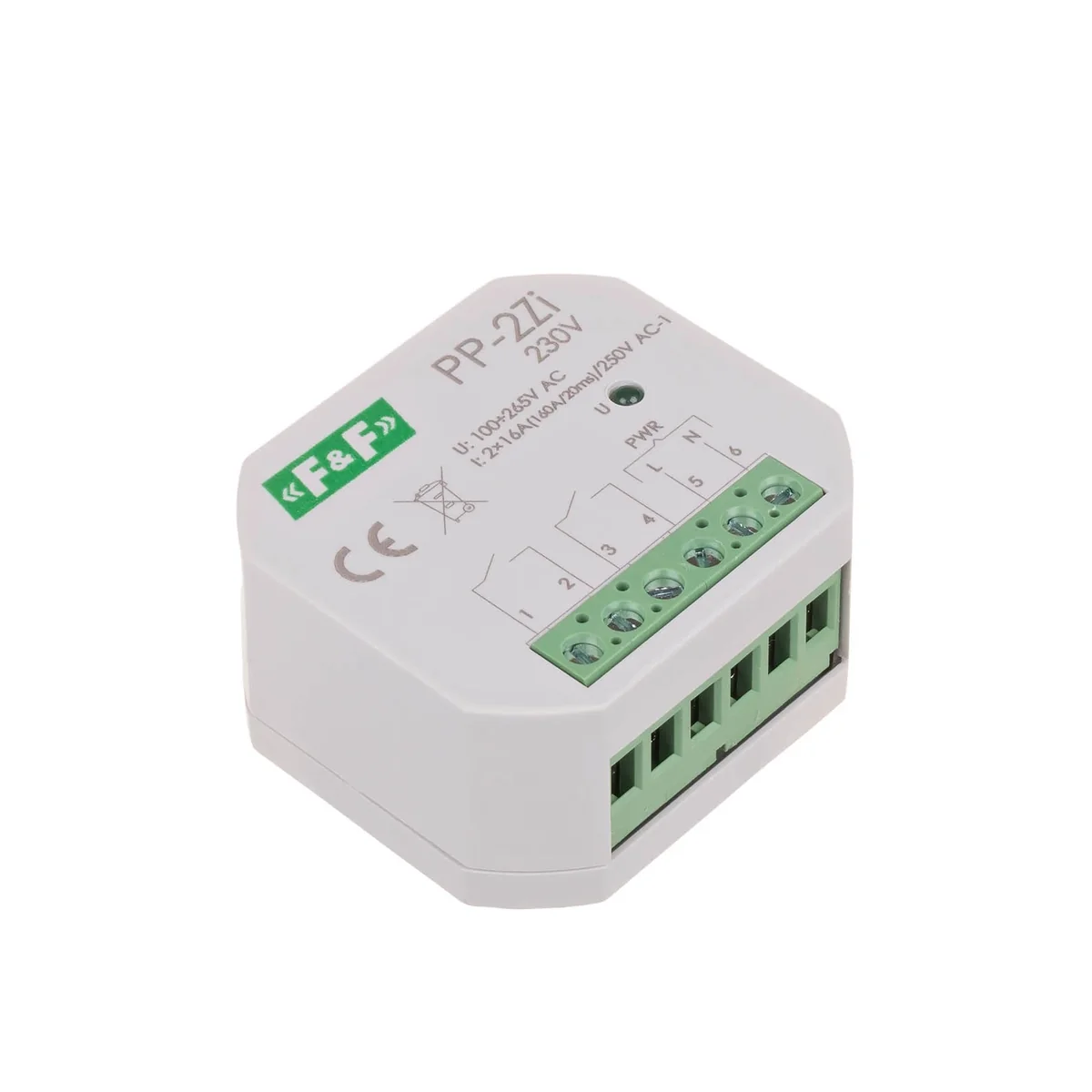

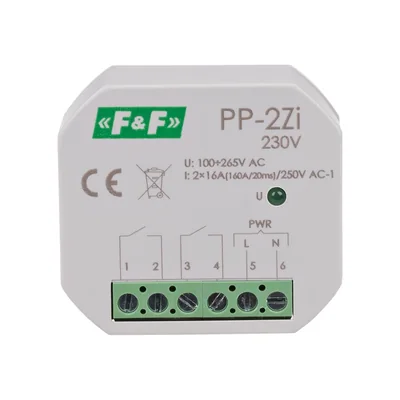

Electromagnetic relay 230V PP-2Z-LED-230V
local index:
APE030FIFQ
Catalog No:
PP-2Z-LED-230V
EAN code:
5908312598572
Price:
16,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electromagnetic relays in a housing for direct mounting in a Ø60 flush-mounted box.
Technical data
-
Shutdown time [ms]max 20
-
Rated voltage [V]230
-
Level of securityIP20
-
Package width [mm]50
-
Tripping time [ms]max 40
-
PKWIU27.12.24.0
-
Power [W]0.6
-
load current [A]<16A 250V
-
Package height [mm]25
-
Package weight [kg]0.2
-
Power indicatorLED
Other technical data
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 50 Hz100 ... 265 V
-
Type of switch contactDouble contact
-
Width48 mm
-
Depth25 mm
-
With detachable clampsNo
-
Number of contacts as normally open contact2
-
Degree of protection (IP)IP20
-
Height43 mm
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,056 |
| Width (m) | 0,031 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
