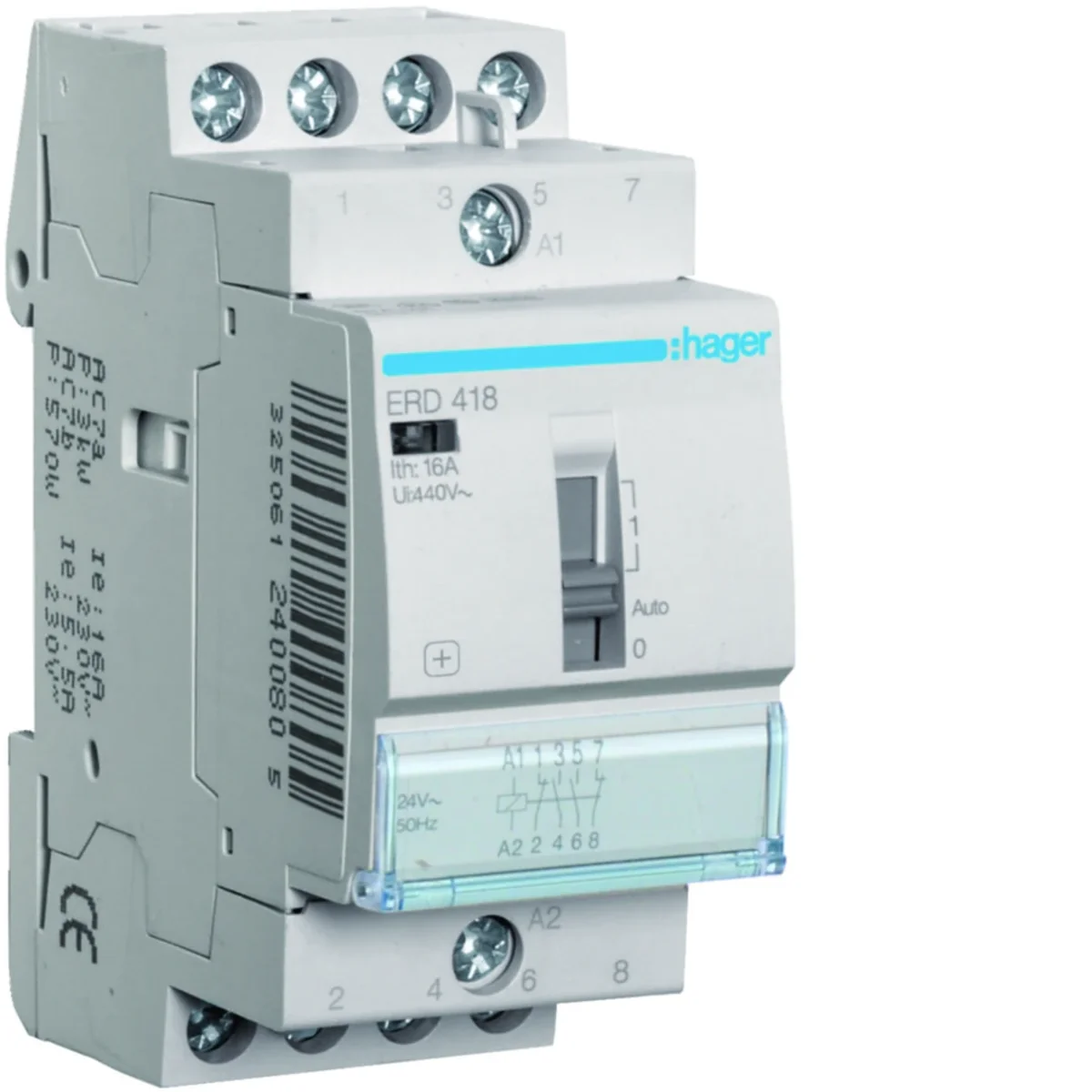

Electromagnetic installation relay 24VAC 2NO+2NC 16A ERD418
local index:
APE017HAGE
Catalog No:
ERD418
EAN code:
3250612400805
Price:
37,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Installation relay electromagnetic:
- 2NO+2NC
- with the possibility of manual control - operating mode selection by means of a manual switch located on the front housing parts:
- 1: permanent on, no electrical control possible
- Auto: automatic mode
- 0: permanent off, no electrical control possible < /ul>
Application:
- incandescent lamps (traditional and halogen bulbs)
- linear fluorescent lamps and compact (energy saving), compensated or uncompensated, with traditional or electronic ignitor,
- discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
- resistive loads ( category AC-7a).
Technical data
-
Rated frequency [Hz]50
-
Protection classII
-
Maximum input power [VA]21
-
AC control voltage [V]24
-
Rated current [A]16
-
power loss [W]5.4
-
Height [mm]83
-
Mechanical durability (number of cycles)1000000
-
Rated switching voltage [V]400
-
Number of modules2
-
Maximum bulb power [W]1100
-
Reaction time when opening [ms]15
-
Control cable cross-section [mm²]1 - 6
-
Power loss per contact [W]1
-
Wire cross-section (cord) [mm²]1 - 6
-
PKWIU27.12.24.0
-
Depth [mm]60
-
Number of poles4P
-
Tightening torque [Nm]1.2
-
Rated insulation voltage [V]440
-
Contact type2NC + 2NO
-
Width [mm]35.75
-
Electrical endurance (number of cycles)30000
-
Operating temperature range [°C]from -10 to 50
-
Rated impulse voltage [kV]4
-
Number of NO contacts2
-
Wire cross-section [mm²]1 to 10
-
Input power [VA]3.4
-
Manual controlYes
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]1 - 10
Other technical data
-
Rated operating voltage400 ... 400 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact2
-
Max. incandescent lamp load1100 W
-
Max. load fluorescent lamp (Duo circuit)1200 VA
-
Slider for hand switchYes
-
Additional equipment possibleYes
-
Rated operation current16 A
-
Rated excitation voltage24 ... 24 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact2
-
Max. load fluorescent lamp570 VA
-
Max. load fluorescent lamp (parallel compensated)490 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,192 | 0,212 | 13,160 | 340,840 |
| Width (m) | 0,036 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,083 | 0,041 | 0,216 | 1,014 |
| Depth (m) | 0,065 | 0,098 | 0,372 | 1,200 |
