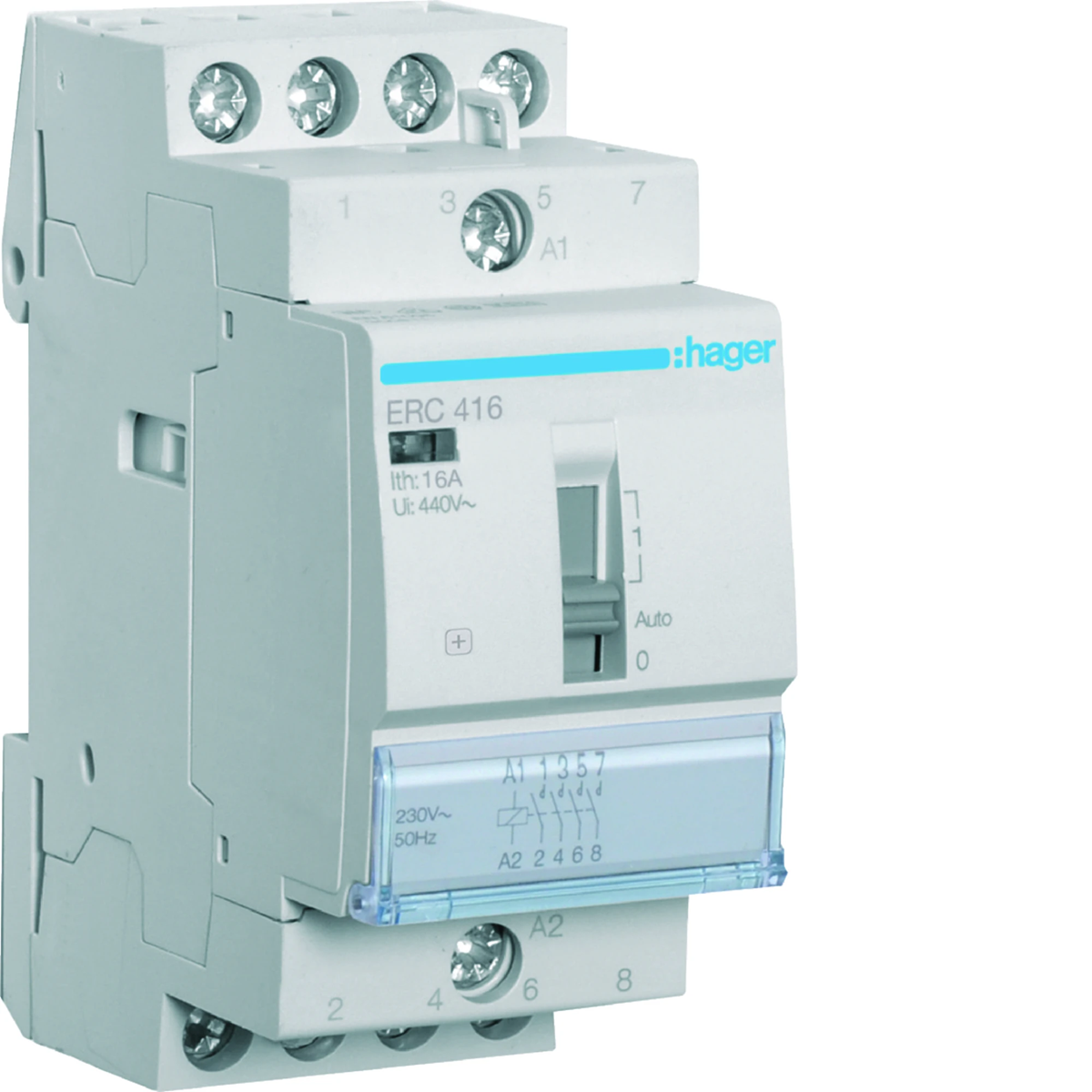

Electromagnetic installation relay 230VAC 4NO 16A ERC416

local index:
APE014HAGE
Catalog No:
ERC416
EAN code:
3250612400799
Manufacturer: HAGER
Rated frequency [Hz]: 50
Depth [mm]: 60
Number of contacts: 4NO
Price:
45,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Installation relay electromagnetic:

  • 4NO
  • with the option of manual control - operating mode selection by means of a manual switch located on the front of the housing :
    • 1: permanent on, no electric control possible
    • Auto: automatic mode
    • 0: permanent off, no electric control possible

Application:

  • incandescent lamps (traditional and halogen lamps)
  • linear and compact fluorescent lamps (energy-saving), compensated or uncompensated, with traditional or electronic ignitor,
  • discharge lamps (high-pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
  • resistive loads (category AC -7a).

Technical data

  • Rated frequency [Hz]
    50
  • Number of contacts
    4NO
  • Number of poles
    4P
  • Tightening torque [Nm]
    1.2
  • Rated insulation voltage [V]
    440
  • Contact type
    4 NO
  • Width [mm]
    35.75
  • Electrical endurance (number of cycles)
    30000
  • Operating temperature range [°C]
    from -10 to 50
  • Rated impulse voltage [kV]
    4
  • Number of NO contacts
    4
  • Wire cross-section [mm²]
    1 to 10
  • Input power [VA]
    3.4
  • Manual control
    Yes
  • storage temperature [°C]
    From -40 to 80
  • Conductor cross-section (wire) [mm²]
    1 - 10
  • Depth [mm]
    60
  • Protection class
    II
  • Maximum input power [VA]
    21
  • AC control voltage [V]
    230
  • Rated current [A]
    16
  • power loss [W]
    7.4
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    1000000
  • Rated switching voltage [V]
    400
  • Number of modules
    2
  • Maximum bulb power [W]
    1100
  • Reaction time when opening [ms]
    15
  • Control cable cross-section [mm²]
    1 - 6
  • Power loss per contact [W]
    1
  • Wire cross-section (cord) [mm²]
    1 - 6
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    1100 W
  • Max. load fluorescent lamp (Duo circuit)
    1200 VA
  • Slider for hand switch
    Yes
  • Additional equipment possible
    Yes
  • Rated operation current
    16 A
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    570 VA
  • Max. load fluorescent lamp (parallel compensated)
    490 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,192 0,214 13,213 340,112
Width (m) 0,036 0,080 0,316 0,800
Length (m) 0,083 0,041 0,211 0,994
Depth (m) 0,065 0,097 0,363 1,200
