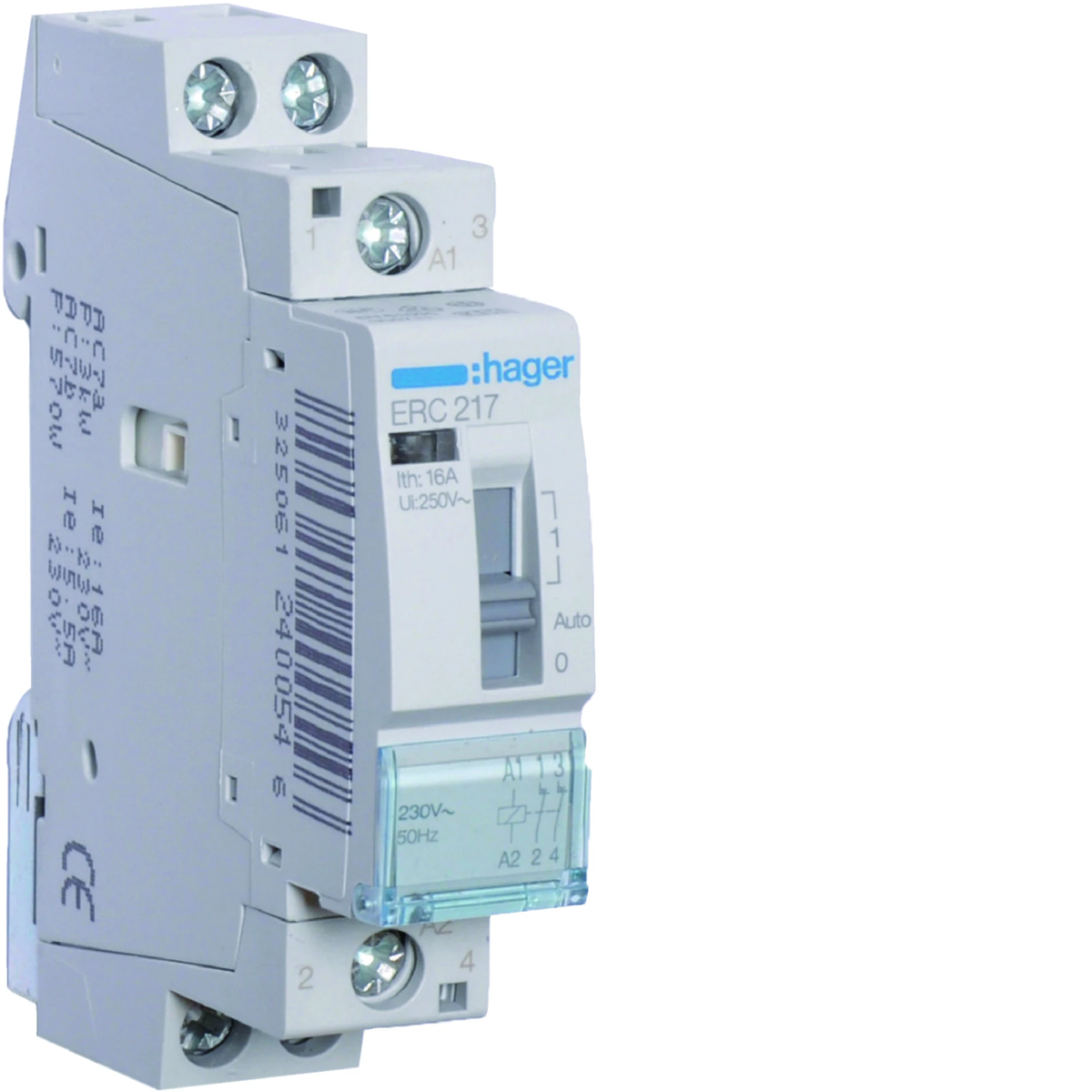

Electromagnetic installation relay 230VAC 2NC 16A ERC217
Índice local:
APE012HAGE
Número de catálogo:
ERC217
Código EAN:
3250612400522
Precio:
29,78 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Datos técnicos
Detalles del fabricante
Empaquetado a granel
Archivos para descargar
Descripción del producto
Installation relay electromagnetic:
- 2NC
- with the option of manual control - operating mode selection by means of a manual switch located on the front of the housing :
- 1: permanent on, no electric control possible
- Auto: automatic mode
- 0: permanent off, no electric control possible
Application:
- incandescent lamps (traditional and halogen lamps)
- linear and compact fluorescent lamps (energy-saving), compensated or uncompensated, with traditional or electronic ignitor,
- discharge lamps (high-pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
- resistive loads (category AC -7a).
Datos técnicos
-
Rated frequency [Hz]60
-
Maximum input power [VA]10.7
-
AC control voltage [V]230
-
Rated current [A]16
-
power loss [W]2.9
-
Height [mm]83
-
Mechanical durability (number of cycles)100000
-
Rated switching voltage [V]230
-
Number of modules1
-
Wire cross-section [mm²]1 to 10
-
Input power [VA]2.9
-
Manual controlYes
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]1 - 10
-
Depth [mm]60
-
Tightening torque [Nm]1.2
-
Rated insulation voltage [V]250
-
Contact type2NC
-
Width [mm]17.85
-
Electrical endurance (number of cycles)30000
-
Operating temperature range [°C]from -10 to 50
-
Rated impulse voltage [kV]4
-
Maximum bulb power [W]1100
-
Reaction time when opening [ms]15
-
Control cable cross-section [mm²]1 - 6
-
Power loss per contact [W]1
-
Wire cross-section (cord) [mm²]1 - 6
-
PKWIU27.12.24.0
Otros datos técnicos
-
Rated operating voltage230 ... 230 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact0
-
Max. incandescent lamp load1100 W
-
Max. load fluorescent lamp (Duo circuit)1200 VA
-
Slider for hand switchYes
-
Additional equipment possibleYes
-
Rated operation current16 A
-
Rated excitation voltage230 ... 230 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact2
-
Max. load fluorescent lamp570 VA
-
Max. load fluorescent lamp (parallel compensated)490 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Detalles del fabricante
-
FabricanteHager Electro S.A.S.
-
DirecciónFR 67215 Obernai 123 boulevard d’Europe Francja
Empaquetado a granel
| una especie de paquete | Karton | Pakiet | Paleta |
| Cantidad | 1 uds. | 108 uds. | 2592 uds. |
| Peso (kg) | 0,110 | 12,520 | 300,670 |
| Ancho (m) | 0,080 | 0,310 | 0,800 |
| Longitud (m) | 0,020 | 0,210 | 1,140 |
| Profundidad (m) | 0,090 | 0,360 | 1,200 |
