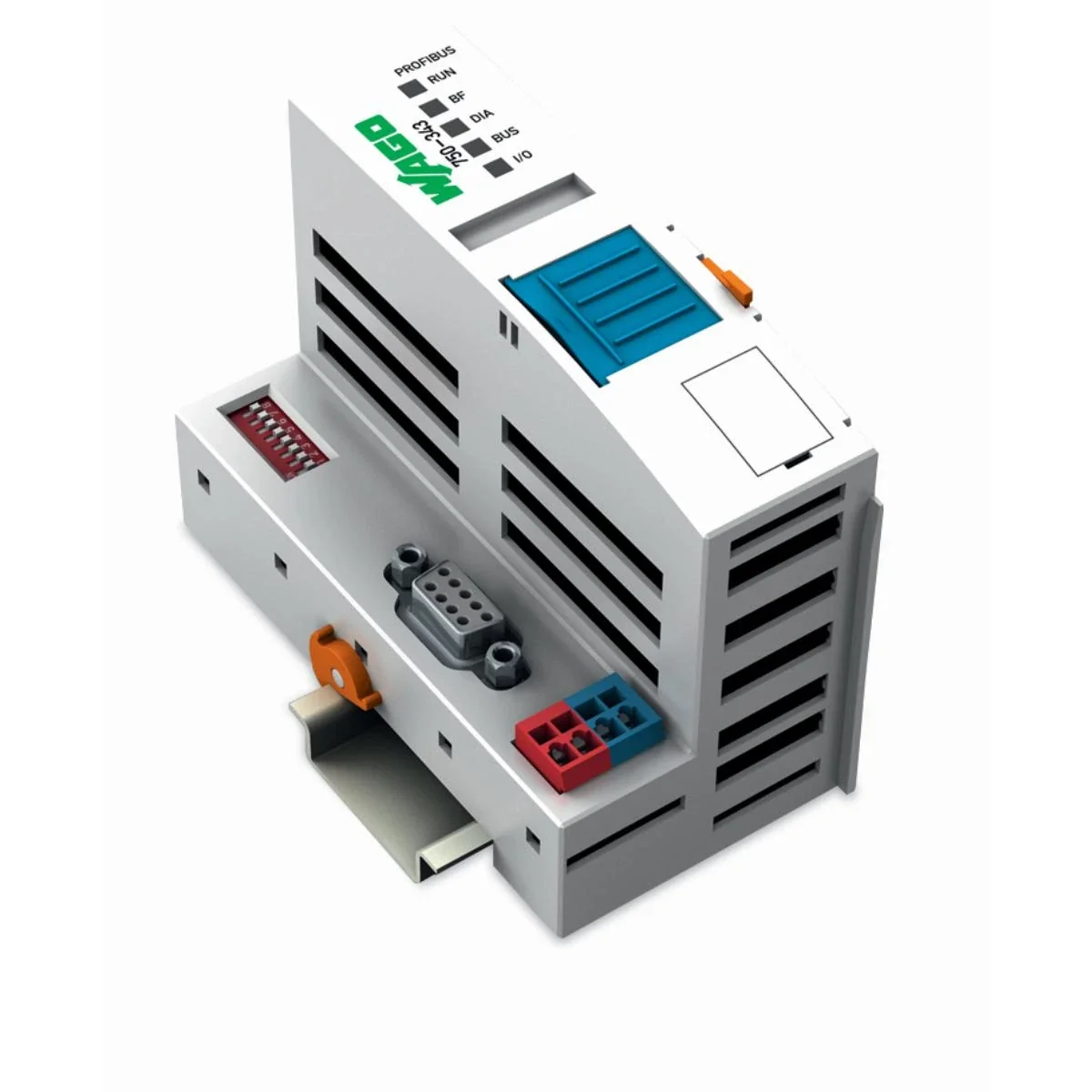

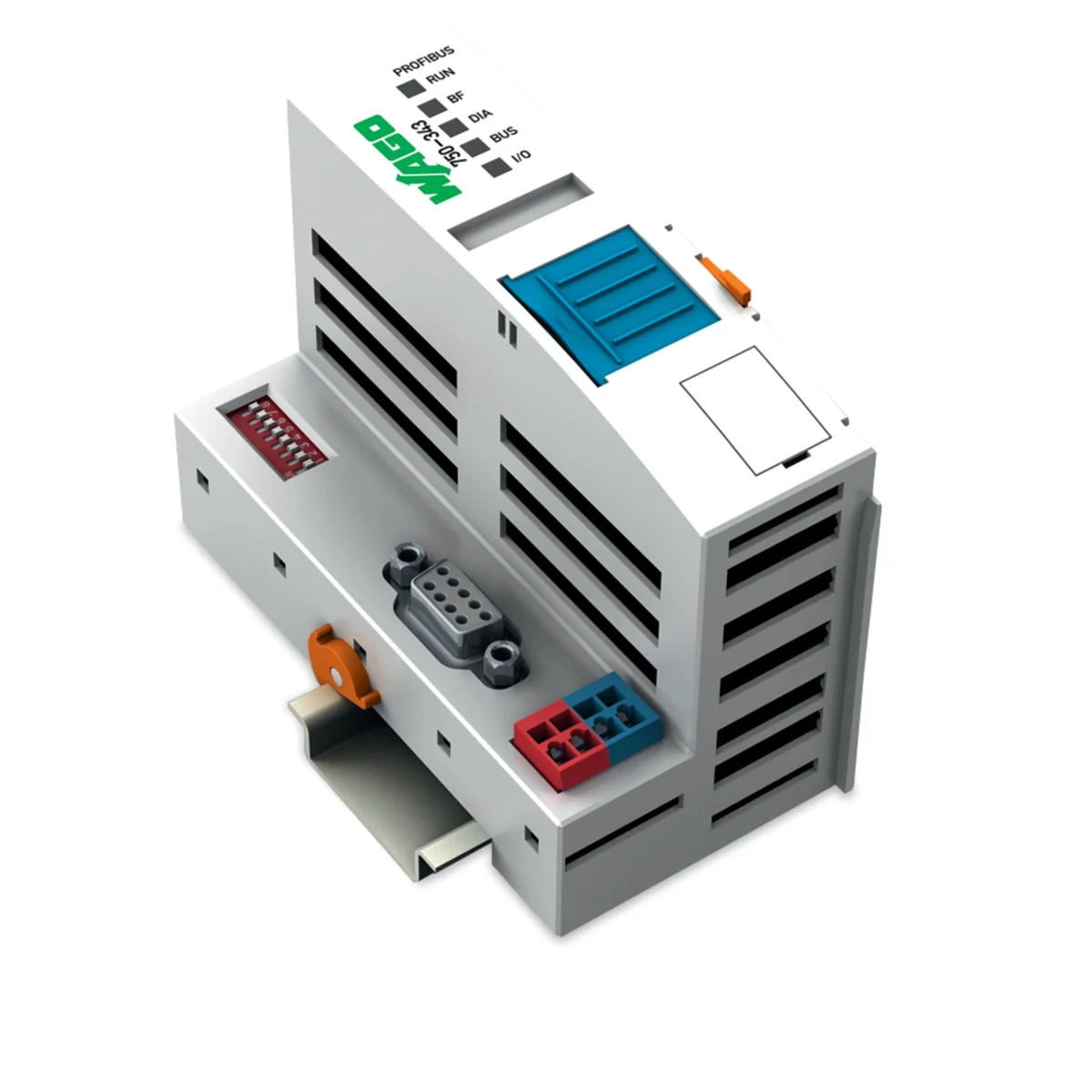

ECO PROFIBUS DP 12MBd interface 750-343

local index:
APE008WAGO
Catalog No:
750-343
EAN code:
4045454422554
Manufacturer: WAGO ELWAG
Depth [mm]: 97
Color: Gray
Installation: On the TH-35 rail
Price:
293,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

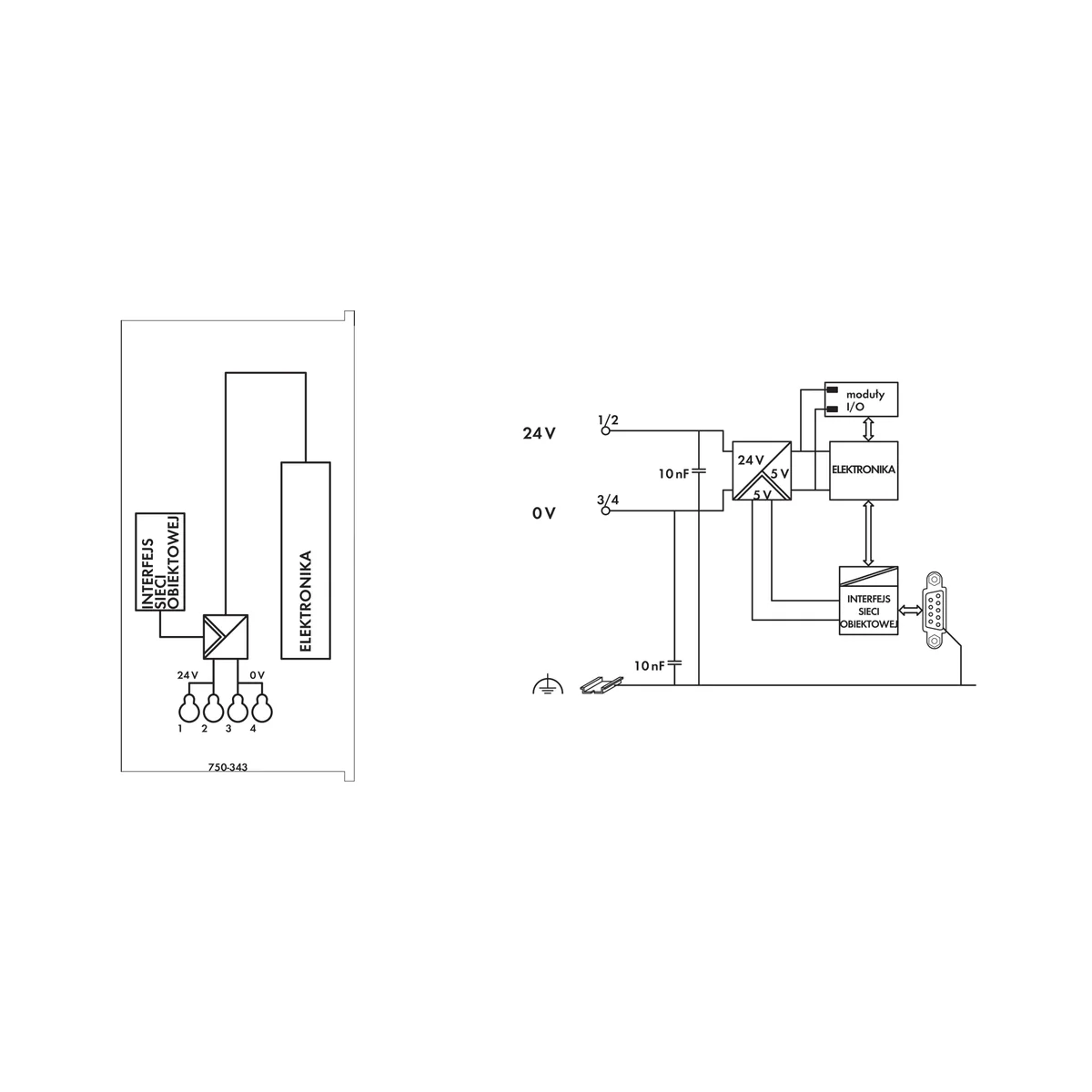

Product description

The ECO web interface has been developed for applications with limited process image size. Applications of this kind generally use many binary signals with a limited number of analog signals. The system bus is powered directly from the interface. Powering the field bus requires a separate power module. During the initialization phase, the PROFIBUS interface analyzes the structure of the node and, based on the state of the inputs and outputs, creates a process image. In order to optimally use the address space, modules occupying less than 8 bits are grouped into full bytes. It is possible to configure modules as inactive. Thanks to this, you can freely modify the structure of the node due to peripheral signals, without interfering with the previously written driver program. Diagnostics of the attached modules is carried out in accordance with EN 50170, so there is no need for software interpretation of diagnostic states.

Technical data

  • Depth [mm]
    97
  • Installation
    On the TH-35 rail
  • Total current for modules (5 V) [mA]
    650
  • Series
    750
  • Level of security
    IP20
  • Height [mm]
    65
  • The maximum image of the input process [B]
    32
  • Color
    Gray
  • Current consumption from the system bus (5 V) [mA]
    350
  • Gauge [AWG]
    28
  • PSU efficiency [%]
    24
  • Width [mm]
    50
  • Accurate color
    light gray

Other technical data

  • With integrated power supply
    Yes
  • Type of voltage (input voltage)
    DC
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces USB
    0
  • Number of HW-interfaces wireless
    0
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    Yes
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • With pluggable modules, digital I/O
    Yes
  • With pluggable modules, communication modules
    Yes
  • With pluggable modules, central modules
    Yes
  • Type of electric connection
    Spring clamp connection
  • Fieldbus connection over separate bus coupler possible
    No
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 3D
  • Height
    65 mm
  • Input voltage DC
    24 ... 24 V
  • Max. input current DC
    0.26 A
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Number of slots
    1
  • With pluggable modules, analogue I/O
    Yes
  • With pluggable modules, function and technology modules
    Yes
  • With pluggable modules, others
    Yes
  • With potential separation
    Yes
  • With bus coupler for modular station connection
    Yes
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    No
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 3G
  • Width
    50 mm
  • Depth
    97 mm

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,135
Volume (m3) 0,000
Width (m) 0,056
Length (m) 0,104
Depth (m) 0,074
