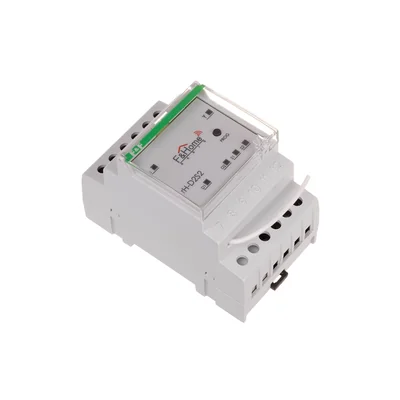

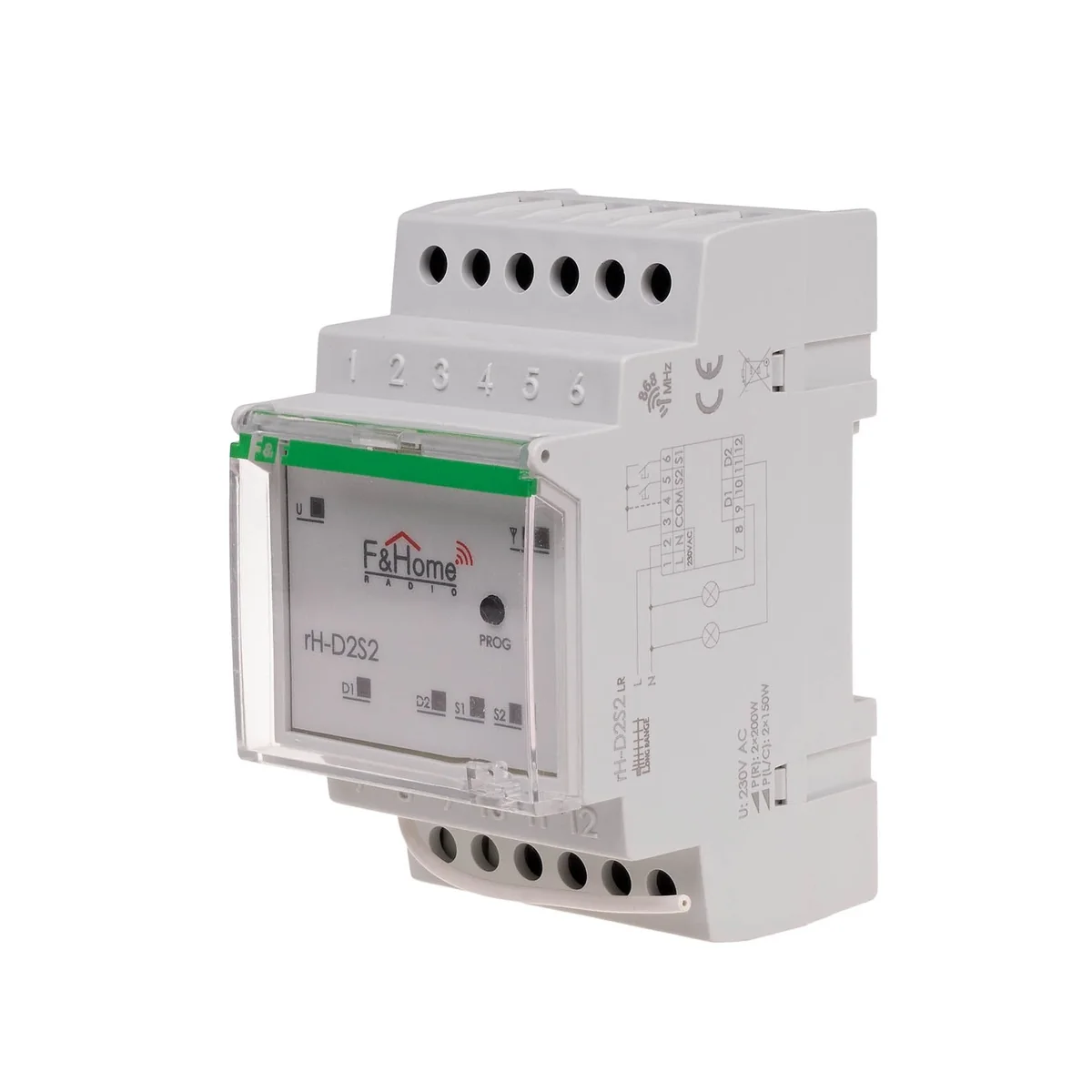

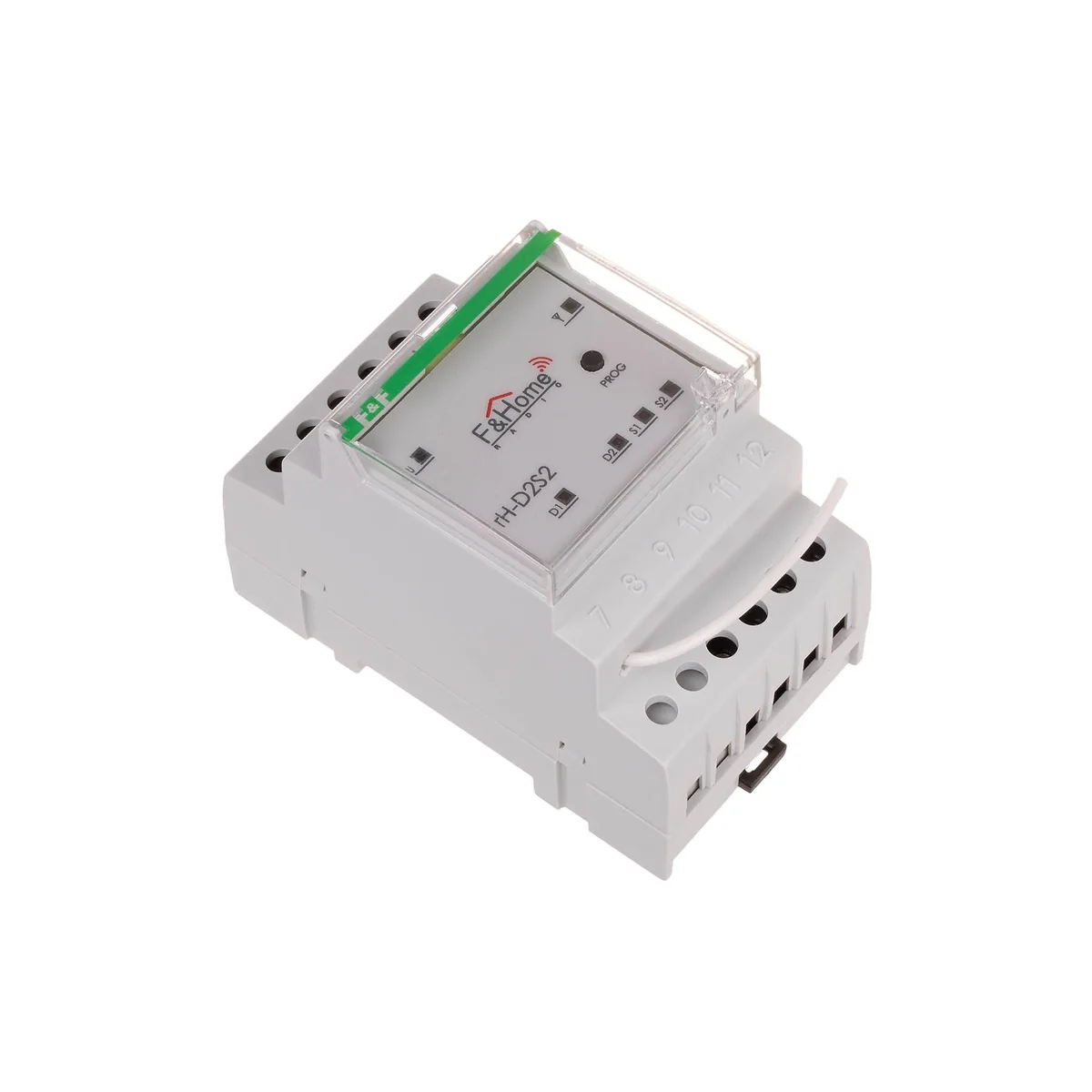

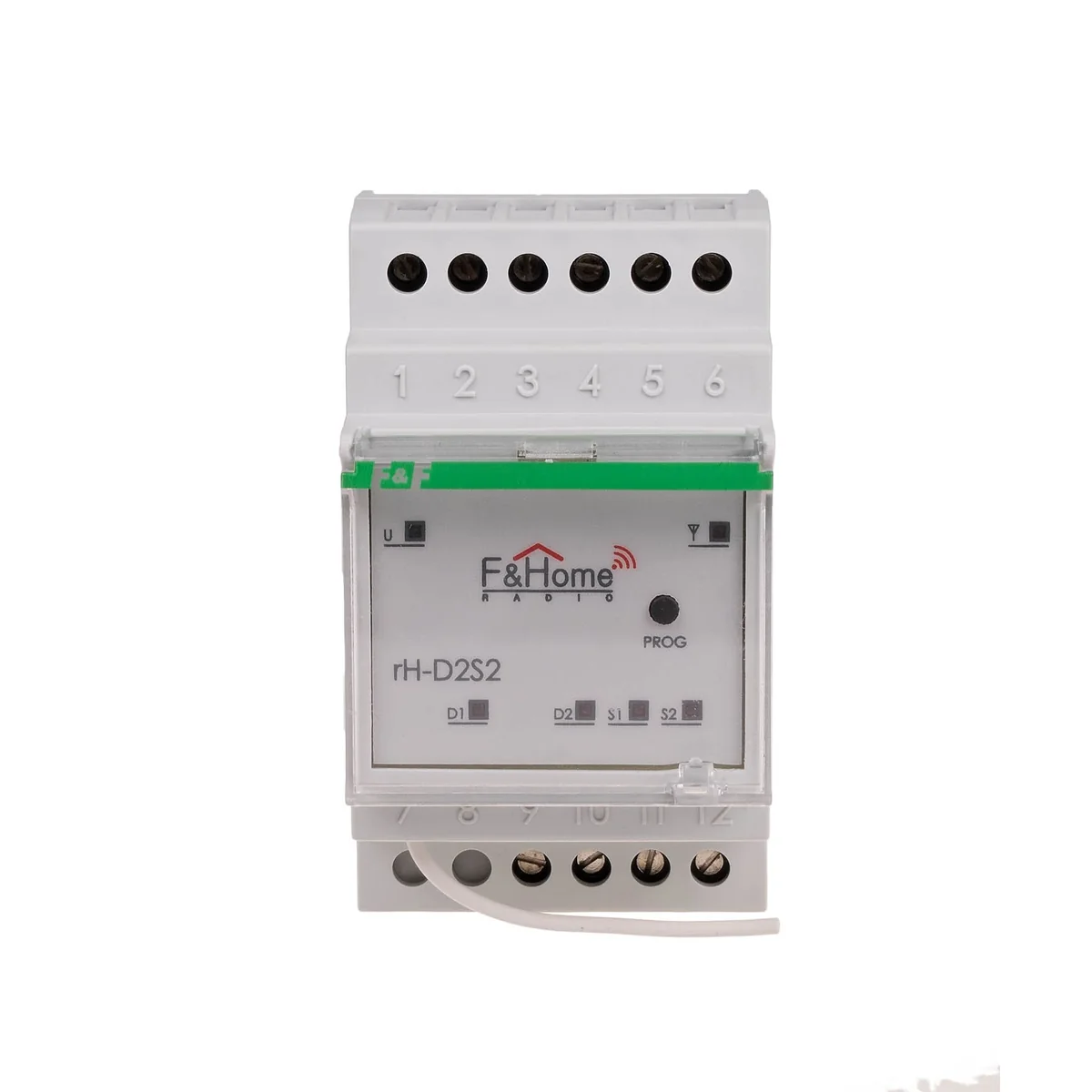

Double dimmer with double transmitter - Long Range RH-D2S2
local index:
API027FIFQ
Catalog No:
RH-D2S2
EAN code:
5908312596516
Click on the photo to enlarge
Manufacturer:
F&F
Number of outputs:
2
Output power [W]:
200
Type of load:
Universal
See full description
Price:
136,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description
rH-D2S2 is a combination of two dimmers and two contact inputs. The module sends information about contact opening or closing to the system and controls two AC230V receivers with a maximum power of 200W each.
Technical data
Number of outputs
2
Type of load
Universal
Level of security
IP20
Package width [mm]
80
Maximum control current [mA]
2000
Operating voltage range [V]
85-250
Output power [W]
200
Family
F&HOME RADIO
Package height [mm]
80
Package weight [kg]
0.3
Indicator
LED
PKWIU
27.12.24.0
Other technical data
Bus system KNX
No
Bus system radio frequent
No
Bus system Powernet
No
Model
Dimming actuator
Width in number of modular spacings
3
Substation input
No
With LED indication
Yes
Power boost suitable
No
Max. control current
2000 mA
Parallel-service possible
No
Bus system KNX-RF (Radio Frequent)
No
Bus system LON
No
Other bus systems
Other
Mounting method
DRA (DIN-rail adapter)
With bus connection
No
Local operation/hand operation
Yes
Number of outputs
2
Type of load
Universal
Voltage
85 ... 250 V
Degree of protection (IP)
IP20
Bulk packaging
A kind of package
Sztuka
Quantity
1 pcs.
Weight (kg)
0,280
Files to download
FF_RoHS_2022.pdf
Deklaracja_CE_rH-D1S2_rH-D2S2,_rH-PWM2S2,_rH-PWM3_(003).pdf
FF_RoHS_2022.pdf
Deklaracja_CE_rH-D1S2_rH-D2S2,_rH-PWM2S2,_rH-PWM3_(003).pdf
