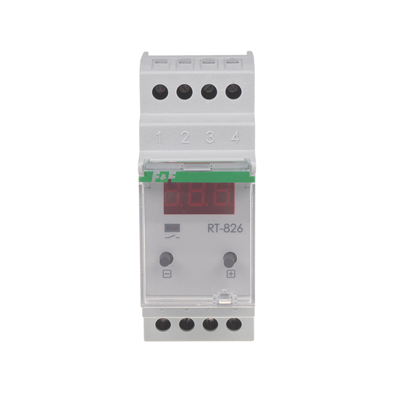

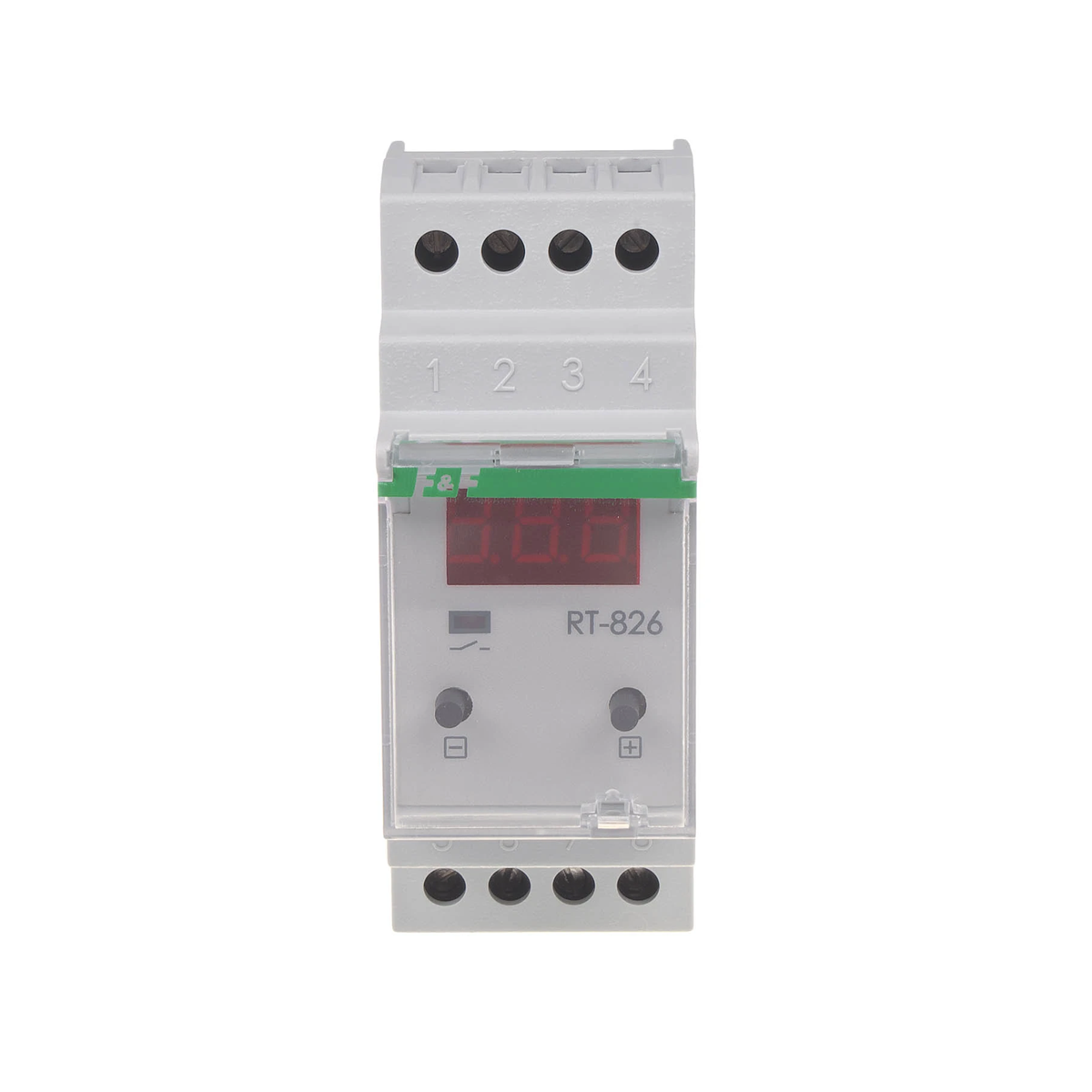

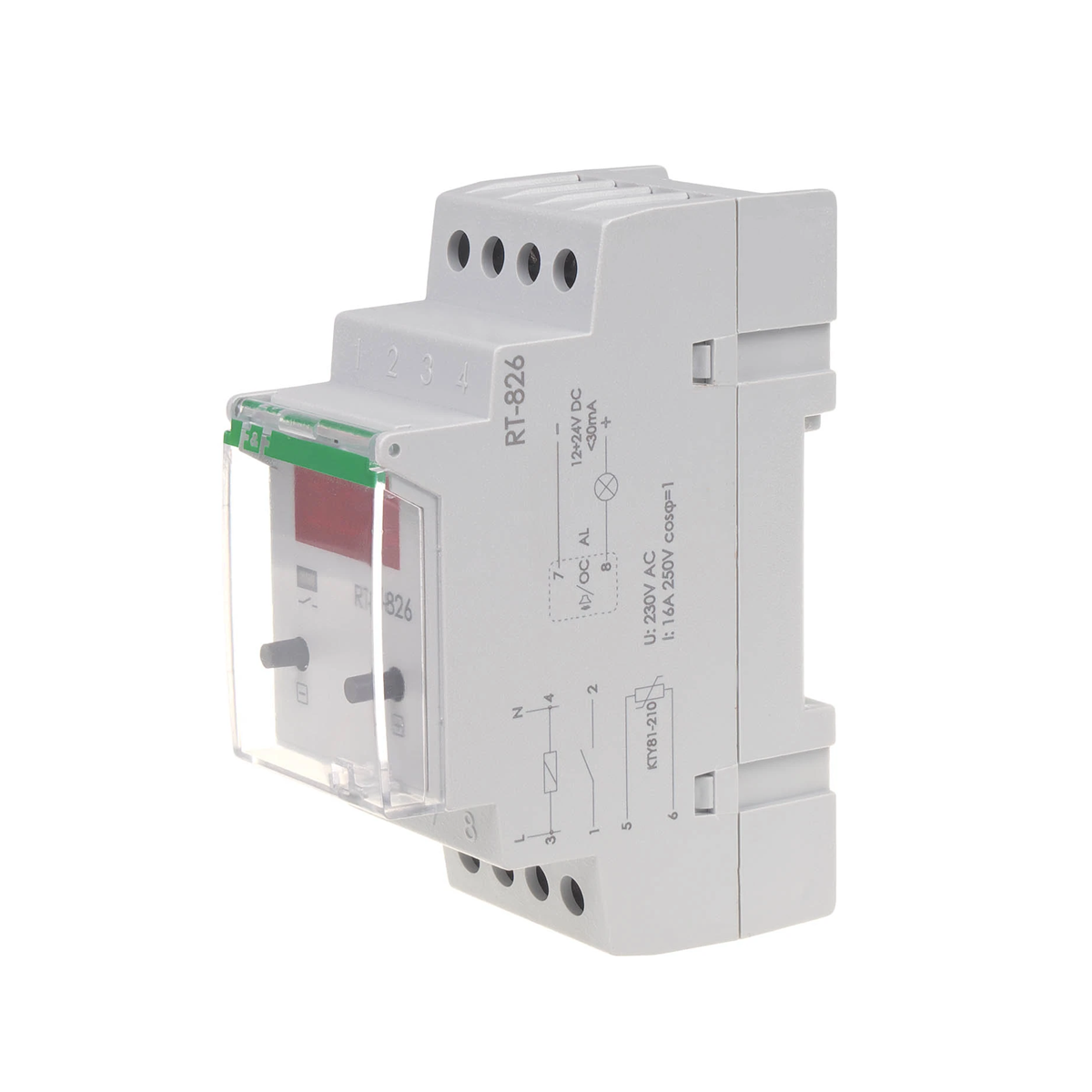

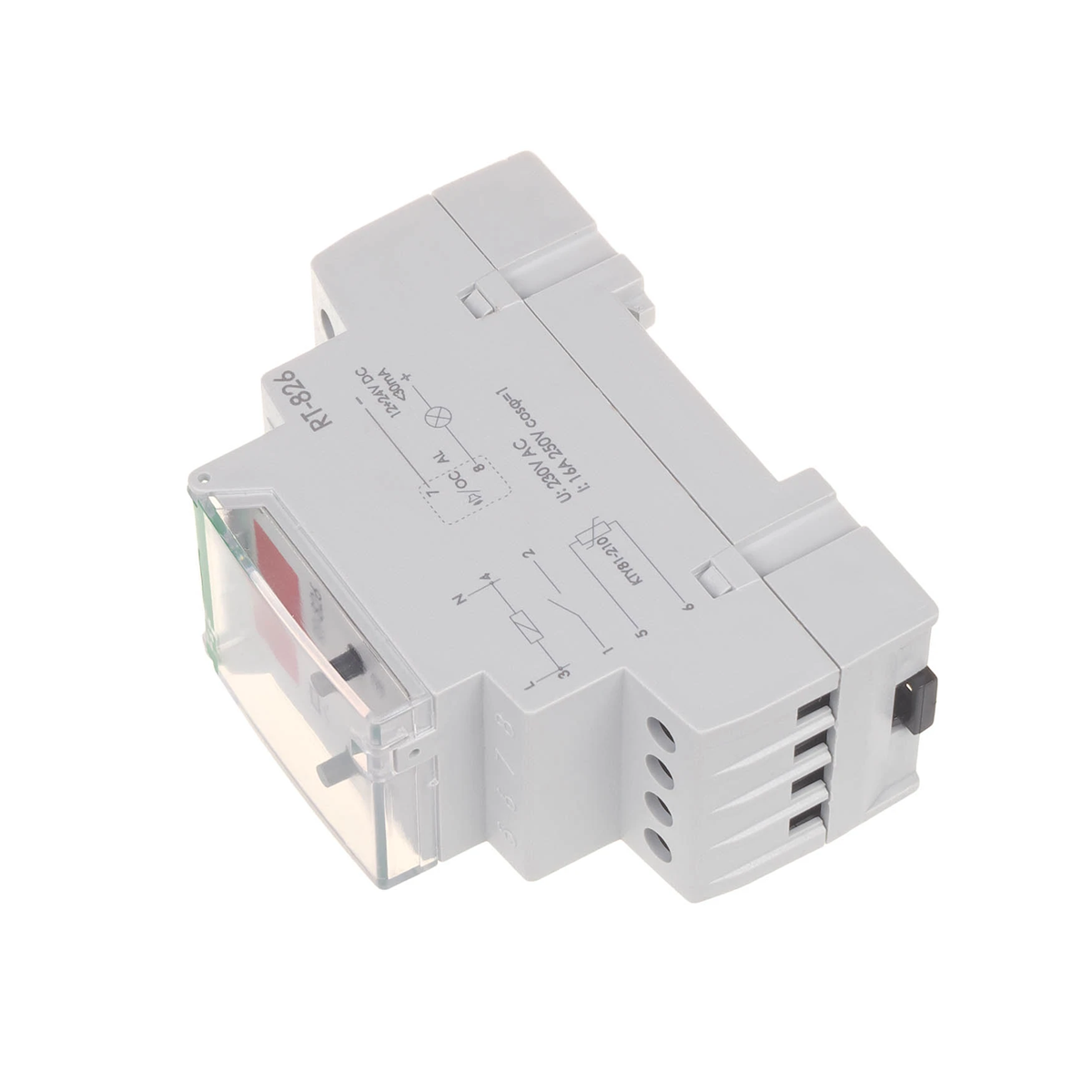

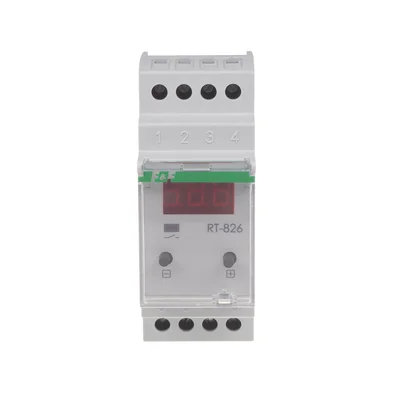

Digital temperature controller -25-130 ̊C RT-826 RT-826
local index:
APT004FIFQ
Catalog No:
RT-826
EAN code:
5908312594512
Price:
67,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The temperature controller is used to control heating and ventilation devices in order to maintain a constant ambient temperature.
Technical data
-
InstallationOn the TH-35 rail
-
load current [A]<16
-
Contact1Z separated
-
Temperature adjustment range [°C]60-95
-
Package width [mm]40
-
Temperature sensorKTY 81-210
-
Rated voltage [V]230
-
FamilyF&HOMERADIO
-
Dimensions2 modules (35mm)
-
Package height [mm]150
-
Package weight [kg]0.2
-
PKWIU26.51.70.0
Other technical data
-
ModelDigital
-
Rated voltage230 ... 230 V
-
Number of channels1
-
24 h programNo
-
Input for time programNo
-
Autonomy0 h
-
Operation mode switchNo
-
Nominal switching current at 230 V, not potential free16 A
-
Width in number of modular spacings2
-
Sensor typeRemote sensor
-
Rated frequency50 ... 50 Hz
-
Text guidance in displayYes
-
Weekly programNo
-
Adjustment range comfort-25 ... 130 °C
-
Automatic switching summer-/winter timeNo
-
Switching preselectionNo
-
Degree of protection (IP)IP20
-
Assembly depth65 mm
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,144 |
| Width (m) | 0,041 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
