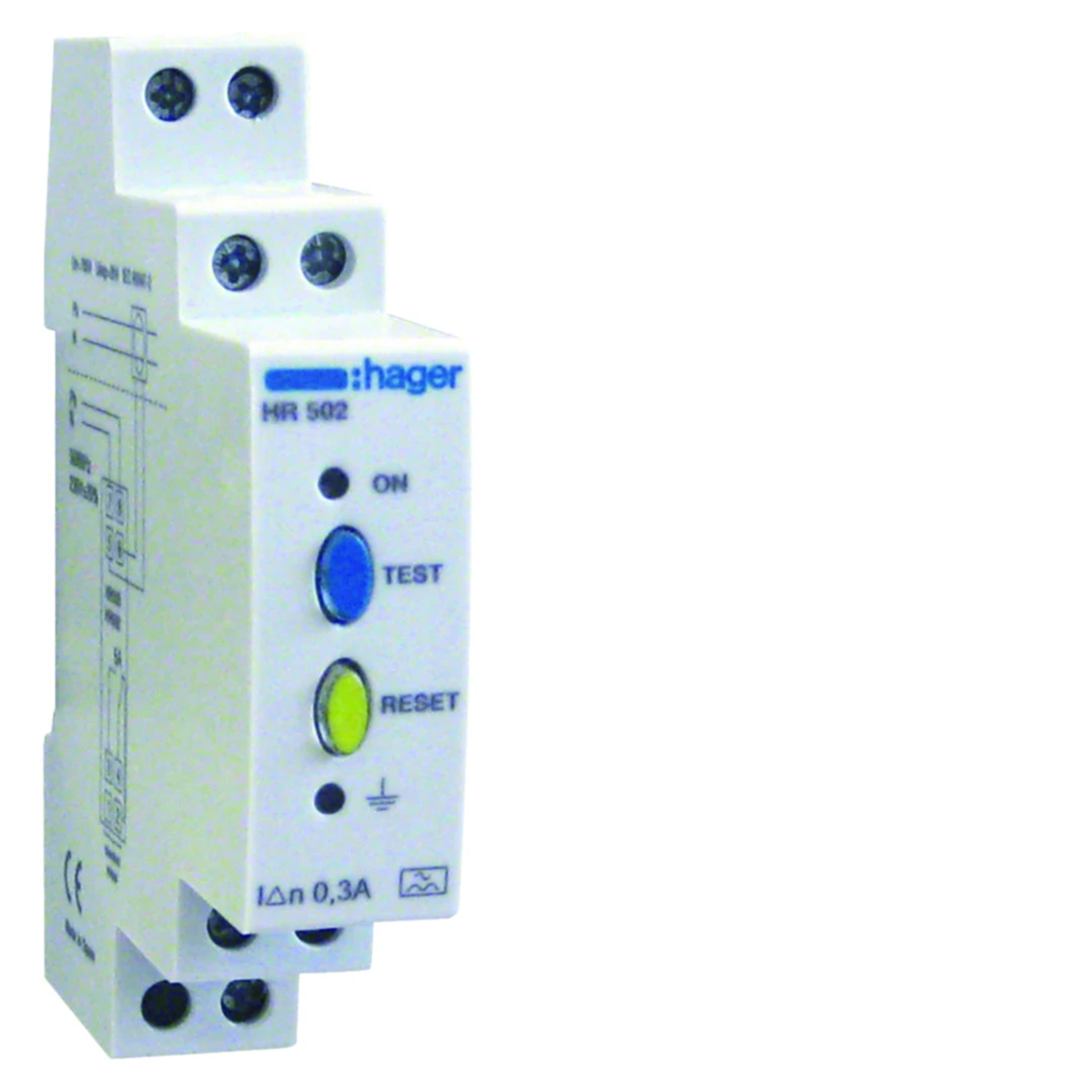

Differential-current relay. 300mA instantaneous HR502

local index:
APP011HAGE
Catalog No:
HR502
EAN code:
3250613281304
Manufacturer: HAGER
Rated frequency [Hz]: 60
Input power [VA]: 3
Tightening torque [Nm]: 1.7
Price:
206,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Differential-current relay. 300mA instantaneous

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    1.7
  • Level of security
    IP30
  • Operating temperature range [°C]
    from -10 to 55
  • Number of modules
    1
  • storage temperature [°C]
    from -25 to 70
  • Wire cross-section (cord) [mm²]
    1 - 2.5
  • PKWIU
    27.12.24.0
  • Input power [VA]
    3
  • Differential current [mA]
    300
  • power loss [W]
    4.2
  • Rated switching voltage [V]
    230
  • Maximum operating voltage [V]
    276
  • RCD type
    AND
  • Conductor cross-section (wire) [mm²]
    1.5 - 4

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Max. power on-delay time
    0 ms
  • Max. rated operation voltage Ue
    230 V
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Rated fault current
    0.3 ... 0.3 A
  • Delay adjustable
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 108 pcs. 2592 pcs.
Weight (kg) 0,084 0,090 10,230 268,520
Width (m) 0,082 0,080 0,315 0,800
Length (m) 0,023 0,025 0,215 1,006
Depth (m) 0,096 0,100 0,365 1,200
