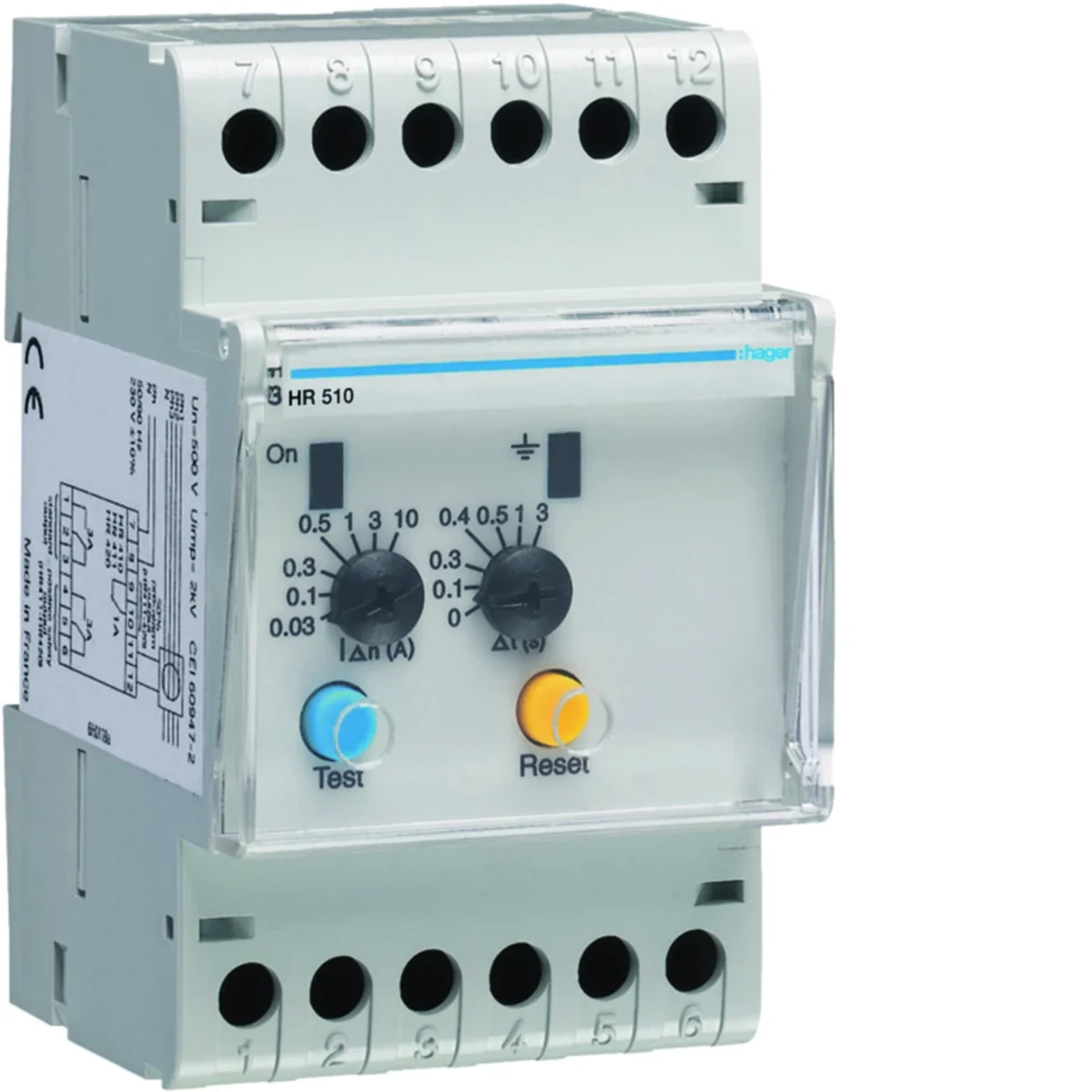

Differential-current relay. 0.03-10A, adj. delay HR510

local index:
APP012HAGE
Catalog No:
HR510
EAN code:
3250613281311
Manufacturer: HAGER
Rated frequency [Hz]: 60
Input power [VA]: 5
Tightening torque [Nm]: 1.7
Price:
266,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Differential-current relay. 0.03-10A, adj. delay

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    1.7
  • Level of security
    IP30
  • Operating temperature range [°C]
    from -10 to 55
  • Number of modules
    3
  • storage temperature [°C]
    from -25 to 70
  • Wire cross-section (cord) [mm²]
    1 - 2.5
  • PKWIU
    27.12.24.0
  • Input power [VA]
    5
  • Differential current [mA]
    30 100 300 500 1000 3000 10000
  • power loss [W]
    4.1
  • Rated switching voltage [V]
    230
  • Maximum operating voltage [V]
    276
  • RCD type
    AND
  • Conductor cross-section (wire) [mm²]
    1.5 - 4

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Max. power on-delay time
    3000 ms
  • Max. rated operation voltage Ue
    230 V
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Rated fault current
    0.03 ... 10 A
  • Delay adjustable
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,275 0,285 14,130 362,120
Width (m) 0,095 0,080 0,320 0,800
Length (m) 0,080 0,060 0,240 1,158
Depth (m) 0,060 0,095 0,360 1,200
