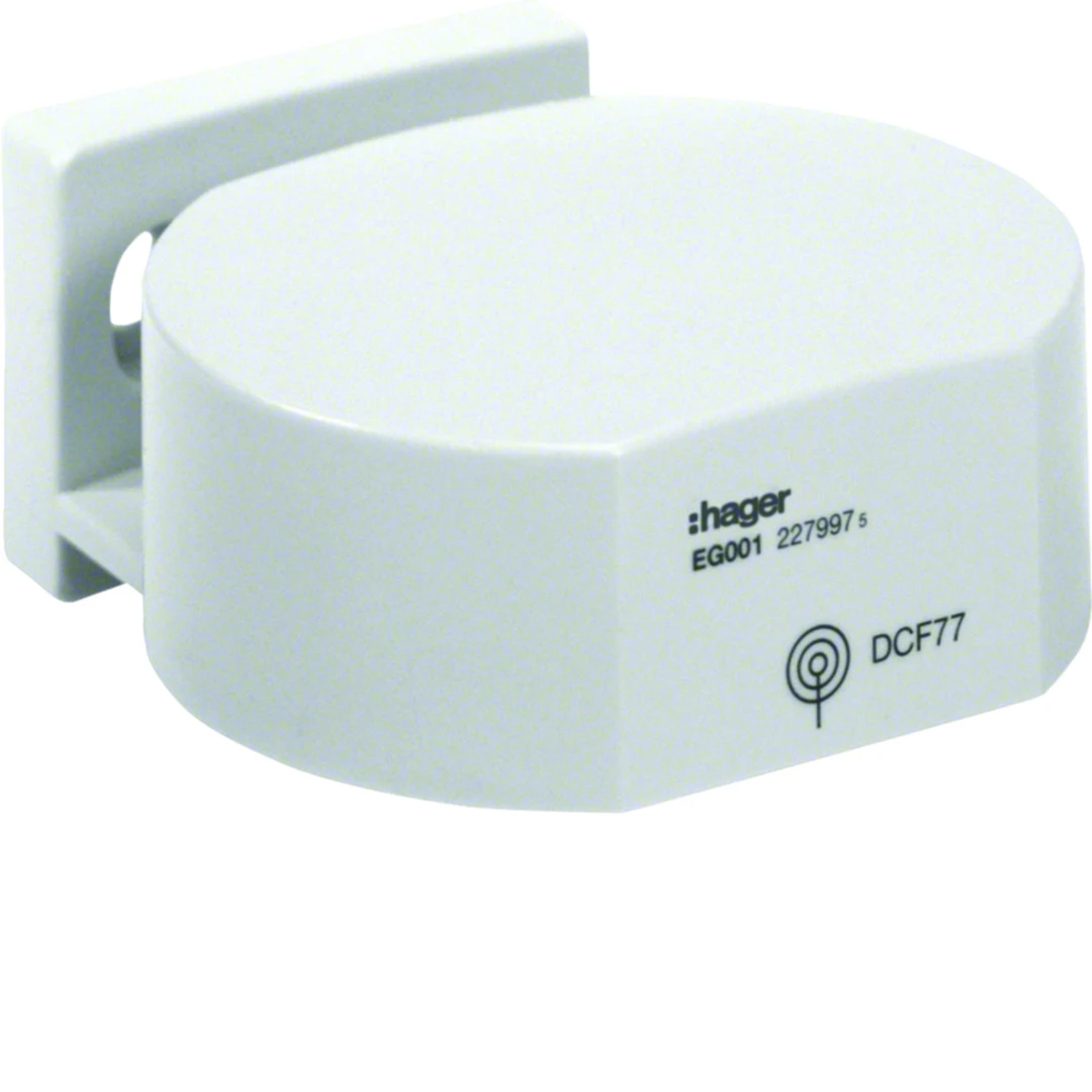

DCF77 radio receiver for EG103/EG401/EG471 clock synchronization EG001

local index:
APG055HAGE
Catalog No:
EG001
EAN code:
3250612279975
Manufacturer: HAGER
Depth [mm]: 89
Installation: Surface-mounted
Level of security: IP54
Price:
213,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DCF77
radio antenna for EG103D, EG403E, EG493E digital control clocks. Time synchronization using
DCF77 radio signal (time standard sent from the transmitter in Frankfurt am Main).
Automatic change of date, current time, summer/winter time change. Surface mounting with
the supplied bracket. Working temperature: from -20 °C to + 70 °C

Technical data

  • Depth [mm]
    89
  • Level of security
    IP54
  • Height [mm]
    75
  • storage temperature [°C]
    from -20 to 50
  • Conductor cross-section (wire) [mm²]
    0.5 - 2.5
  • Installation
    Surface-mounted
  • Width [mm]
    38
  • Operating temperature range [°C]
    from -20 to 50
  • Wire cross-section (cord) [mm²]
    0.5 - 1.5
  • PKWIU
    26.51.20.0

Other technical data

  • DCF77 time synchronisation for digital timers
    Yes
  • Number of connectable time switches
    10
  • Type of power supply
    Via digital time switch

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,100 0,104 5,528 155,672
Width (m) 0,080 0,082 0,318 0,800
Length (m) 0,095 0,059 0,239 1,106
Depth (m) 0,060 0,093 0,366 1,200
