402332
0
Daily/weekly clock NFC 1P 16A IP20 230V AC/DC 125182300000
local index:
APR029FIND
Catalog No:
125182300000
EAN code:
8012823365220
Manufacturer:
FINDER
Contact material: AgSnO2
Installation: On the TH-35 rail
AC coil voltage [V]: 110-230
Price:
64,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

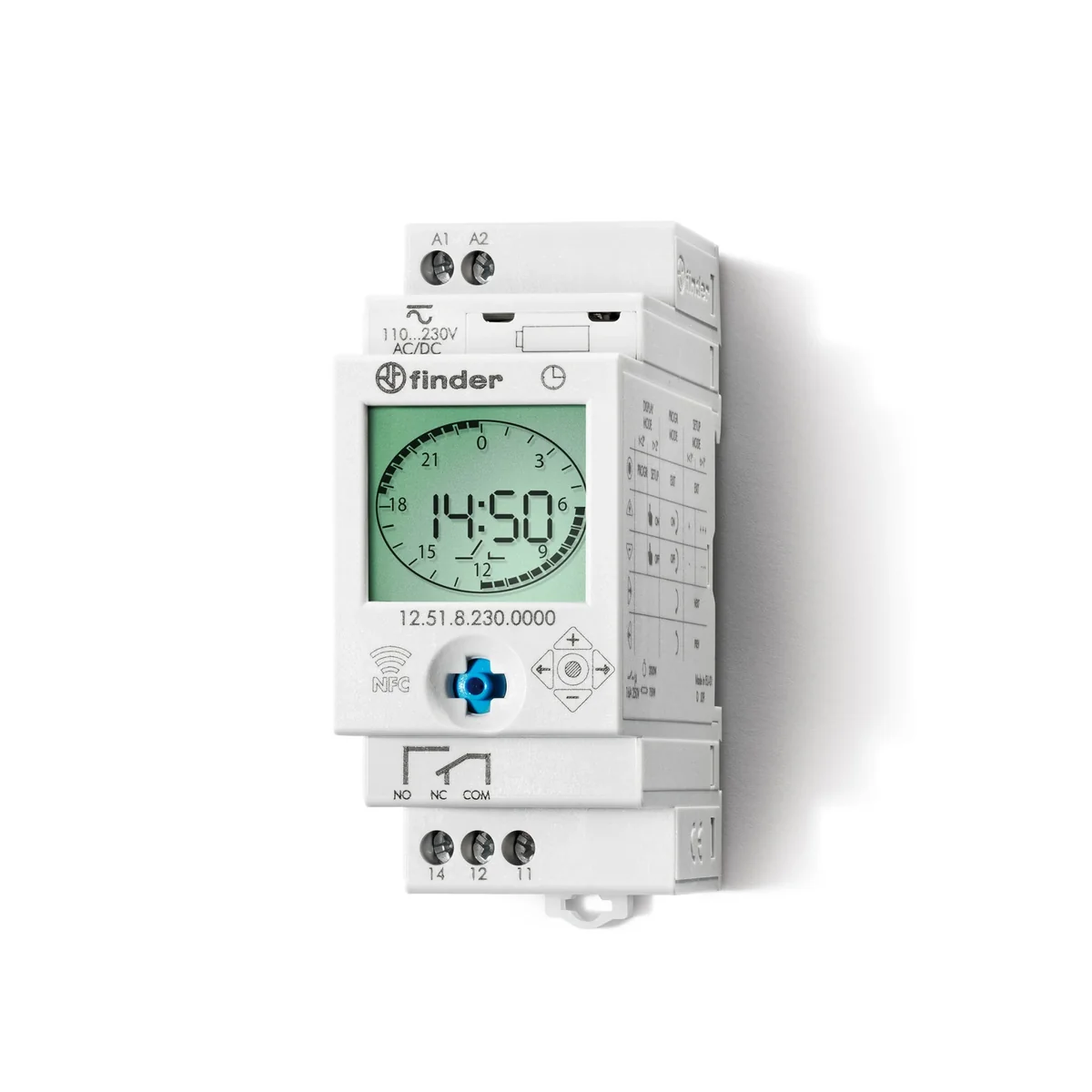

Daily/weekly electronic timer (analog design)
Features:
- Possibility of programming in "Classic" using the joystick or in “Smart” using smartphones equipped with NFC communication
- Easy configuration of daily and weekly programming
- European summer/winter time, Australian time, Brazilian time
- LCD display, adjustable and programmable
- 4-digit PIN lock
- Backlit display
- Internal battery for programming and settings without power connection, easy replacement from the front
- Safe separation between power and contact
- Cadmium-free contact material
Technical data
-
Contact materialAgSnO2
-
AC coil voltage [V]110-230
-
Rated voltage [V]230
-
Power consumption [VA]2.8
-
Rated current [A]16
-
Level of securityIP20
-
TypeDaily Weekly
-
Battery life [years]6
-
Type of coil voltageAC/DC
-
Rated switching power for AC1 [VA]4000
-
Electrical durability AC1 [number of cycles]100000
-
Accuracy [s/day]1
-
Number of time programs48
-
InstallationOn the TH-35 rail
-
DC coil voltage [V]110-230
-
Overvoltage resistance [kV]4
-
Power consumption [W]0.9
-
Family12
-
Width [number of modules]2
-
Rated inrush current [A]thirty
-
Number of contacts1P
-
Rated AC switching voltage [V]400
-
Rated switching power for AC15 (230V AC) [VA]750
-
Minimum setting time [min]thirty
-
Battery typeCR 2032
Other technical data
-
Mounting methodDIN rail
-
Supply voltage230 ... 230 V
-
Frequency supply voltage50 ... 60 Hz
-
Autonomy in years6
-
Text guidance in displayYes
-
24 h programYes
-
Annual programYes
-
Impulse programYes
-
Astro programYes
-
Hour meterYes
-
Quartz controlledYes
-
Shortest switching time channel 130 min
-
Automatic switching summer-/winter timeYes
-
External pushbutton inputYes
-
Nominal switching current at 250 V AC16 A
-
Degree of protection (IP)IP20
-
Width35 mm
-
Depth60.8 mm
-
Number of channels1
-
Voltage type (supply voltage)AC
-
Autonomy in hours52596
-
Accuracy per day1.5 s
-
60 min programYes
-
Weekly programYes
-
Holiday programYes
-
Cycle programYes
-
Random programYes
-
Mains synchronousYes
-
Radio-controlledYes
-
Number of memory locations48
-
Suitable for manual operationYes
-
Switching preselectionYes
-
Potential free switch contactYes
-
Width in number of modular spacings2
-
Height88.8 mm
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,116 | 0,664 |
| Width (m) | 0,095 | 0,245 |
| Length (m) | 0,045 | 0,100 |
| Depth (m) | 0,080 | 0,100 |
