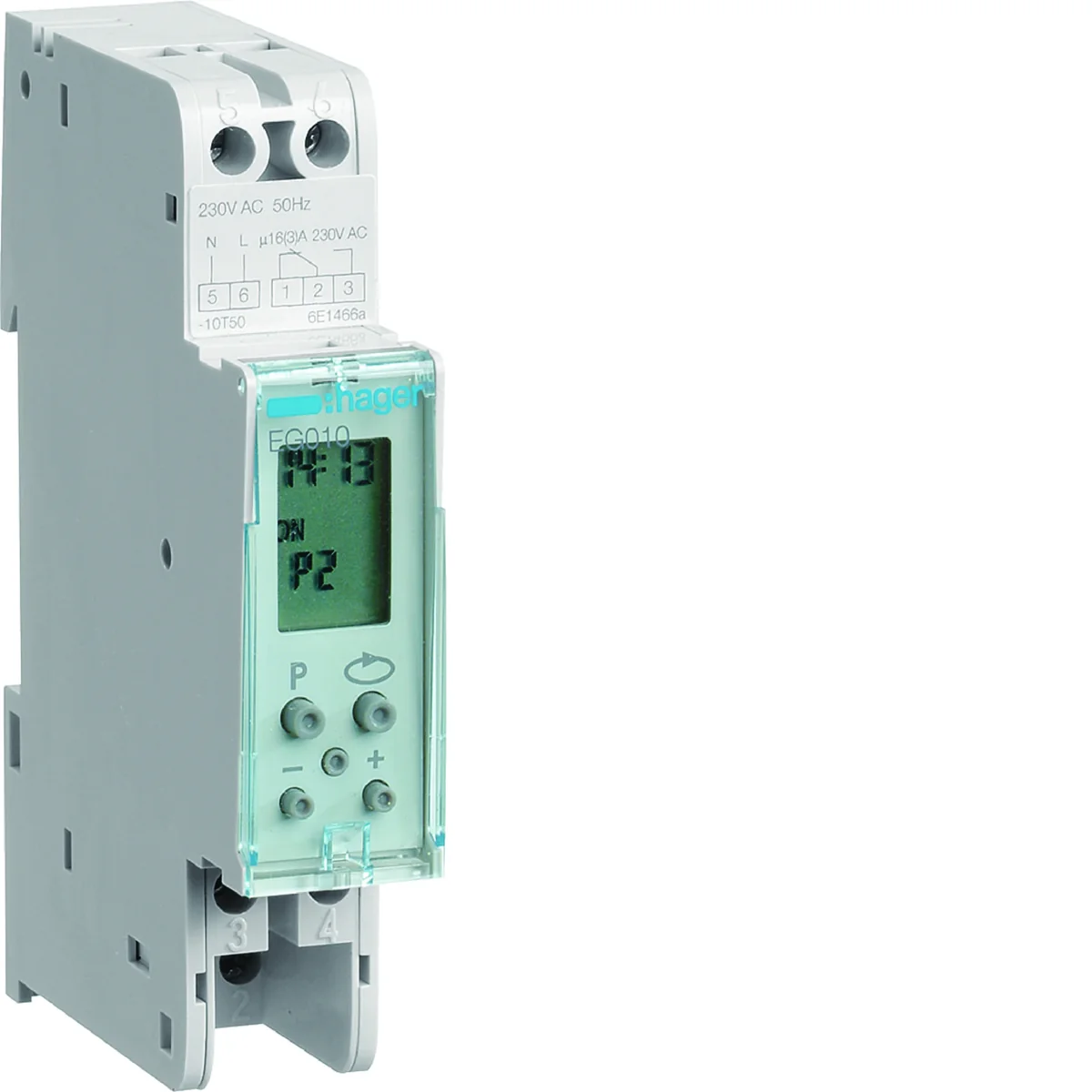

Daily digital clock, 5 program steps 1P/16A EG010

local index:
APR006HAGE
Catalog No:
EG010
EAN code:
3250612270101
Manufacturer: HAGER
Contact type: 1 switch
Breaking capacity: 16A 250V AC1
AC rated voltage [V]: 230
Price:
93,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

• comfortable and accurate control of the operation of lighting, ventilation and other receivers based on programmed operating times,
• 1-, 2- and 4-channel timers
• work cycles: daily, weekly, annual, astronomical (with "night break"), constant on/off, random,
• advanced "comfort" functions
• automatic change of summer/winter time,
• external control input,
• freedom of programming - up to 300 program steps
• time synchronization using external antenna EG001 (signal DFC77)
• manual programming or via a computer program
• programming keys (possibility of copying, transferring and editing programs)
• locking key - the ability to safely lock the settings,
• access to the clock protected by a PIN code,
• high power reserve (up to 5 years, lithium batteries),
• 10 or 16 A relay outputs.

Technical data

  • Contact type
    1 switch
  • AC rated voltage [V]
    230
  • Breaking capacity
    16A 250V AC1
  • PKWIU
    26.52.24.0

Other technical data

  • Mounting method
    DIN rail
  • Supply voltage
    230 ... 230 V
  • Frequency supply voltage
    50 ... 50 Hz
  • Text guidance in display
    No
  • With memory card
    No
  • 24 h program
    Yes
  • Annual program
    No
  • Impulse program
    No
  • Astro program
    No
  • Hour meter
    No
  • Quartz controlled
    Yes
  • Radio-controlled (DCF77)
    No
  • Shortest switching time channel 1
    1 min
  • Automatic switching summer-/winter time
    Yes
  • Switching preselection
    Yes
  • Potential free switch contact
    Yes
  • Width in number of modular spacings
    1
  • Height
    92 mm
  • Number of channels
    1
  • Voltage type (supply voltage)
    AC
  • Autonomy in years
    3
  • External programming
    No
  • 60 min program
    Yes
  • Weekly program
    No
  • Holiday program
    No
  • Cycle program
    No
  • Random program
    No
  • Mains synchronous
    No
  • Radio-controlled
    No
  • GPS (global positioning system)
    No
  • Shortest switching time channel 2
    1 min
  • Suitable for manual operation
    Yes
  • Nominal switching current at 250 V AC
    16 A
  • Degree of protection (IP)
    IP20
  • Width
    18 mm
  • Depth
    64 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,110 0,110 6,060 165,440
Width (m) 0,065 0,095 0,310 0,800
Length (m) 0,090 0,080 0,230 0,150
Depth (m) 0,018 0,048 0,360 1,200
