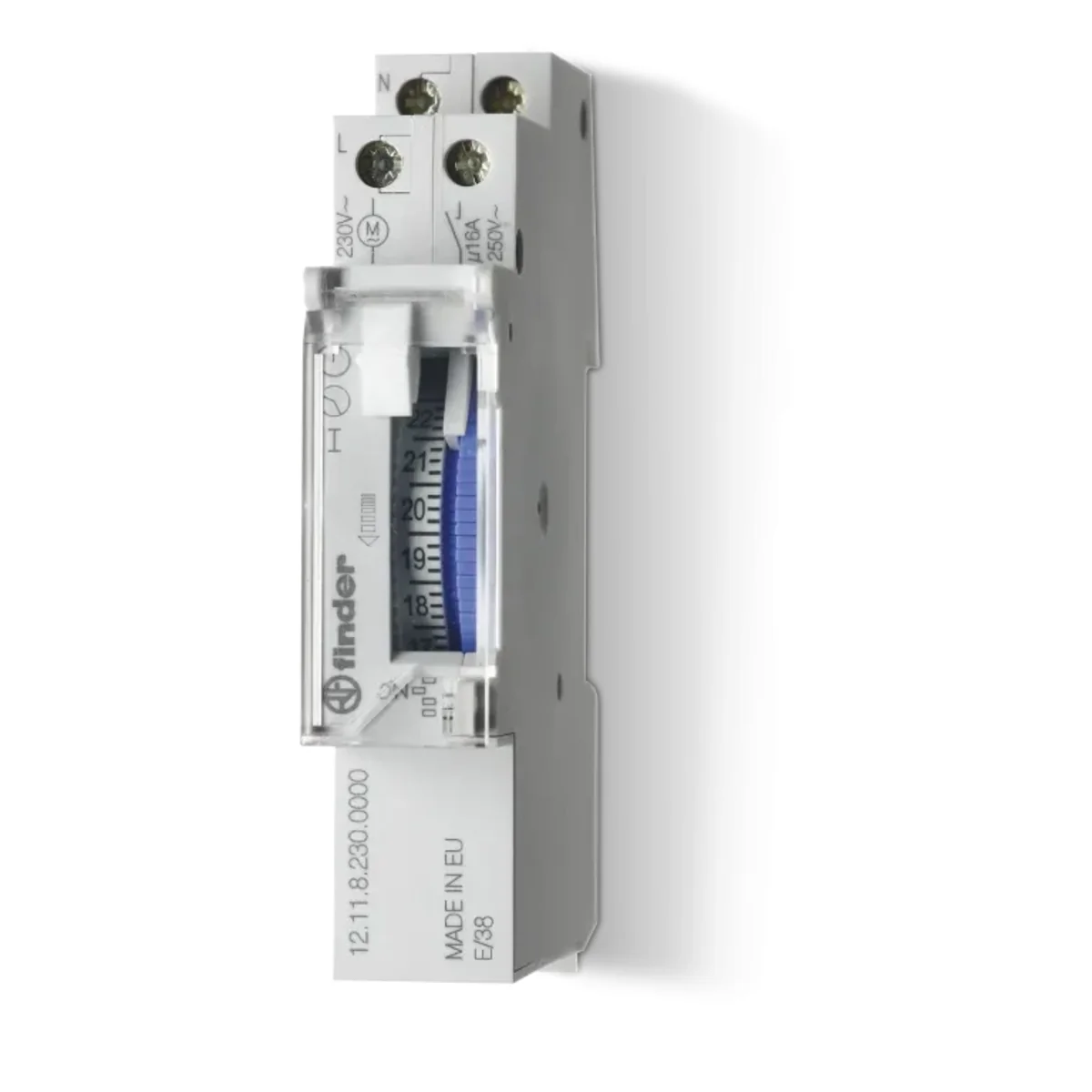

Daily clock 1Z 16A 230V AC 121182300000

local index:
APR042FIND
Catalog No:
121182300000
EAN code:
8012823292199
Manufacturer: FINDER
Contact material: AgSnO2
Installation: On the TH-35 rail
AC coil voltage [V]: 230
Price:
57,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Mechanical 24-hour clock.

Technical data

  • Contact material
    AgSnO2
  • AC coil voltage [V]
    230
  • Overvoltage resistance [kV]
    4
  • Rated current [A]
    16
  • Level of security
    IP20
  • Type
    daily
  • Number of contacts
    1Z
  • Rated switching power for AC1 [VA]
    4000
  • Electrical durability AC1 [number of cycles]
    50000
  • Minimum setting time [min]
    15
  • Support [h]
    100
  • Installation
    On the TH-35 rail
  • Rated voltage [V]
    230
  • Power consumption [VA]
    2
  • Family
    12
  • Width [number of modules]
    1
  • Rated inrush current [A]
    thirty
  • Type of coil voltage
    AC
  • Rated switching power for AC15 (230V AC) [VA]
    420
  • Daily scale
    96
  • Accuracy [s/day]
    1.5

Other technical data

  • Mounting method
    DIN rail
  • Supply voltage
    230 ... 230 V
  • Frequency supply voltage
    50 ... 60 Hz
  • Accuracy per day
    1.5 s
  • 24 h program
    Yes
  • Annual program
    Yes
  • Quartz controlled
    Yes
  • Program shift divide 1
    15 min
  • Suitable for manual operation
    Yes
  • Nominal switching current at 250 V AC
    16 A
  • Degree of protection (IP)
    IP20
  • Width
    17.5 mm
  • Depth
    64.5 mm
  • Number of channels
    1
  • Voltage type (supply voltage)
    AC
  • Autonomy in hours
    70
  • 60 min program
    Yes
  • Weekly program
    Yes
  • Mains synchronous
    Yes
  • Shortest switching time channel 1
    15 min
  • Automatic switching summer-/winter time
    Yes
  • Switching preselection
    Yes
  • Potential free switch contact
    Yes
  • Width in number of modular spacings
    1
  • Height
    90 mm

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 5 pcs. 1 pcs.
Weight (kg) 0,587 0,101
Width (m) 0,245 0,112
Length (m) 0,115 0,046
Depth (m) 0,097 0,092
