402480
0

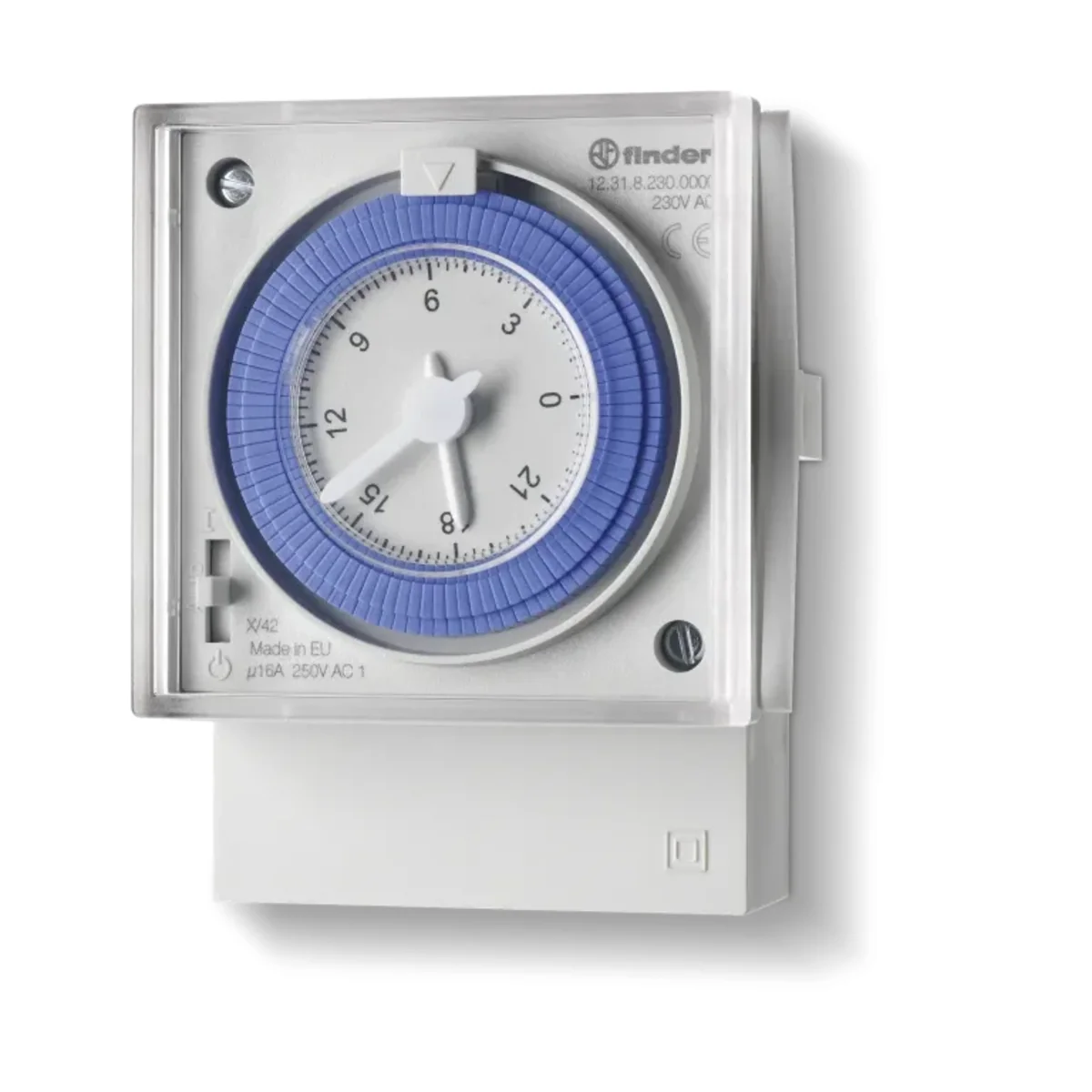

Daily clock 1P 16A IP20 230V AC 123182300000
local index:
APR046FIND
Catalog No:
123182300000
EAN code:
8012823329970
Manufacturer:
FINDER
Contact material: AgCdO
Installation: On the TH-35 rail
AC coil voltage [V]: 120-230
Price:
50,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Mechanical 24-hour clock.
Technical data
-
Contact materialAgCdO
-
AC coil voltage [V]120-230
-
Overvoltage resistance [kV]4
-
Rated current [A]16
-
Level of securityIP20
-
Typedaily
-
Type of coil voltageAC
-
Rated switching power for AC15 (230V AC) [VA]420
-
Daily scale96
-
Accuracy [s/day]1.5
-
InstallationOn the TH-35 rail
-
Rated voltage [V]230
-
Power consumption [VA]2
-
Family12
-
Width [number of modules]4
-
Number of contacts1P
-
Rated switching power for AC1 [VA]4000
-
Electrical durability AC1 [number of cycles]50000
-
Minimum setting time [min]15
-
Support [h]100
Other technical data
-
Mounting methodPanel mounting 72x72 mm
-
Supply voltage230 ... 230 V
-
Frequency supply voltage50 ... 60 Hz
-
Accuracy per day1.5 s
-
24 h programYes
-
Annual programYes
-
Quartz controlledYes
-
Program shift divide 115 min
-
Suitable for manual operationYes
-
Nominal switching current at 250 V AC16 A
-
Degree of protection (IP)IP20
-
Width72 mm
-
Depth51.4 mm
-
Number of channels1
-
Voltage type (supply voltage)AC
-
Autonomy in hours100
-
60 min programYes
-
Weekly programYes
-
Mains synchronousYes
-
Shortest switching time channel 115 min
-
Automatic switching summer-/winter timeYes
-
Switching preselectionYes
-
Potential free switch contactYes
-
Width in number of modular spacings4
-
Height91.5 mm
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 10 pcs. | 1 pcs. |
| Weight (kg) | 2,342 | 0,222 |
| Width (m) | 0,325 | 0,098 |
| Length (m) | 0,180 | 0,085 |
| Depth (m) | 0,110 | 0,064 |
