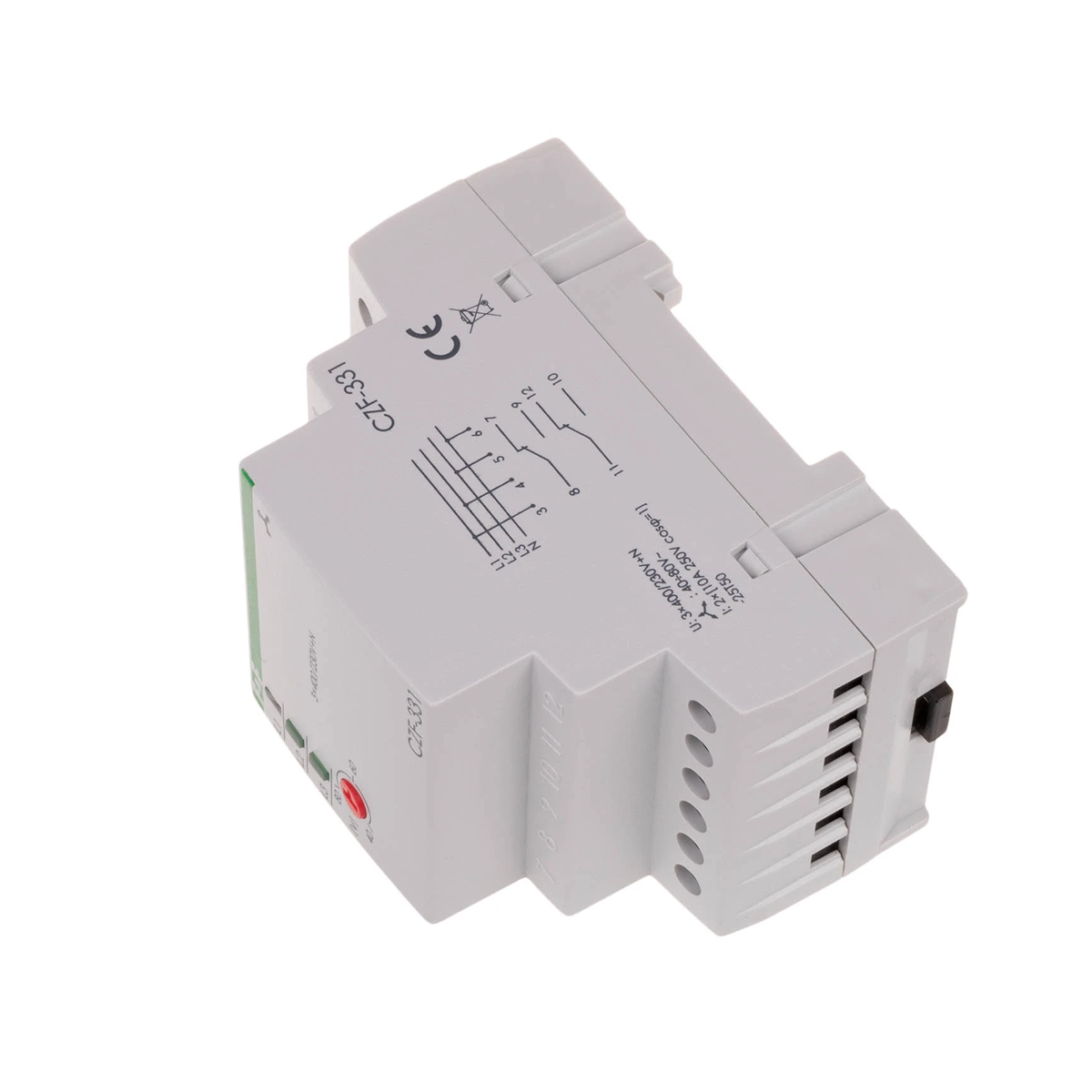

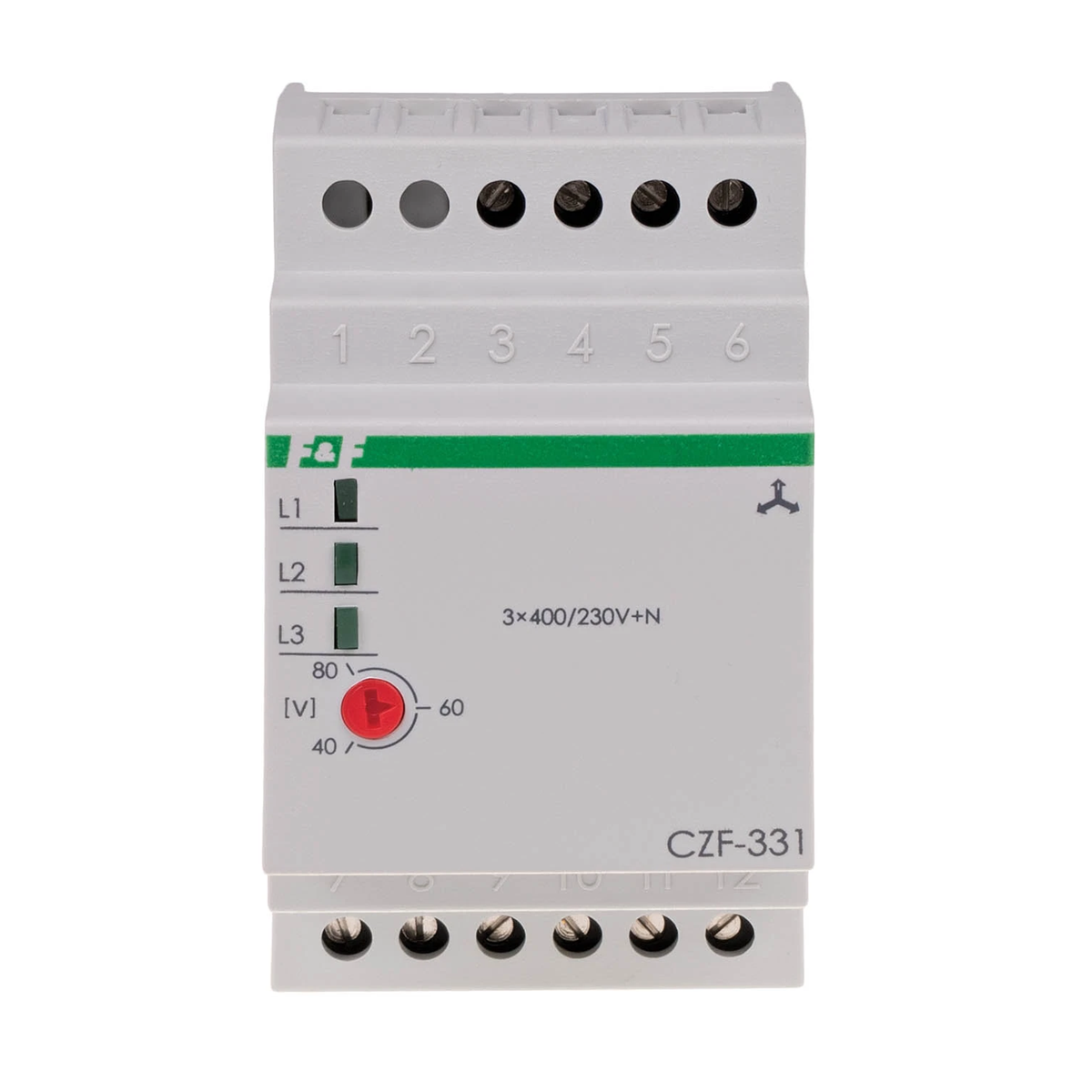

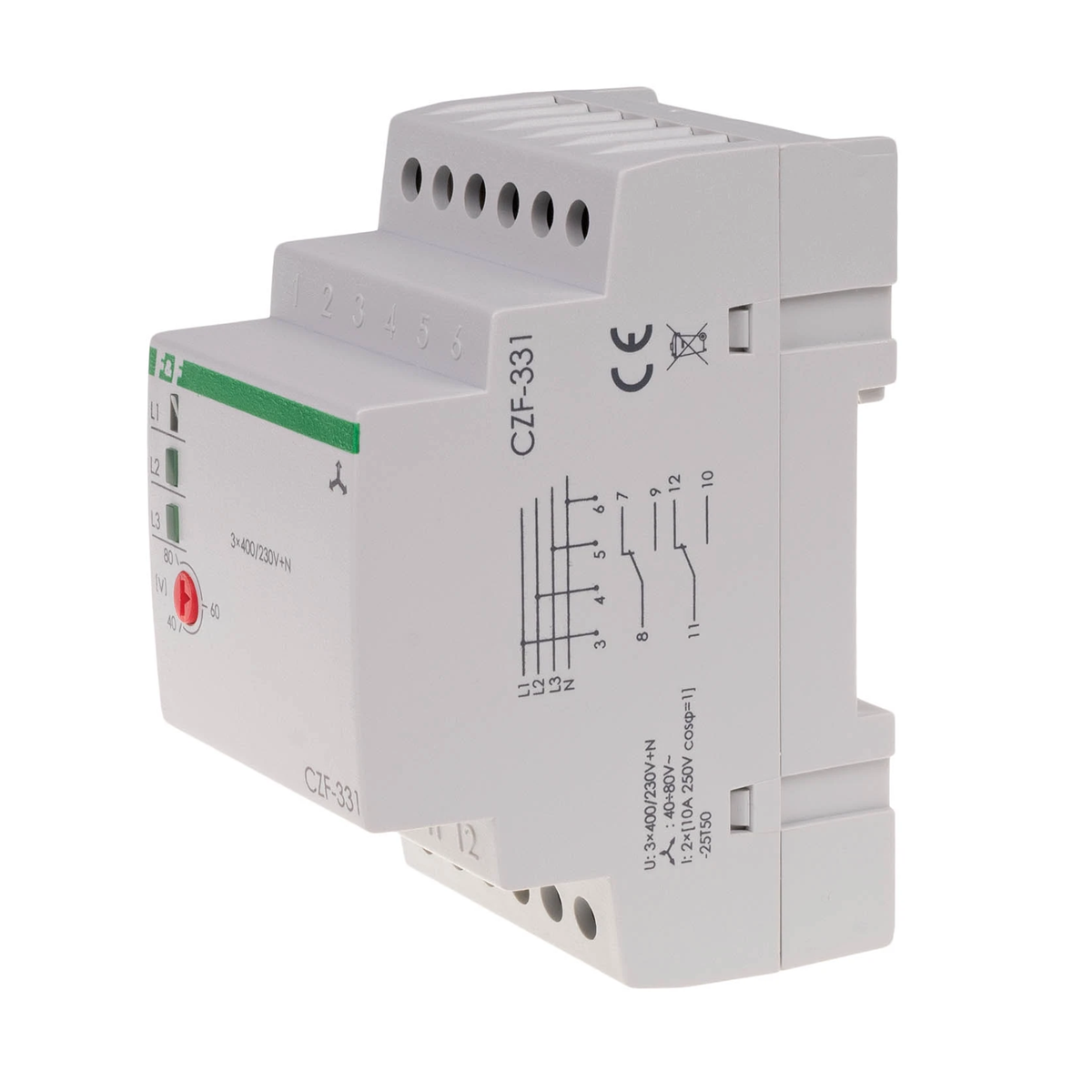

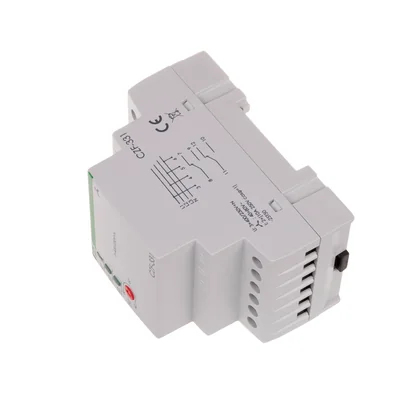

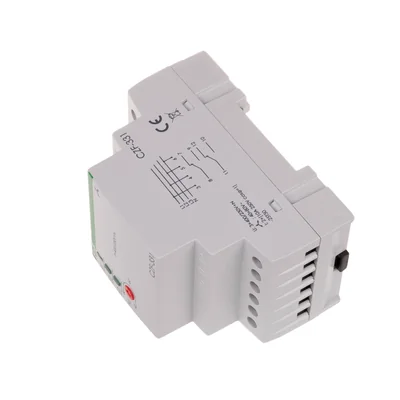

CZF-331 phase loss and unbalance detector CZF-331

local index:
APL203FIFQ
Catalog No:
CZF-331
EAN code:
5908312593157
Manufacturer: F&F
Trip voltage unbalance [V]: 40-55
Voltage hysteresis [V]: 5V~
Number of contacts: 0NO 0NC
Price:
30,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use
The phase loss sensor is designed to protect the motor  power supply from a three-phase network in the event of a voltage failure in at least one phase or voltage asymmetry between phases, which may result in motor damage. Action
Voltage failure in at least one, any phase  or Voltage unbalance [V] between the phases above the activation threshold will cause the motor to be switched off. The switch-off will take place with a delay of 4 seconds, which prevents accidental disconnection of the motor in the event of a momentary voltage drop. Reactivation will occur automatically when  voltage increase by 5V above the operating voltage  (i.e. the value of the voltage hysteresis). With the above anomalies, starting the engine is impossible. NOTE!
Use of two switchover contacts of the relay allows you to connect an additional device or controlled system, as well as a visual or audible signaling system informing about the activation of the relay, i.e. engine off.

Technical data

  • Trip voltage unbalance [V]
    40-55
  • Number of contacts
    0NO 0NC
  • Power [W]
    1.2
  • Shutdown delay [s]
    4
  • connection
    2.5mm screw terminals
  • Dimensions
    3 modules (52.5mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • Voltage hysteresis [V]
    5V~
  • Power control
    3×LED green
  • Installation
    On the TH-35 rail
  • load current [A]
    2x8
  • Working temperature [°C]
    -25-40
  • Power
    3×400/230V+N
  • Package width [mm]
    60
  • PKWIU
    27.12.24.0

Other technical data

  • Type of electric connection
    Screw connection
  • Rated control supply voltage AC 50 Hz
    3 ... 400 V
  • Phase sequence monitoring
    No
  • Function under voltage detection
    No
  • Phase imbalance monitoring
    Yes
  • Min. adjustable off-delay time
    4 s
  • Number of contacts as change-over contact
    2
  • Depth
    65 mm
  • With detachable clamps
    No
  • Voltage type for actuating
    AC
  • Phase failure detection
    Yes
  • Function over voltage detection
    No
  • Voltage measuring range
    140 ... 270 V
  • Max. permitted off-delay time
    4 s
  • Height
    90 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,128
Width (m) 0,056
Length (m) 0,095
Depth (m) 0,070
