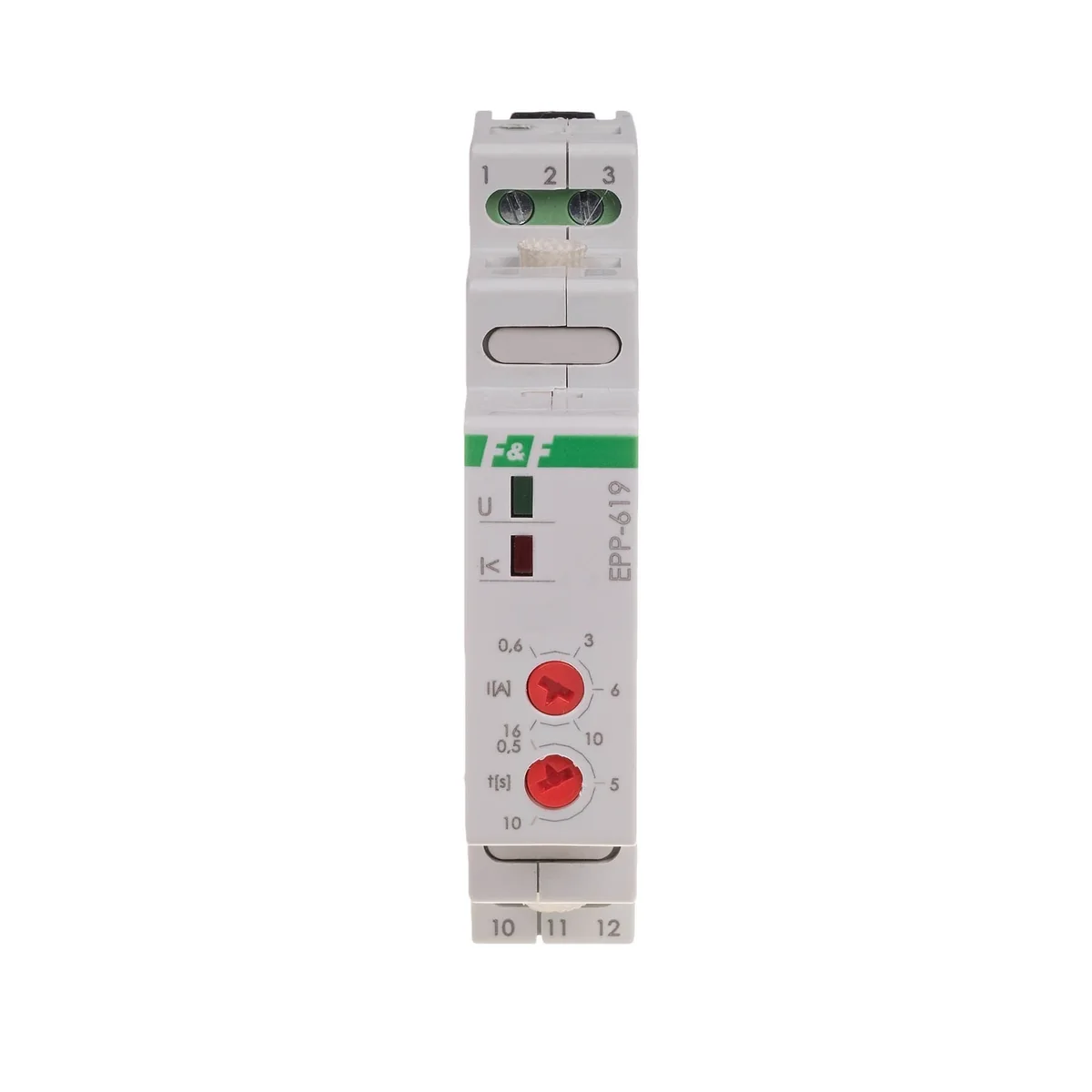

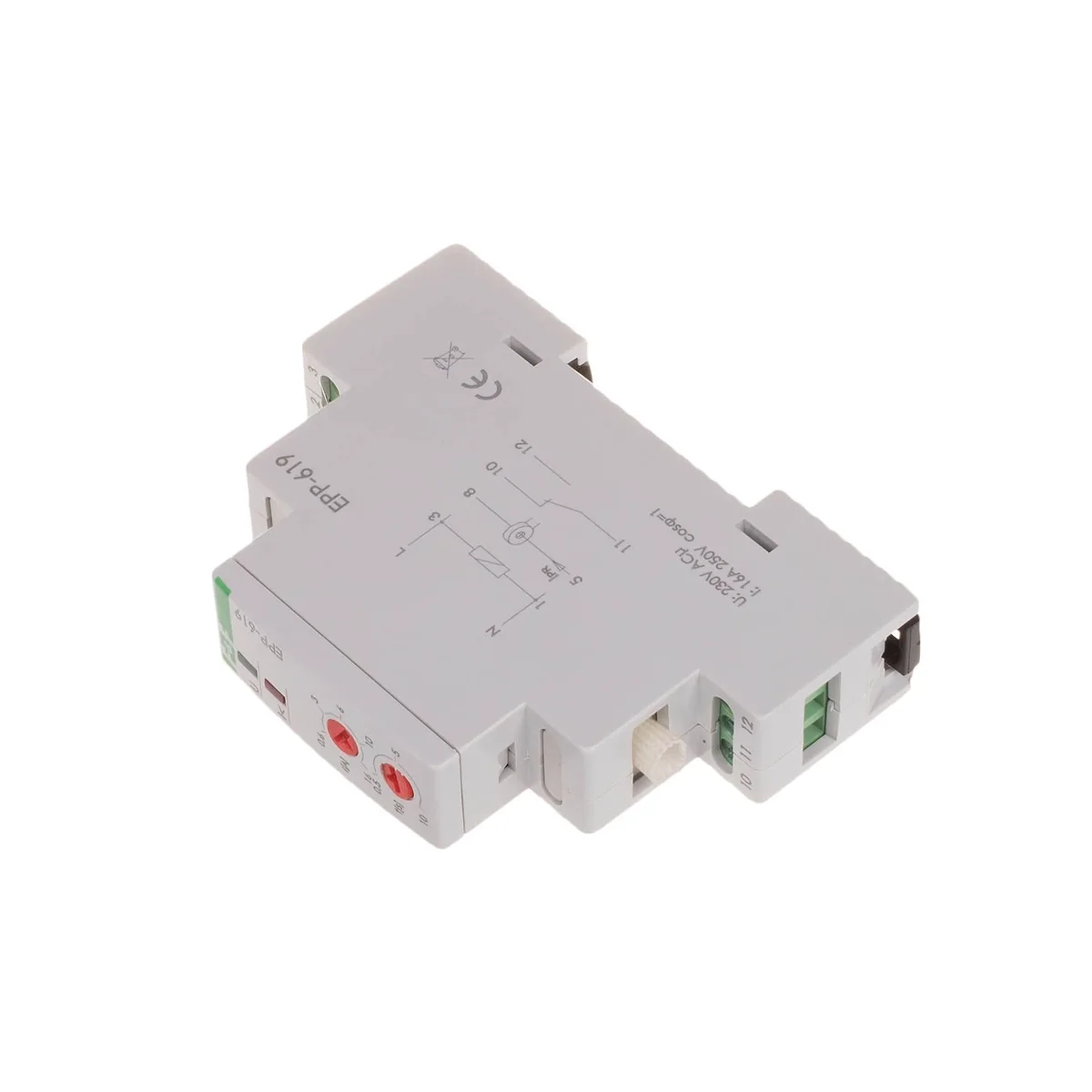

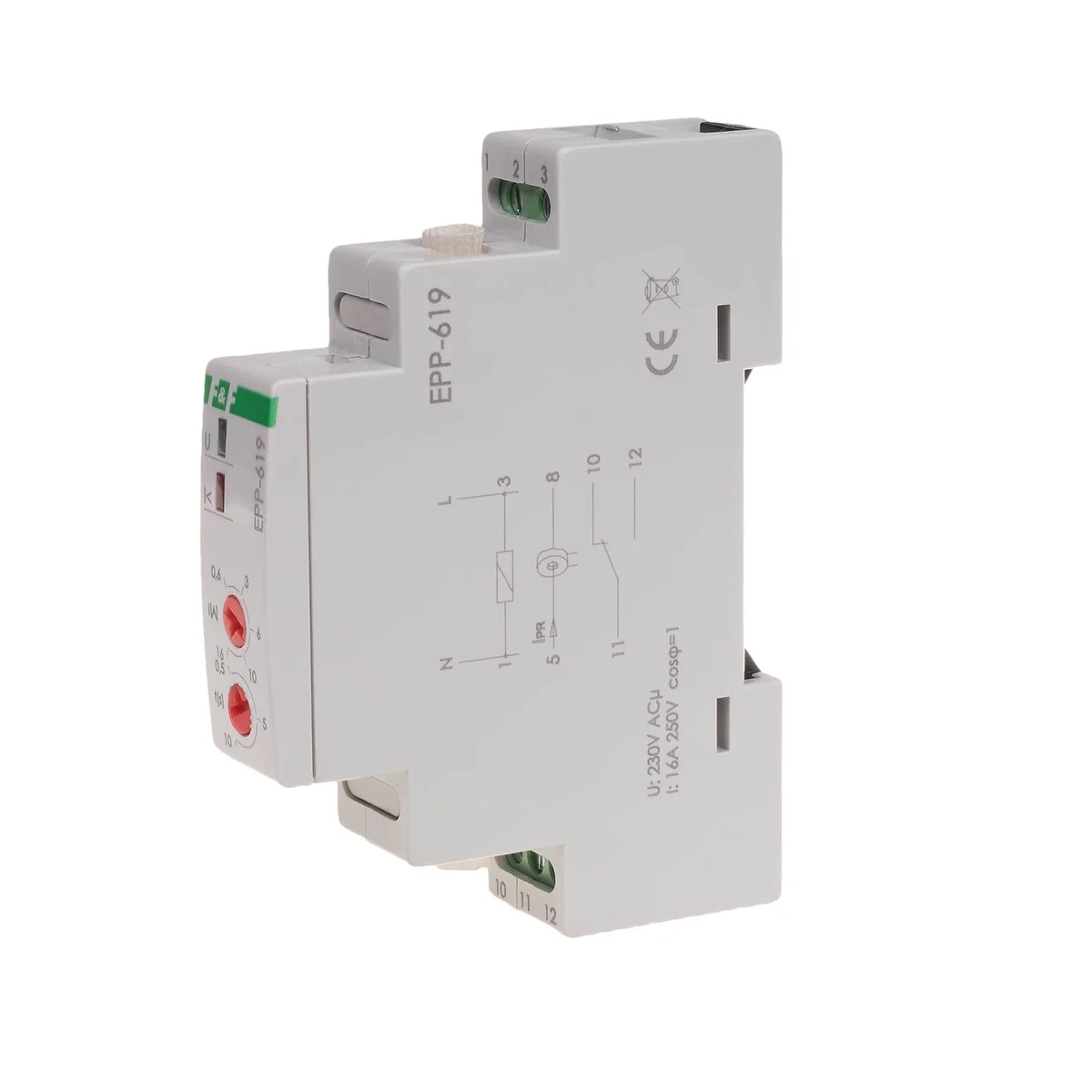

Current relay with through channel EPP-619
Indice locale:
APP138FIFQ
Numero di catalogo:
EPP-619
Codice EAN:
5908312593928
Produttore:
F&F
Return hysteresis [%]: 10
Number of contacts: 0NO 0NC
Maximum operating temperature [°C]: 180
Prezzo:
218,51 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa
Chiedi informazioni sul prodotto
Descrizione del prodotto
The current relay is used to control the current value in circuits measured with the function of switching the contact in the event of exceeding the current value above the set threshold values.
| Measured circuit current | Limited by wire cross-section |
Dati tecnici
-
Return hysteresis [%]10
-
Maximum operating temperature [°C]180
-
InstallationOn the TH-35 rail
-
Rated voltage [V]230
-
Switching current - adjustable [A]0, 6-16
-
connection2.5mm screw terminals
-
Working temperature [°C]-25-50
-
Package height [mm]150
-
Package weight [kg]0.1
-
Insulation materialGlass silk impregnated with rubber
-
Number of contacts0NO 0NC
-
Power [W]0.4
-
Breakdown voltage [kV]4.3
-
Tripping delay0.5-10
-
Rated current [A]16
-
Diameter [mm]4
-
Dimensions1 module (18mm)
-
Package width [mm]20
-
Insulation resistance [Ω]108
-
PKWIU27.12.24.0
Altri dati tecnici
-
Type of electric connectionScrew connection
-
External power supply requiredNo
-
Type of currentAC
-
Single-phase under current possibleNo
-
Single-phase overcurrent possibleYes
-
Single-phase hysteresis possibleYes
-
Contains function DC-voltage under currentNo
-
Function DC-current hysteresisNo
-
Max. permitted delay-on energization time10 s
-
Max. permitted off-delay time10 s
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact1
-
Width18 mm
-
Depth65 mm
-
With detachable clampsNo
-
Voltage type (supply voltage)AC
-
Current measuring range0.6 ... 16 A
-
Three-phase under current possibleNo
-
Three-phase overcurrent possibleNo
-
Three-phase hysteresis possibleNo
-
Contains function DC-voltage overcurrentNo
-
Min. adjustable delay-on energization time0.5 s
-
Min. adjustable off-delay time0.5 s
-
External current transformerNo
-
Number of contacts as normally open contact0
-
Voltage type (operating voltage)AC
-
Height90 mm
Dettagli del produttore
-
ProduttoreF&F Filipowski S.K.
-
Indirizzo95-200 Pabianice Konstantynowska 79/81 Polska
-
Email
Imballaggio sfuso
| Una specie di pacchetto | Sztuka |
| Quantità | 1 pezzi |
| Peso (kg) | 0,075 |
| Larghezza (m) | 0,019 |
| Lunghezza (m) | 0,095 |
| Profondità (m) | 0,070 |
