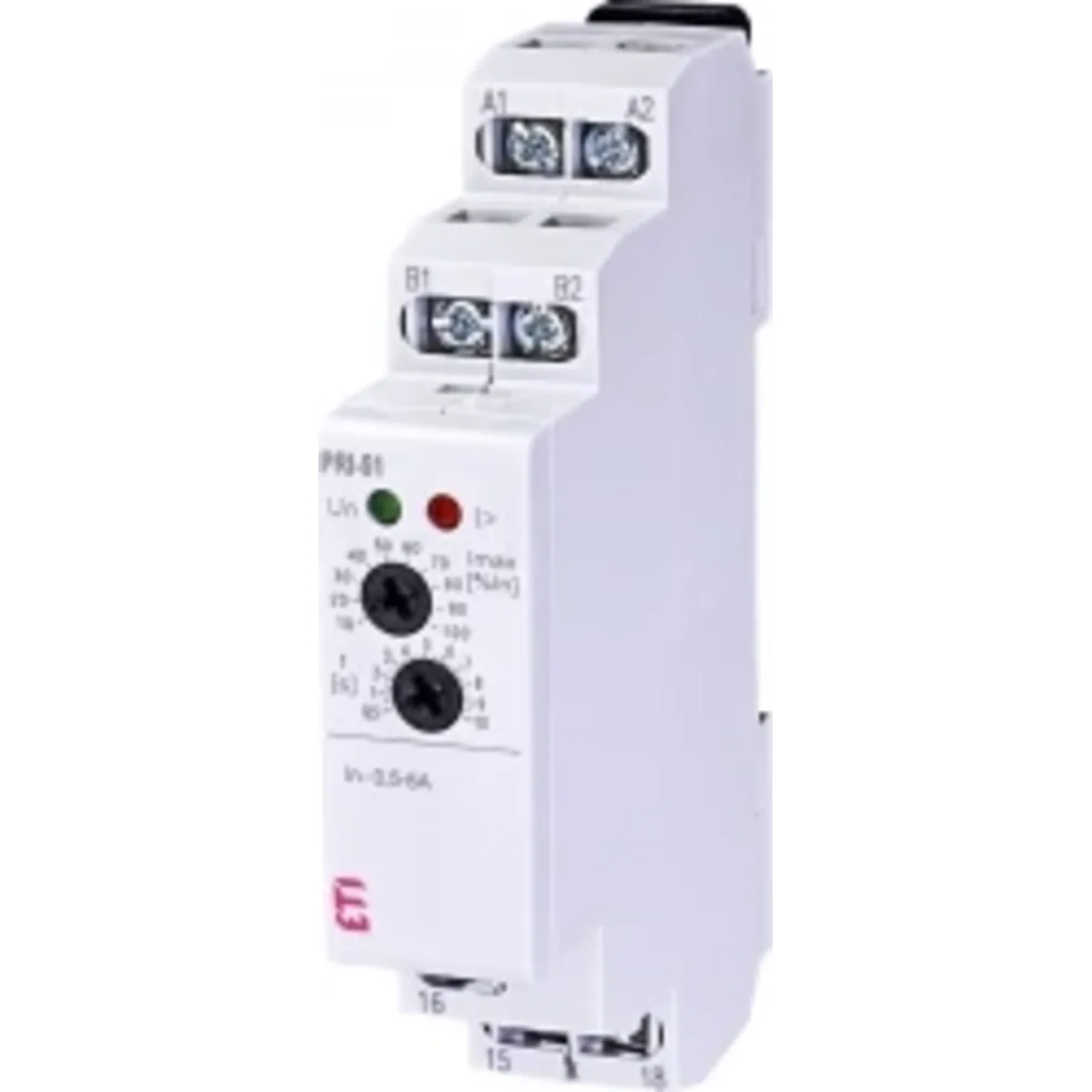

Current monitoring relay PRI-51/5 002471818
local index:
APE015ETIP
Catalog No:
002471818
EAN code:
3838895424017
Price:
66,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Application - It is used to control the current value in a single-phase circuit. The response to changes outside the fixed current range is a change in contact state according to the operation diagram.
Advantages:
→ 1P changeover contact 16A,
→ adjustable time delay,
→ width 1 module, mounting on a TH 35 rail.
Advantages:
→ 1P changeover contact 16A,
→ adjustable time delay,
→ width 1 module, mounting on a TH 35 rail.
Technical data
-
Terminal capacity1x4mm2, 2x2.5mm2
-
PowerA1-A2
-
Time delayadjustable 0.5 -10s
-
load range0.5 - 5A
-
Compliance with standardsEN 61010-1, EN 60255-6
-
PKWIU27.12.24.0
Other technical data
-
Type of electric connectionClip connection
-
Rated control supply voltage AC 50 Hz24 ... 240 V
-
Voltage type for actuatingAC/DC
-
Number of contacts as change-over contact1
-
Height90 mm
-
Single-phase overcurrent possibleYes
-
Rated control supply voltage DC24 ... 24 V
-
Current measuring range0.5 ... 5 A
-
Width18 mm
-
Depth65 mm
