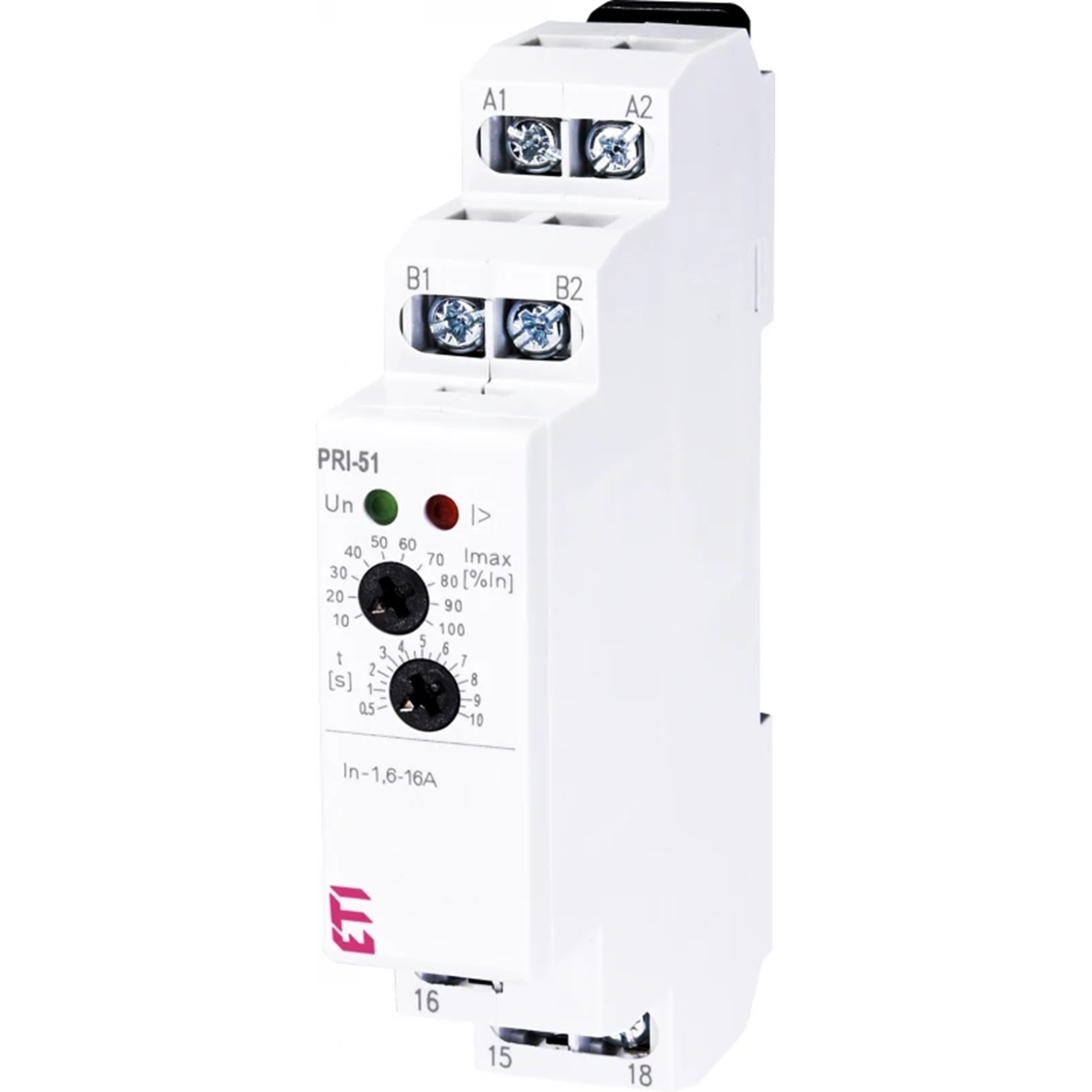

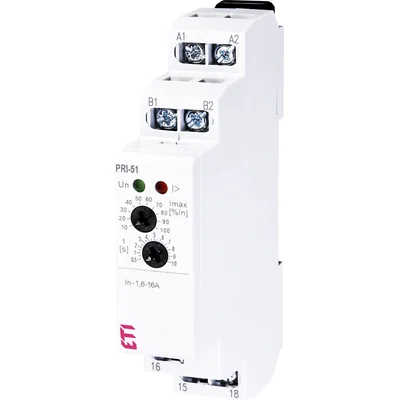

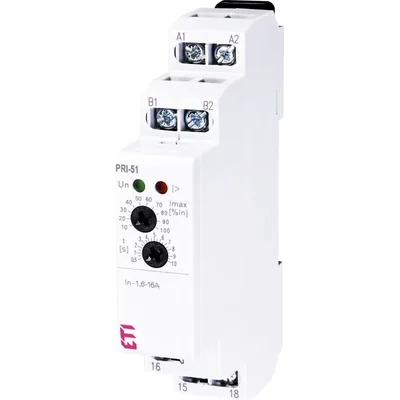

Current monitoring relay PRI-51/16 002470019

local index:
APE016ETIP
Catalog No:
002470019
EAN code:
3838895423713
Manufacturer: ETI POLAM
Rated current [A]: 16
Weight [g]: 58
Price:
66,73 €
gross / pcs.
(including VAT 23%)
1150,52 € gross/kg.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Current monitoring relay PRI-51/16

Technical data

  • Rated current [A]
    16
  • PKWIU
    27.12.24.0
  • Weight [g]
    58

Other technical data

  • Type of electric connection
    Clip connection
  • Rated control supply voltage AC 50 Hz
    24 ... 240 V
  • Voltage type for actuating
    AC/DC
  • Number of contacts as change-over contact
    1
  • Height
    90 mm
  • Single-phase overcurrent possible
    Yes
  • Rated control supply voltage DC
    24 ... 24 V
  • Current measuring range
    1.6 ... 16 A
  • Width
    18 mm
  • Depth
    65 mm
