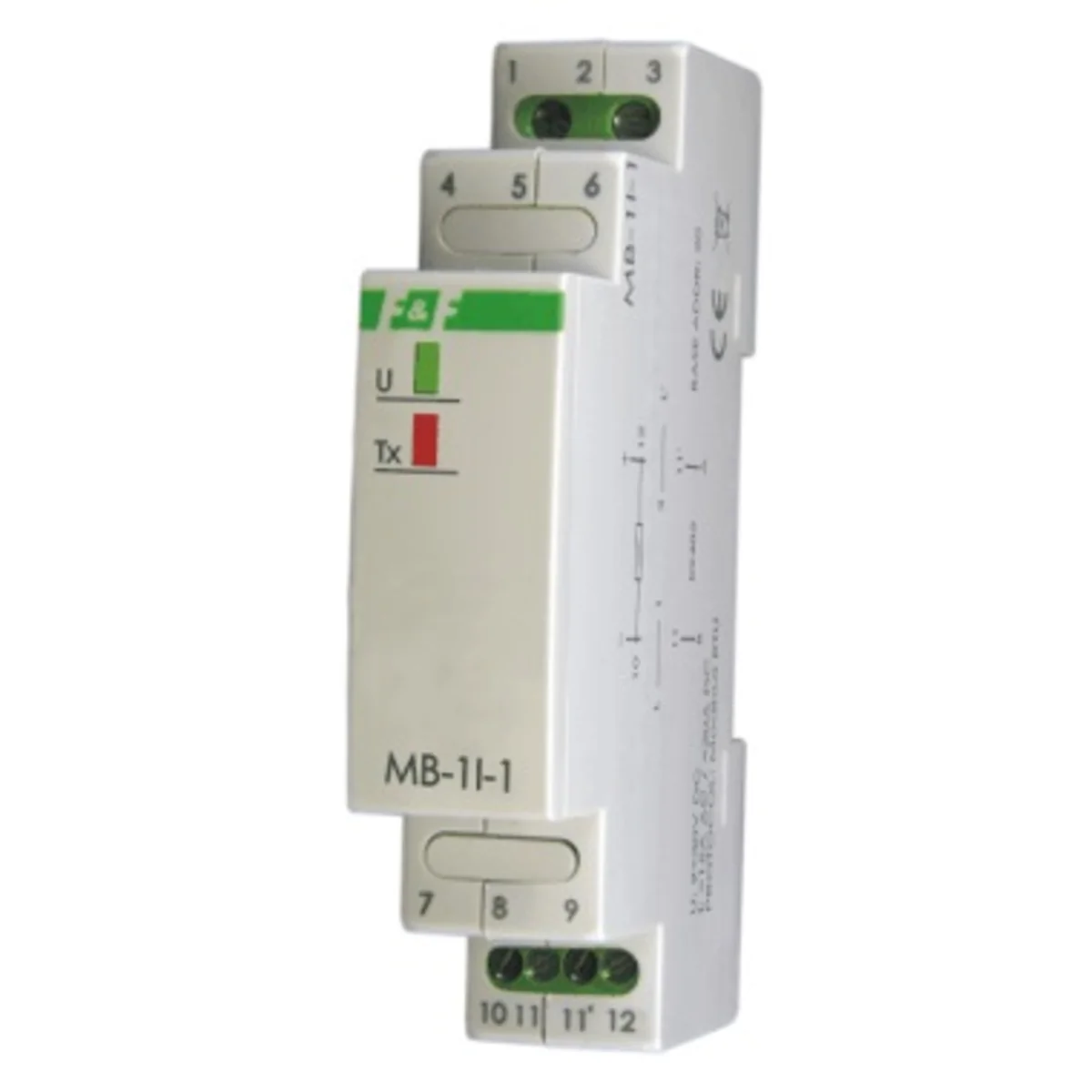

Current converter with MODBUS RTU output single-phase 15A AC/ 20A DC direct MAX-MB-1I-1-15A
local index:
API036FIFQ
Catalog No:
MAX-MB-1I-1-15A
EAN code:
5908312595359
Price:
109,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The MB-1I-1 transducer is designed to measure AC or DC current and exchange data via the RS-485 port in accordance with the MODBUS RTU protocol.
Technical data
-
HarborRS-485
-
Level of securityIP20
-
Power [V]9-30
-
Package width [mm]20
-
Sampling frequency [Hz]10
-
I/O breakdown voltage [kV]2.1
-
measurement error0.005
-
PKWIU26.30.23.0
-
ProtocolsMODBUS RTU
-
Dimensions1 module (18mm)
-
Package height [mm]150
-
Package weight [kg]0.2
-
Relative air humidity855 for 30C
-
Register reading precision [A]0.1
-
Maximum current consumption [mA]50
Other technical data
-
Initial value measuring range current0 A
-
Frequency rated current50 Hz
-
End value measuring range current15 A
Manufacturer details
-
ManufacturerF&F FILIPOWSKI SPÓŁKA KOMANDYTOWA
-
Address95-200 UL. KONSTANTYNOWSKA 79/81
-
E-mail
-
Tax identification number7310005314
