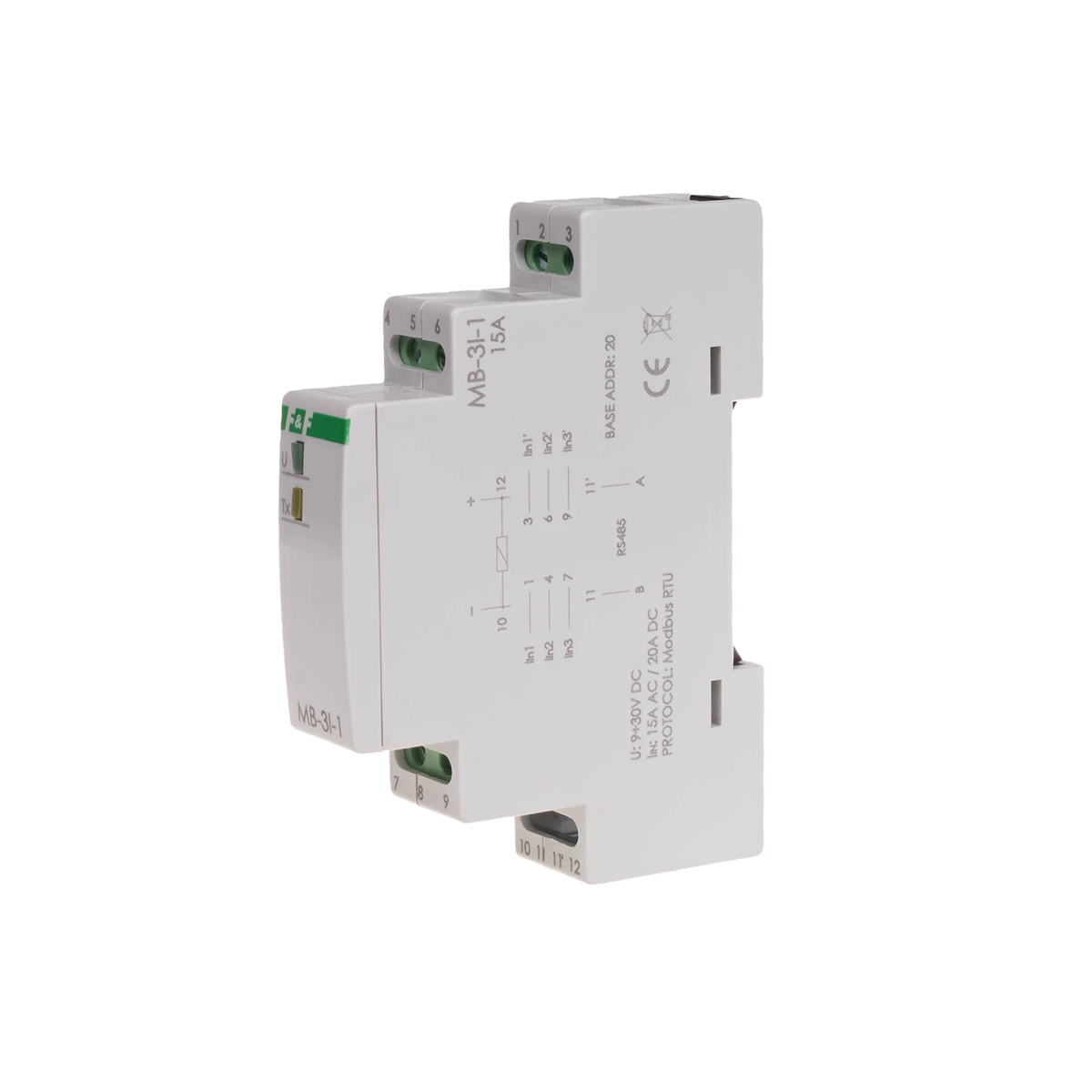

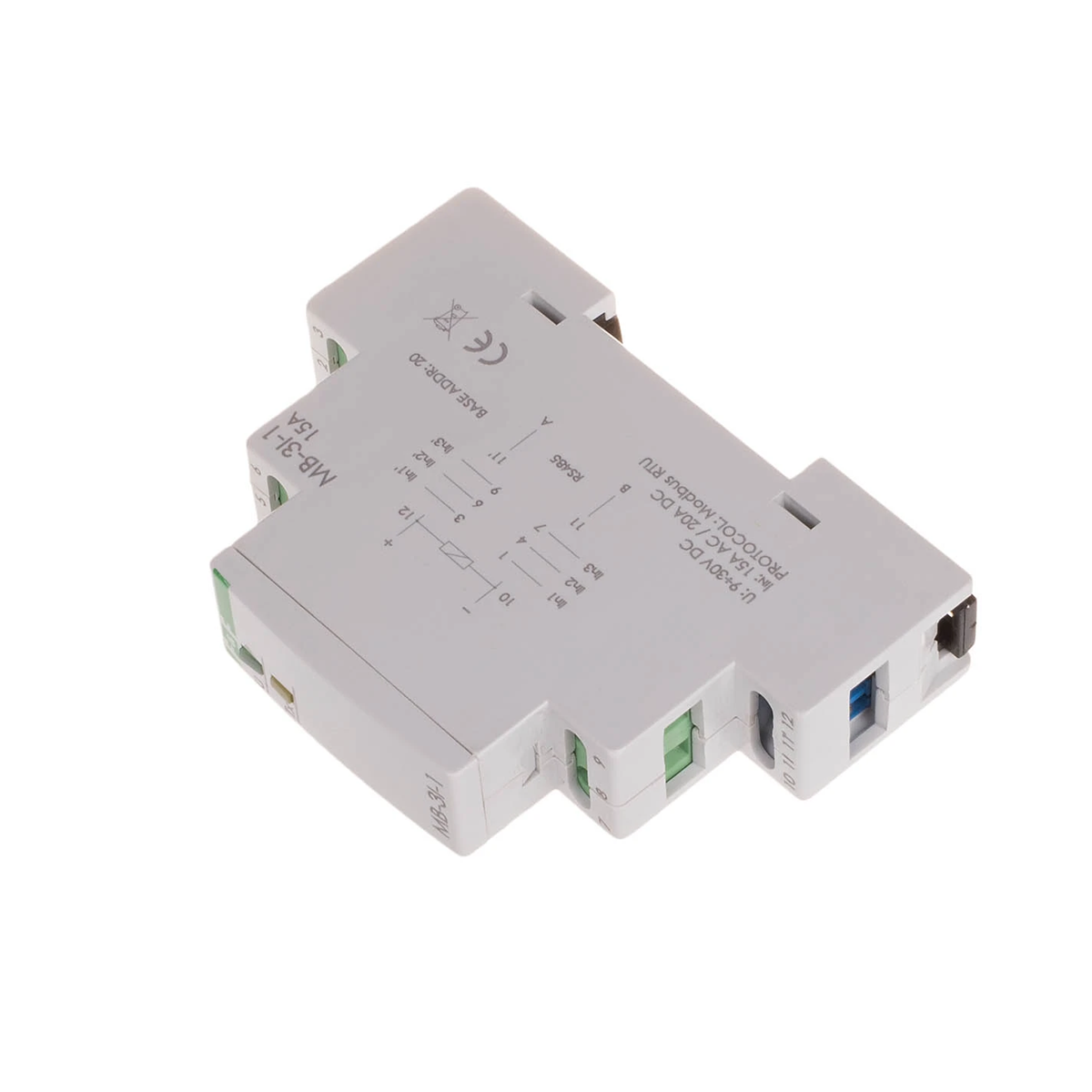

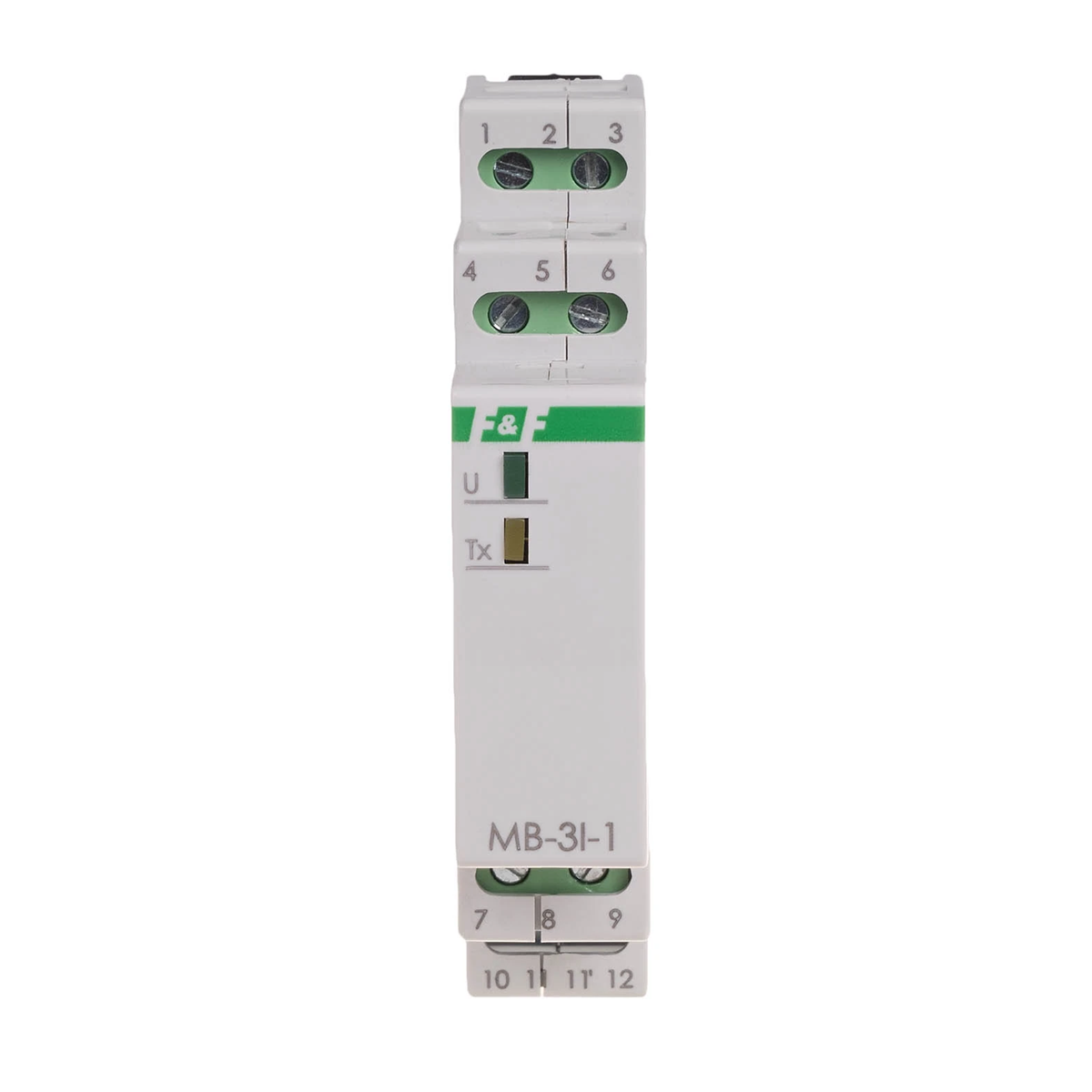

Current converter 3F three-phase 5A with MODBUS RTU direct output MAX-MB-3I-1-5A
local index:
API041FIFQ
Catalog No:
MAX-MB-3I-1-5A
EAN code:
5908312595366
Price:
150,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The MB-3I-1 transducer is designed to measure AC or DC current and exchange data via the RS-485 port in accordance with the MODBUS RTU protocol.
Technical data
-
HarborRS-485
-
Level of securityIP20
-
Job typeslave
-
Power [V]9-30
-
Package width [mm]20
-
Sampling frequency [Hz]10
-
Relative air humidity85% at 30°C
-
Register reading precision [A]0.1
-
TrueRMS measurement range [A]0-14AC, 0-20DC
-
Rated current [A]50
-
Working temperature [°C]-20-50
-
Dimensions1 module (18mm)
-
Package height [mm]150
-
Package weight [kg]0.2
-
communication protocolMODBUS RTU
-
I/O breakdown voltage [kV]2.1
-
measurement error0.005
-
PKWIU26.30.23.0
Other technical data
-
Initial value measuring range current0 A
-
Frequency rated current50 Hz
-
Integrated configuration functionYes
-
End value measuring range current5 A
-
Mounting methodDIN rail (top hat rail) 35 mm
-
With switching outputNo
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,064 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
