el12
Automation
Relays and drivers
Other automation elements

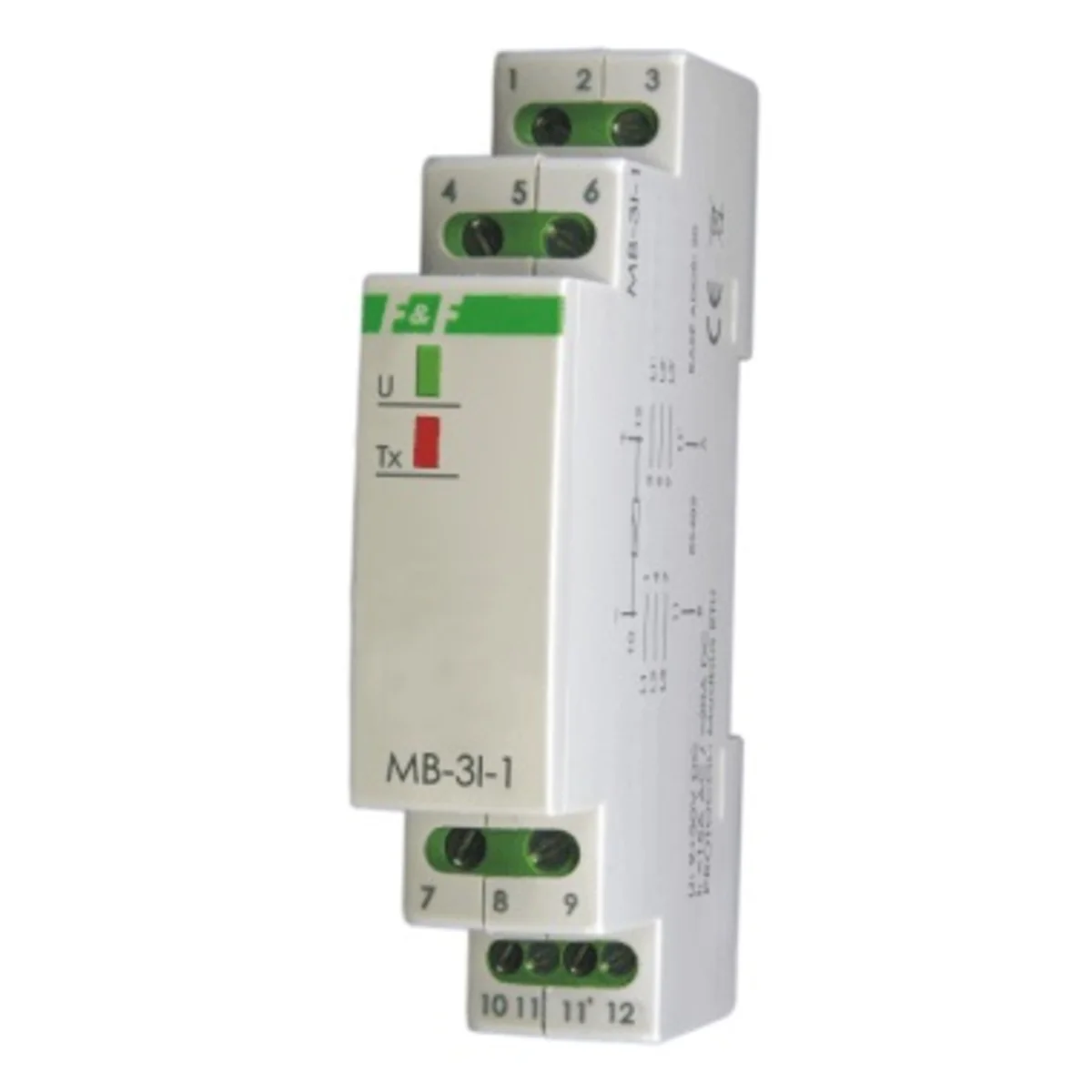

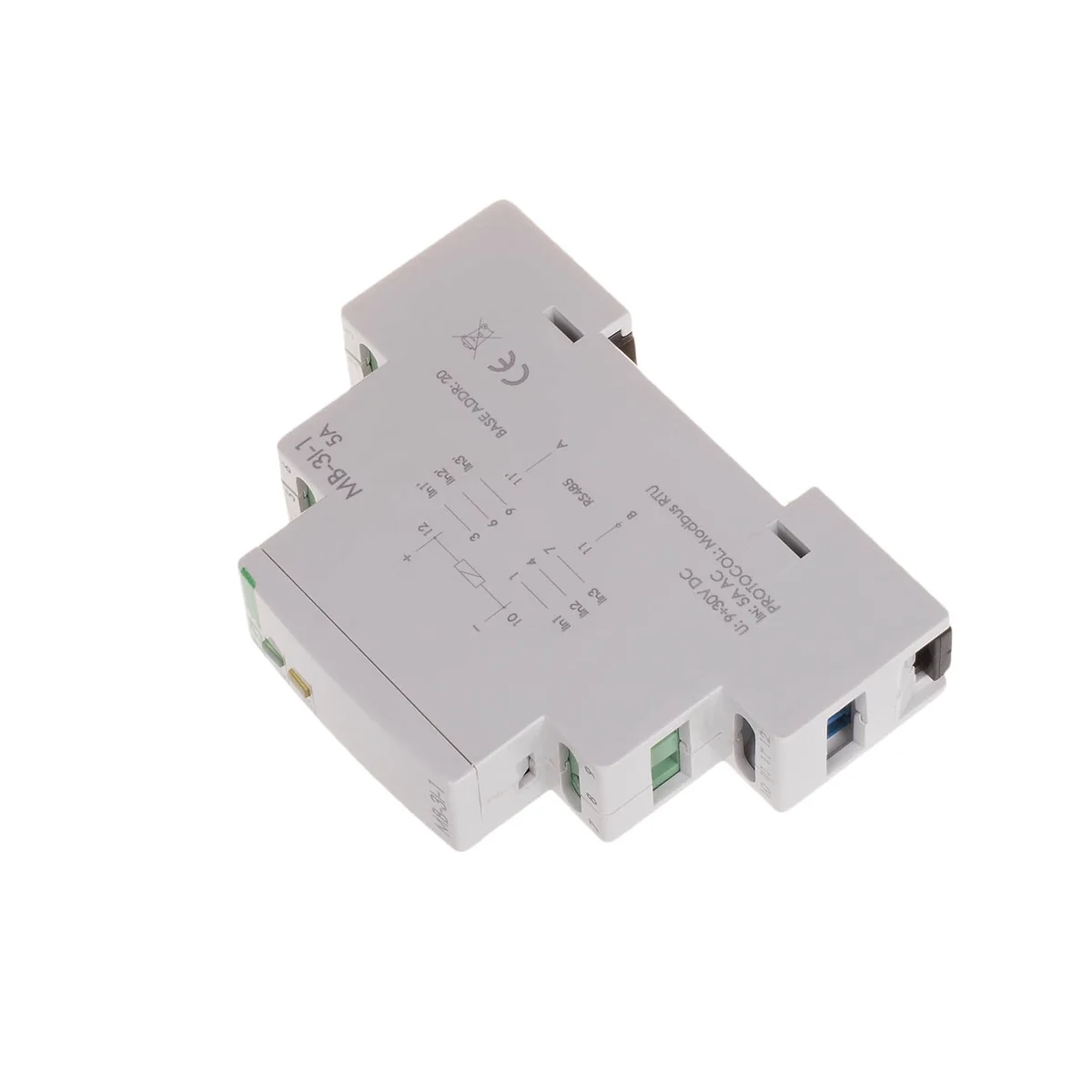

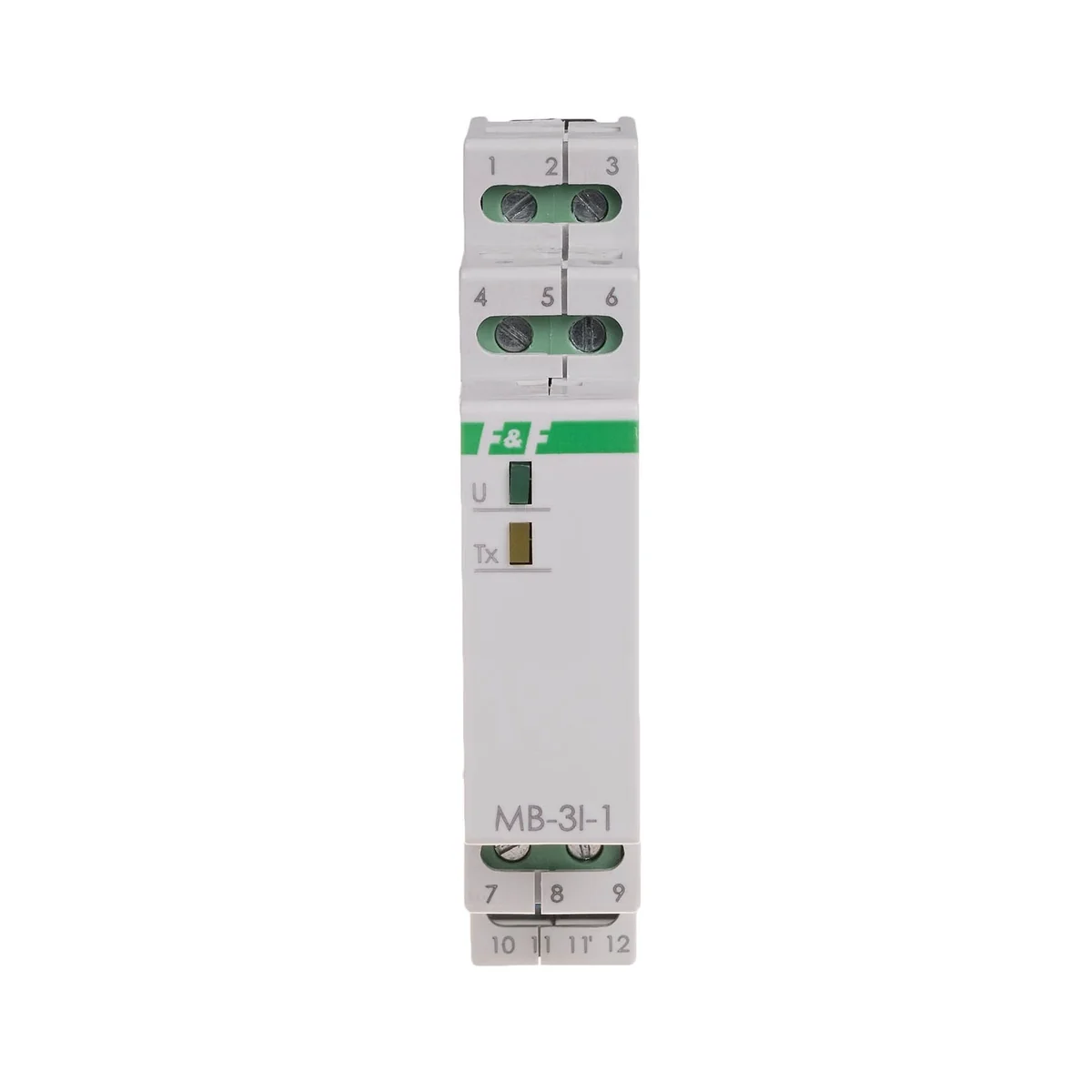

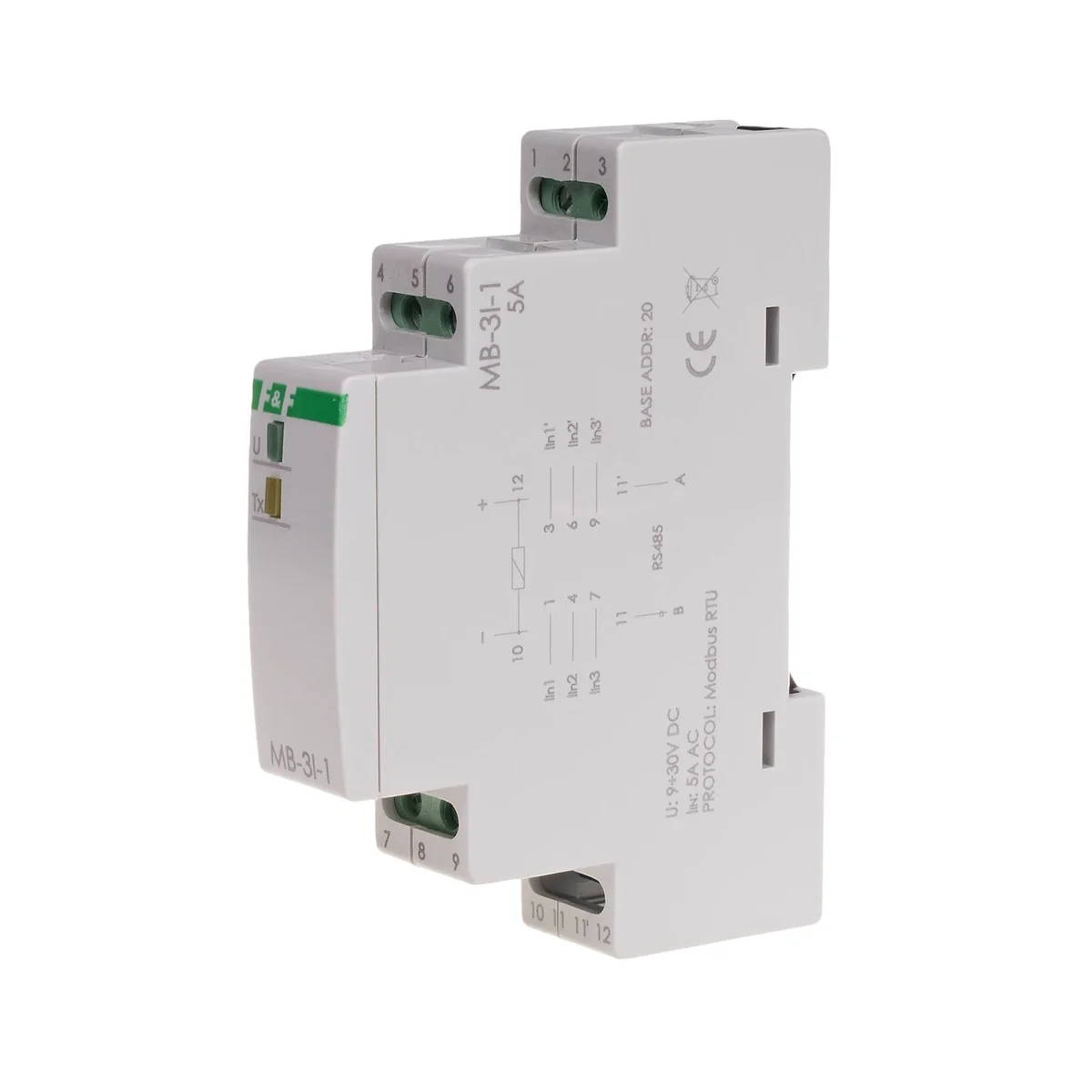

Current converter 3F three-phase 15A with MODBUS RTU output for cooperation with a current transformer MAX-MB-3I-1-15A
local index:
API039FIFQ
Catalog No:
MAX-MB-3I-1-15A
EAN code:
5908312595373
Click on the photo to enlarge
Manufacturer:
F&F
Harbor:
RS-485
Rated current [A]:
50
Level of security:
IP20
See full description
Price:
146,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description
The MB-3I-1 transducer is designed to measure AC or DC current and exchange data via the RS-485 port in accordance with the MODBUS RTU protocol.
Technical data
Harbor
RS-485
Level of security
IP20
Job type
slave
Power [V]
9-30
Package width [mm]
20
Sampling frequency [Hz]
10
Relative air humidity
85% at 30°C
Register reading precision [A]
0.1
TrueRMS measurement range [A]
0-5 AC
Rated current [A]
50
Working temperature [°C]
-20-50
Dimensions
1 module (18mm)
Package height [mm]
150
Package weight [kg]
0.2
communication protocol
MODBUS RTU
I/O breakdown voltage [kV]
2.1
measurement error
0.005
PKWIU
26.30.23.0
Other technical data
Initial value measuring range current
0 A
Frequency rated current
50 Hz
Integrated configuration function
Yes
End value measuring range current
15 A
Mounting method
DIN rail (top hat rail) 35 mm
With switching output
No
Bulk packaging
A kind of package
Sztuka
Quantity
1 pcs.
Weight (kg)
0,065
Width (m)
0,019
Length (m)
0,095
Depth (m)
0,070
Files to download
FF_RoHS_2022.pdf
UE_FF044_18_AT_MB_MR_RM_dek_zgod_CE.pdf
FF_RoHS_2022.pdf
UE_FF044_18_AT_MB_MR_RM_dek_zgod_CE.pdf
