CRT-04 temperature controller CRT-04

local index:
APT001FIFQ
Catalog No:
CRT-04
EAN code:
5908312592655
Manufacturer: F&F
Setting accuracy: 0.1
Hysteresis - adjustable: 0-10
Sensor insulation: Heat shrink sleeve
Price:
79,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

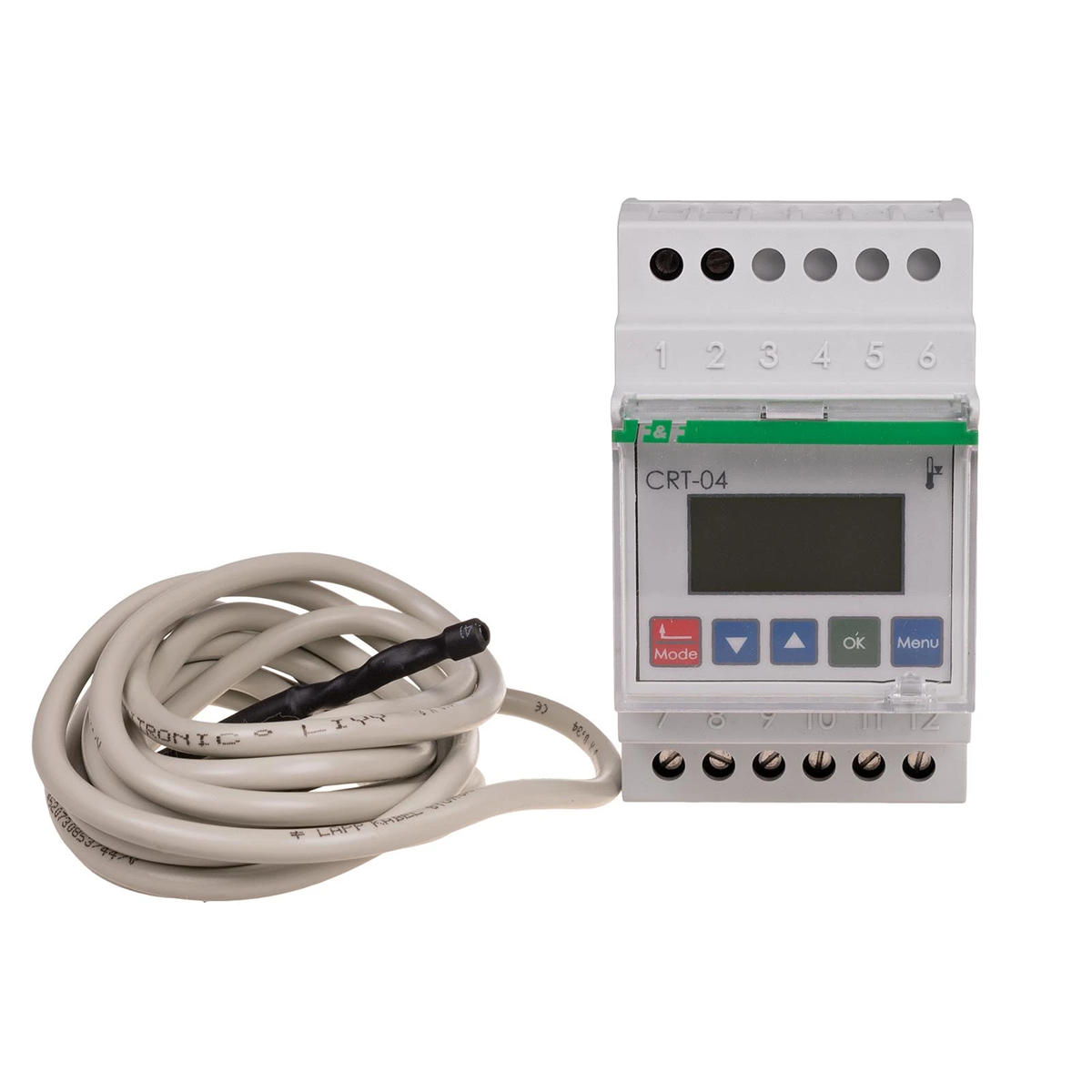

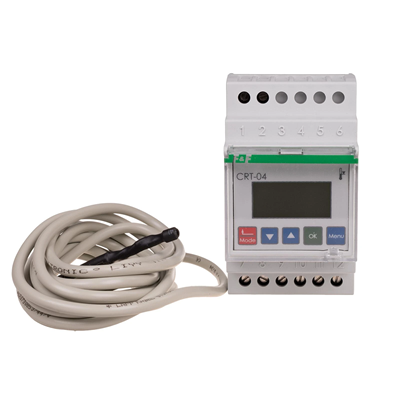

CRT-04 is a programmable, multi-functional electronic regulator that allows you to control heating devices in order to maintain a constant room temperature or to control the ambient temperature. Sensor insulated with a heat-shrink sleeve.

Technical data

  • Setting accuracy
    0.1
  • Sensor insulation
    Heat shrink sleeve
  • Installation
    On the TH-35 rail
  • load current [A]
    16
  • External probe
    RT-4
  • Diameter [mm]
    5
  • Temperature sensor type
    DS18S20
  • Height [mm]
    thirty
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • PKWIU
    26.51.70.0
  • Hysteresis - adjustable
    0-10
  • Power [W]
    1.5
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Contact
    1P separated
  • Working temperature [°C]
    -20-40
  • Dimensions
    3 modules (52.5mm)
  • Temperature adjustment range [°C]
    0-60
  • Package width [mm]
    60
  • Standard Correction
    ±5

Other technical data

  • Model
    Digital
  • Rated voltage
    230 ... 230 V
  • Number of channels
    1
  • 24 h program
    Yes
  • Number of memory locations
    1
  • Holiday program
    No
  • Adjustment range comfort
    0 ... 60 °C
  • Autonomy
    0 h
  • Operation mode switch
    Yes
  • Contact type
    Change-over contact
  • Nominal switching current at 230 V, not potential free
    16 A
  • Width in number of modular spacings
    3
  • Sensor type
    Remote sensor
  • Rated frequency
    50 ... 50 Hz
  • Text guidance in display
    Yes
  • Weekly program
    Yes
  • Number of basic programs standard
    8
  • Input for time program
    No
  • Adjustment range set-back
    0 ... 10 °C
  • Automatic switching summer-/winter time
    Yes
  • Switching preselection
    No
  • Nominal switching current at 250 V, potential free
    16 A
  • Degree of protection (IP)
    IP20
  • Assembly depth
    69 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,230
Length (m) 0,095
Depth (m) 0,070
