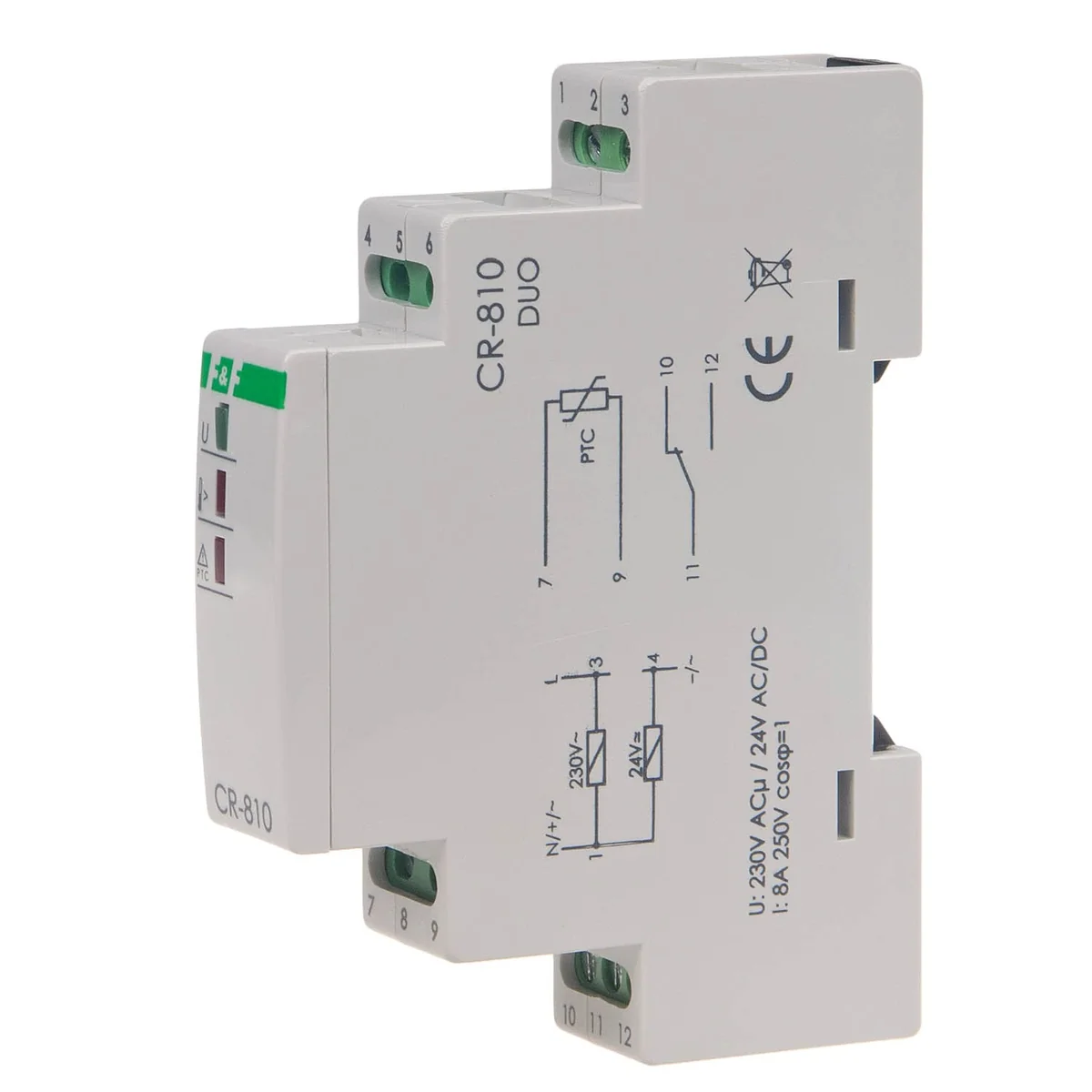

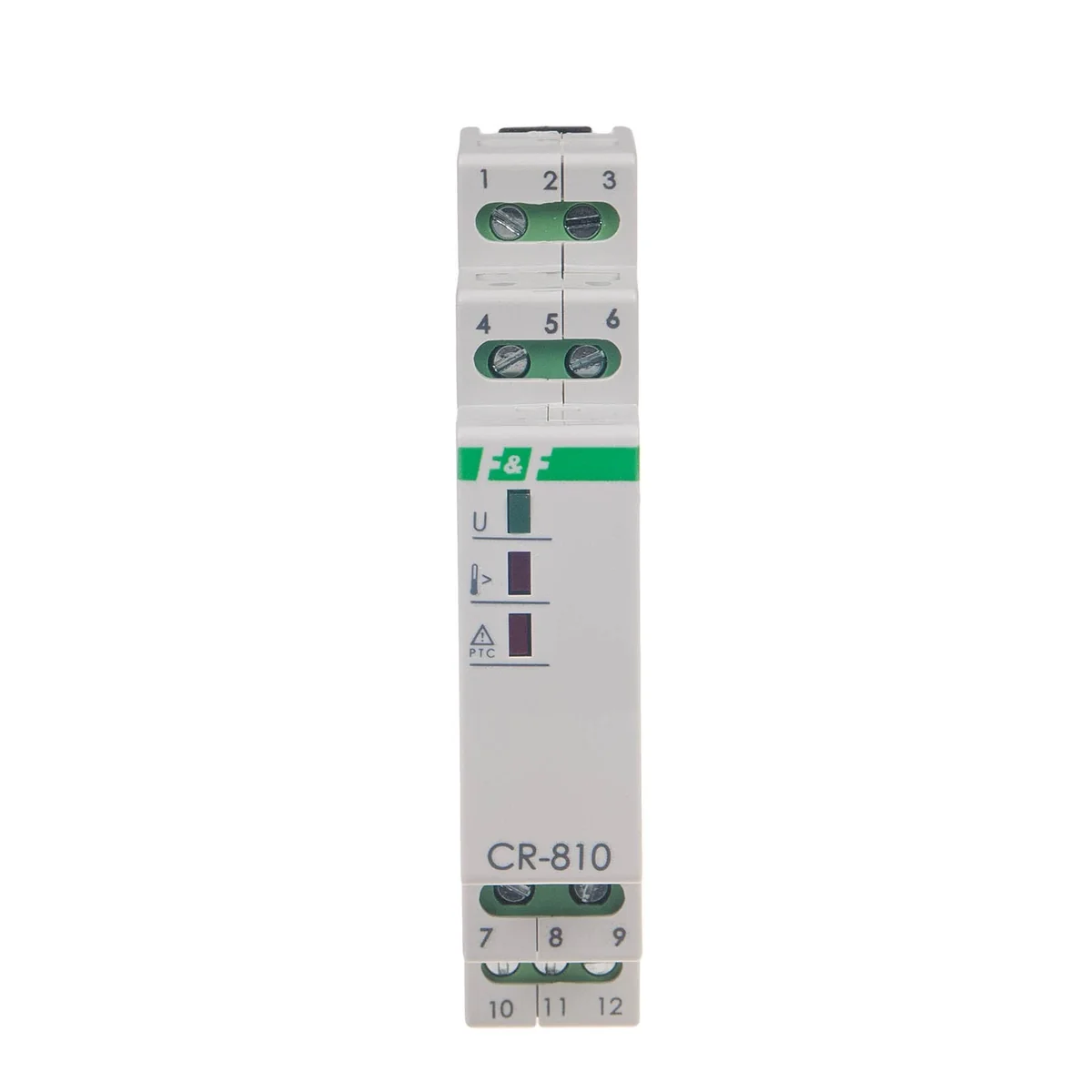

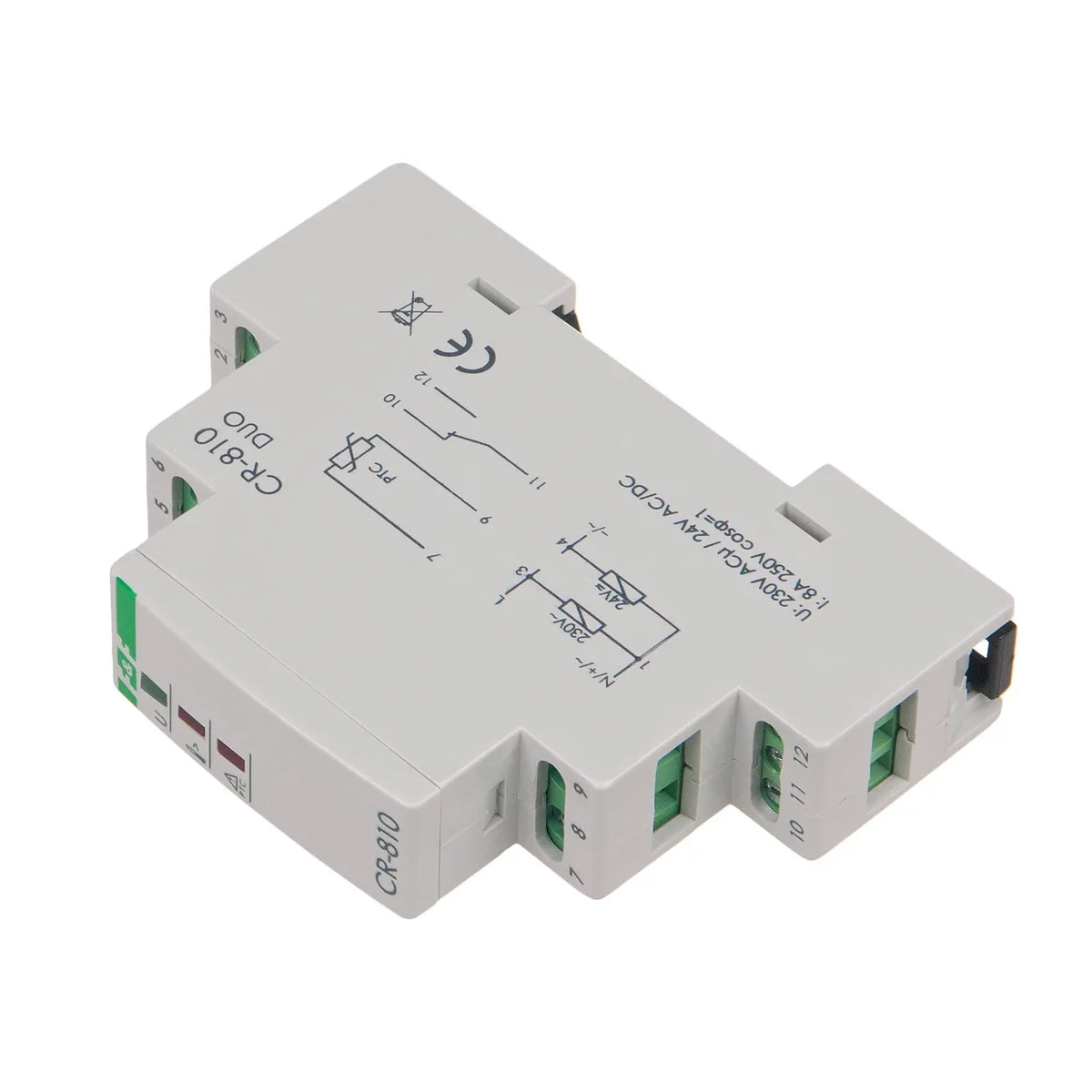

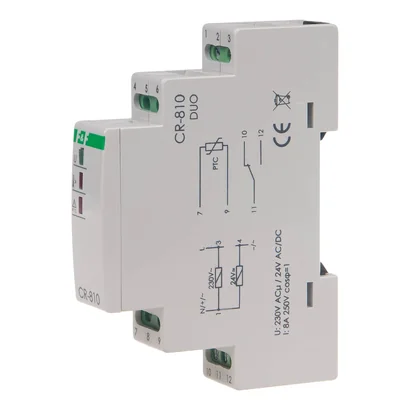

CR-810 resistive relay CR-810DUO

local index:
APN002FIFQ
Catalog No:
CR-810DUO
EAN code:
5908312595519
Manufacturer: F&F
Number of contacts: 0NO 0NC
Maximum sensor loop resistance [Ω]: R=1500
Power [W]: 0.8
Price:
34,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The resistive (thermal) relay is used to protect electrical devices against undesirable increase in temperature using PTC thermistor sensors connected in series in the amount of 1-6pcs
Contact closing resistance [?]110
Maximum sensor loop resistance [?]R=1500
Contact opening resistance [?]R>3000, R<70



Technical data

  • Number of contacts
    0NO 0NC
  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Contact closing resistance [Ω]
    110
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • Maximum sensor loop resistance [Ω]
    R=1500
  • Installation
    On the TH-35 rail
  • contact gap [kV]
    <8
  • Contact opening resistance [Ω]
    R>3000, R<70
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    27.12.23.0

Other technical data

  • Type of electric connection
    Screw connection
  • Rated control supply voltage DC
    24 ... 24 V
  • With detachable clamps
    No
  • External reset possible
    No
  • Width
    17.5 mm
  • Depth
    98 mm
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC/DC
  • Error registration possible
    No
  • Number of contacts as change-over contact
    1
  • Height
    69 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,074
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
