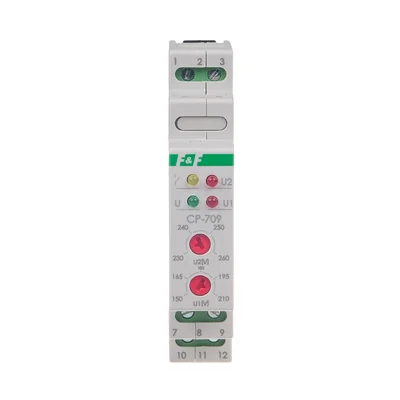

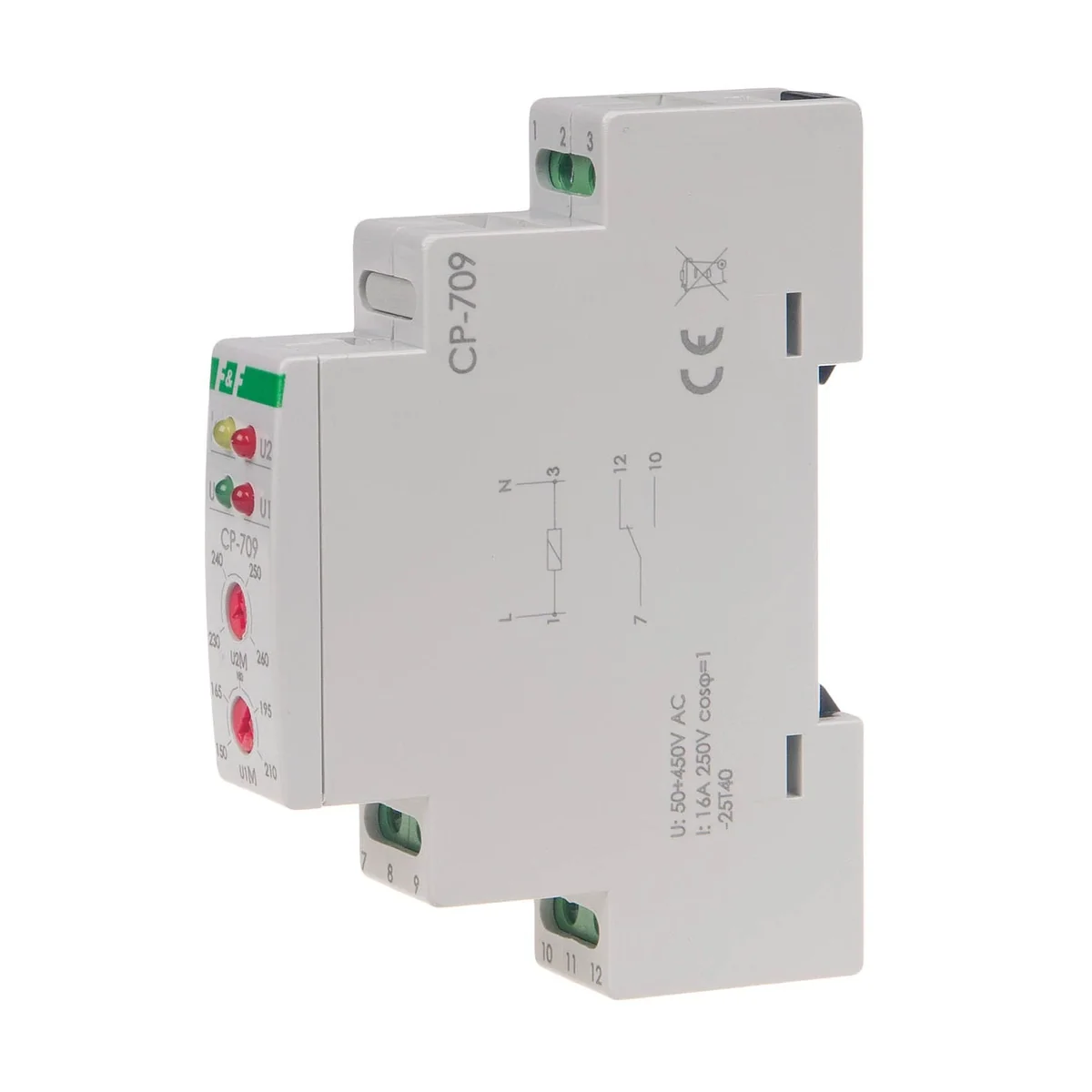

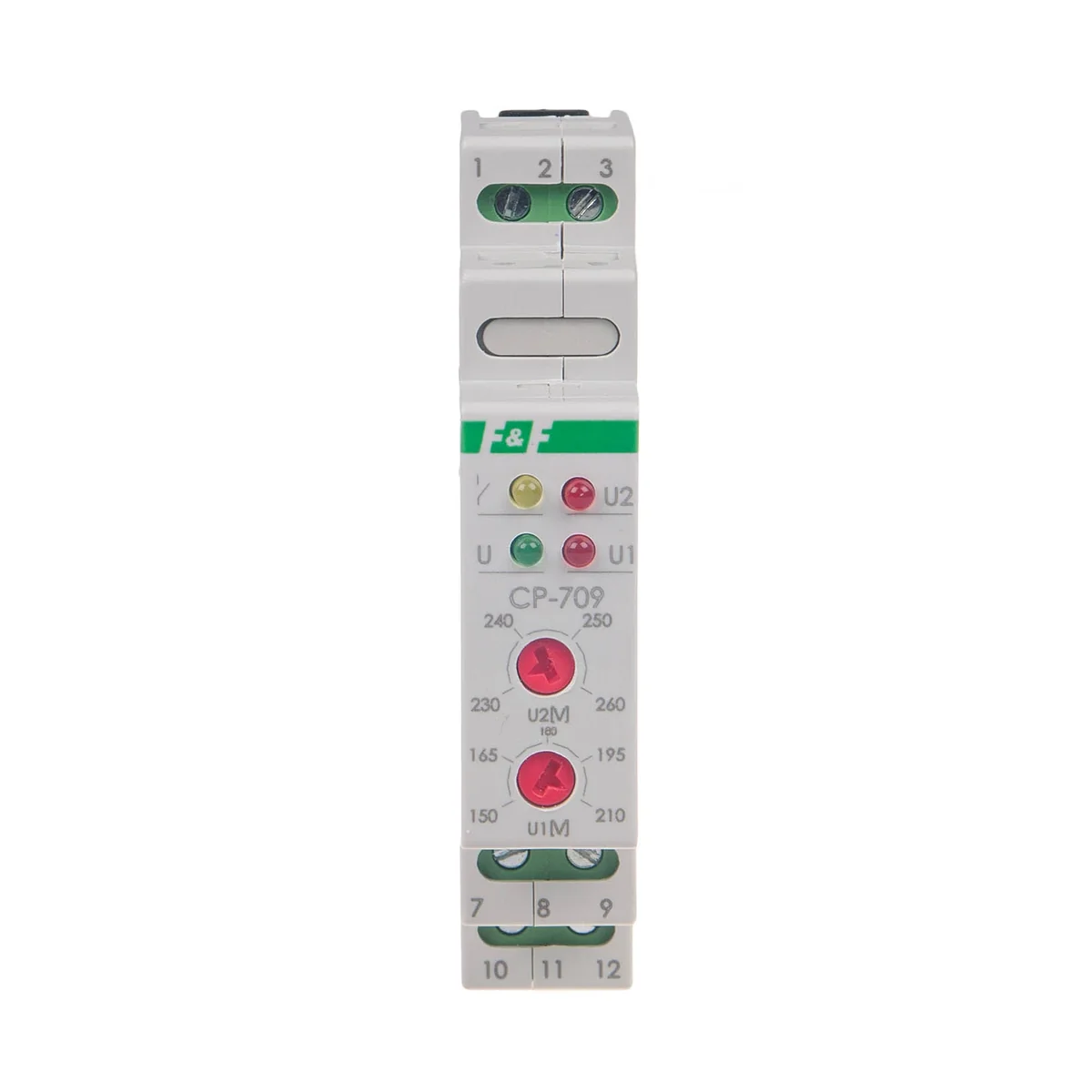

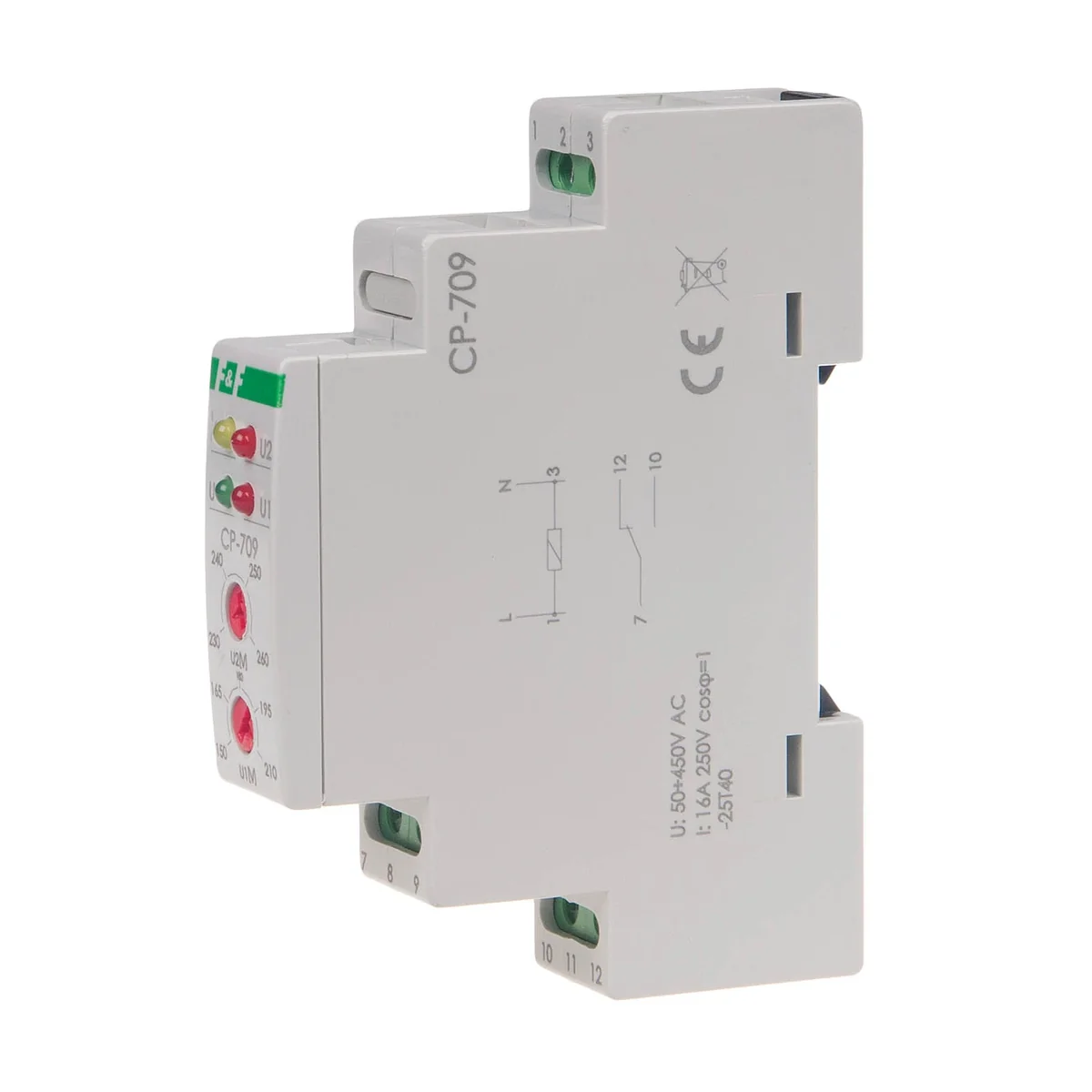

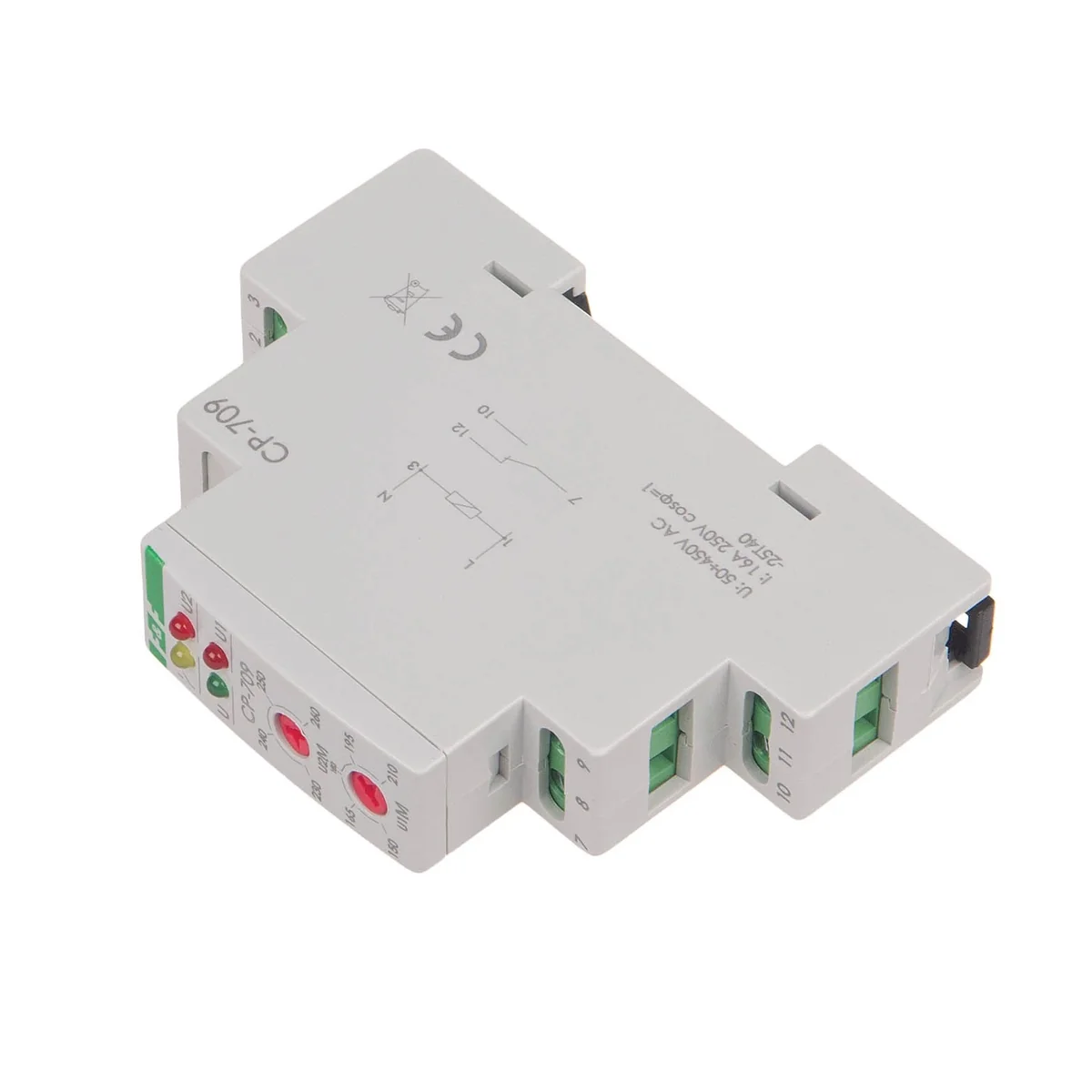

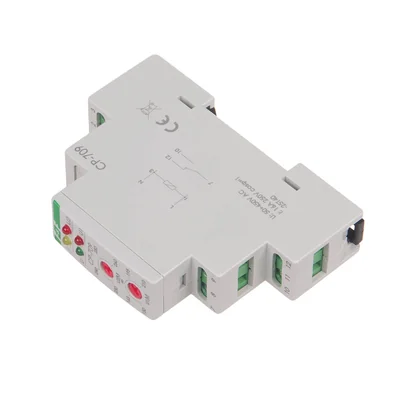

CP-709 voltage relay CP-709

local index:
APL103FIFQ
Catalog No:
CP-709
EAN code:
5908312596189
Manufacturer: F&F
Number of contacts: 0NO 0NC
Power [W]: 0.8
Installation: On the TH-35 rail
Price:
35,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use
The CP-709 voltage relay is used to control the voltage of a single-phase network and protect a single-phase receiver against the effects of an increase or decrease in voltage beyond the set values. Operation
The potentiometers are used to set the lower (U1 ) and the upper (U2) voltage threshold. This is the so-called voltage window, within which changes in the supply voltage may occur, which do not cause the relay to operate. The correct voltage of the receiver is signaled by the green LED (position of the contact 7-10). Changing the supply voltage above or below the set voltage thresholds will cause the relay to operate (switching the contact to position 7-12). The voltage drop below the set U1 value is signaled by the red LED (U1). The voltage increase above the set U2 value is signaled by the red LED (U2) lighting up. The return switching of the relay contact will take place automatically after the proper voltage is restored. The relay can be supplied with voltage up to 450V~. This allows for effective protection of the receiver even when the voltage exceeds the permissible standards. Also in the case of power supply polarity reversal, it will not cause damage ("burning") of the relay.

Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • Actuation threshold - upper [V]
    230-260
  • Lock indication
    yellow LED
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • Actuation threshold - lower [V]
    150-210
  • Tripping time for threshold U1 [s]
    1.5
  • Return voltage hysteresis - for the U2 threshold [V]
    5
  • Power [W]
    0.8
  • load current [A]
    16
  • connection
    2.5mm screw terminals
  • Signaling of exceeding voltage thresholds
    2×LED red
  • Working temperature [°C]
    From -25-50
  • Power [V]
    50-450
  • Package width [mm]
    20
  • Return time - for threshold U2 [s]
    1.5
  • Return time for threshold U1 [s]
    1.5
  • Return voltage hysteresis - for threshold U1 [V]
    5
  • PKWIU
    27.12.23.0

Other technical data

  • Type of electric connection
    Screw connection
  • Single-phase under voltage possible
    Yes
  • Single-phase over voltage possible
    Yes
  • Single-phase hysteresis possible
    Yes
  • Contains function DC-under voltage
    No
  • Contains function DC-voltage hysteresis
    No
  • Voltage measuring range 2
    230 ... 260 V
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Response value voltage
    150 ... 260 V
  • Max. permitted off-delay time
    10 s
  • Width
    17 mm
  • Depth
    65 mm
  • With detachable clamps
    No
  • Three-phase under voltage possible
    No
  • Three-phase over voltage possible
    No
  • Three-phase hysteresis possible
    Yes
  • Contains function DC-over voltage
    No
  • Voltage measuring range 1
    150 ... 210 V
  • Type of voltage measuring range
    AC
  • Voltage type for actuating
    AC
  • Min. adjustable off-delay time
    1 s
  • Number of contacts as change-over contact
    1
  • Height
    90 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,074
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
