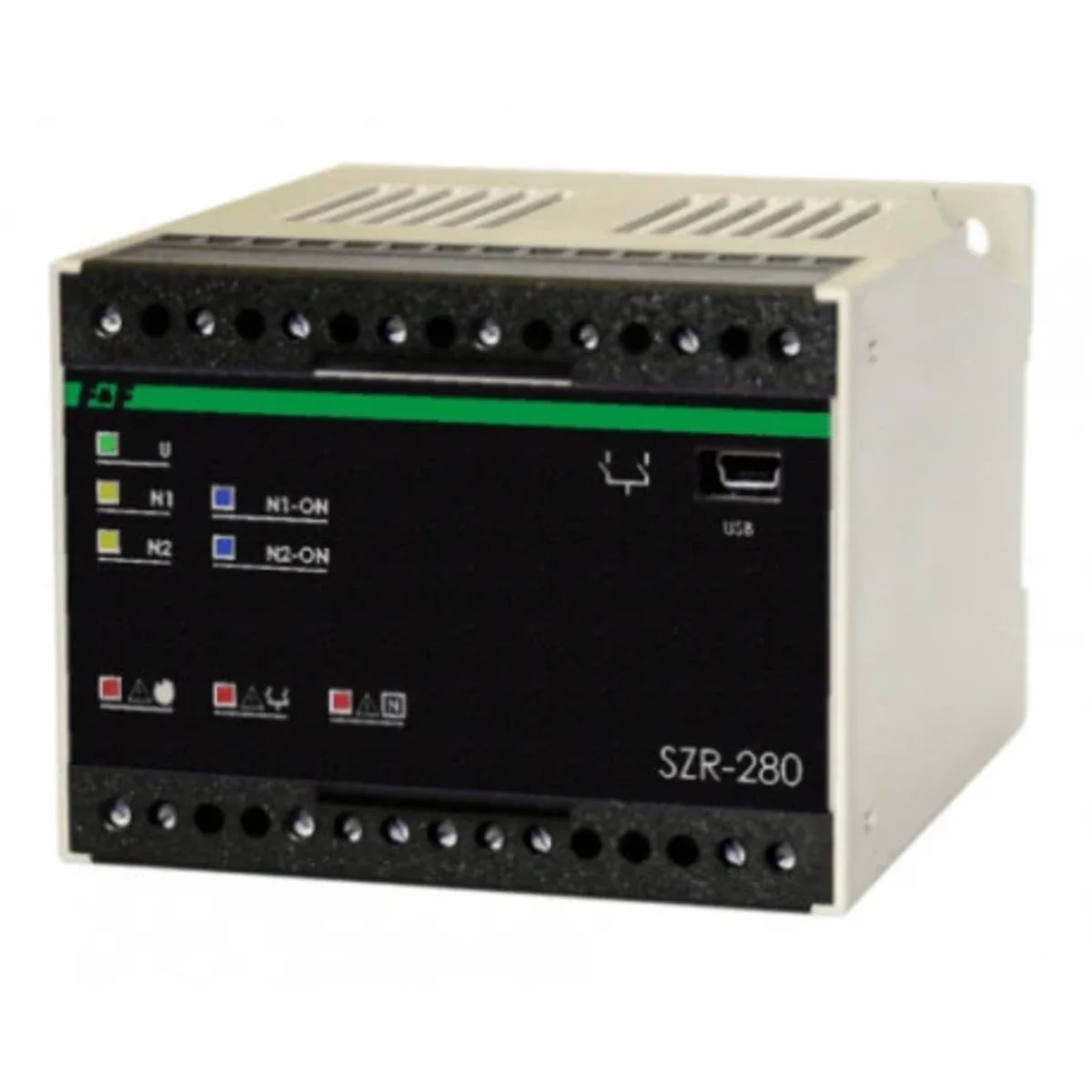

Controller for automatic switching on of the N1+N2 reserve SzR-280 SZR-280
local index:
API151FIFQ
Catalog No:
SZR-280
EAN code:
5908312594734
Price:
404,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The automatic transfer switch controller is designed to control the parameters and correct operation of the power supply lines and to automatically switch the facility's power sources in the event of a decrease in the power supply line parameters or a complete loss of voltage in this line.
Technical data
-
Frequency [Hz]45-50
-
InstallationOn the TH-35 rail
-
Rated current [A]8
-
Contact5×1Z
-
Height [mm]75
-
Package height [mm]75
-
Package weight [kg]0.6
-
Depth [mm]110
-
Rated voltage [V]230
-
Network3-f 4-wire
-
Width [mm]100
-
Measuring range [V]80-300
-
Package width [mm]100
-
PKWIU27.12.24.0
Other technical data
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 50 Hz85 ... 264 V
-
Phase sequence monitoringNo
-
Function under voltage detectionYes
-
Phase imbalance monitoringNo
-
Min. adjustable delay-on energization time0.1 s
-
Min. adjustable off-delay time0.1 s
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact0
-
Height75 mm
-
With detachable clampsNo
-
Voltage type for actuatingAC
-
Phase failure detectionYes
-
Function over voltage detectionYes
-
Voltage measuring range80 ... 300 V
-
Max. permitted delay-on energization time60 s
-
Max. permitted off-delay time60 s
-
Number of contacts as normally open contact5
-
Width150 mm
-
Depth110 mm
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,550 |
| Width (m) | 0,175 |
| Length (m) | 0,080 |
| Depth (m) | 0,140 |
