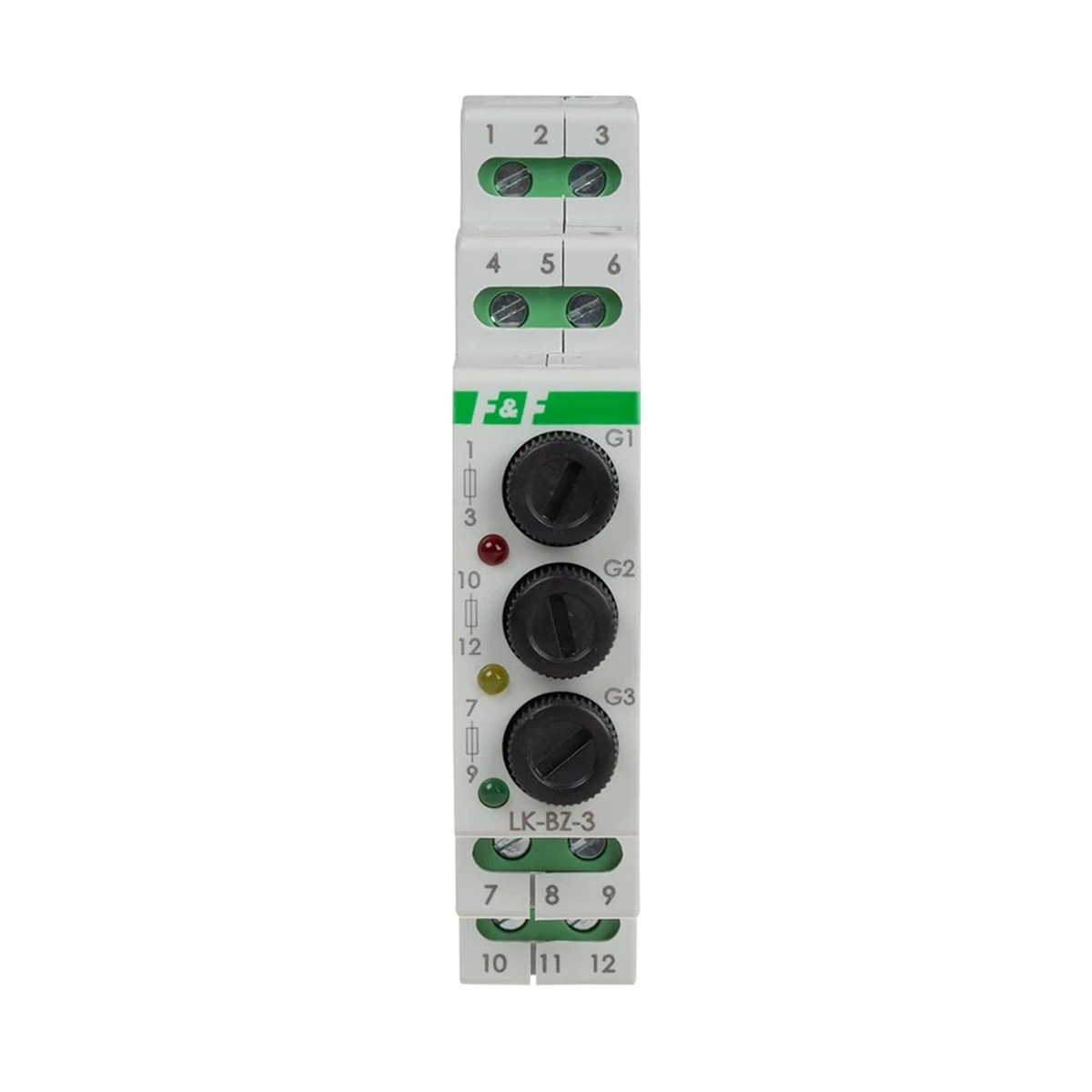

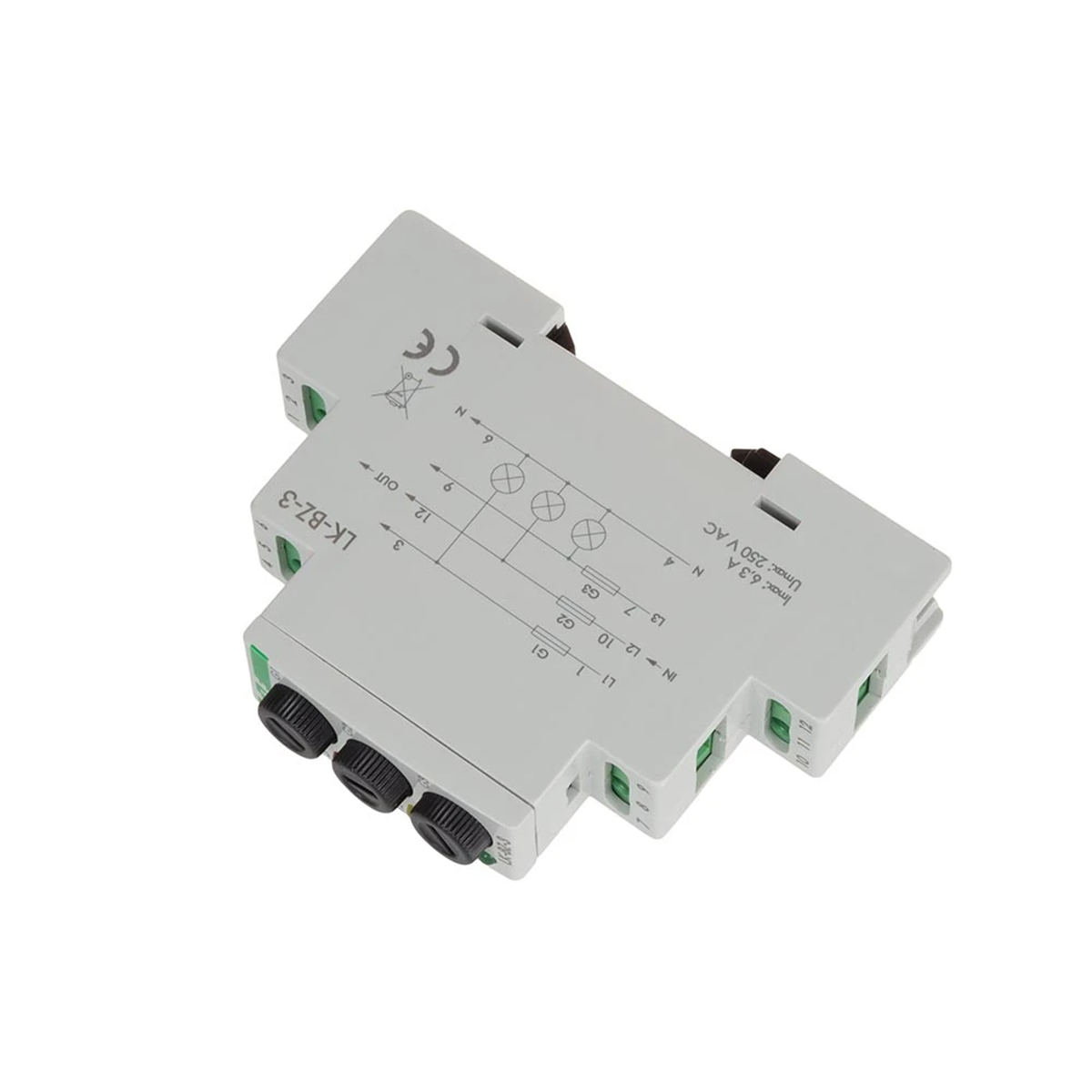

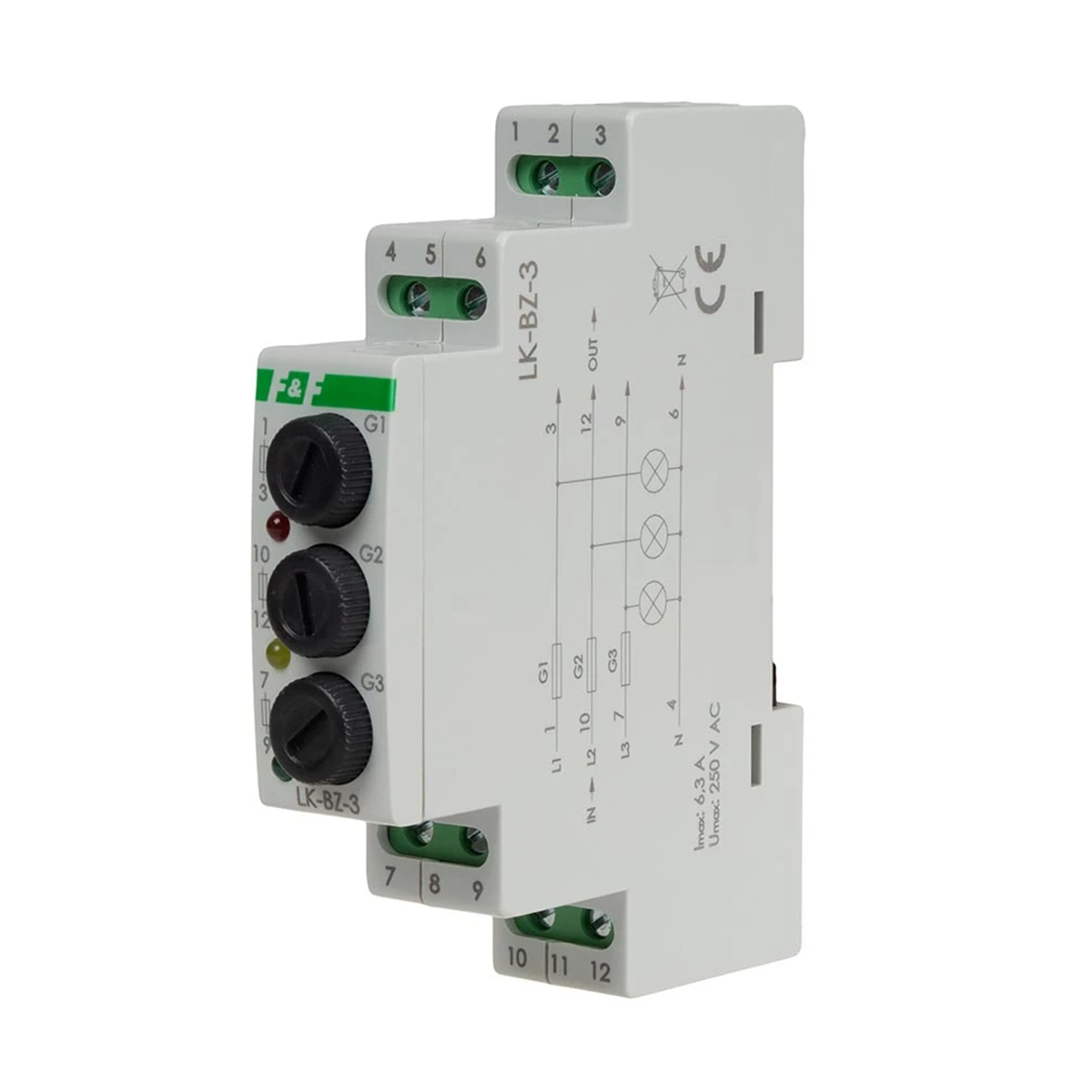

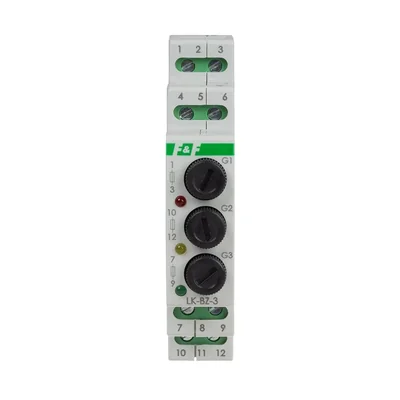

Control lamp 3 LEDs 3×230 V+N red yellow green LK-BZ-3K

local index:
API140FIFQ
Catalog No:
LK-BZ-3K
EAN code:
5902431672946
Manufacturer: F&F
Fuse: Fusible link Ø5×20 mm
Number of LEDs: 3
Color: Yellow | Red | Green
Price:
28,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 34 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Indicator lamp from the manufacturer F&F. The product part number is LK-BZ-3K. Designed for optical signaling of voltage in individual phases of a three-phase network.

  • 3 LEDs.
  • Colors: red-yellow-green.< /li>
  • Supply voltage 3×230 V+N.
  • Maximum fuse current: 6.3 A.
  • Rated current: 1.7 mA (phase -light on).
  • Power consumption: 0.2 W/phase.
  • Operating temperature: -25 ÷ 50 °C.
  • Dimensions: 1 module (18 mm).
  • Mounting: on 35 mm rail.


Operation
The presence of voltage behind the fuse is indicated by the lighting of the appropriate LED connected to the circuit of this phase. In the event of a phase voltage failure or a fuse-link burnout, the indicator is off, indicating a lack of voltage.

Technical data

  • Fuse
    Fusible link Ø5×20 mm
  • Color
    Yellow Red Green
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • PKWIU
    27.90.20.0
  • Number of LEDs
    3
  • Tightening torque [Nm]
    0.4
  • Rated current [mA]
    1.7
  • Terminal type
    Threaded

Other technical data

  • Colour calotte
    Other
  • Lamp socket
    Other
  • Rated voltage
    230 V
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Lamp type
    LED
  • Max. lamp power
    0.8 W
  • Voltage type
    AC
  • Built-in depth
    65 mm

Manufacturer details

  • Manufacturer
    F&F Filipowski Spółka Komandytowa
  • Address
    95-200 Pabianice ul. Konstantynowska 79/81
  • Phone number
  • Tax identification number
    7310005314
  • GLN
    5900009915815

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,043
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
