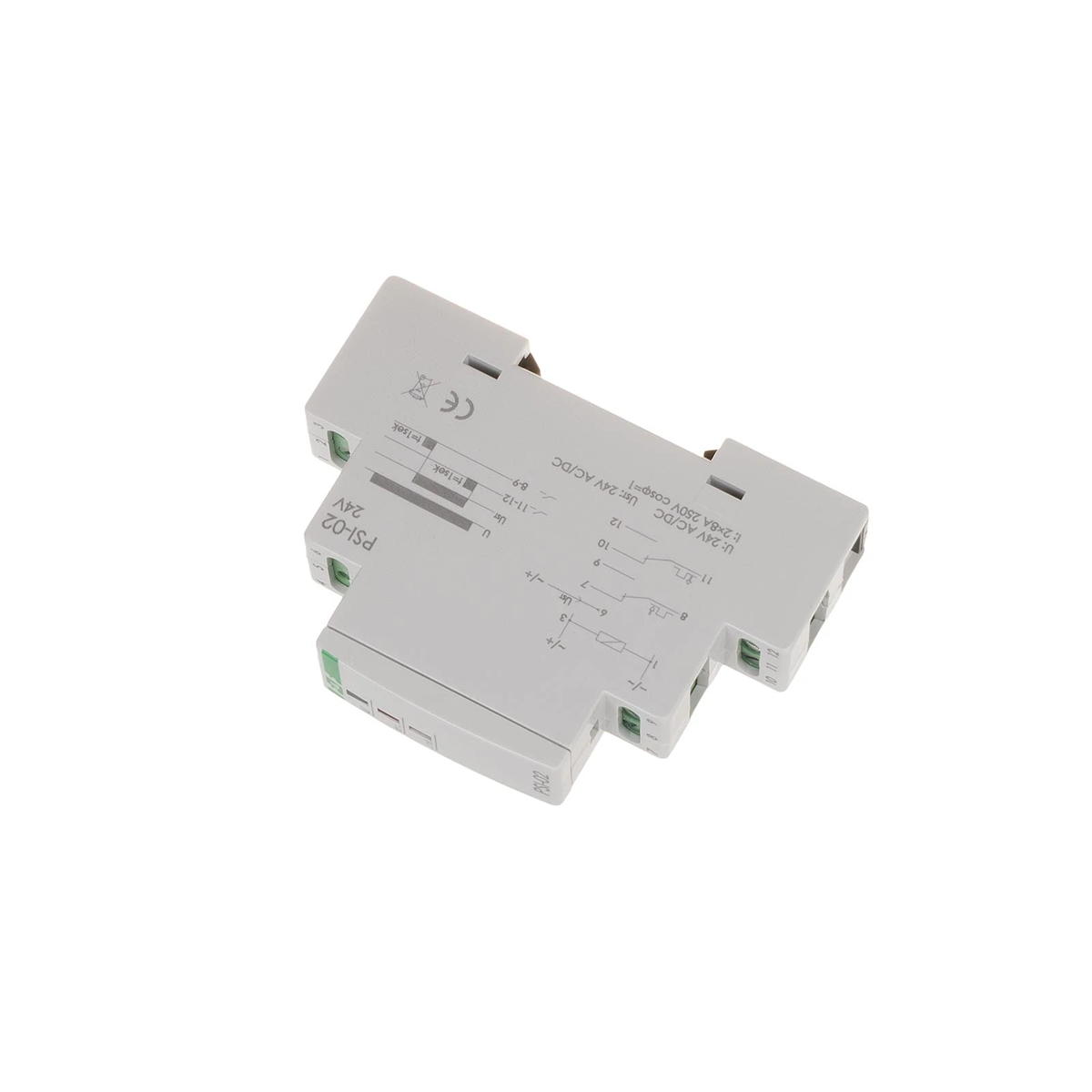

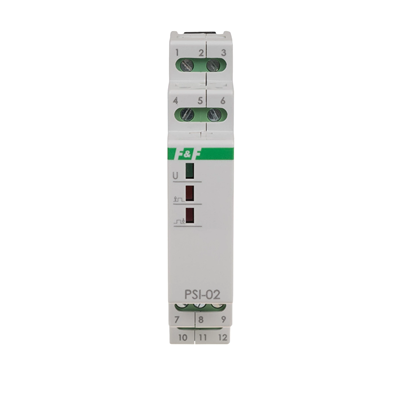

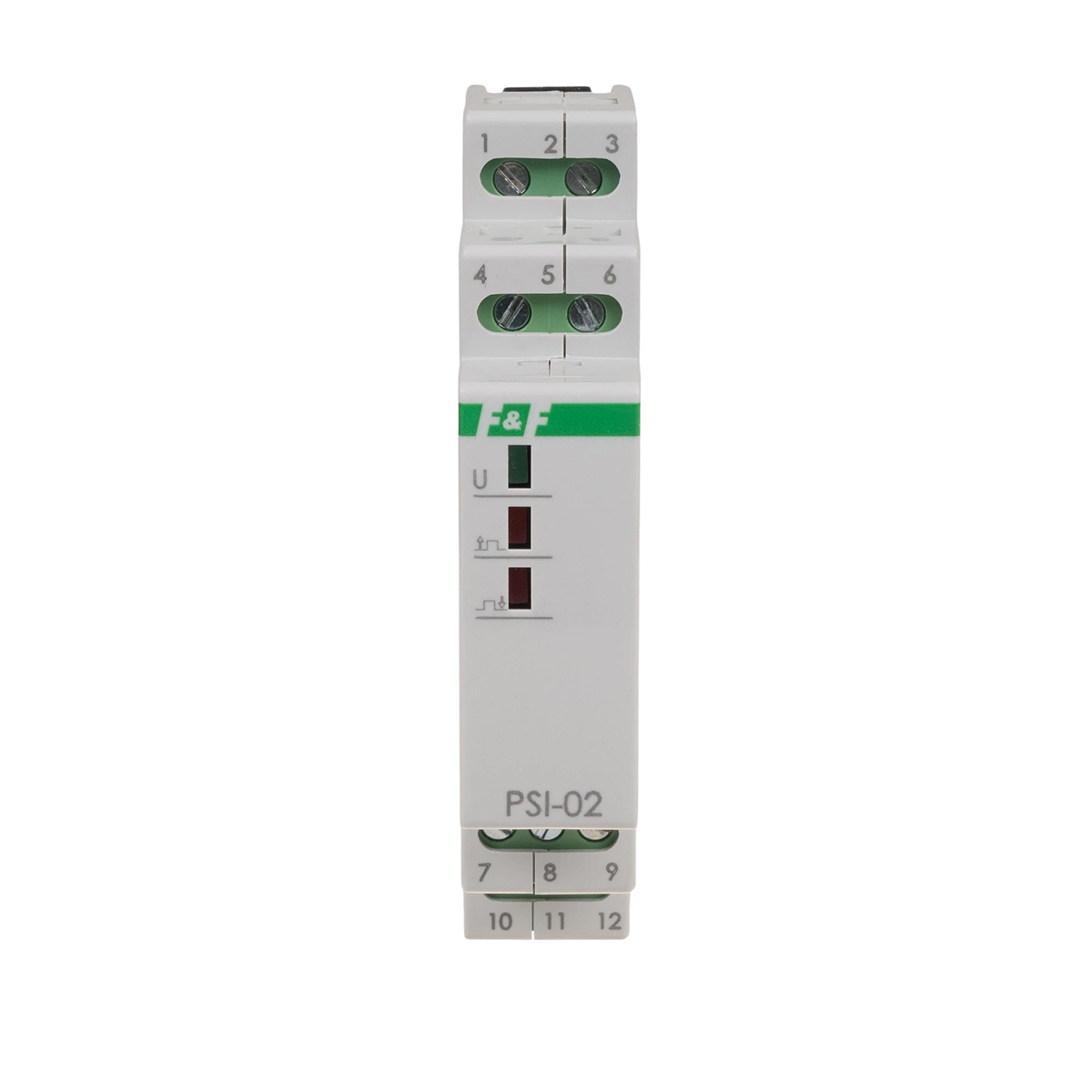

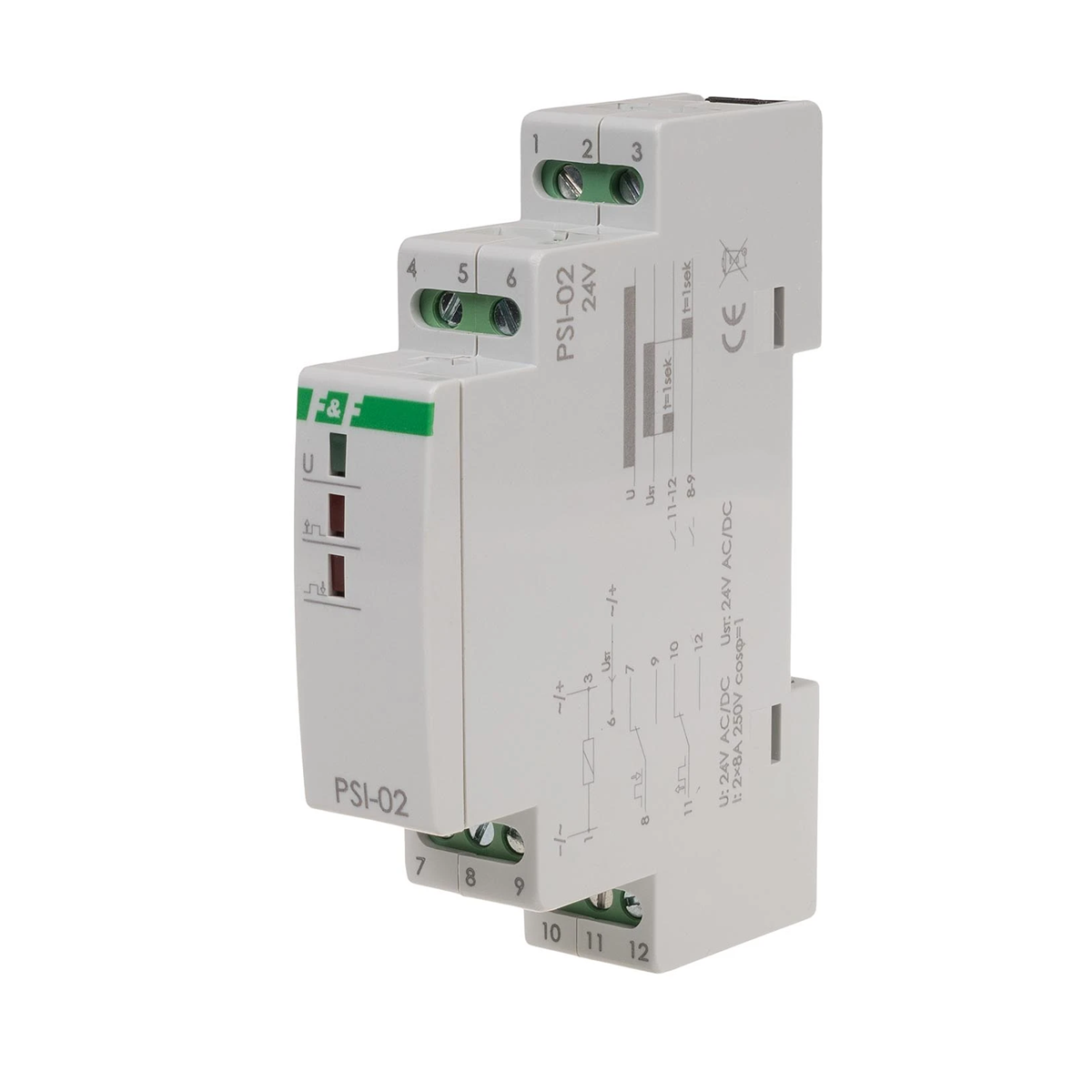

Continuous to pulse signal converter PSI-02-24V

local index:
API020FIFQ
Catalog No:
PSI-02-24V
EAN code:
5908312591603
Manufacturer: F&F
Time of output signals [s]: 1
Installation: On the TH-35 rail
Rated voltage [V]: 24
Price:
17,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PSI-02 is used to convert a continuous control signal into single control pulses required in automation control systems. After receiving the control signal at the UST input (rising edge), the transducer generates a pulse at output 6 (contact 5-6 will be closed for 1 sec.). After the control signal disappears (falling edge), the transducer generates a second impulse at output 8 (contact 7-8 will be closed for 1 second).

Technical data

  • Time of output signals [s]
    1
  • Rated voltage [V]
    24
  • connection
    2.5mm screw terminals
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • Installation
    On the TH-35 rail
  • load current [A]
    2x8
  • Level of security
    IP2X
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    27.12.24.0

Other technical data

  • Transmission
    Copper
  • Model
    Other
  • Output
    Other
  • Supports H.264 codec
    No
  • Supports Motion JPEG codec
    No
  • Supply voltage required
    Yes
  • Number of outputs
    2
  • Number of inputs
    2
  • Supports H.265 codec
    No
  • Supports MPEG-4 codec
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,075
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
