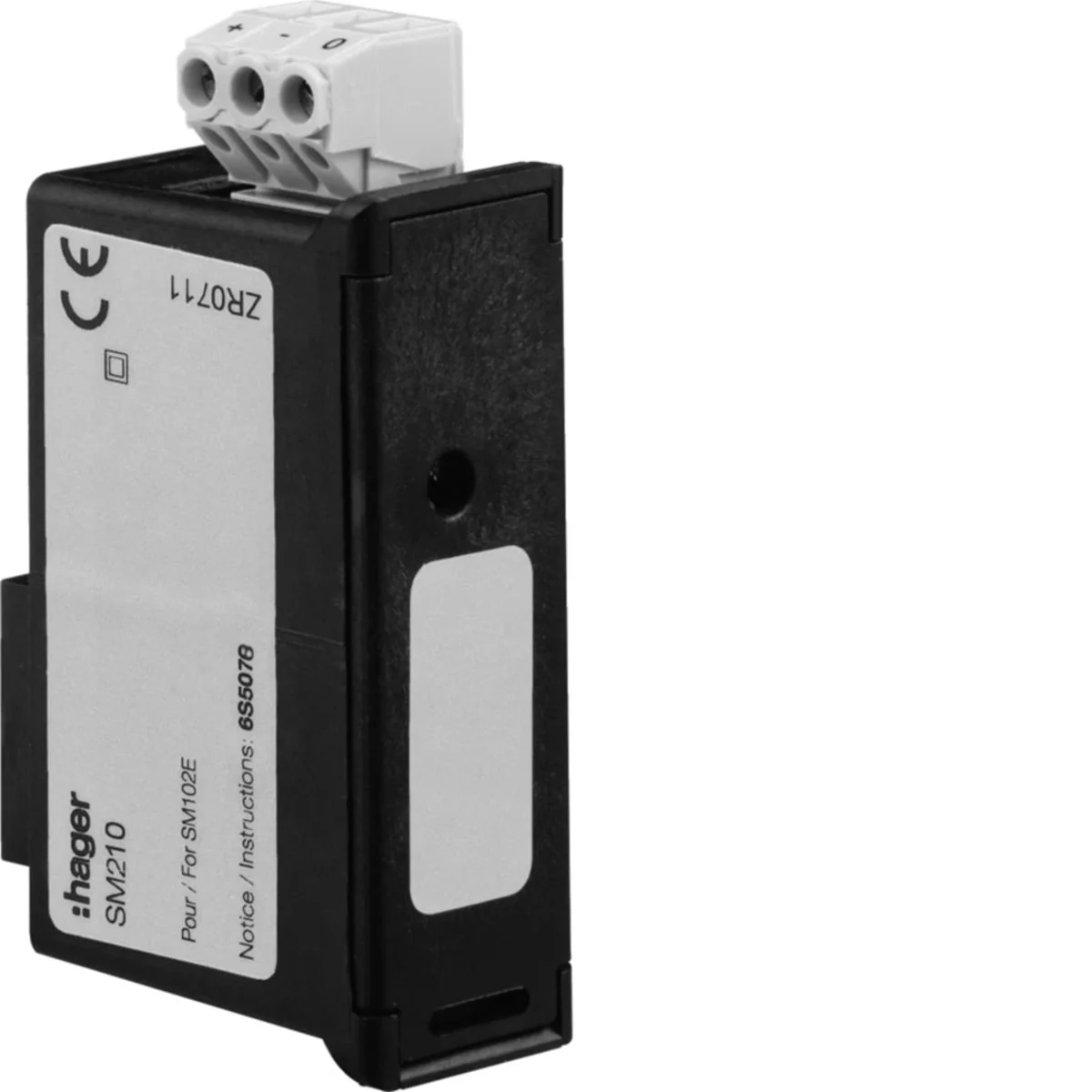

Communication module RS485 JBUS/MODBUS for SM102E SM210

local index:
API057HAGE
Catalog No:
SM210
EAN code:
3250615632104
Manufacturer: HAGER
Length [mm]: 49
Depth [mm]: 36
Fixing: Clamp and screw
Price:
175,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Communication module RS485 JBUS/MODBUS for SM102E

Technical data

  • Length [mm]
    49
  • Fixing
    Clamp and screw
  • Width [mm]
    21
  • Operating temperature range [°C]
    from -10 to 55
  • Rated insulation voltage [kV]
    4
  • Conductor cross-section (wire) [mm²]
    0.5 - 1.5
  • Depth [mm]
    36
  • Level of security
    IP20
  • Height [mm]
    84
  • storage temperature [°C]
    from -20 to 80
  • Wire cross-section (cord) [mm²]
    0.5 - 1.5
  • PKWIU
    26.30.23.0

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 30 pcs. 720 pcs.
Weight (kg) 0,115 0,120 3,875 116,000
Width (m) 0,230 0,160 0,400 0,800
Length (m) 0,035 0,040 0,288 1,890
Depth (m) 0,160 0,230 0,596 1,200
