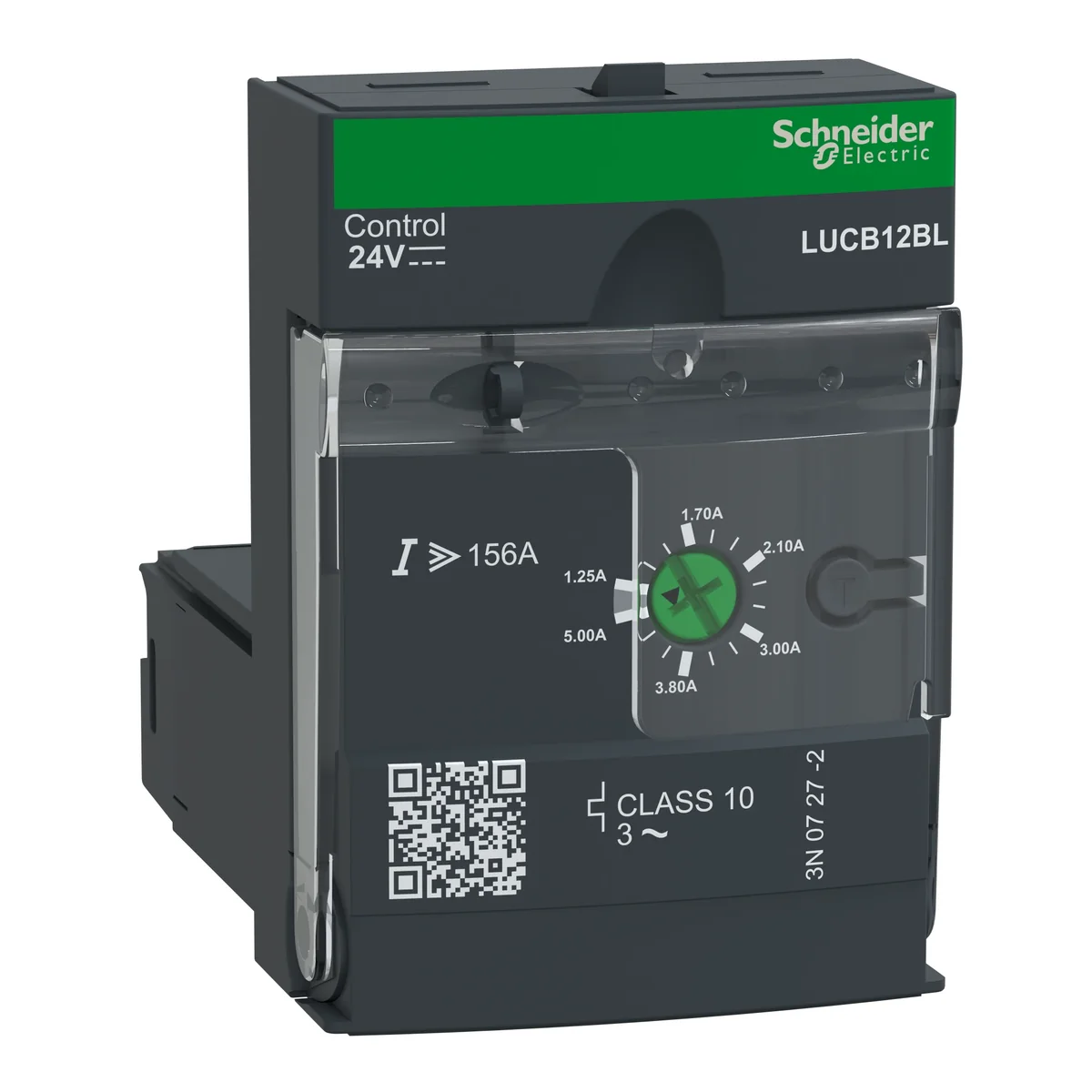

Class 10 3-12A 24VDC advanced control module LUCB12BL

local index:
API528SCHN
Catalog No:
LUCB12BL
EAN code:
3389110364095
Manufacturer: SCHNEIDER ELECTRIC
ambient temperature [°C]: From -40 to 85
Price:
156,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Class 10 3-12A 24VDC advanced control module

Technical data

  • ambient temperature [°C]
    From -40 to 85
  • PKWIU
    27.12.23.0

Other technical data

  • Overload release current setting
    3 ... 12 A
  • End value adjustment range undelayed short-circuit release
    156 A
  • Voltage type for actuating
    DC
  • Number of poles
    3
  • With ground fault protection function
    Yes
  • Initial value of the undelayed short-circuit release - setting range
    156 A
  • Rated permanent current Iu
    12 A
  • Rated control supply voltage DC
    24 ... 24 V
  • Short-circuit release function
    Undelayed
  • Type of motor protection
    Electronic release
