F&F

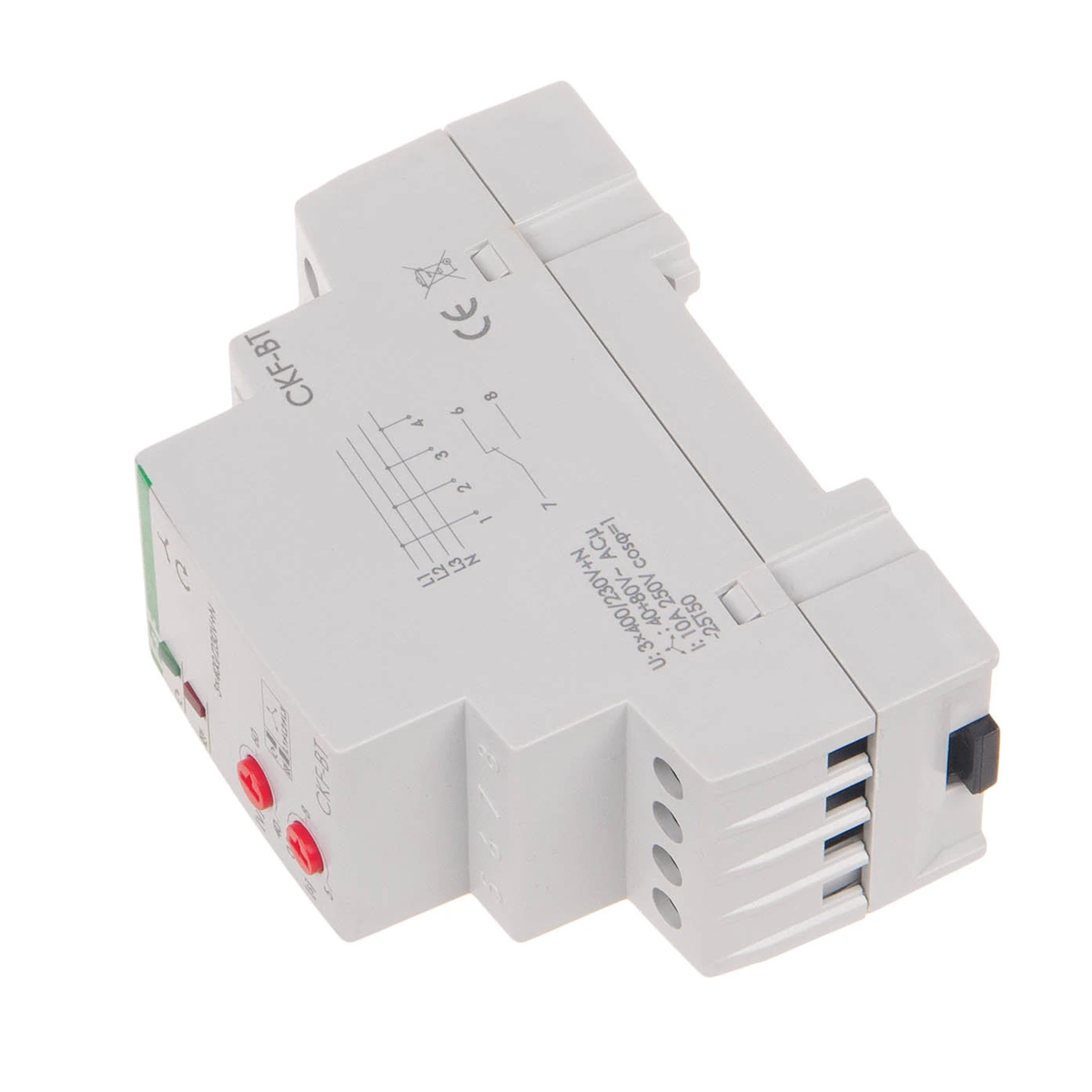

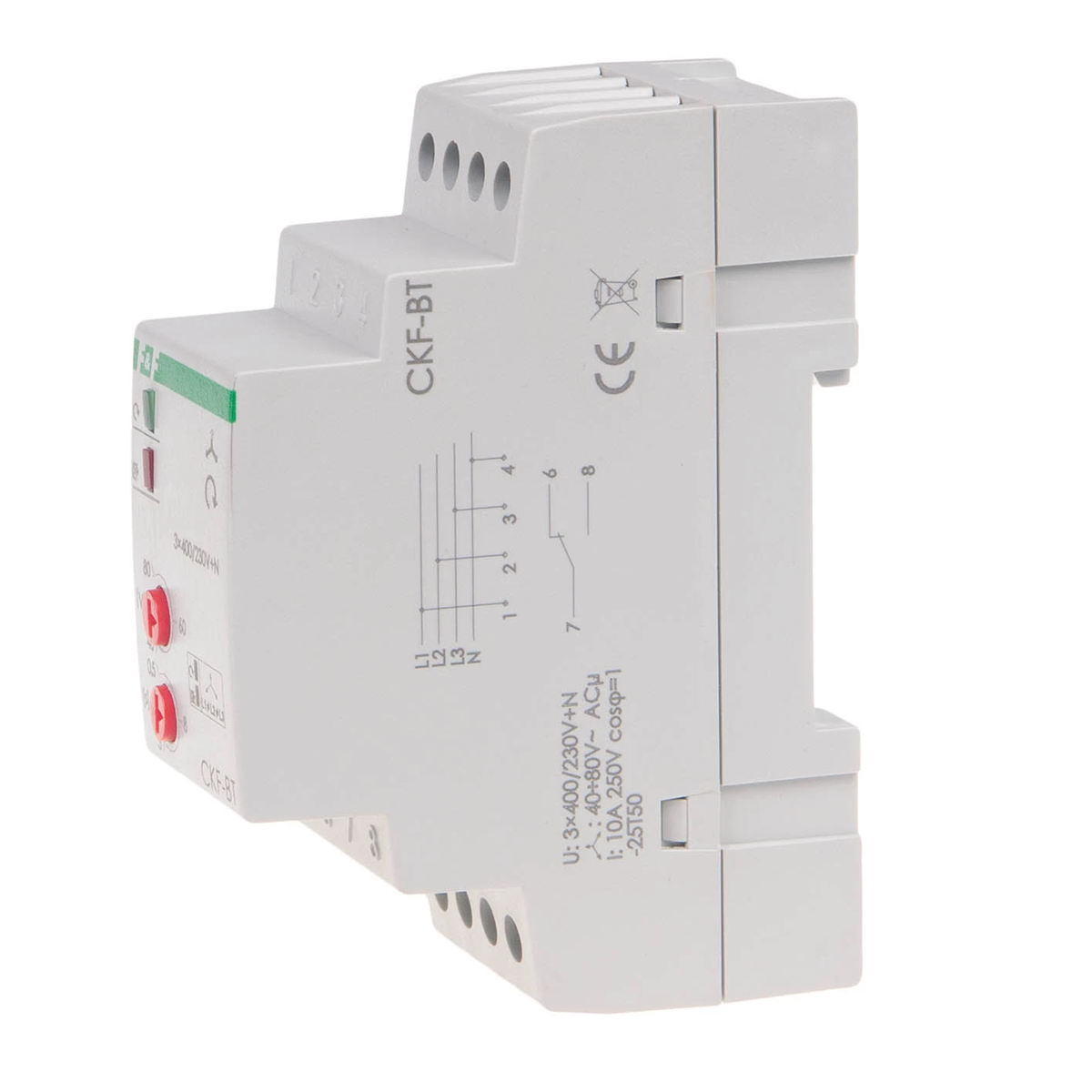

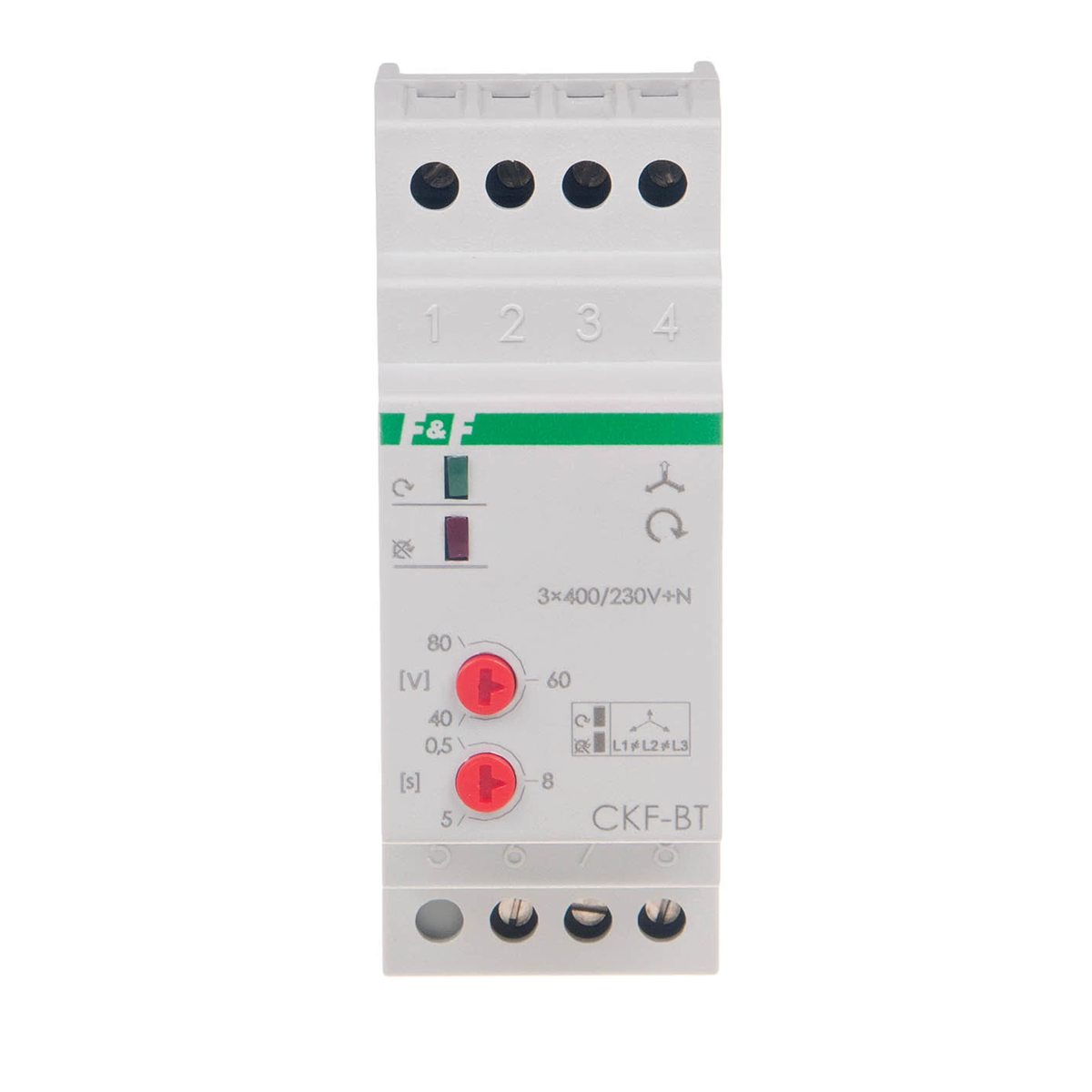

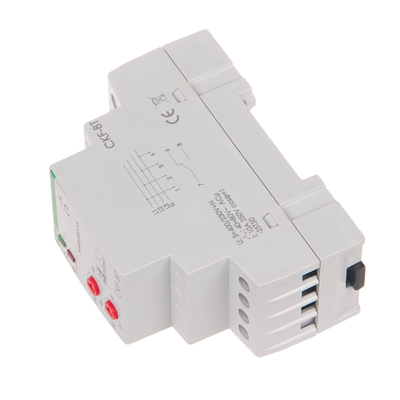

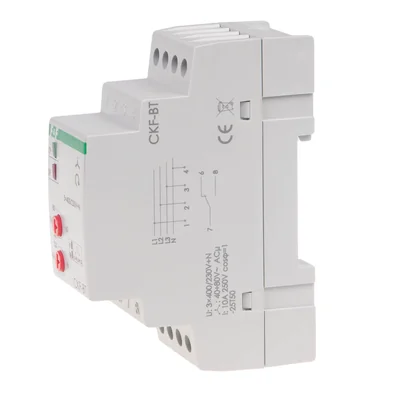

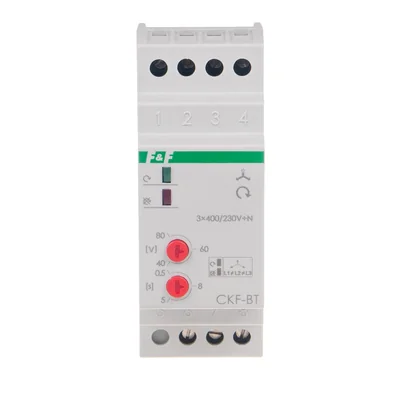

CKF-BT phase sequence and phase loss sensor CKF-BT

local index:
APL156FIFQ
Catalog No:
CKF-BT
EAN code:
5908312592488
Price:
29,54 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Intended use
The phase sequence and loss sensor is designed to protect electric motors powered from a three-phase network in the event of a voltage loss in at least one phase or voltage asymmetry between phases, threatening the destruction of the motor, and protection of the direction of motor rotation in the event of a phase change in front of the sensor.
Action
Voltage failure in at least one, any phase  or Voltage unbalance [V] between the phases above the activation threshold will cause the motor to be switched off. The switch-off will take place with the set delay, which prevents accidental disconnection of the motor in the event of a momentary voltage drop. Reactivation will occur automatically when  voltage increase by 5V above the operating voltage  (i.e. the value of the voltage hysteresis). With the above anomalies, starting the engine is impossible. In the event of a change in the sequence of phases before the sensor, causing an undesirable change in the direction of rotation of the motor, the sensor will not allow the motor to start. Reactivation is possible after the return of the correct phase sequence.

Technical data

  • Trip voltage unbalance [V]
    40-80
  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • load current [A]
    <10
  • Incorrect phase sequence signaling
    red LED
  • Working temperature [°C]
    -25-50
  • Power
    3×400/230V+N
  • Package width [mm]
    40
  • Voltage hysteresis [V]
    5V~
  • Power [W]
    1.6
  • Shutdown delay [s]
    0.5-15
  • connection
    2.5mm screw terminals
  • Power signaling / correct phase sequence
    LED green
  • Dimensions
    2 modules (35mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0, 1

Other technical data

  • Type of electric connection
    Screw connection
  • Rated control supply voltage AC 50 Hz
    230 ... 400 V
  • Phase sequence monitoring
    yes
  • Function under voltage detection
    no
  • Phase imbalance monitoring
    yes
  • Min. adjustable off-delay time
    0.5 s
  • Number of contacts as normally open contact
    1
  • Height
    90 mm
  • With detachable clamps
    no
  • Voltage type for actuating
    AC
  • Phase failure detection
    yes
  • Function over voltage detection
    no
  • Voltage measuring range
    190 ... 270 V
  • Max. permitted off-delay time
    15 s
  • Width
    35 mm
  • Depth
    65 mm
