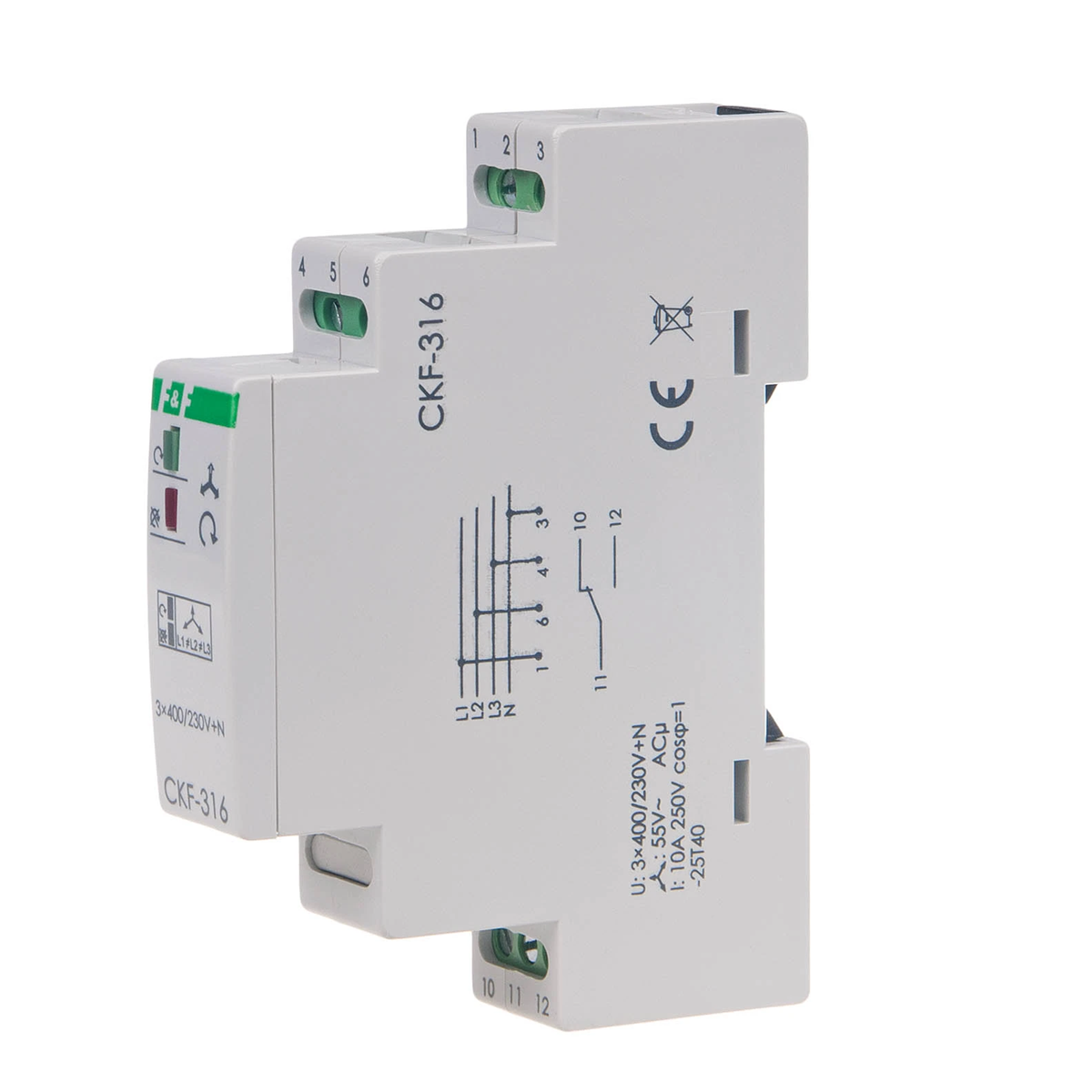

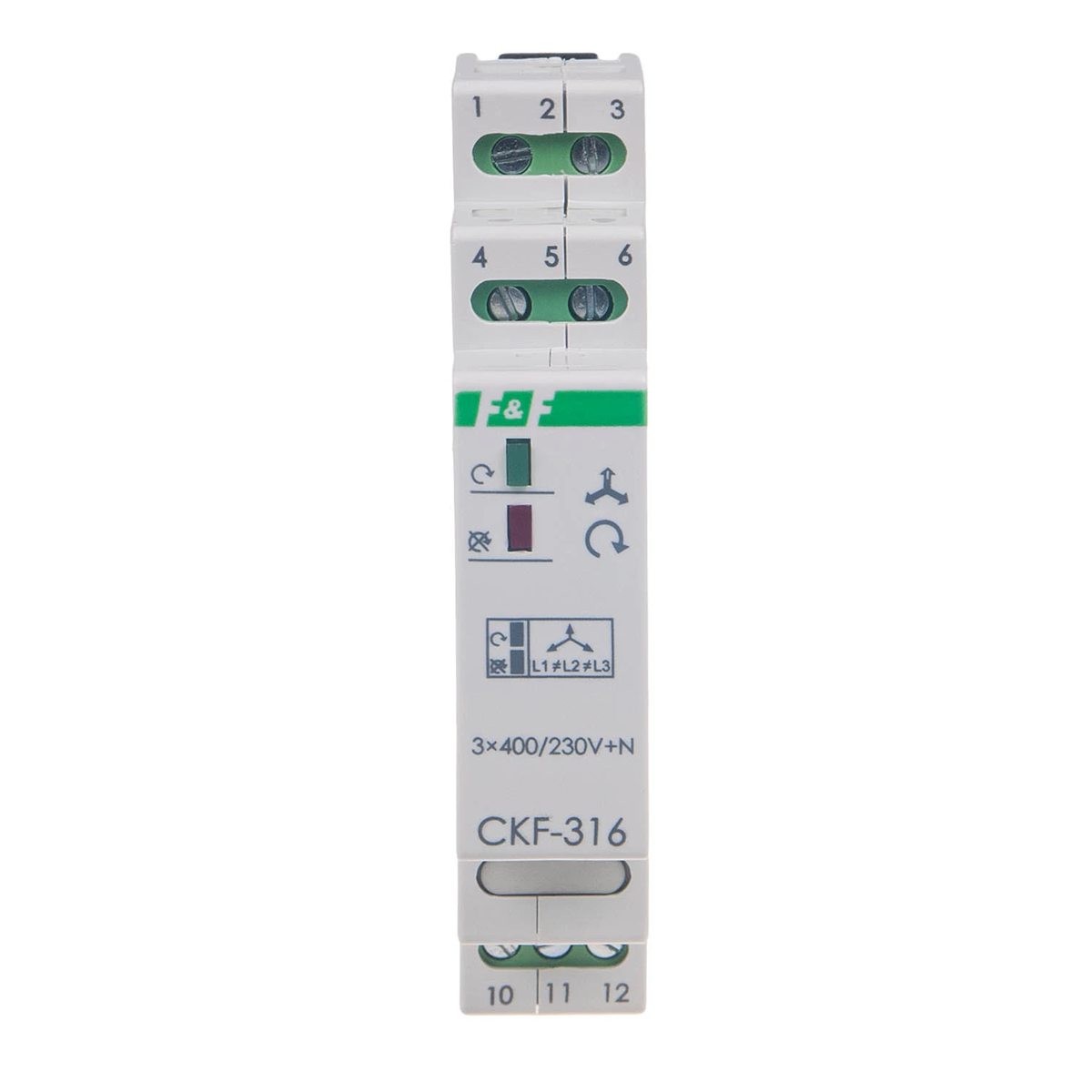

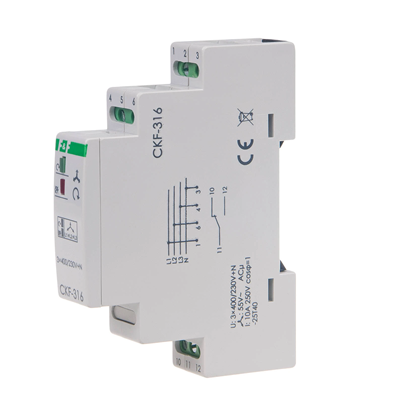

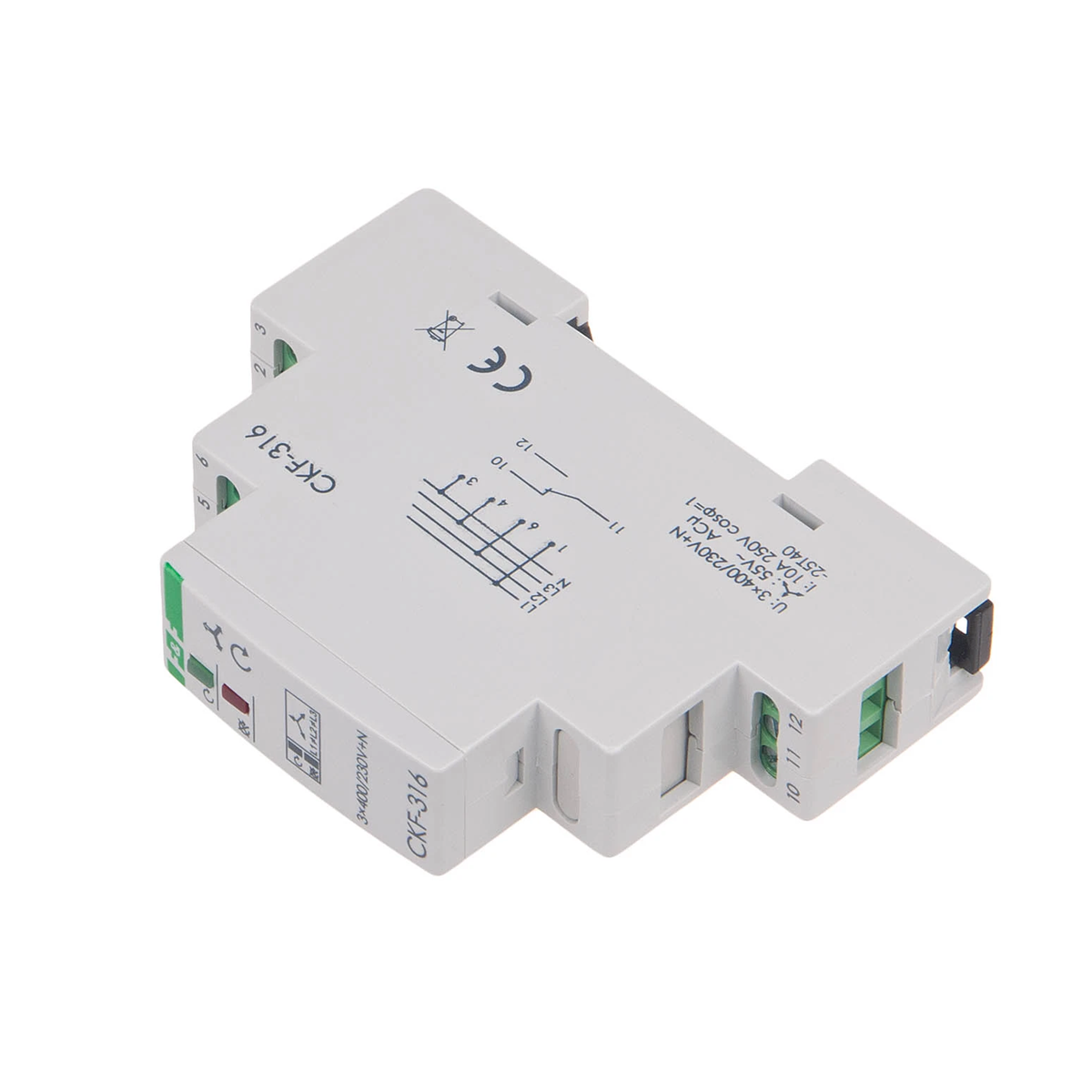

CKF-316 phase sequence and phase loss sensor CKF-316

local index:
APL151FIFQ
Catalog No:
CKF-316
EAN code:
5908312593164
Manufacturer: F&F
Trip voltage unbalance [V]: 55
Voltage hysteresis [V]: 5V~
Number of contacts: 1NO 0NC
Price:
22,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 38 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

CKF-316 phase sequence and phase loss sensor.

Intended use
The phase sequence and loss sensor is designed to protect electric motors powered from a three-phase network in the event of a voltage loss in at least one phase or voltage asymmetry between phases, which may damage the motor, and protection of the direction of rotation of the motor in the event of a phase change in front of the sensor.
Action
Voltage failure in at least one, any phase  or Voltage unbalance [V] between the phases above the activation threshold will cause the motor to be switched off. The switch-off will take place with a delay of 4 seconds, which prevents accidental disconnection of the motor in the event of a momentary voltage drop. Reactivation will occur automatically when  voltage increase by 5V above the operating voltage  (i.e. the value of the voltage hysteresis). With the above anomalies, starting the engine is impossible. In the event of a change in the sequence of phases before the sensor, causing an undesirable change in the direction of rotation of the motor, the sensor will not allow the motor to start. Reactivation is possible after the return of the correct phase sequence.

Technical data

  • Trip voltage unbalance [V]
    55
  • Number of contacts
    1NO 0NC
  • Installation
    On the TH-35 rail
  • load current [A]
    <10
  • Incorrect phase sequence signaling
    red LED
  • Working temperature [°C]
    -25-40
  • Power
    3×400/230V+N
  • Package width [mm]
    20
  • PKWIU
    27.12.23.0
  • Voltage hysteresis [V]
    5V~
  • Power [W]
    0.56
  • Shutdown delay [s]
    4
  • connection
    2.5mm screw terminals
  • Power indication / correct phase sequence
    LED green
  • Dimensions
    1 module (18mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Other technical data

  • Type of electric connection
    Screw connection
  • Phase sequence monitoring
    Yes
  • Function under voltage detection
    No
  • Phase imbalance monitoring
    Yes
  • Min. adjustable off-delay time
    4 s
  • Rated control supply voltage AC 50 Hz
    3 ... 400 V
  • Phase failure detection
    Yes
  • Function over voltage detection
    No
  • Voltage measuring range
    190 ... 270 V
  • Number of contacts as normally open contact
    1

Bulk packaging

A kind of package Sztuka Karton
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,071 -
Width (m) 0,019 -
Length (m) 0,095 -
Depth (m) 0,070 -
