Call bell 230V AC TYPE: ED-1 EXT10000025
local index:
API058ZAME
Catalog No:
EXT10000025
EAN code:
5903669013099
Price:
13,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

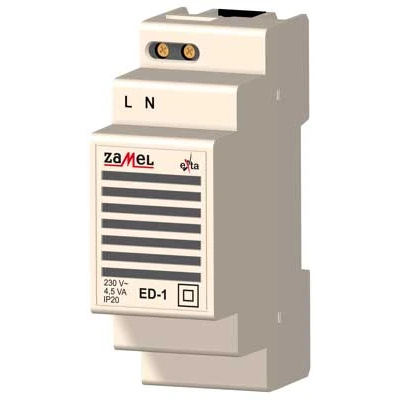

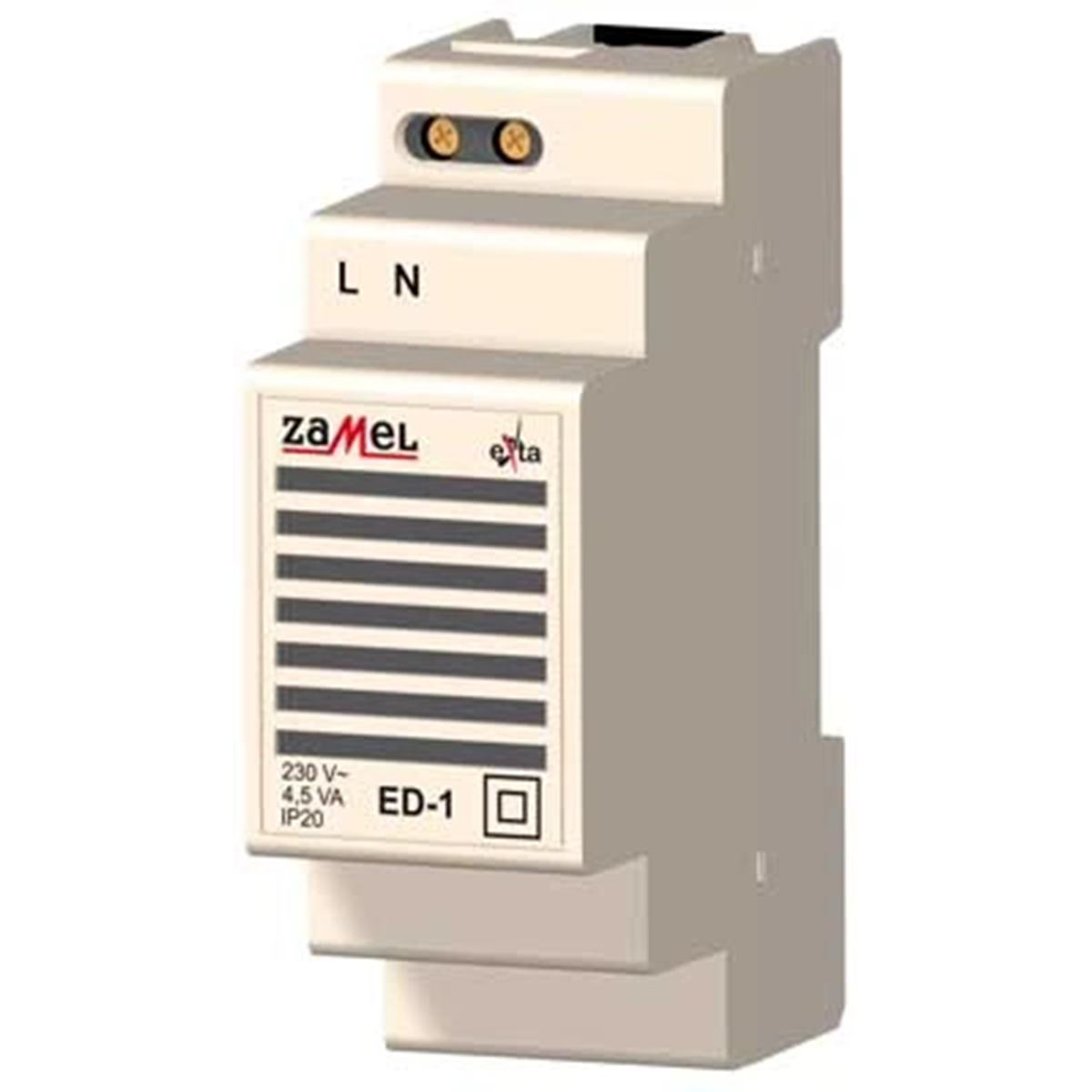

The ED-1 electromechanical bell is used in various systems where there is a need for acoustic signaling (e.g. for acoustic signaling of a phase failure). The bell is mounted on a TH35 mounting rail and works in any position. It has the II overvoltage category, the rated current consumption is 4.5VA.
Technical data
-
Length [mm]90
-
Number of modules2
-
InstallationOn the TH-35 rail
-
Rated current [A]0.19
-
Width [mm]35
-
Height [mm]66
-
Frequency [MHz]50
-
PKWIU27.90.20.0
-
number of phases1
-
ColorWhite
-
Rated voltage [V]230
-
Level of securityIP20
-
TypeWired doorbells
-
Frequency [MHz]50
-
Accurate colorWhite
Manufacturer details
-
ManufacturerZAMEL Sp. z o.o.
-
Address43-200 Pszczyna Zielona 27
-
Phone number
-
E-mail
-
Tax identification number6380000669
-
GLN5909002050004
