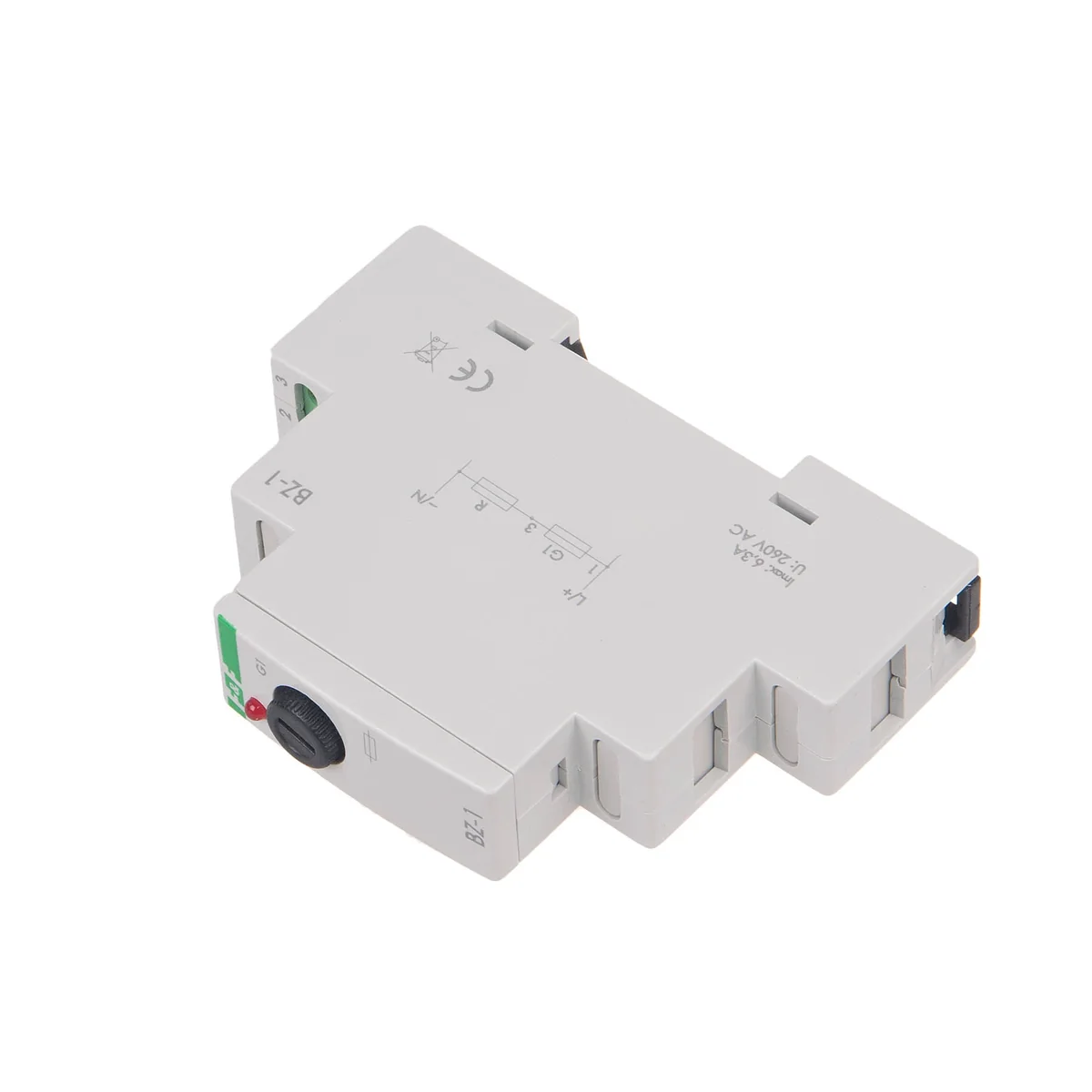

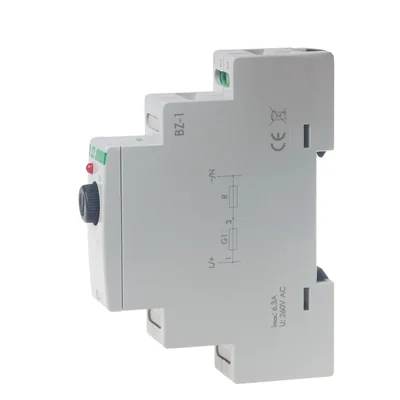

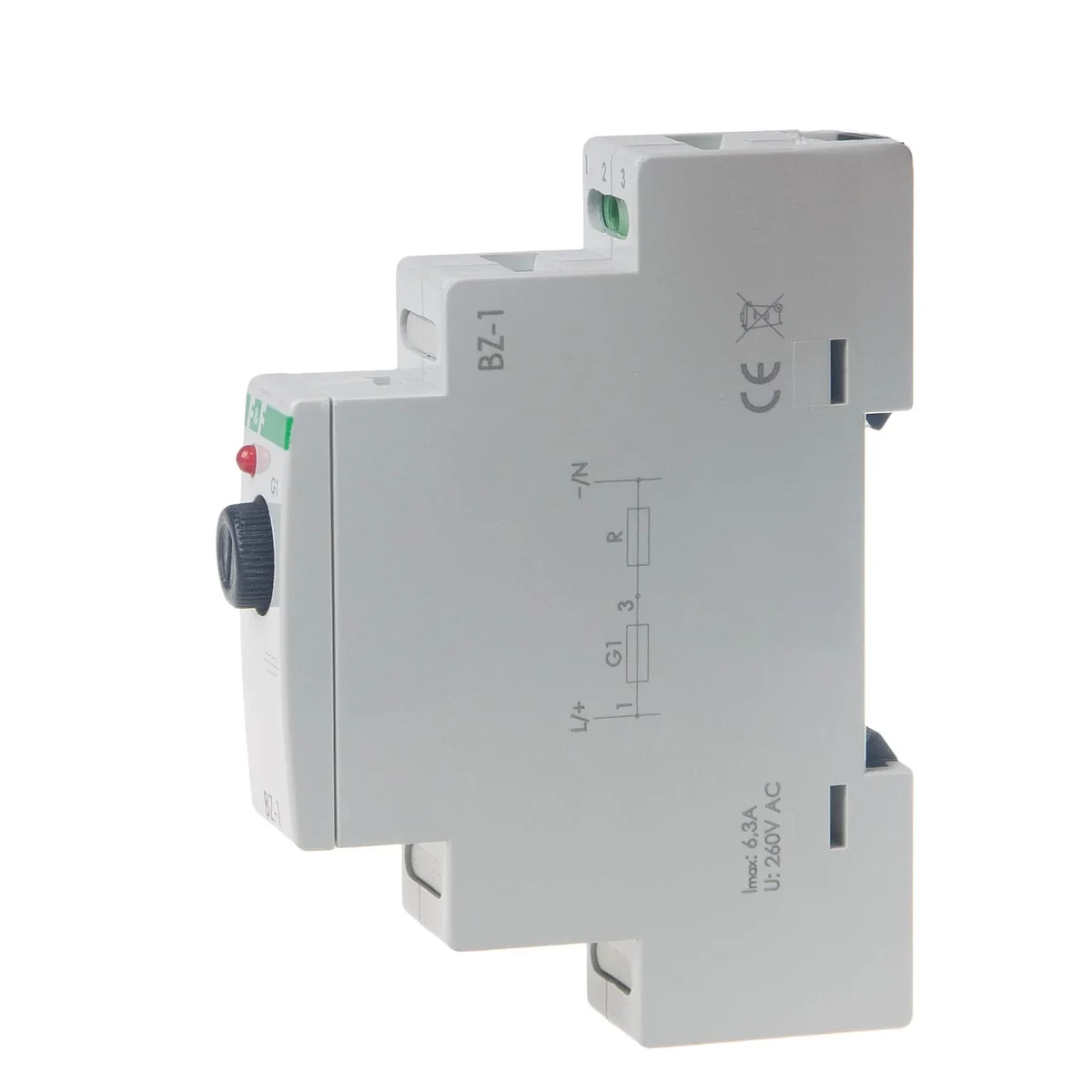

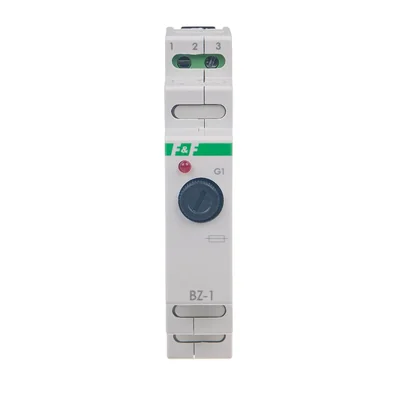

BZ-1 fuse module BZ-1

local index:
API014FIFQ
Catalog No:
BZ-1
EAN code:
5908312592211
Manufacturer: F&F
Fuse: Fusible link 5×20mm
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
12,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 22 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use
The fuse module is used to protect electrical receivers against the effects of current increase above the rated current value of the protected receiver.
Operation

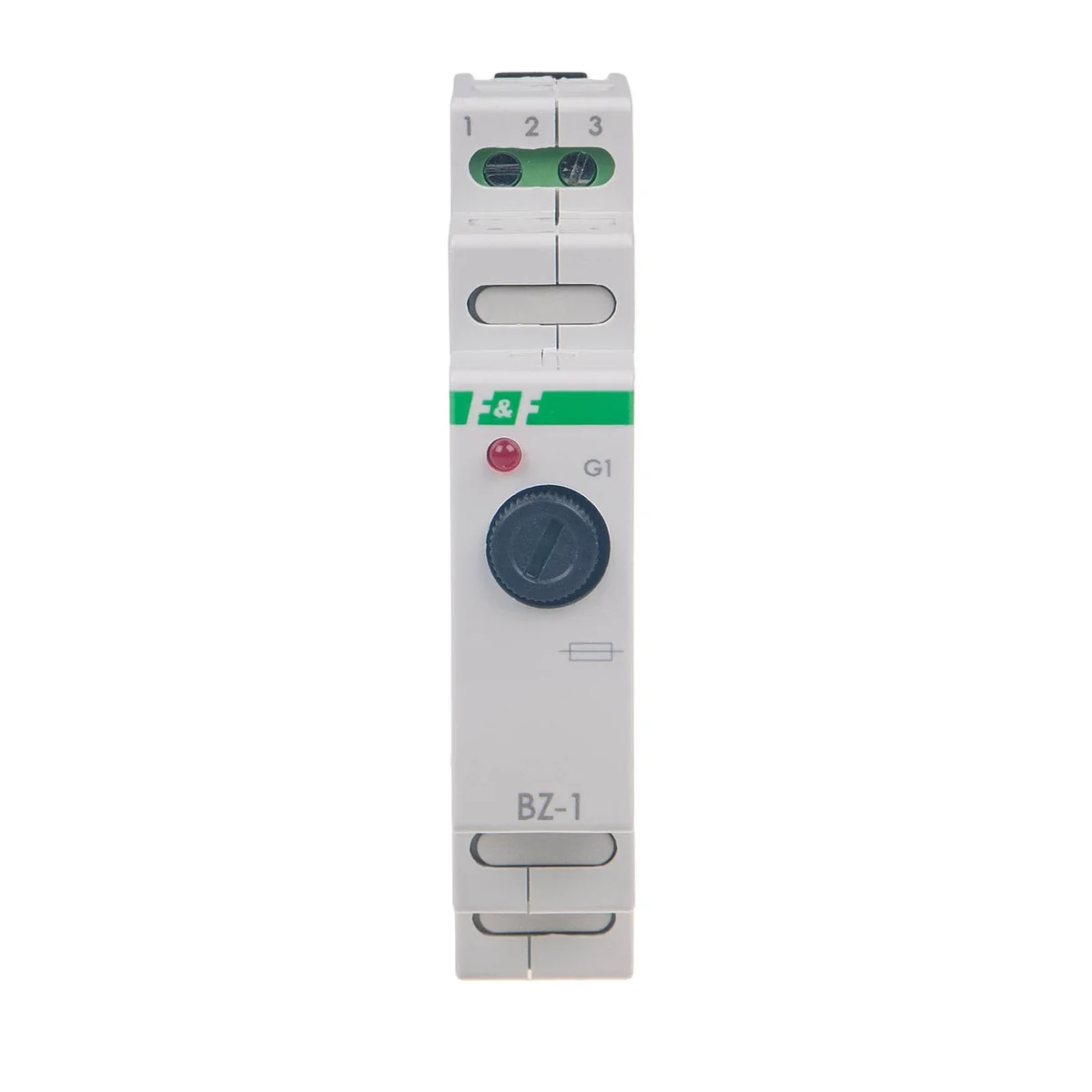

Fuse activation ( fuse-link burnout) is signaled by the red LED.

Technical data

  • Fuse
    Fusible link 5×20mm
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    27.12.23.0
  • Installation
    On the TH-35 rail
  • Rated current [A]
    6.3
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Other technical data

  • Type of fuse insert
    G-fuse 5x20 mm
  • Type of indication element for defect indication
    LED
  • Voltage type for defect indication
    AC/DC
  • Rated current In
    6 A
  • Type of electrical connection 1
    Screw connection
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 50 °C
  • Type of fuse holder
    Swivelling
  • Supply voltage for defect-indication
    250 ... 250 V
  • Connectable conductor cross section fine-strand without cable end sleeve
    2.5 ... 2.5 mm²
  • Rated voltage
    250 V
  • Number of levels
    1
  • Material insulation body
    Duroplast
  • Colour
    Grey

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,053
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
