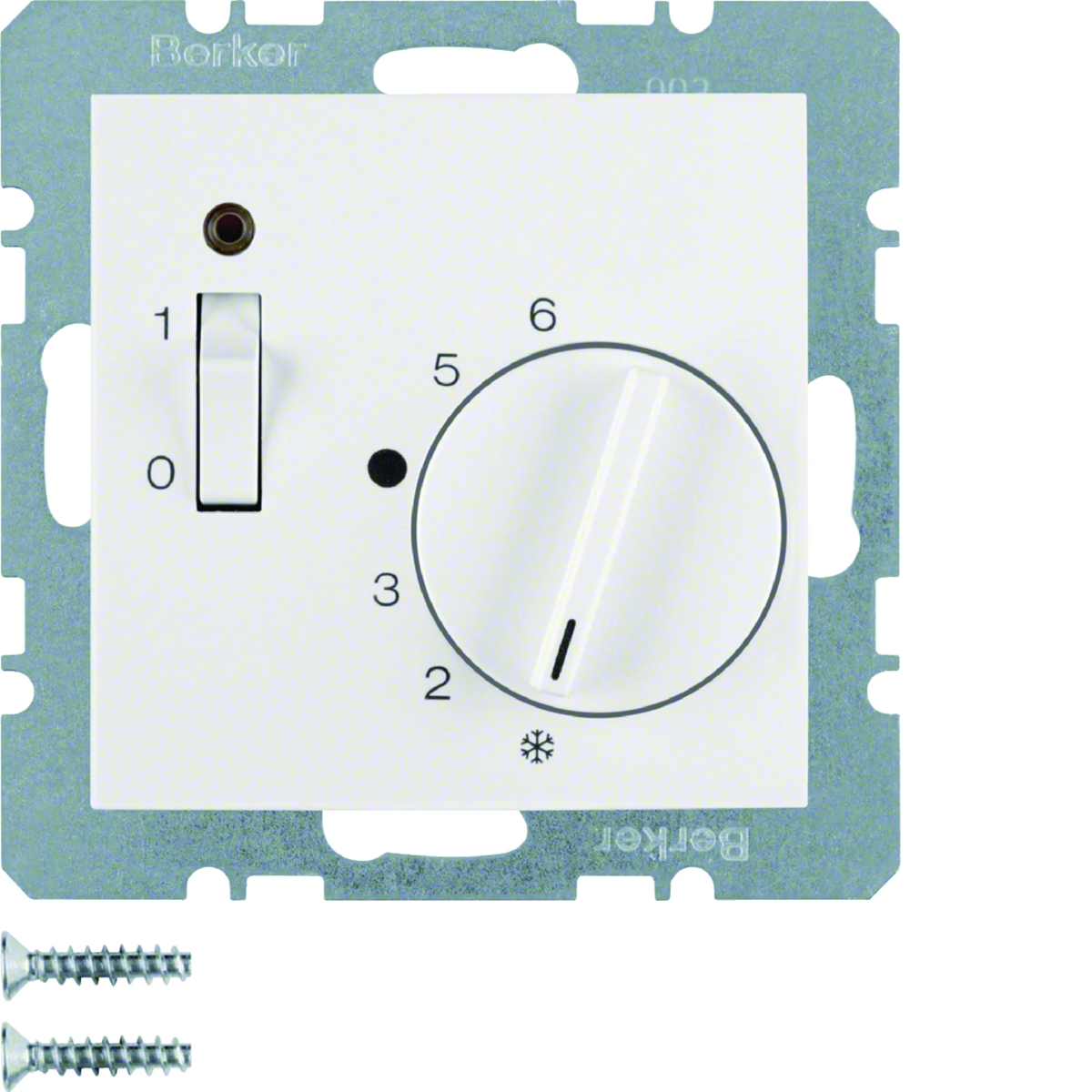

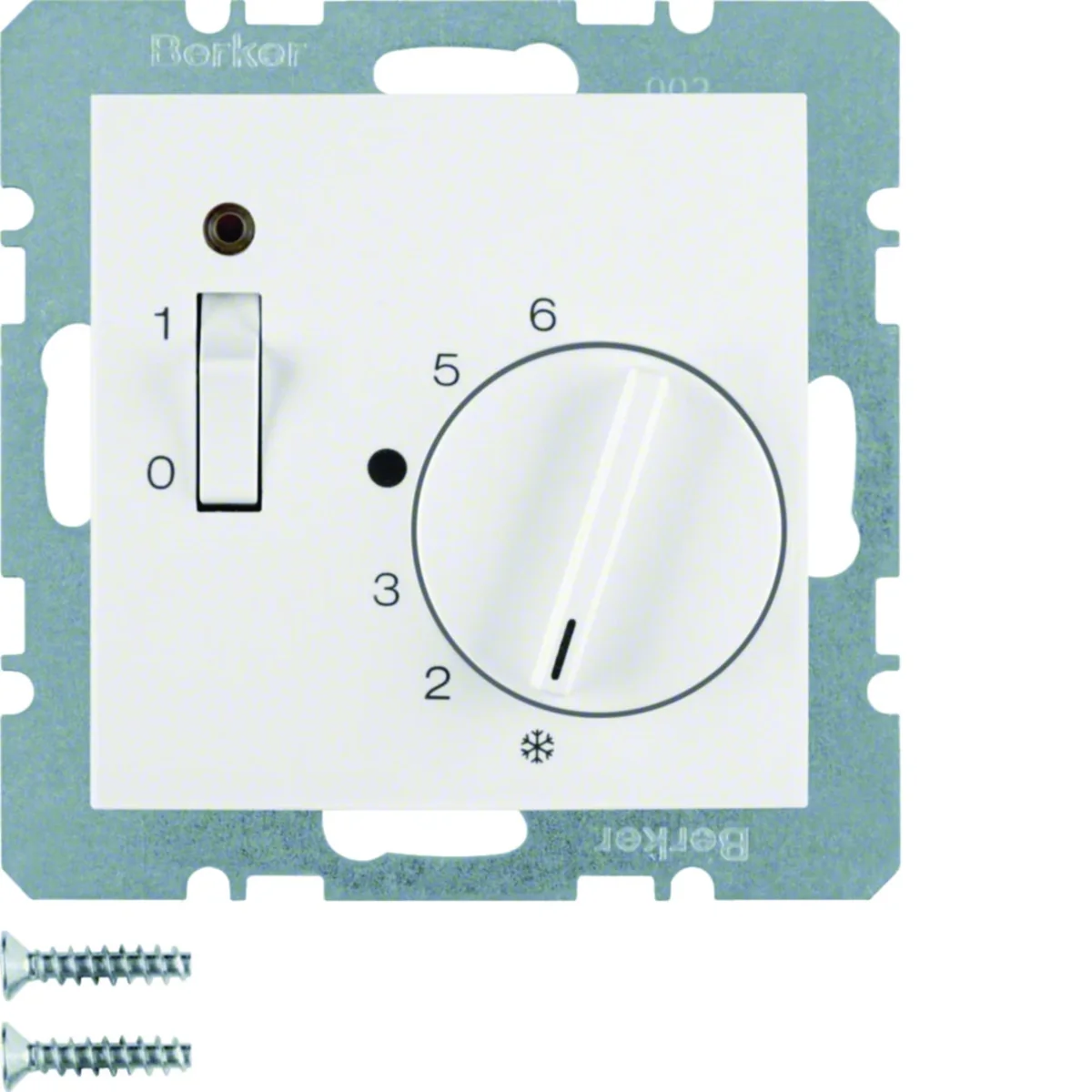

B.SQUARE/B.3/B.7 Room temperature controller with NO contact central element and connector white 20301909

local index:
APT044BERK
Catalog No:
20301909
EAN code:
4011334309444
Manufacturer: BERKER
Rated voltage [V]: 230
DC rated voltage [V]: 250
Rated current [A]: 10
Price:
113,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Room temperature controller with NO contact and central element, series BerkerB.Kwadrat/B.3/B.7.< /p>

  • with a switch and a LED indicating activation
  • with a separate connection for night mode
  • for plasterboard walls
  • e.g. for actuators of valves closed when de-energized

Technical data

  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Switching temperature difference [K]
    ≈ 0.5
  • Connection type
    With plug-in terminals
  • DC rated voltage [V]
    250
  • Family
    B.SQUARE B.3 B.7
  • Temperature range [°C]
    5-30
  • PKWIU
    26.51.70.0

Other technical data

  • Model
    On/Off
  • Differential value
    0.5 ... 0.5 K
  • Sensor/feeler type
    Bimetal
  • Degree of protection (IP)
    IP20
  • Height
    71 mm
  • Depth
    50.9 mm
  • Thermal feedback
    Series
  • Temperature readable
    No
  • Mounting method
    Flush-mounted
  • RAL-number
    9010
  • Width
    71 mm
  • Class of the temperature control
    I

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,092 0,110 4,385 163,320
Width (m) 0,071 0,090 0,300 0,800
Length (m) 0,051 0,070 0,225 1,050
Depth (m) 0,071 0,090 0,400 1,200
