B.SQUARE/B.3/B.7 Room temperature controller with changeover contact and aluminum central element 20261404

Name: B.SQUARE/B.3/B.7 Room temperature controller with changeover contact and aluminum central element
Brand: BERKER
SKU: APT027BERK
Price: 587.33 PLN
Availability: BackOrder

Index local:

APT027BERK

Numéro de catalogue:

20261404

Code EAN:

4011334309659

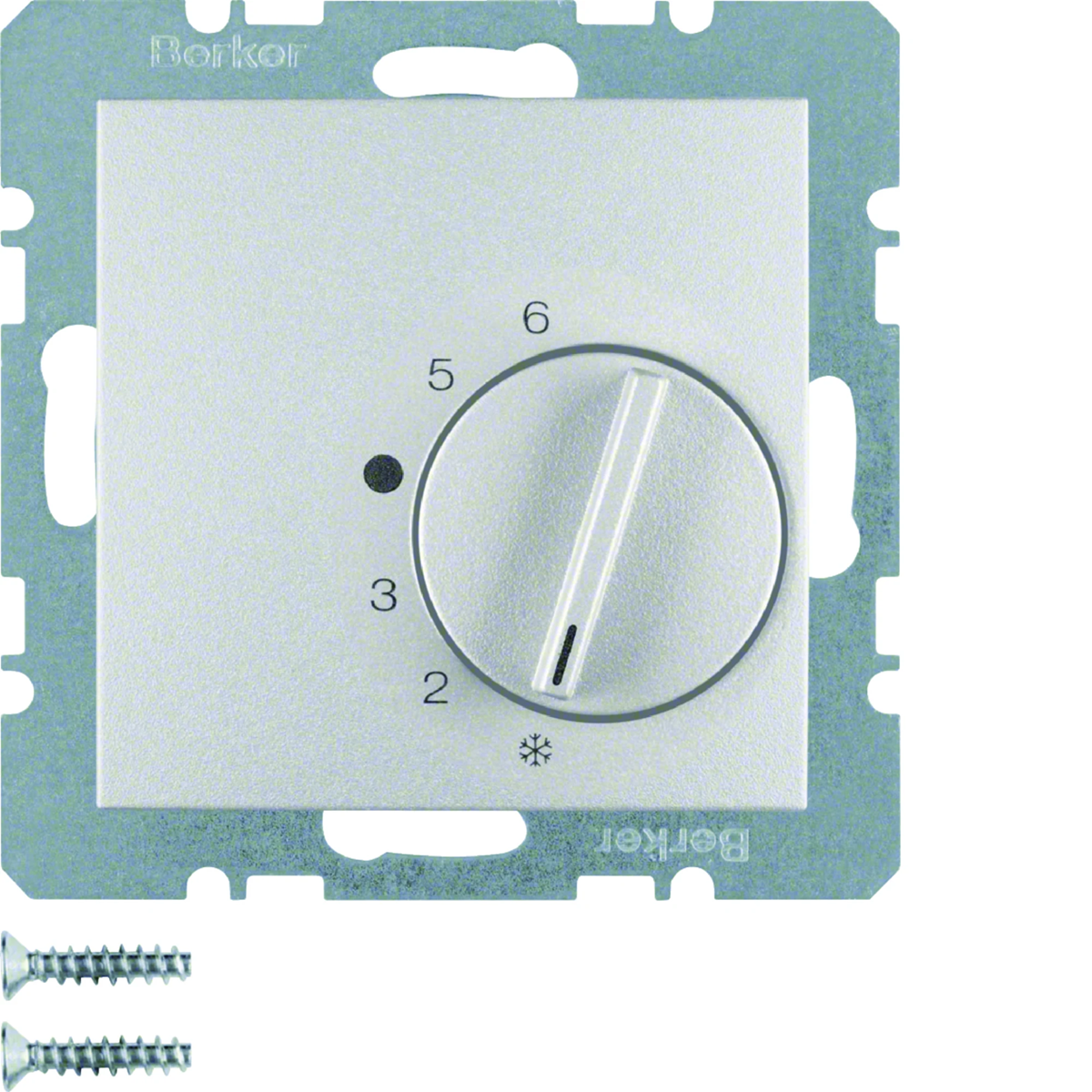

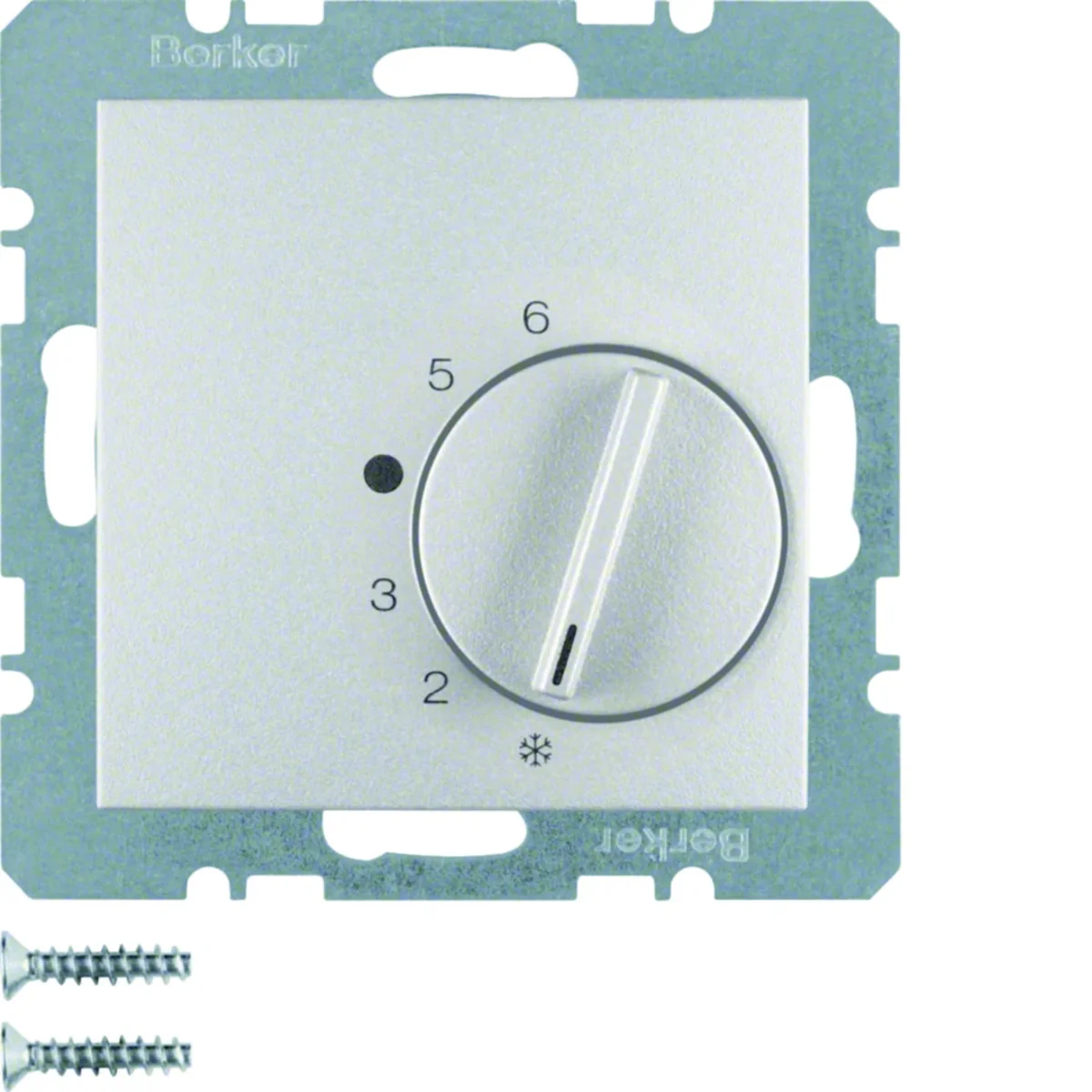

B.SQUARE/B.3/B.7 Room temperature controller with changeover contact and aluminum central element

Cliquer sur la photo pour l'agrandir

Producteur: BERKER

Rated voltage [V]: 230

DC rated voltage [V]: 250

Family: B.SQUARE | B.3 | B.7

Voir la description complète

Prix:

587,33 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Room temperature controller with a change-over contact and central element, series BerkerB.Kwadrat/B.3/B.7.< /p>

for heating or air conditioning
for plasterboard walls
e.g.

Données techniques

Rated voltage [V]

230
Family

B.SQUARE B.3 B.7
Temperature range [°C]

5-30
PKWIU

26.51.70.0

DC rated voltage [V]

250
Switching temperature difference [K]

≈ 0.5
Connection type

With plug-in terminals

Autres données techniques

Model

On/Off
Connection

3-/4-wire
Measuring range

5 ... 35 °C
Thermal feedback

Series
Suitable for heating

Yes
Suitable for cooling

Yes
Differential value

0.5 ... 0.5 K
Temperature readable

No
Sensor/feeler type

Bimetal
With display

No
Concealed operation

No
Contact type

Change-over contact (NO/NC)
Max. contact load

10 A
Degree of protection (NEMA)

1
Colour

Other
Height

71 mm
Depth

45.6 mm
Standby power consumption (solstandby)

0 W
Compatible with Google Assistant

No
IFTTT support available

No

Type of power supply

230 V AC
With receiver

No
External sensor

No
Control characteristic

Other
Number of heater outputs

1
Number of cooler outputs

1
Adjustable differential

No
With sound indicator

No
Mounting method

Flush-mounted
Operation

Turn
With tap water circuit

No
Max. contact voltage

230 V
Degree of protection (IP)

IP20
Explosion-proof

No
RAL-number

9006
Width

71 mm
Class of the temperature control

I
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No

Détails du fabricant

Producteur

Berker GmbH & Co. KG.
Adresse

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Pakiet	Paleta
Quantité	1 pcs.	36 pcs.	1152 pcs.
poids (kg)	0,123	4,693	170,166
Largeur (m)	0,080	0,300	0,800
Longueur (m)	0,070	0,220	1,050
Profondeur (m)	0,080	0,400	1,200
