B.KWADRAT/B.3/B.7 Room temperature controller 24V with NO contact, central element and connector, white 20311909

Name: B.KWADRAT/B.3/B.7 Room temperature controller 24V with NO contact, central element and connector, white
Brand: BERKER
SKU: APT055BERK
Price: 134.45 PLN

local index:

APT055BERK

Catalog No:

20311909

EAN code:

4011334309833

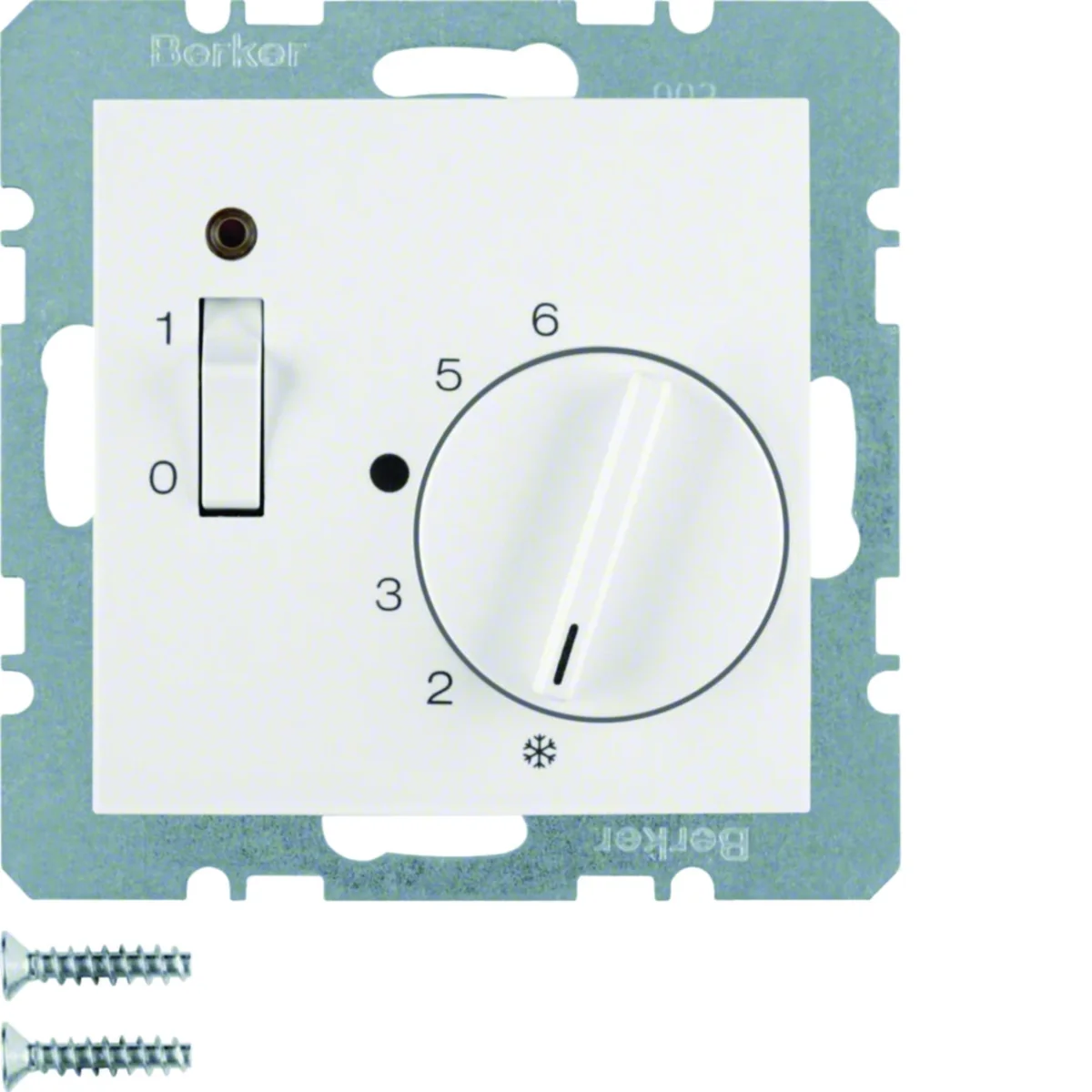

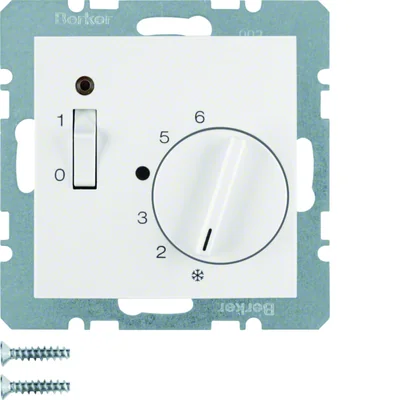

B.KWADRAT/B.3/B.7 Room temperature controller 24V with NO contact, central element and connector, white

Click on the photo to enlarge

Manufacturer: BERKER

Rated voltage [V]: 24

DC rated voltage [V]: 24

Rated current [A]: 4

See full description

Price:

134,45 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Room temperature controller with NO contact and central element, series Berker B.Kwadrat/B.3/B.7.< /p>

with a switch and a LED indicating activation
with a separate connection for night mode
for plasterboard walls
e.g. for valve actuators closed when de-energized
rated voltage: 24 V AC/DC

Technical data

Rated voltage [V]

24
Rated current [A]

4
Switching temperature difference [K]

≈ 0.5
AC rated voltage [V]

24
PKWIU

26.51.70.0

DC rated voltage [V]

24
Family

B.SQUARE B.3 B.7
Temperature range [°C]

5-30
Connection type

With plug-in terminals

Other technical data

Model

On/Off
Differential value

0.5 ... 0.5 K
Sensor/feeler type

Bimetal
Degree of protection (IP)

IP20
Height

71 mm
Depth

50.9 mm

Thermal feedback

Series
Temperature readable

No
Mounting method

Flush-mounted
RAL-number

9010
Width

71 mm
Class of the temperature control

I

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,100	0,110	4,405	163,960
Width (m)	0,071	0,085	0,300	0,800
Length (m)	0,051	0,075	0,225	1,050
Depth (m)	0,071	0,090	0,400	1,200
