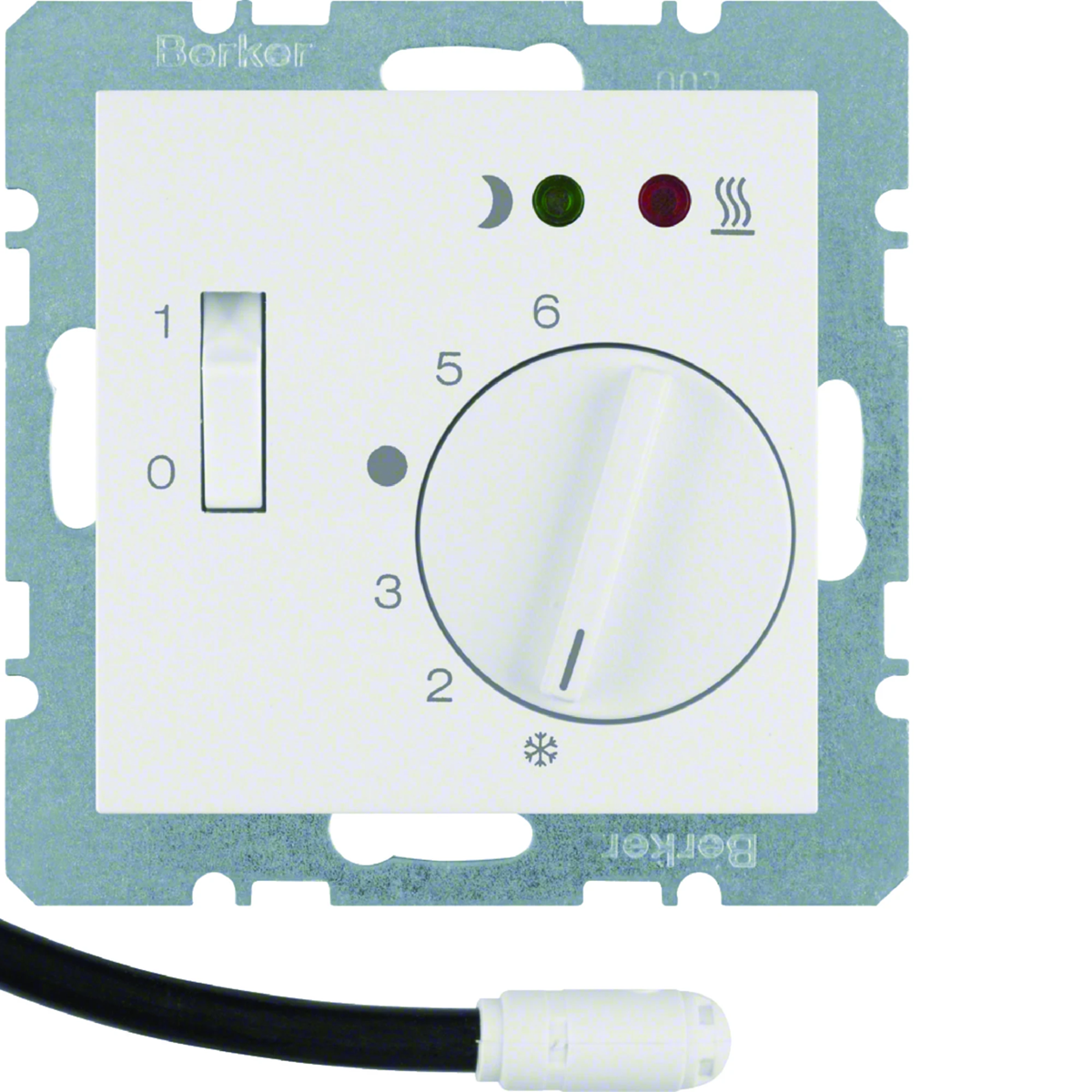

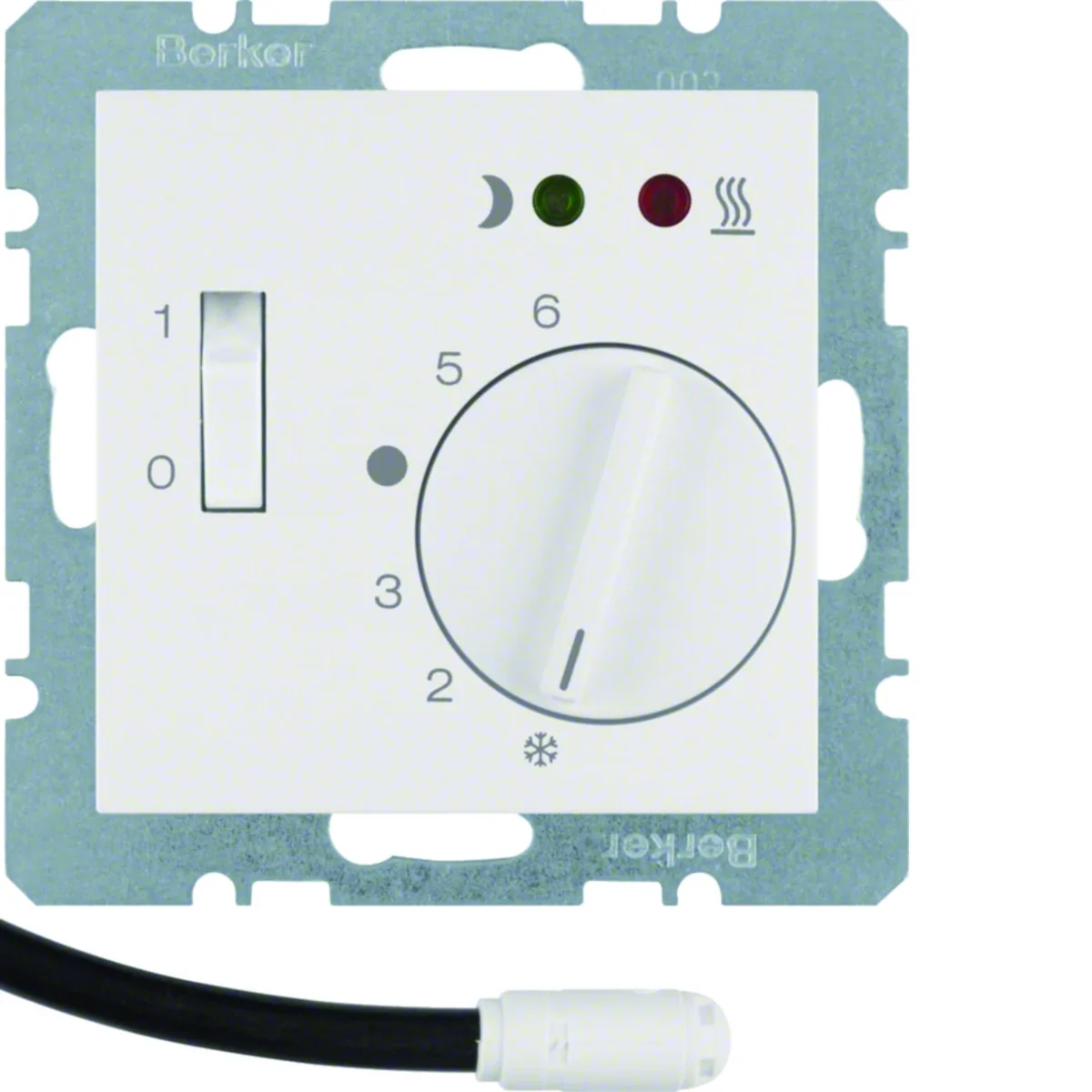

B.KWADRAT/B.3/B.7 Floor temperature controller with NO contact, central element and connector, white 20341909

Index local:
APT068BERK
Numéro de catalogue:
20341909
Code EAN:
4011334310037
Producteur: BERKER
Rated voltage [V]: 230
DC rated voltage [V]: 230
Rated current [A]: 10
Prix:
1 141,37 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 10 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Floor temperature controller with NO contact and central element, series BerkerB.Kwadrat/B.3/B.7.< /p>

  • with on/off switch and 2 LEDs
  • LEDs indicating heating activation and night mode
  • with separate connection for night mode
  • for plasterboard walls
  • e.g.

Données techniques

  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Switching temperature difference [K]
    ≈ 1
  • Connection type
    With plug-in terminals
  • DC rated voltage [V]
    230
  • Family
    B.SQUARE B.3 B.7
  • Sensor cable length [m]
    4
  • PKWIU
    26.51.70.0

Autres données techniques

  • Model
    On/Off
  • Connection
    3-wire
  • Measuring range
    0 ... 40 °C
  • Thermal feedback
    Series
  • Suitable for heating
    Yes
  • Suitable for cooling
    No
  • Differential value
    1 ... 1 K
  • Temperature readable
    No
  • Sensor/feeler type
    Resistance sensor
  • With display
    No
  • Concealed operation
    No
  • Contact type
    Normally open contact (NO)
  • Max. contact load
    10 A
  • Degree of protection (NEMA)
    1
  • Colour
    White
  • Height
    71 mm
  • Depth
    54.5 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Type of power supply
    230 V AC
  • With receiver
    No
  • External sensor
    Yes
  • Control characteristic
    Other
  • Number of heater outputs
    1
  • Number of cooler outputs
    0
  • Adjustable differential
    No
  • With sound indicator
    No
  • Mounting method
    Flush-mounted
  • Operation
    Turn
  • With tap water circuit
    No
  • Max. contact voltage
    230 V
  • Degree of protection (IP)
    IP30
  • Explosion-proof
    No
  • RAL-number
    9010
  • Width
    71 mm
  • Class of the temperature control
    I
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Pakiet Paleta
Quantité 1 pcs. 22 pcs. 704 pcs.
poids (kg) 0,266 6,195 223,240
Largeur (m) 0,100 0,300 0,800
Longueur (m) 0,090 0,220 1,050
Profondeur (m) 0,100 0,400 1,200
