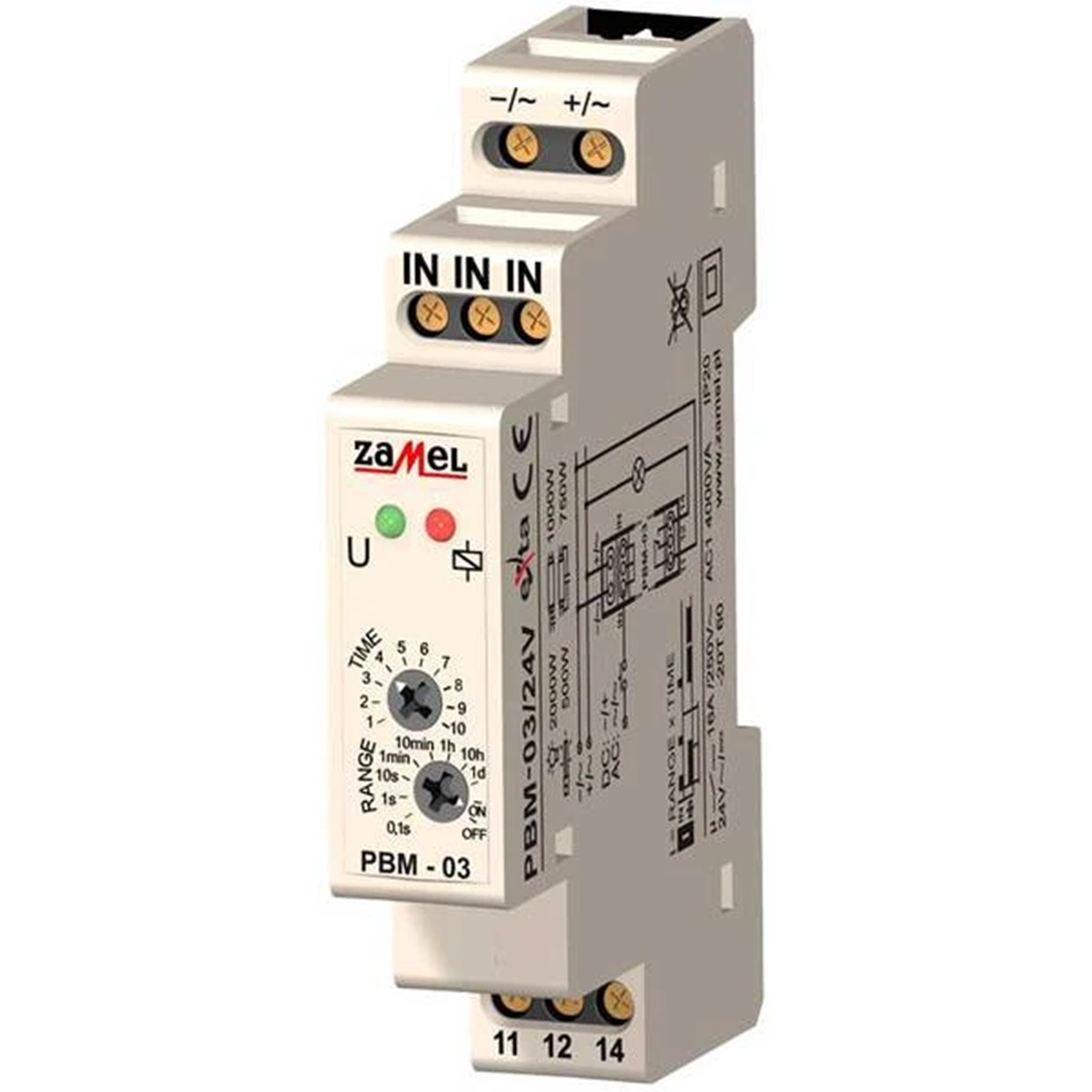

Bistable relay with time switch 24V AC/DC TYPE: PBM-03/24V EXT10000066

local index:
APE007ZAME
Catalog No:
EXT10000066
EAN code:
5903669013198
Manufacturer: ZAMEL
Length [mm]: 66
Maximum relay power [VA]: 4000
Installation: On the TH-35 rail
Price:
35,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The PBM-03/24V bistable relay is used to control lighting or any other device by means of parallel connected single-pole pushbuttons. Successive pressing of any of the buttons causes switching on or off the devices connected to the output terminals. The control pulse can be a signal from the power line. After the impulse is given, which will switch on the receiver, and then the set time t has elapsed, the receiver is automatically switched off. The use of the system makes it possible to create "intelligent" lighting control systems. discreetly 0.1 - 1 s. Time setting range t: discreetly 1 - 10 s; discreetly 0.2 - 1.7 min; discreetly 1 - 10 min; discreetly 0.2 - 1.7 h; discreetly 1 - 10 h; discreetly 0.4 - 4.2 days; discreetly 1 - 10 days.

Technical data

  • Length [mm]
    66
  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Level of security
    IP20
  • Width [mm]
    17.5
  • Height [mm]
    90
  • Maximum relay power [VA]
    4000
  • Rated voltage [V]
    24
  • Family
    EXTA
  • Contact
    1NO
  • Type
    Relays
  • PKWIU
    27.12.40.0
