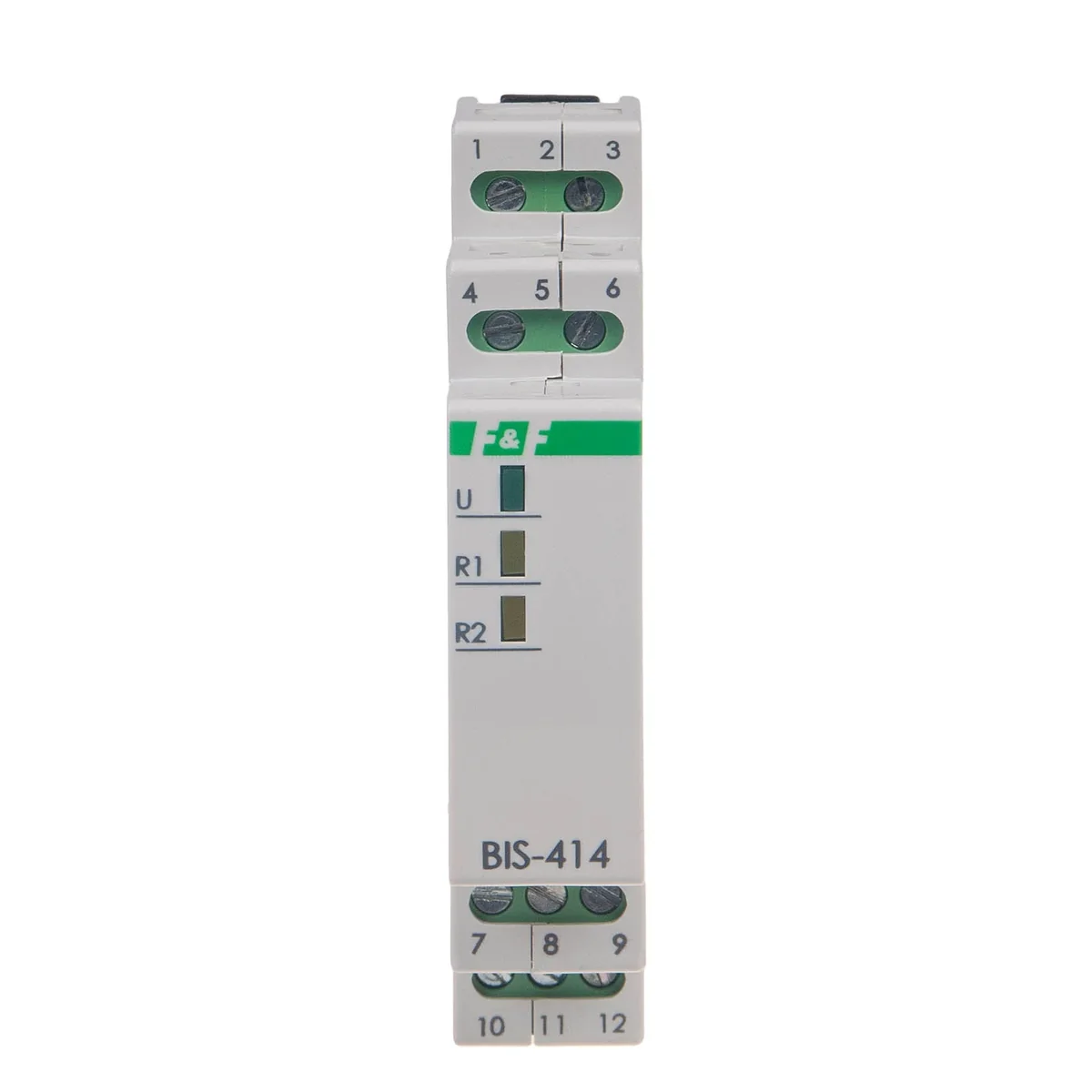

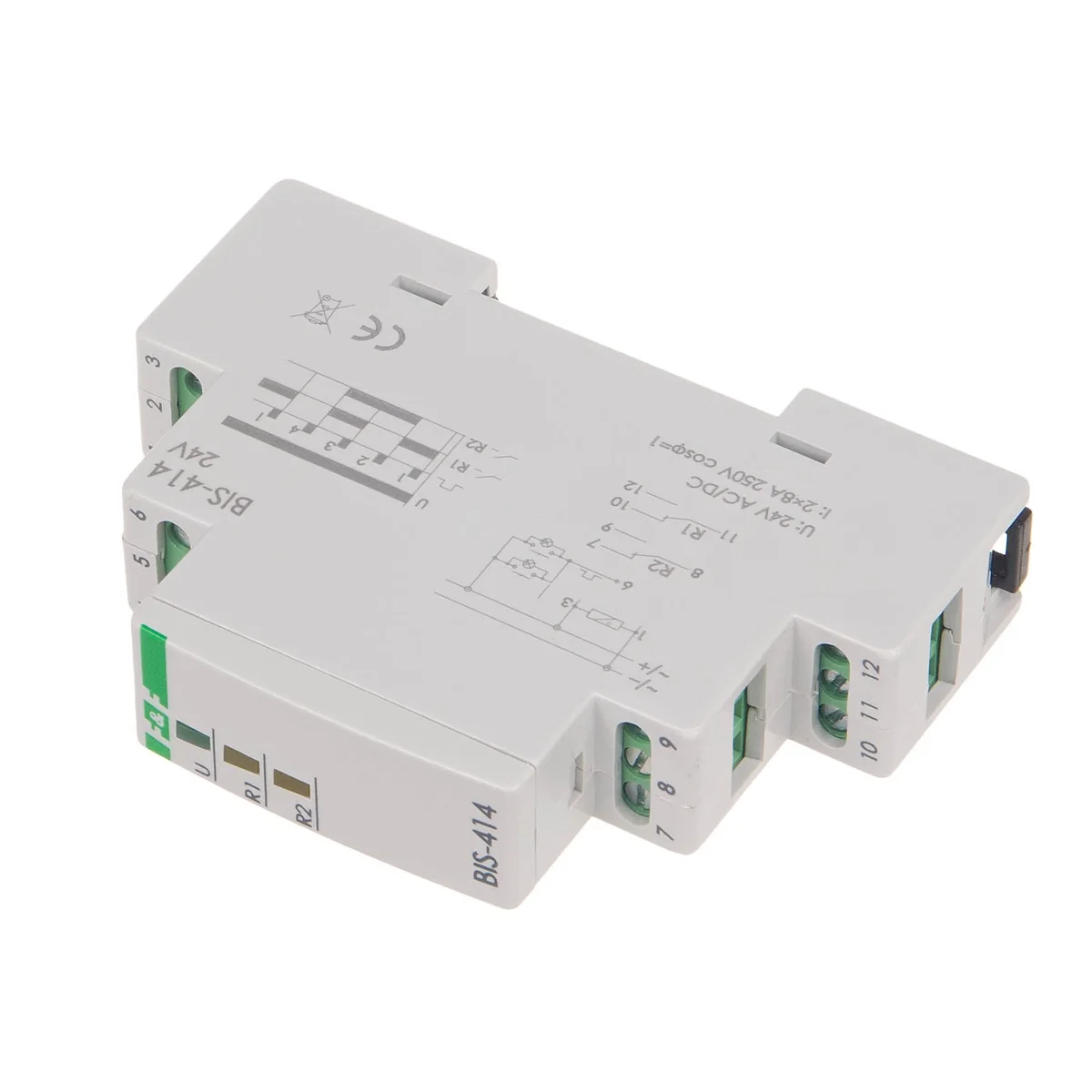

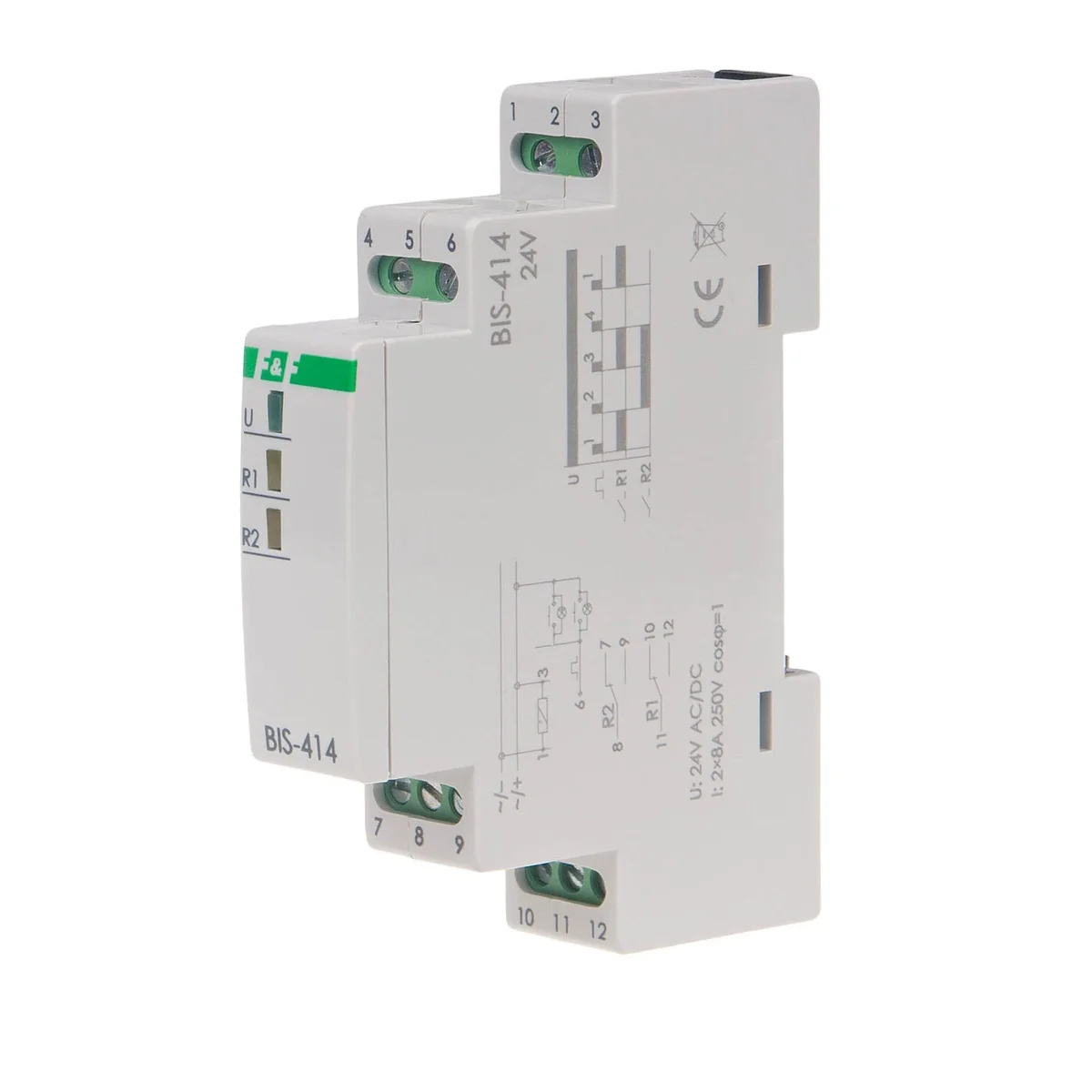

Bistable relay BIS-414 24V BIS-414-24V

local index:
APE029FIFQ
Catalog No:
BIS-414-24V
EAN code:
5908312595762
Manufacturer: F&F
Number of contacts: 0NO 0NC
Power [W]: 0.8
Installation: On the TH-35 rail
Price:
28,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Purpose:
Electronic bistable impulse relay allows you to switch on lighting or other device from several different points using control buttons connected in parallel. Action:
The receiver is turned on after  impulse of current caused by pressing any momentary (bell) button connected to the relay. The receiver will turn off after the next pulse. Switching the relay to the next state of the cycle takes place after  next pulse of current caused by pressing any momentary (bell) button connected to the relay. The relay has no "memory" contact position, i.e. in the case of  power failure and its return, the relay contact will be switched off. Prevents  is an automatic activation of controlled receivers without supervision after a long-term power failure.
NOTE!
BIS-414 24V cannot work with illuminated switches.

Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • Control pulse current [mA]
    <1
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Power supply BIS-414 [V]
    24
  • Package width [mm]
    20
  • PKWIU
    27.12.23.0
  • Power [W]
    0.8
  • Activation delay [s]
    0.1-0.2
  • load current [A]
    2x8
  • Contact activation signaling
    2×LED red
  • Working temperature [°C]
    -25-50
  • Power [V]
    24
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Other technical data

  • Function
    Electronic switch
  • Control voltage 1
    24 ... 24 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    24 ... 24 V
  • Max. load fluorescent lamp
    300 VA
  • Max. load fluorescent lamp (parallel compensated)
    200 VA
  • Mounting method
    DIN rail
  • Type of control voltage 1
    AC
  • Rated switch current
    0.005 A
  • Max. incandescent lamp load
    600 W
  • Max. load fluorescent lamp (Duo circuit)
    300 VA
  • Suitable for manual operation
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,076
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
