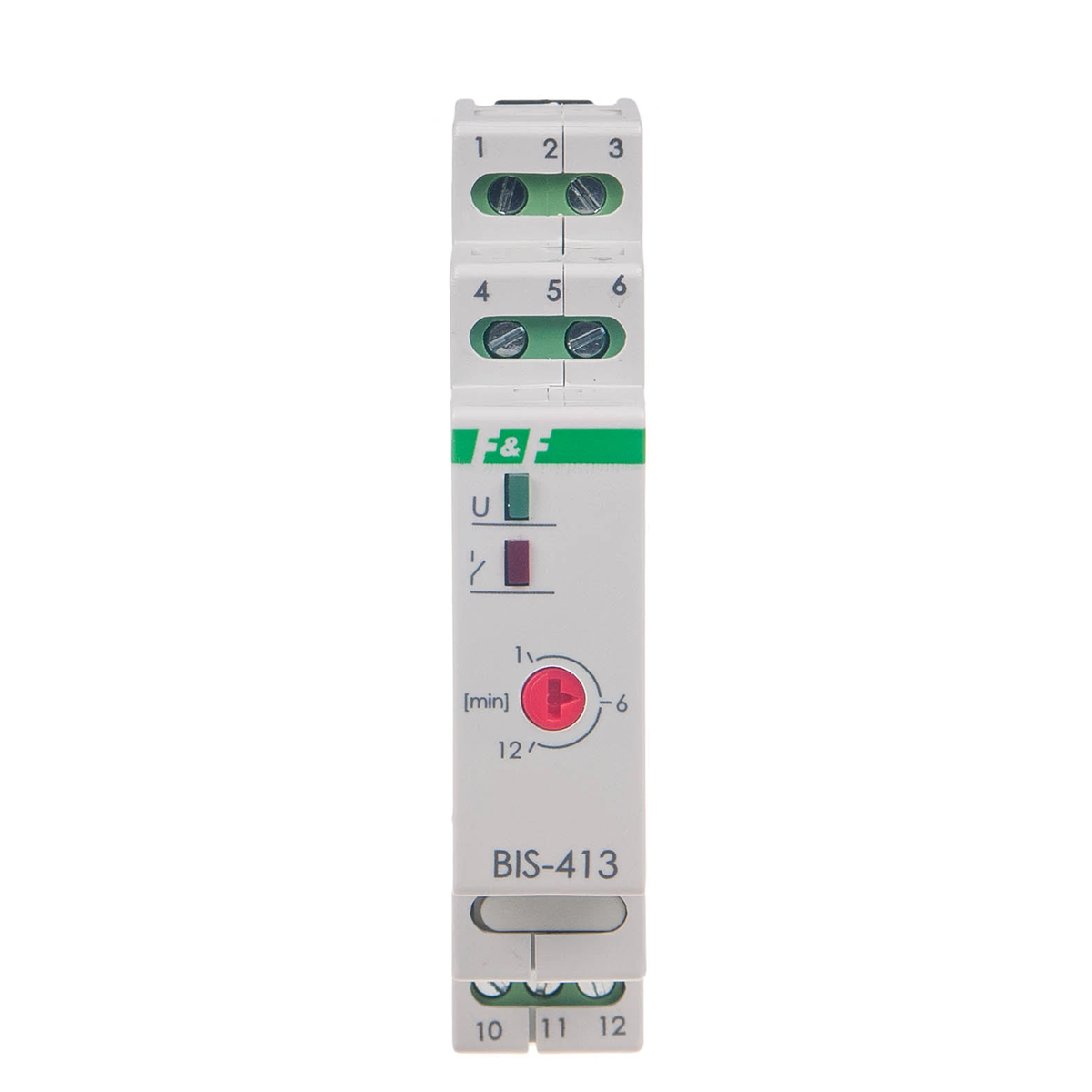

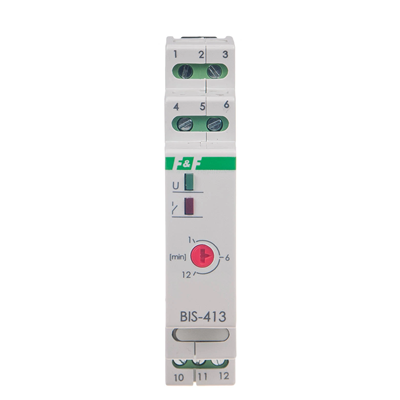

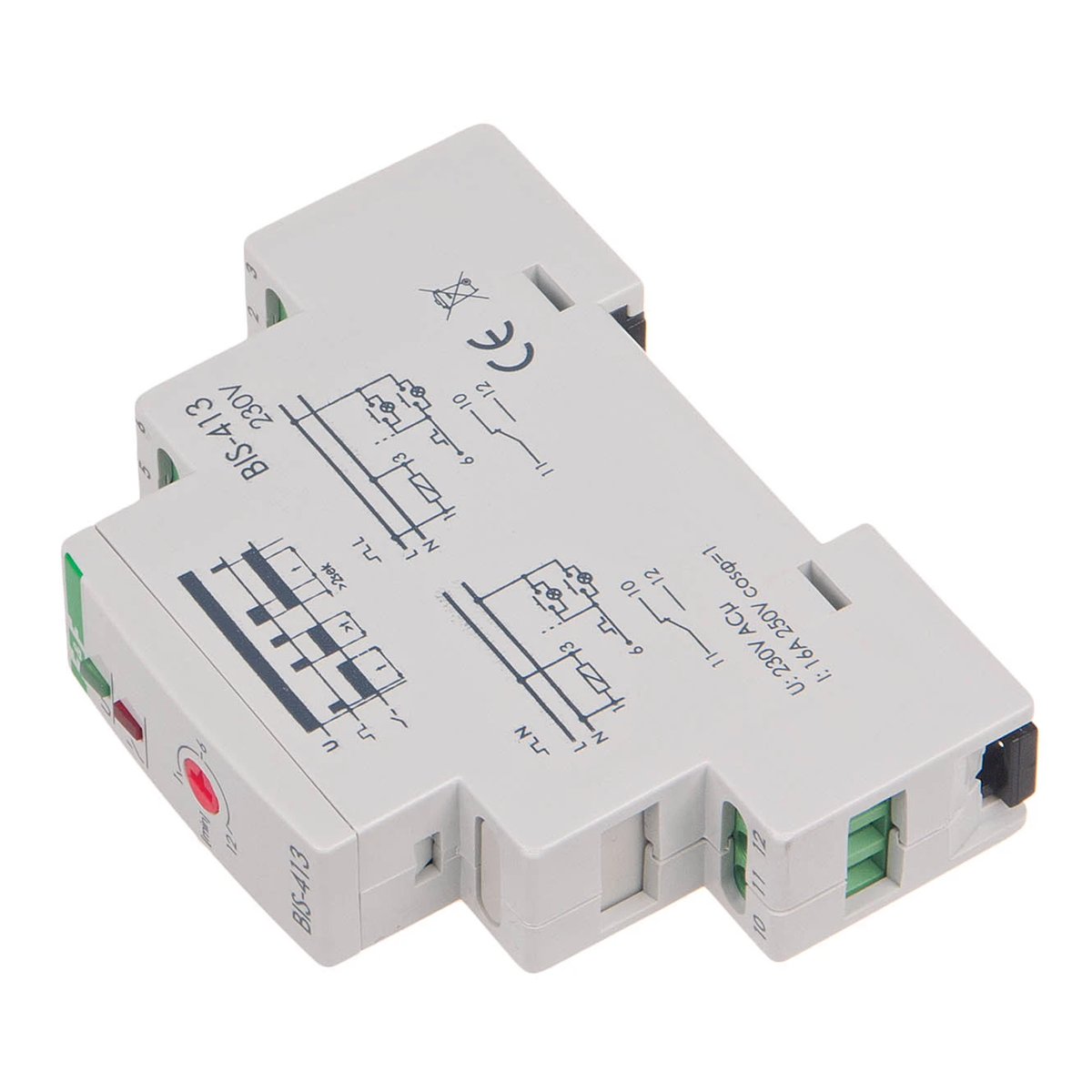

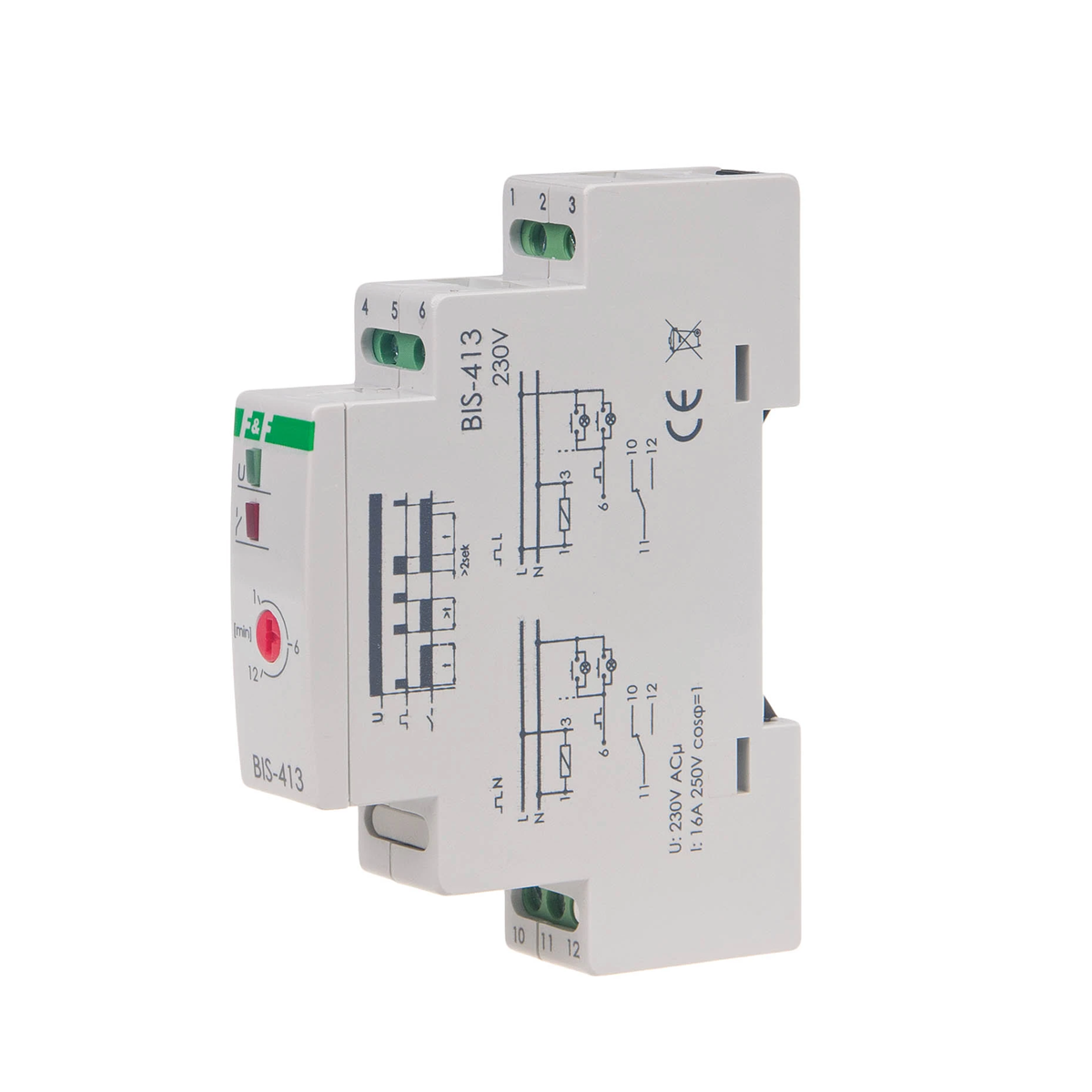

Bistable relay BIS-413 BIS-413

local index:
APE027FIFQ
Catalog No:
BIS-413
EAN code:
5908312594079
Manufacturer: F&F
Number of contacts: 0NO 0NC
Power [W]: 0.8
Installation: On the TH-35 rail
Price:
25,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use:
The BIS-413 electronic bistable impulse relay is a device that allows switching on/off lighting or other devices for a given period of time or permanently. The operation of the device is controlled by one or more momentary (bell) switches connected in parallel.
Operation:
The switching on of the relay's power supply is signaled by the lighting of the green LED. The red LED indicates the operating status of the device.

230V version:
Short pressing of the momentary (bell) button activates the relay and closes the contact between outputs 11 and 12. The relay switches off and opens the contact 11-12 after the set time t has elapsed, or after pressing the momentary switch again. The state of switching the relay on for a programmed period of time is signaled by the blinking of the red LED.
Long, lasting at least 2 seconds, pressing the momentary button causes the relay to be switched on permanently, which is signaled by the continuous lighting of the red LED. The relay will be deactivated only after pressing the momentary button again (or after a power failure). BIS-411 230V can work with illuminated switches.

Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • Control pulse current [mA]
    <1
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Power supply BIS-413 [V]
    230
  • Package width [mm]
    20
  • PKWIU
    27.12.23.0
  • Power [W]
    0.8
  • Tripping delay [s]
    0.1-0.2
  • load current [A]
    <16
  • Contact activation signaling
    red LED
  • Working temperature [°C]
    -25-50
  • Power [V]
    230
  • Package height [mm]
    150
  • Package weight [kg]
    0.11

Other technical data

  • Function
    Electronic switch
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    230 ... 230 V
  • Max. incandescent lamp load
    600 W
  • Max. load fluorescent lamp (Duo circuit)
    300 VA
  • Suitable for manual operation
    No
  • Mounting method
    DIN rail
  • Type of control voltage 1
    AC
  • Rated switch current
    5 A
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    300 VA
  • Max. load fluorescent lamp (parallel compensated)
    200 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,072
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
