el12
Automation
Relays and drivers
Auxiliary relays

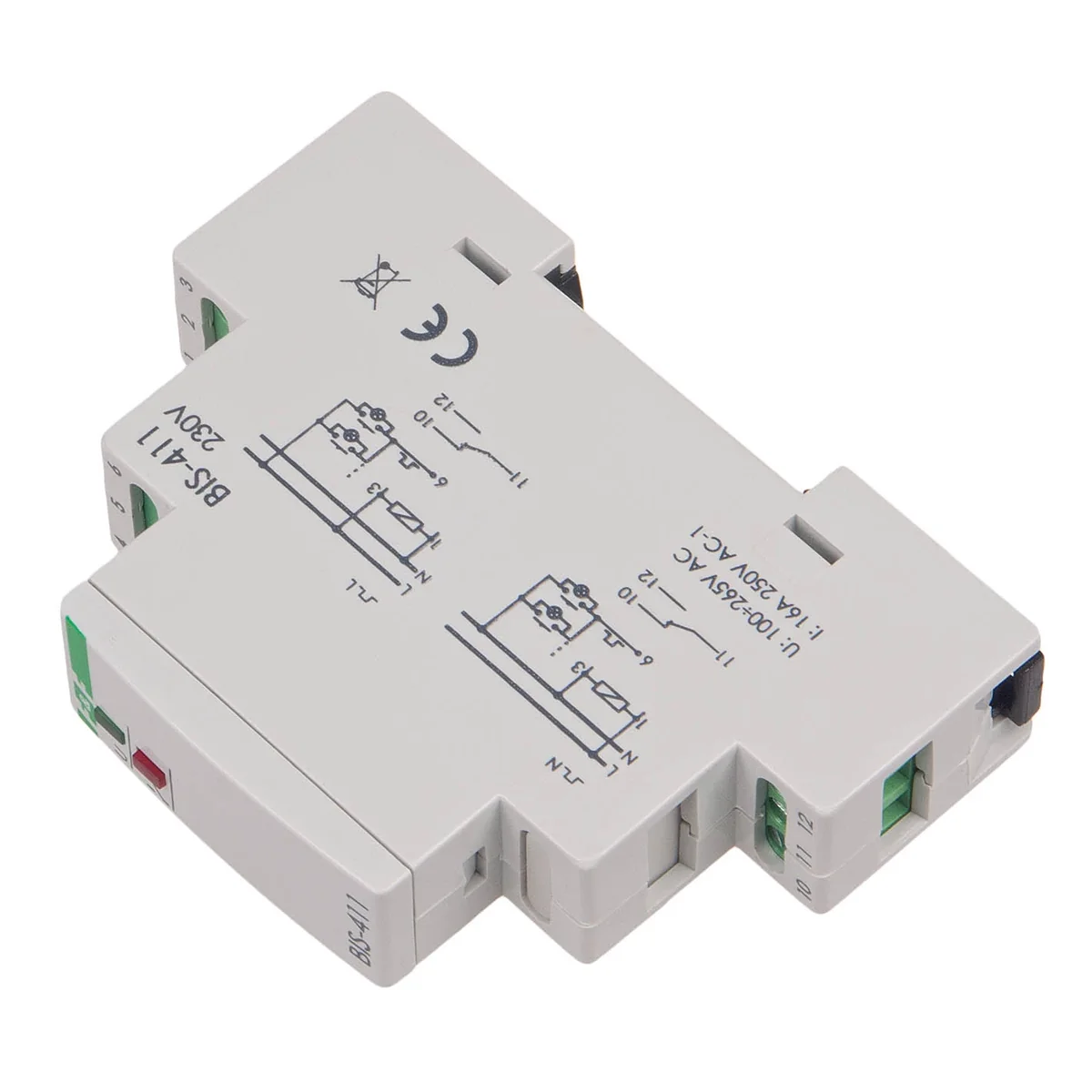

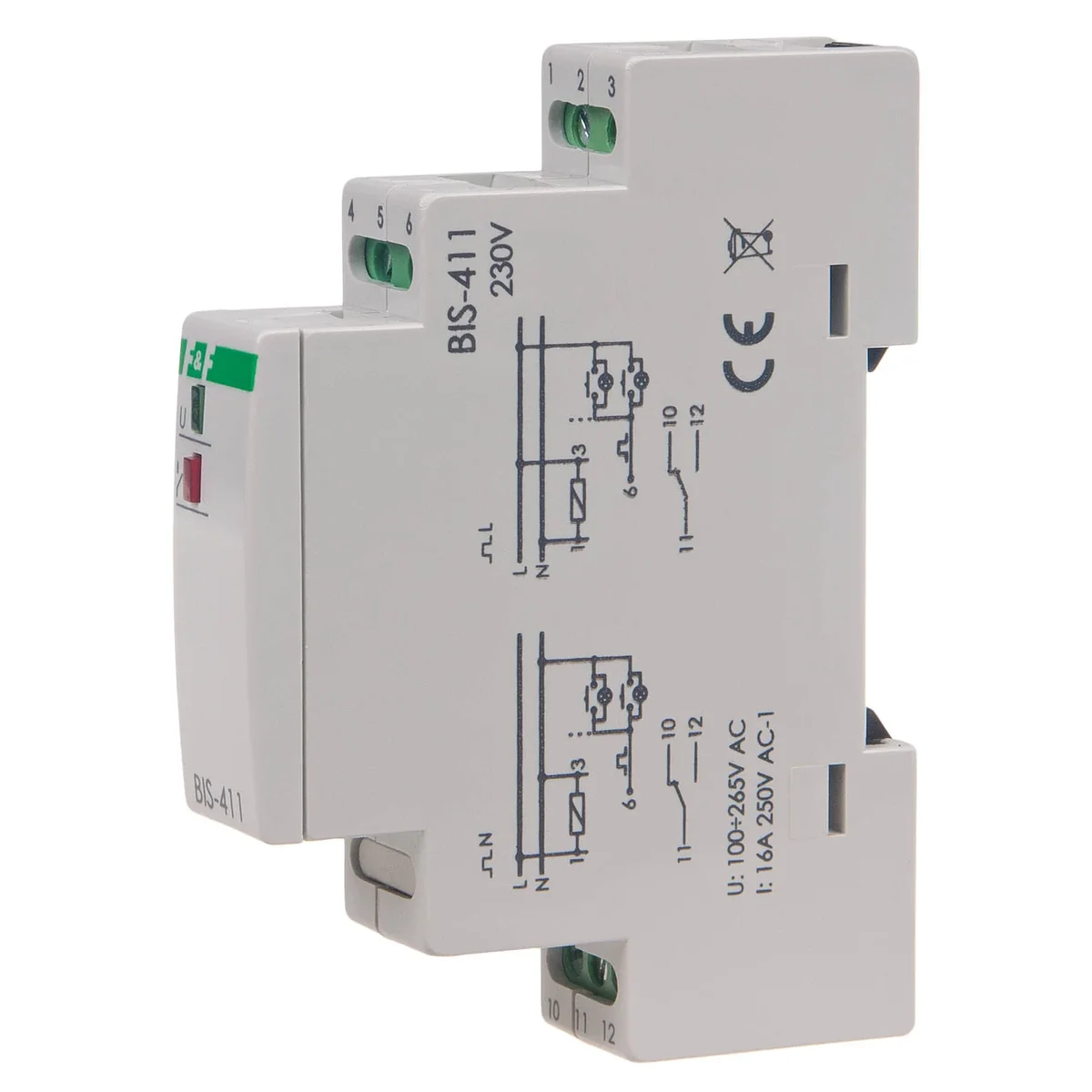

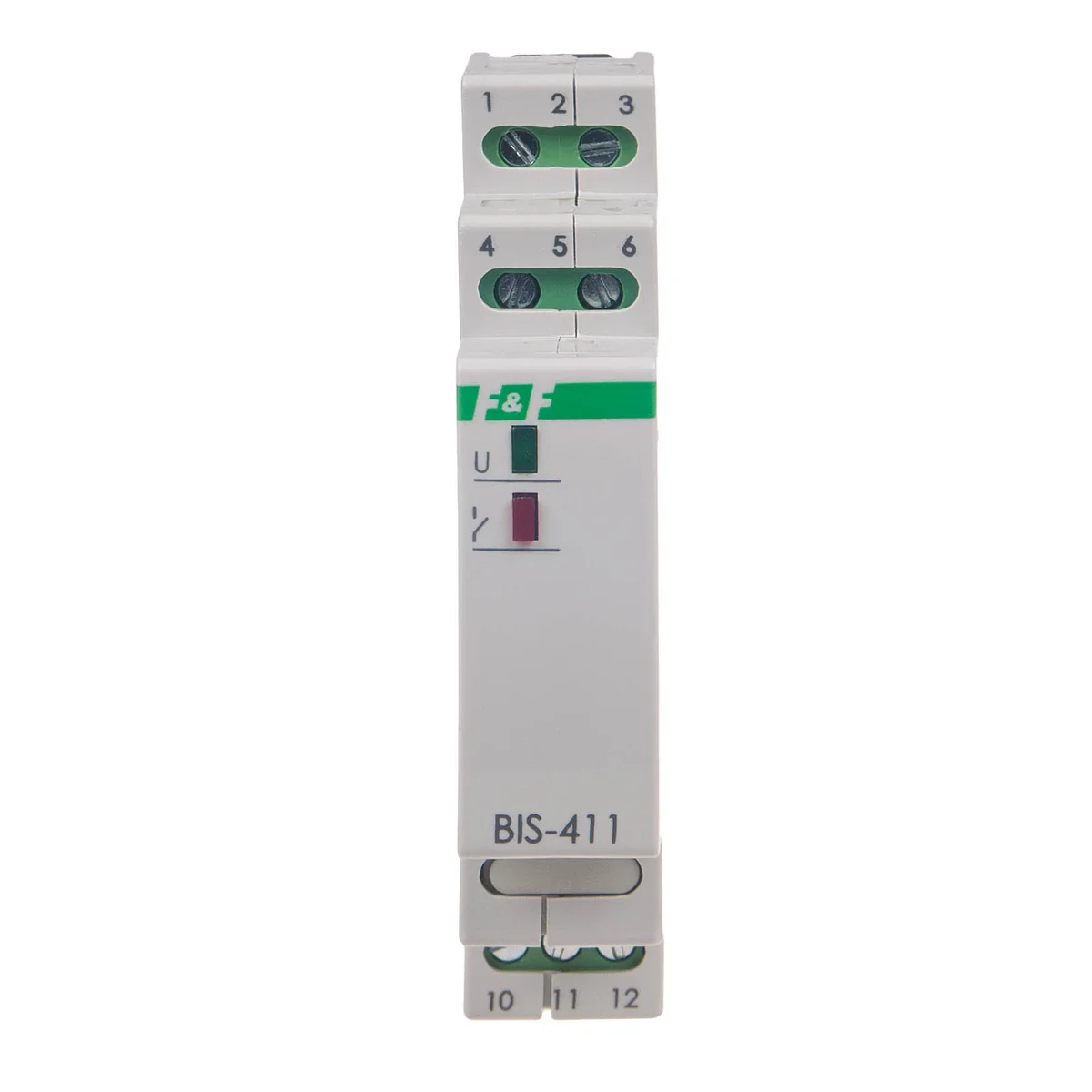

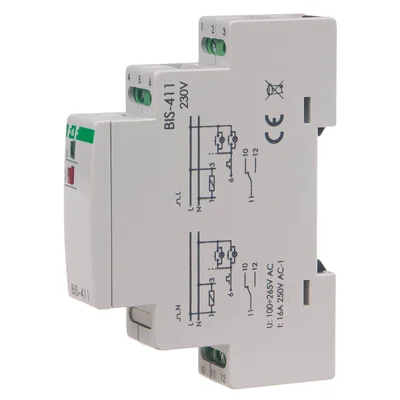

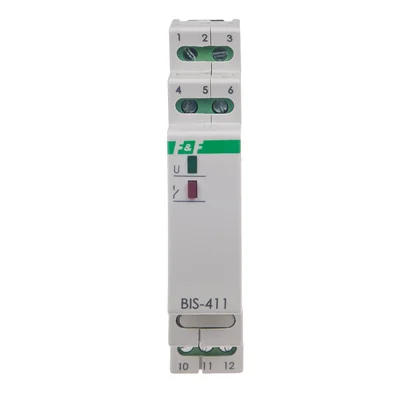

Bistable relay BIS-411 BIS-411
local index:
APP100FIFQ
Catalog No:
BIS-411
EAN code:
5908312594017
Click on the photo to enlarge
Manufacturer:
F&F
Number of contacts:
0NO 0NC
Power [W]:
0.8
Installation:
On the TH-35 rail
See full description
Price:
16,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 40 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description
The electronic bistable impulse relay allows you to switch on or off the lighting or other device from several different points by means of parallel connected, momentary (bell) control switches.
Technical data
Number of contacts
0NO 0NC
Installation
On the TH-35 rail
Control pulse current [mA]
<1
connection
2.5mm screw terminals
Power indication
LED green
Dimensions
1 module (18mm)
Power supply BIS-411 [V]
230
Package width [mm]
20
PKWIU
27.12.23.0
Power [W]
0.8
Tripping delay [s]
0.1-0.2
load current [A]
<16
Contact activation signaling
red LED
Working temperature [°C]
-25-50
Power [V]
230
Package height [mm]
150
Package weight [kg]
0.1
Other technical data
Function
Electronic switch
Control voltage 1
230 ... 230 V
Frequency control voltage 1
50 ... 50 Hz
Supply voltage
230 ... 230 V
Max. incandescent lamp load
600 W
Max. load fluorescent lamp (Duo circuit)
300 VA
Suitable for manual operation
No
Mounting method
DIN rail
Type of control voltage 1
AC
Rated switch current
0.005 A
Voltage type (supply voltage)
AC
Max. load fluorescent lamp
300 VA
Max. load fluorescent lamp (parallel compensated)
200 VA
Bulk packaging
A kind of package
Sztuka
Karton
Quantity
1 pcs.
12 pcs.
Weight (kg)
0,073
-
Width (m)
0,019
-
Length (m)
0,095
-
Depth (m)
0,070
-
