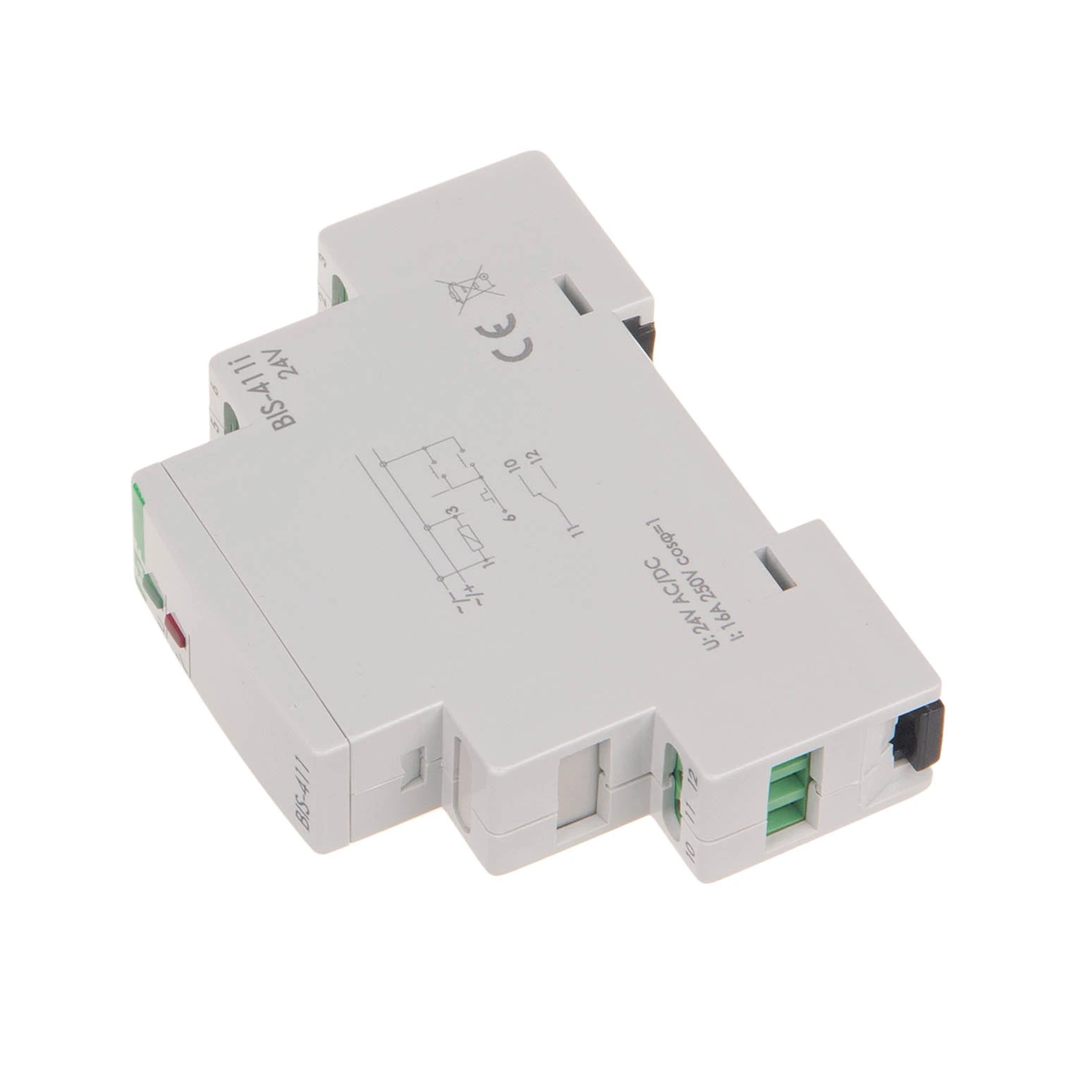

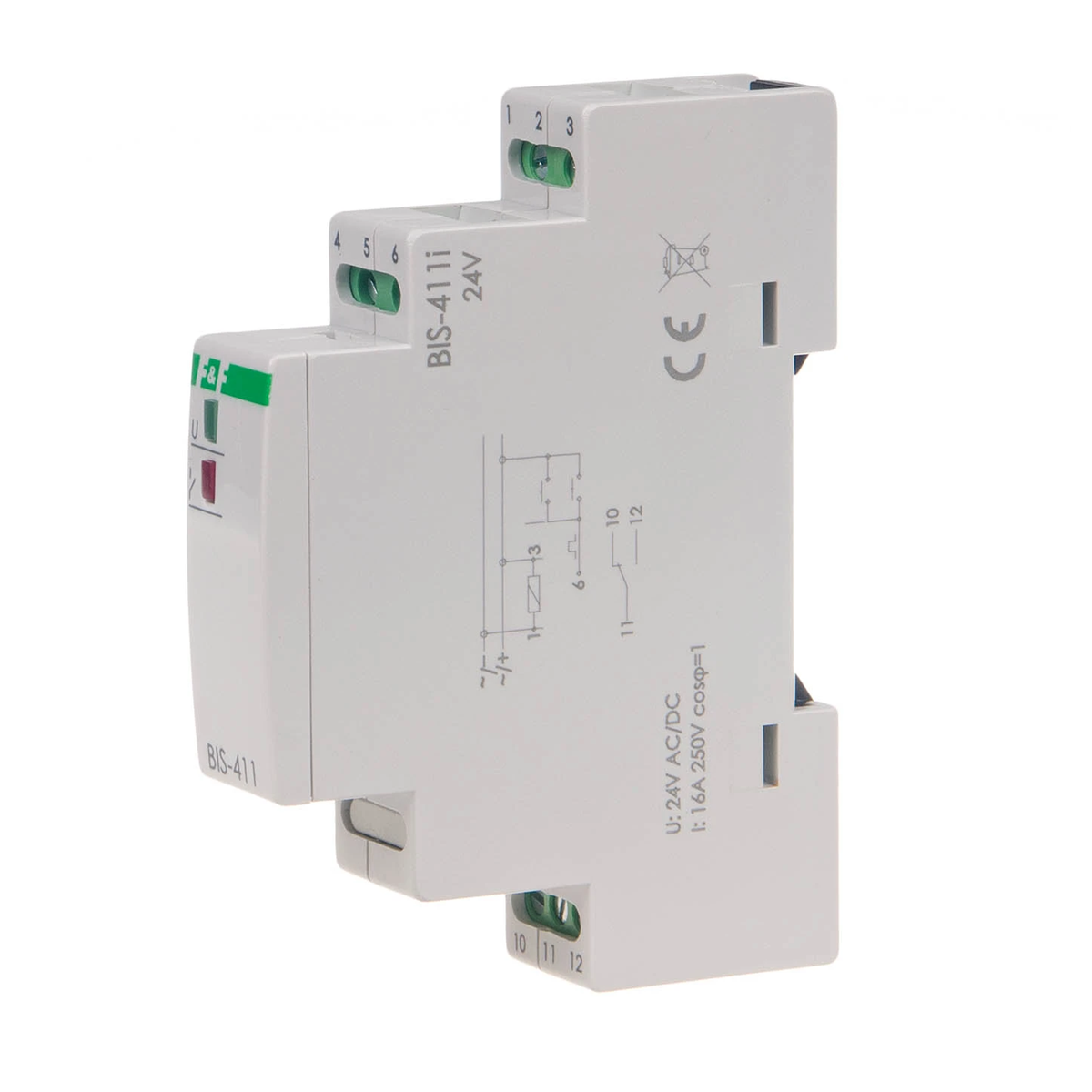

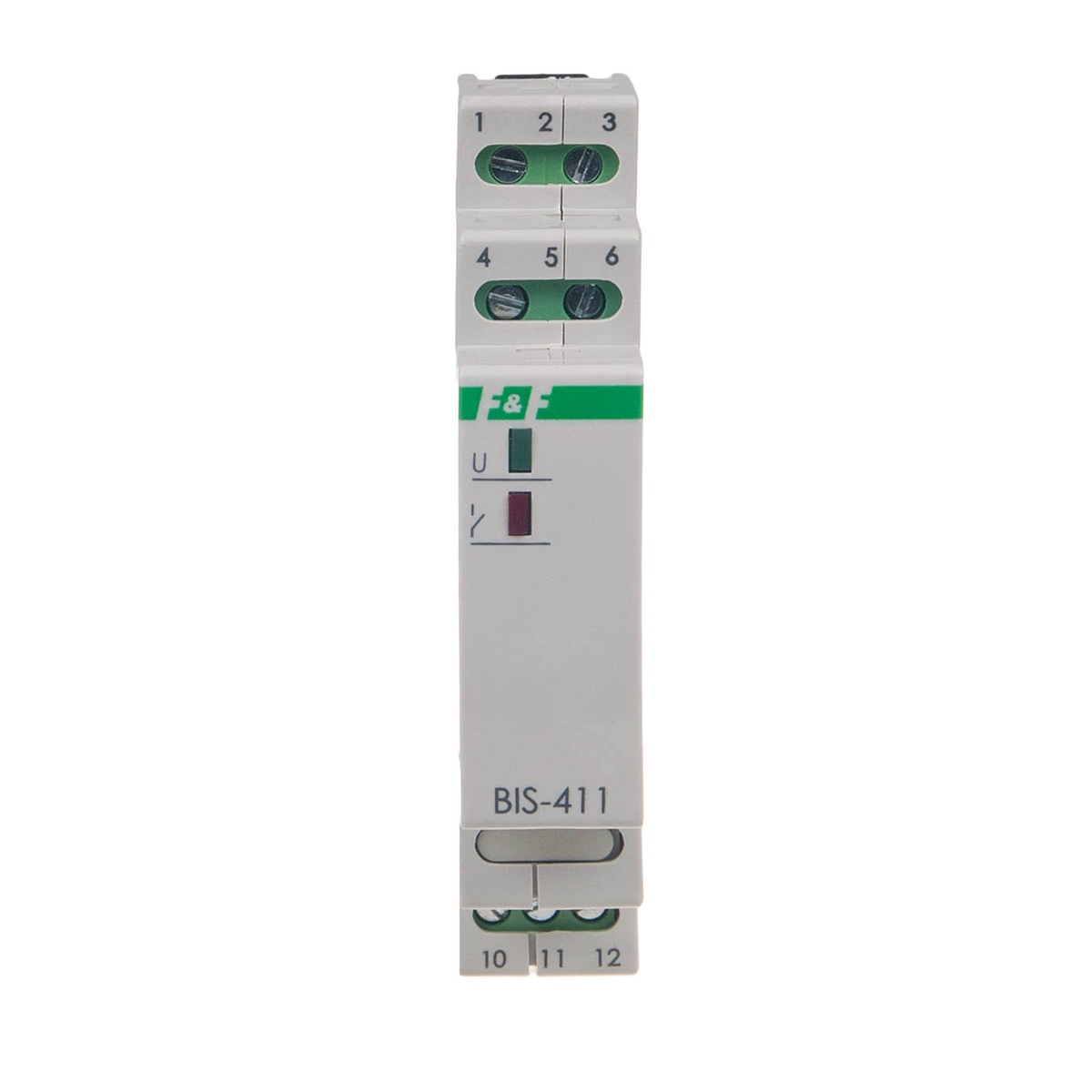

Bistable relay BIS-411 24V BIS-411-24V
local index:
APP101FIFQ
Catalog No:
BIS-411-24V
EAN code:
5908312594055
Price:
17,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electronic bistable impulse relay allows you to switch on lighting or other device from several different points using control buttons connected in parallel.
Operation:
The receiver is switched on after impulse of current caused by pressing any momentary (bell) button connected to the relay. The receiver will be switched off after the next pulse.
The relay has no "memory". contact position, i.e. in the case of power failure and its return, the relay contact will be switched off. Prevents is the automatic activation of controlled receivers without supervision after a long-term power failure.
Technical data
-
Number of contacts0NO 0NC
-
InstallationOn the TH-35 rail
-
Control pulse current [mA]<1
-
connection2.5mm screw terminals
-
Power indicationLED green
-
Dimensions1 module (18mm)
-
Power supply BIS-411 [V]24
-
Package width [mm]20
-
PKWIU27.12.23.0
-
Power [W]0.8
-
Tripping delay [s]0.1-0.2
-
load current [A]<16
-
Contact activation signalingred LED
-
Working temperature [°C]-25-50
-
Power [V]24
-
Package height [mm]150
-
Package weight [kg]0.1
Other technical data
-
FunctionElectronic switch
-
Control voltage 124 ... 24 V
-
Frequency control voltage 150 ... 50 Hz
-
Supply voltage24 ... 24 V
-
Max. incandescent lamp load600 W
-
Max. load fluorescent lamp (Duo circuit)300 VA
-
Suitable for manual operationNo
-
Mounting methodDIN rail
-
Type of control voltage 1AC
-
Rated switch current0.005 A
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp300 VA
-
Max. load fluorescent lamp (parallel compensated)200 VA
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,066 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
