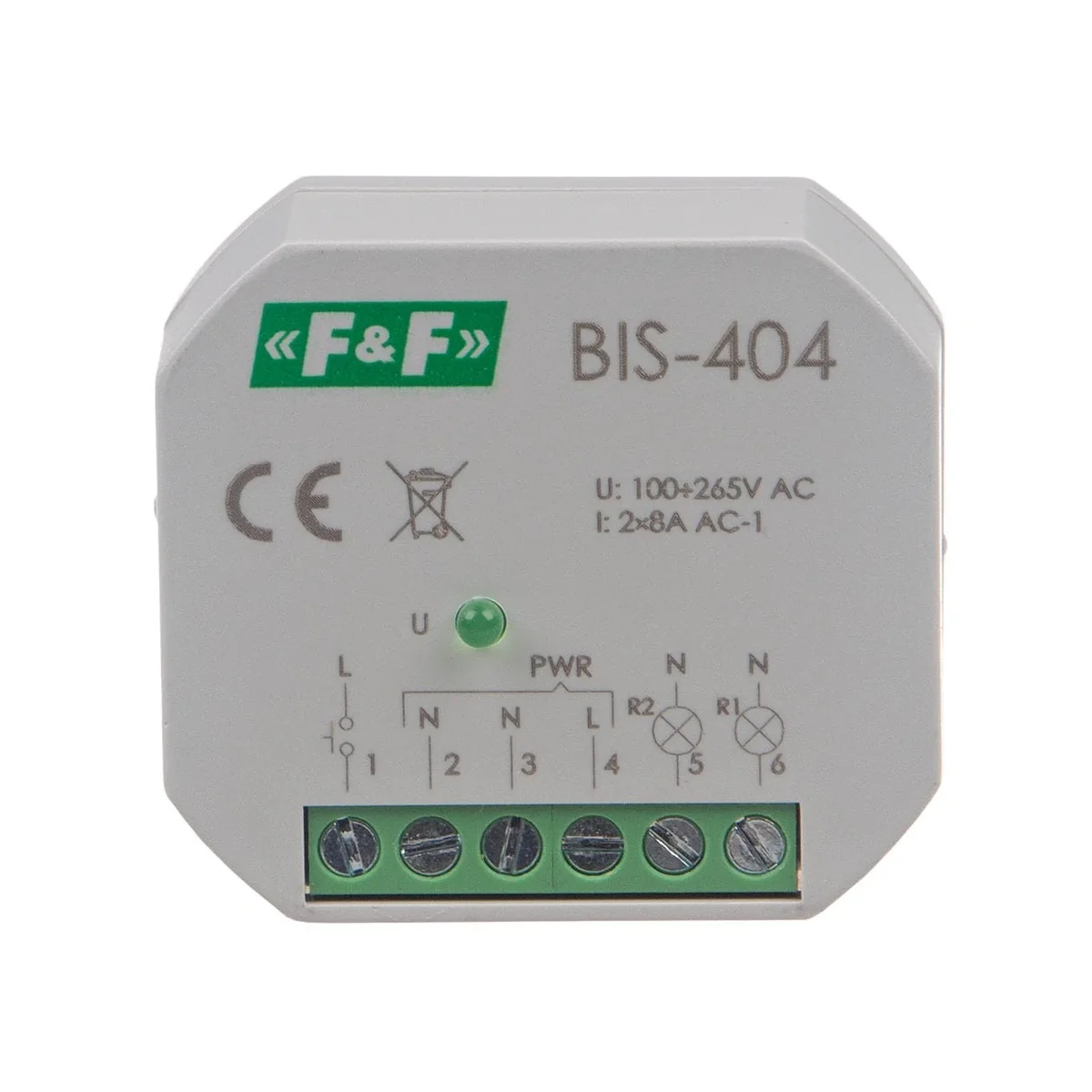

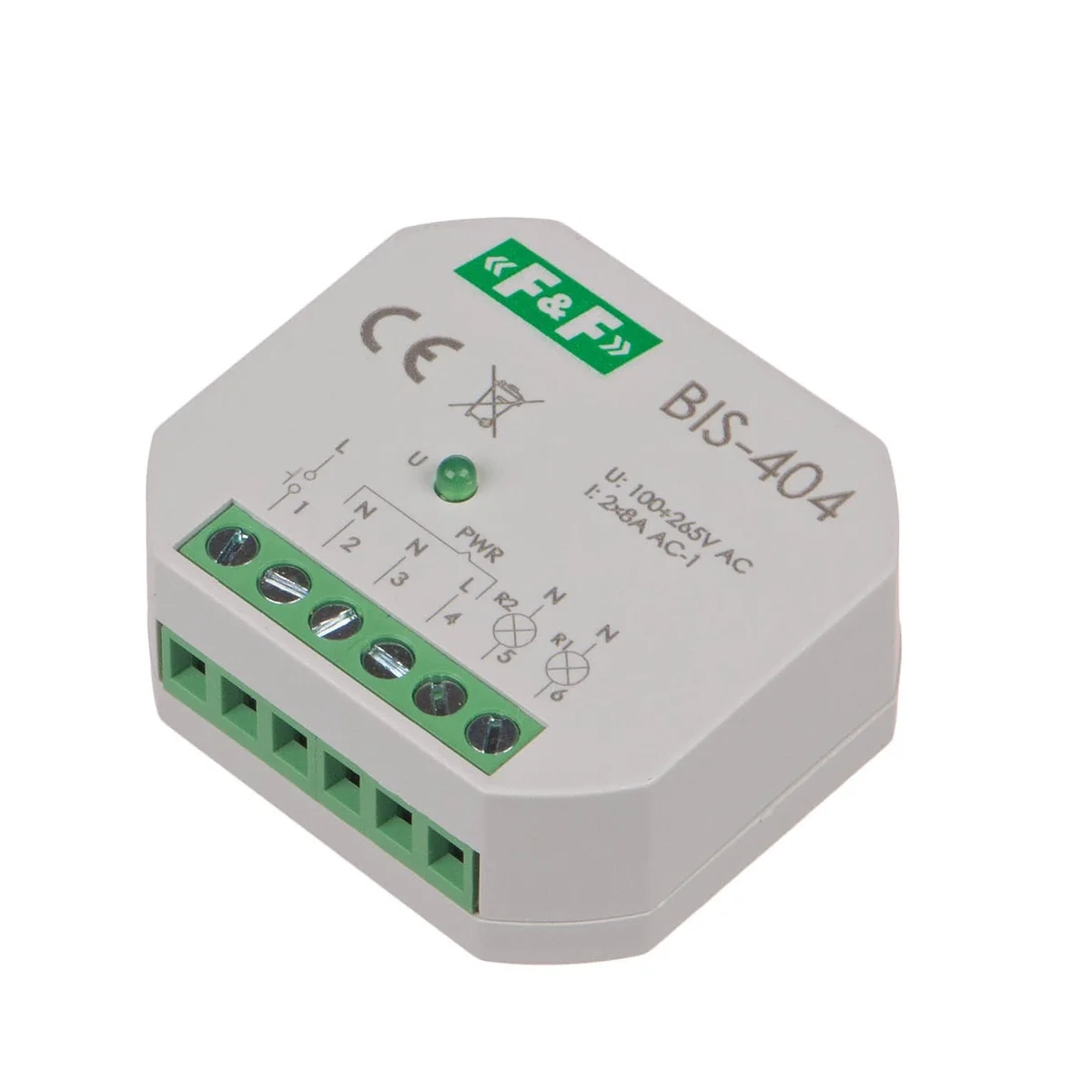

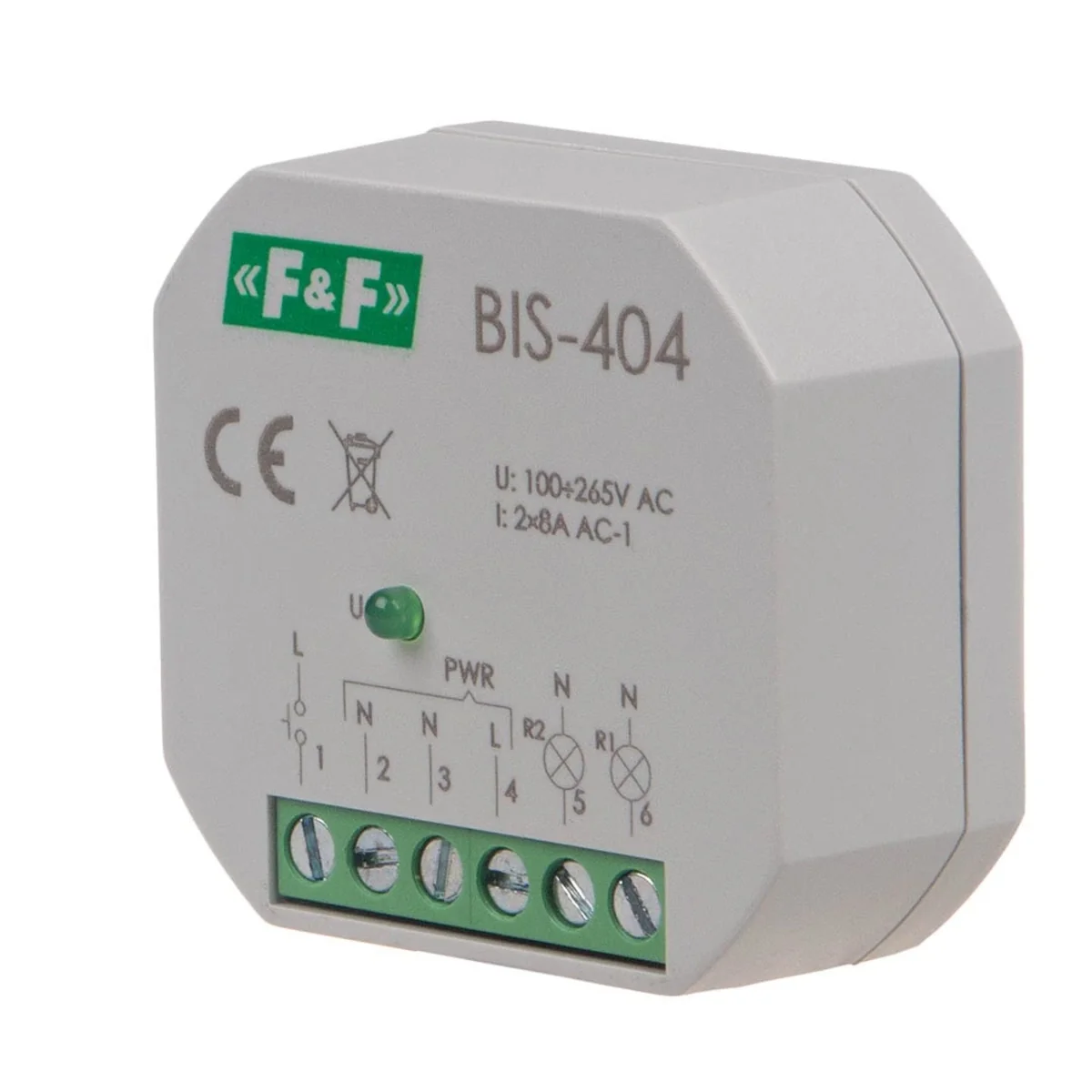

Bistable relay BIS-404 BIS-404
Índice local:
APP105FIFQ
Número de catálogo:
BIS-404
Código EAN:
5908312595748
Precio:
116,57 zł
gross / uds.
(IVA incluido 23%)
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Datos técnicos
Detalles del fabricante
Empaquetado a granel
Archivos para descargar
Descripción del producto
Electronic bistable impulse relay allows you to switch on lighting or other device from several different points using control buttons connected in parallel. Action:
The receiver is turned on after impulse of current caused by pressing any momentary (bell) button connected to the relay. The receiver will turn off after the next pulse. Switching the relay to the next state of the cycle takes place after next impulse of current caused by pressing any momentary (bell) button connected to the relay. BIS-404 230V can work with backlit buttons
Datos técnicos
-
Power [W]0.56
-
Rated voltage [V]230
-
Control pulse current [mA]<3mA
-
connection5×DY 1mm ; l=10cm
-
Working temperature [°C]-25-50
-
Package height [mm]13
-
Packaging diameter [mm]55
-
PKWIU27.12.23.0
-
InstallationFlush-mounted
-
Tripping delay [s]0.1-0.2
-
load current [A]2x5
-
Diameter [mm]55
-
Height [mm]13
-
Package weight [kg]0.1
-
Control pulse current [A]<3mA
Otros datos técnicos
-
FunctionElectronic switch
-
Width in number of modular spacings0
-
Number of contacts as normally open contact2
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Rated switch current8 A
-
Max. incandescent lamp load1000 W
-
Max. load fluorescent lamp (Duo circuit)750 VA
-
Max. switching current (cos phi = 0.6)12 A
-
Mounting methodFlush-mounted
-
Built-in depth20 mm
-
Number of contacts as normally closed contact0
-
Control voltage 1165 ... 265 V
-
Frequency control voltage 150 ... 50 Hz
-
Supply voltage165 ... 265 V
-
Max. load fluorescent lamp600 VA
-
Max. load fluorescent lamp (parallel compensated)600 VA
-
Suitable for manual operationNo
Detalles del fabricante
-
FabricanteF&F Filipowski S.K.
-
Dirección95-200 Pabianice Konstantynowska 79/81 Polska
-
Email
Empaquetado a granel
| una especie de paquete | Sztuka |
| Cantidad | 1 uds. |
| Peso (kg) | 0,048 |
| Ancho (m) | 0,026 |
| Longitud (m) | 0,095 |
| Profundidad (m) | 0,070 |
