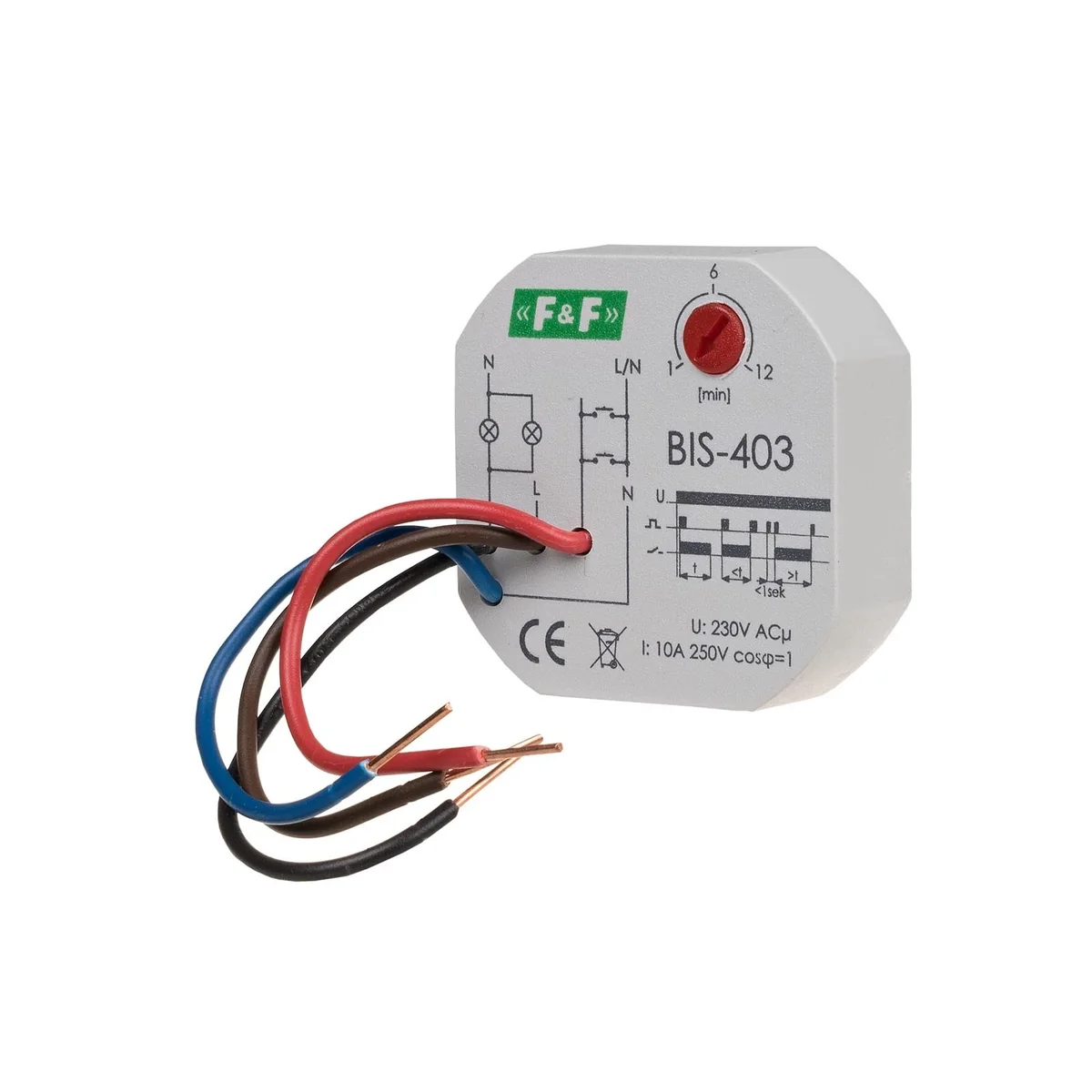

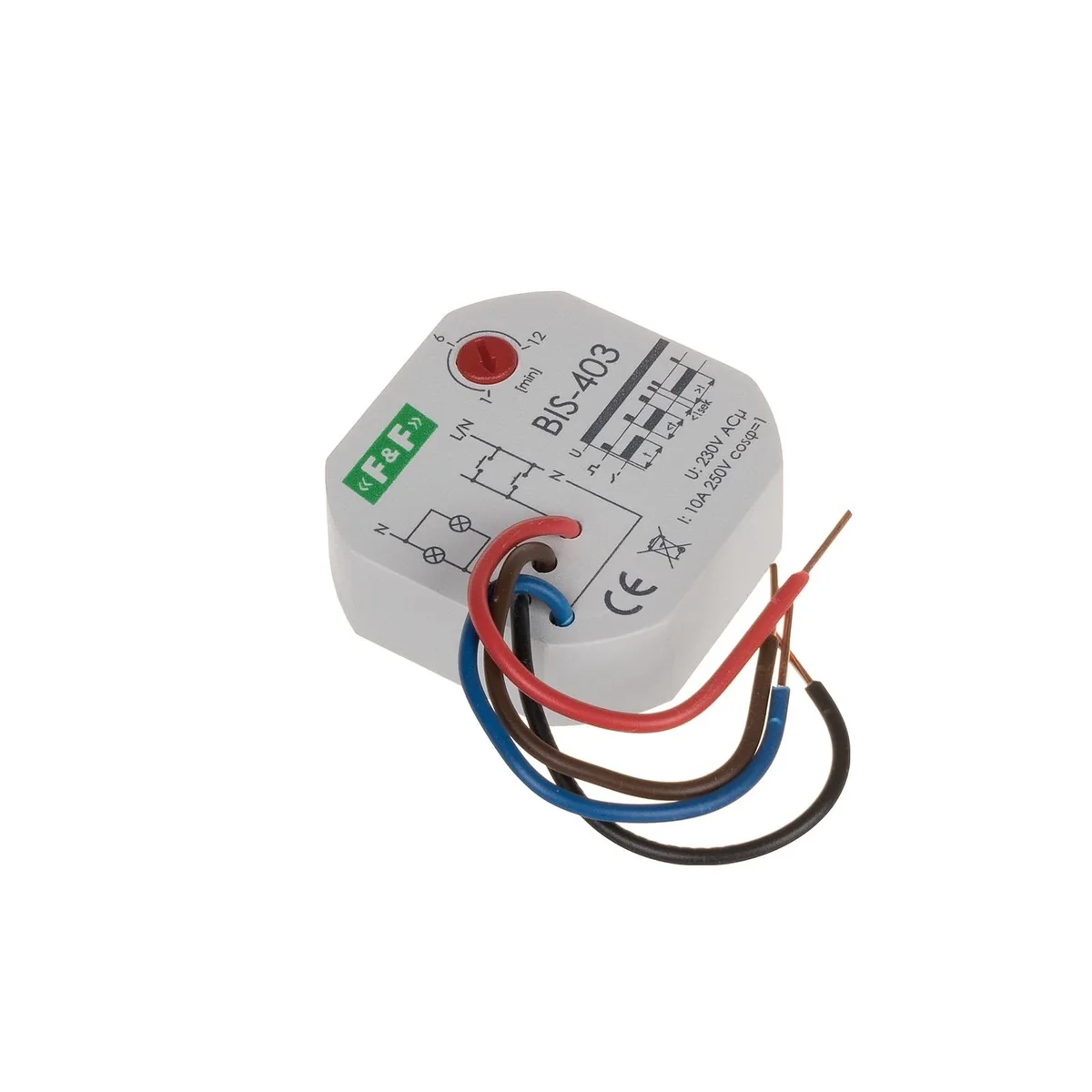

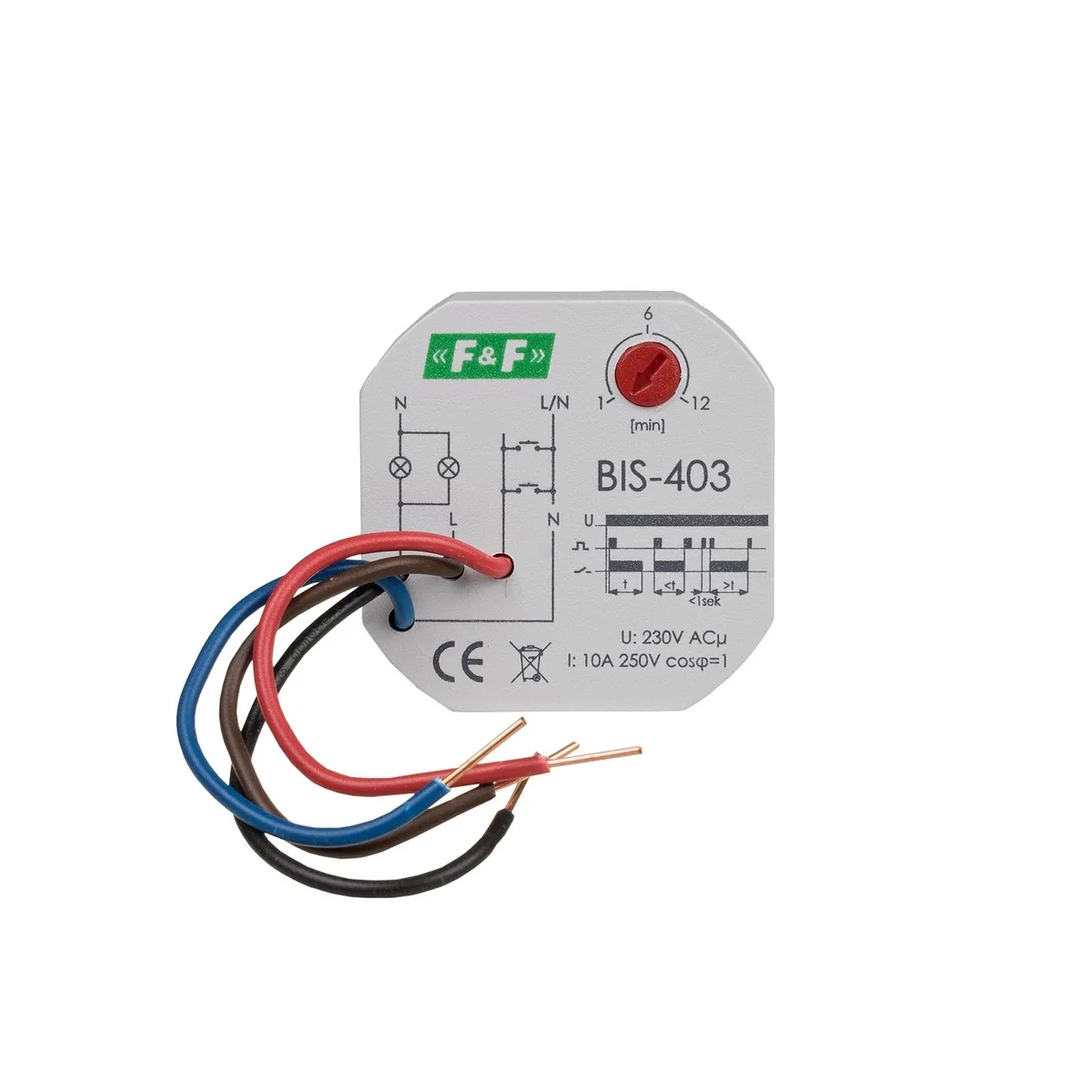

Bistable relay BIS-403 BIS-403

local index:
APP106FIFQ
Catalog No:
BIS-403
EAN code:
5908312594086
Manufacturer: F&F
Power [W]: 0.4
Installation: Flush-mounted
Rated voltage [V]: 230
Price:
21,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic bistable impulse relay allows you to switch on lighting or other device from several different points using control buttons connected in parallel. Action:
Short button press  closes the contact (switching on the connected receiver). The contact will be opened (turning off the controlled receiver) after the set time t has elapsed, or after pressing the button again.
Long pressing of the button, lasting at least 2 seconds, causes the contact to be permanently switched on. The contact will be opened only after pressing the button again  (or after power failure). The relay has no "memory" contact position, i.e. in the case of  power failure and its return, the relay contact will be switched off. Prevents  is automatic switching on of controlled receivers without supervision after a long-term power failure.
 BIS-403 cannot work with illuminated switches.

Technical data

  • Power [W]
    0.4
  • Rated voltage [V]
    230
  • Control pulse current [mA]
    <1mA
  • connection
    4×DY 1mm ; l=10cm
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    13
  • Packaging diameter [mm]
    55
  • PKWIU
    27.12.23.0
  • Installation
    Flush-mounted
  • Tripping delay [s]
    0.1-0.2
  • load current [A]
    <10
  • Diameter [mm]
    55
  • Height [mm]
    13
  • Package weight [kg]
    0.1
  • Control pulse current [A]
    <1mA

Other technical data

  • Function
    Electronic switch
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    230 ... 230 V
  • Max. load fluorescent lamp
    600 VA
  • Max. load fluorescent lamp (parallel compensated)
    400 VA
  • Mounting method
    Flush-mounted
  • Type of control voltage 1
    AC
  • Rated switch current
    10 A
  • Max. incandescent lamp load
    1250 W
  • Max. load fluorescent lamp (Duo circuit)
    600 VA
  • Suitable for manual operation
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,050
Width (m) 0,026
Length (m) 0,095
Depth (m) 0,070
