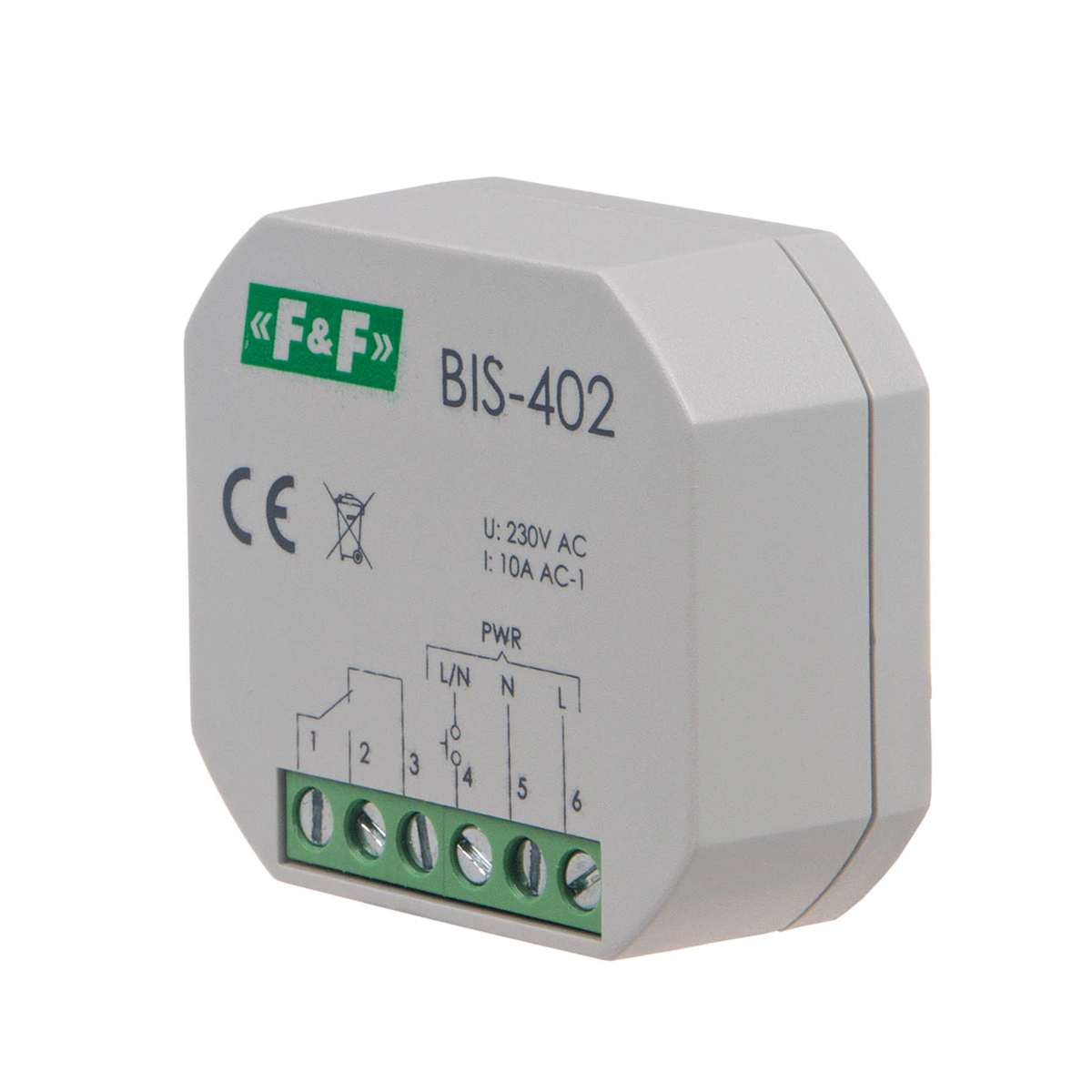

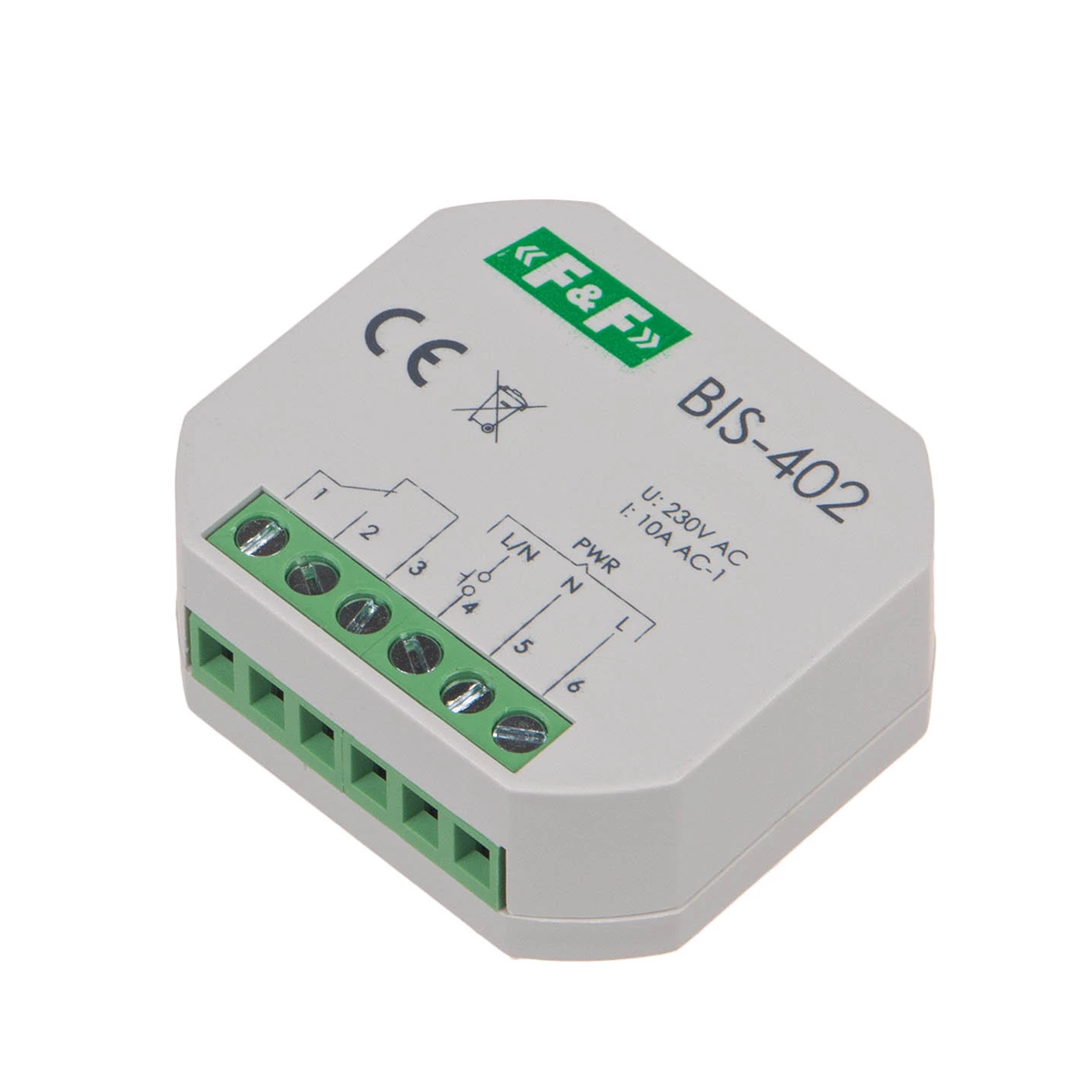

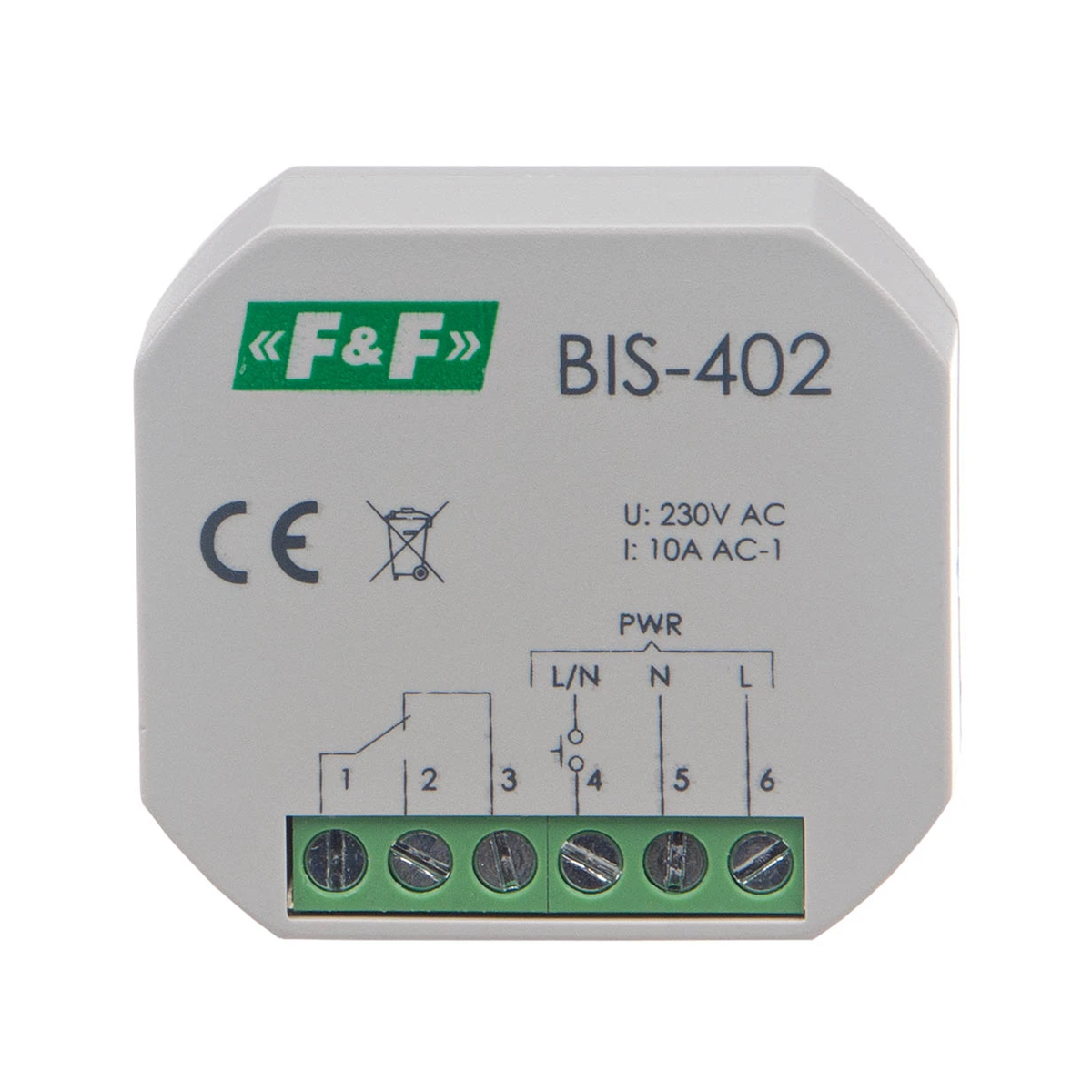

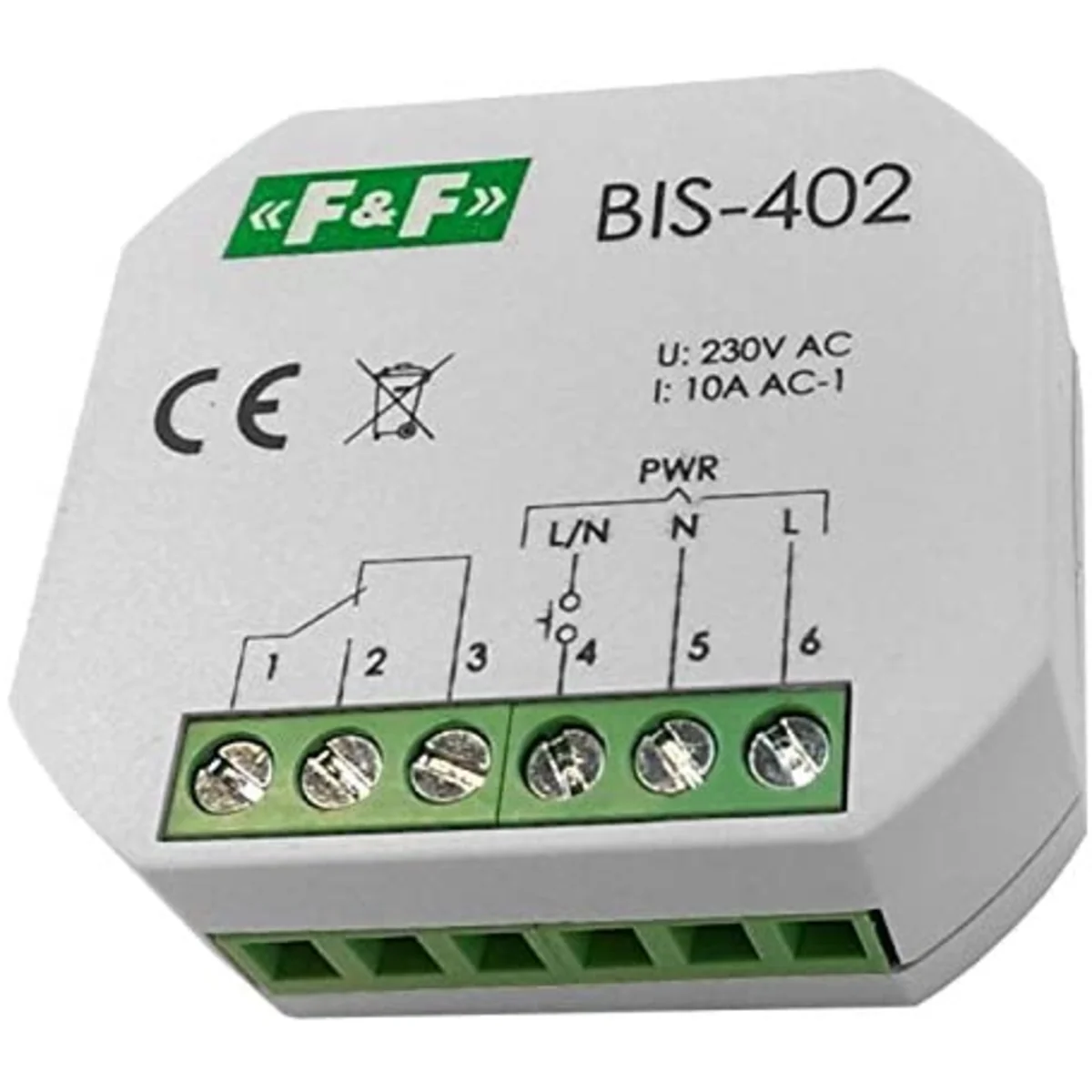

Bistable relay BIS-402 BIS-402
local index:
APP104FIFQ
Catalog No:
BIS-402
EAN code:
5908312594062
Price:
20,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electronic bistable impulse relay allows you to switch on lighting or other device from several different points by means of control buttons connected in parallel. Operation:
The receiver is switched on after a current pulse caused by pressing any momentary (bell) button connected to the relay. The receiver will be switched off after the next impulse.
The relay does not have a "memory" of the contact position, i.e. in the event of a power failure and its return, the relay contact will be set to the off state. This makes it impossible to automatically switch on the controlled receivers without supervision after a long-term power failure. NOTE!
BIS-402 cannot work with illuminated switches.
Technical data
-
Power [W]0.4
-
Rated voltage [V]230
-
Control pulse current [mA]<1mA
-
connection4×DY 1mm ; l=10cm
-
Working temperature [°C]-25-50
-
Package height [mm]13
-
Packaging diameter [mm]55
-
PKWIU27.12.23.0
-
InstallationFlush-mounted
-
Tripping delay [s]0.1-0.2
-
load current [A]<10
-
Diameter [mm]55
-
Height [mm]13
-
Package weight [kg]0.1
-
Control pulse current [A]<1mA
Other technical data
-
FunctionElectronic switch
-
Built-in depth20 mm
-
Type of control voltage 1AC
-
Rated switch current8 A
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp650 VA
-
Max. load fluorescent lamp (parallel compensated)500 VA
-
Suitable for manual operationNo
-
Mounting methodFlush-mounted
-
Control voltage 1230 ... 230 V
-
Frequency control voltage 150 ... 50 Hz
-
Supply voltage230 ... 230 V
-
Max. incandescent lamp load1500 W
-
Max. load fluorescent lamp (Duo circuit)650 VA
-
Max. switching current (cos phi = 0.6)5 A
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka | Karton |
| Quantity | 1 pcs. | 12 pcs. |
| Weight (kg) | 0,046 | - |
| Width (m) | 0,026 | - |
| Length (m) | 0,095 | - |
| Depth (m) | 0,070 | - |
