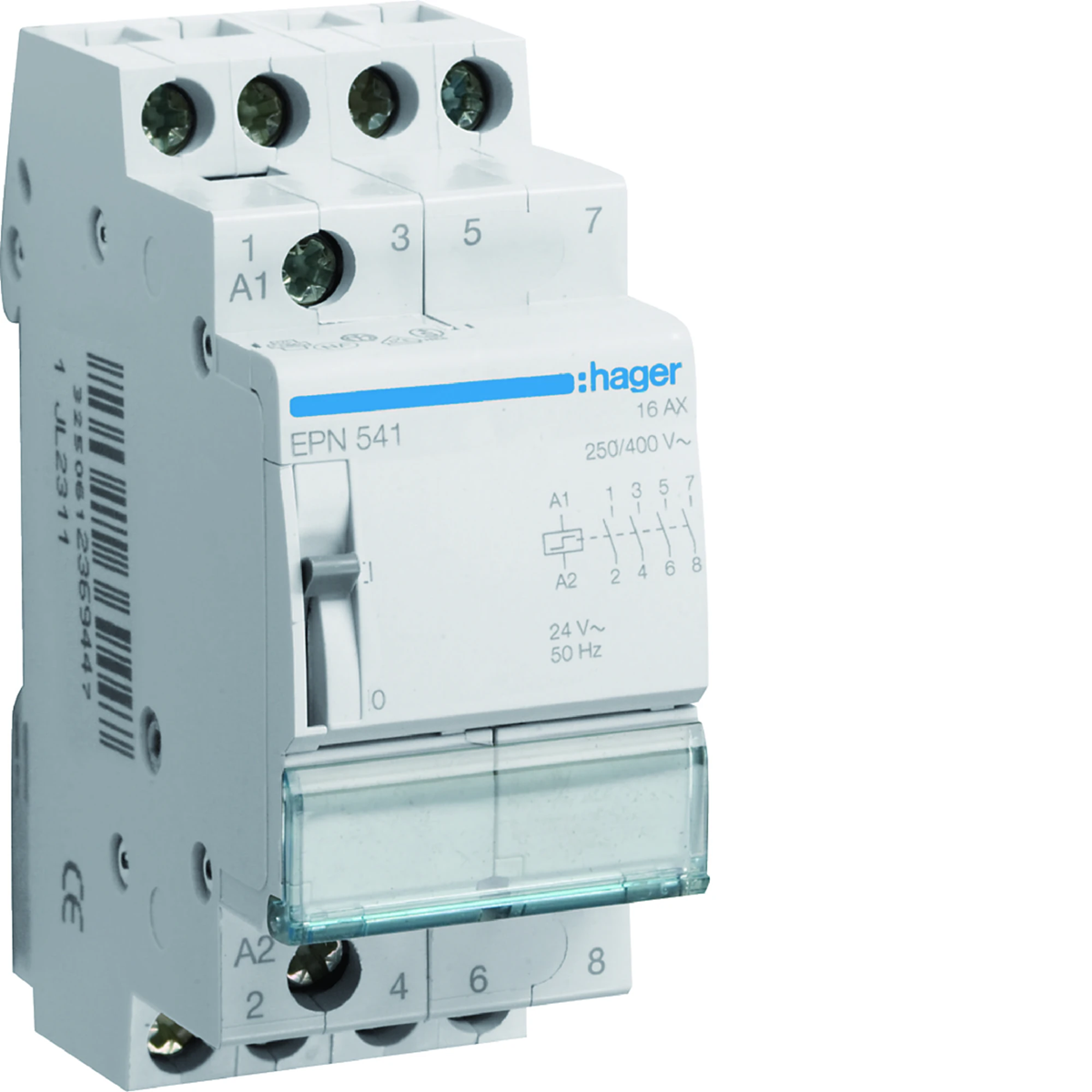

Bistable relay 24VAC/12VDC 4NO 16A EPN541
local index:
APP007HAGE
Catalog No:
EPN541
EAN code:
3250612369447
Price:
55,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

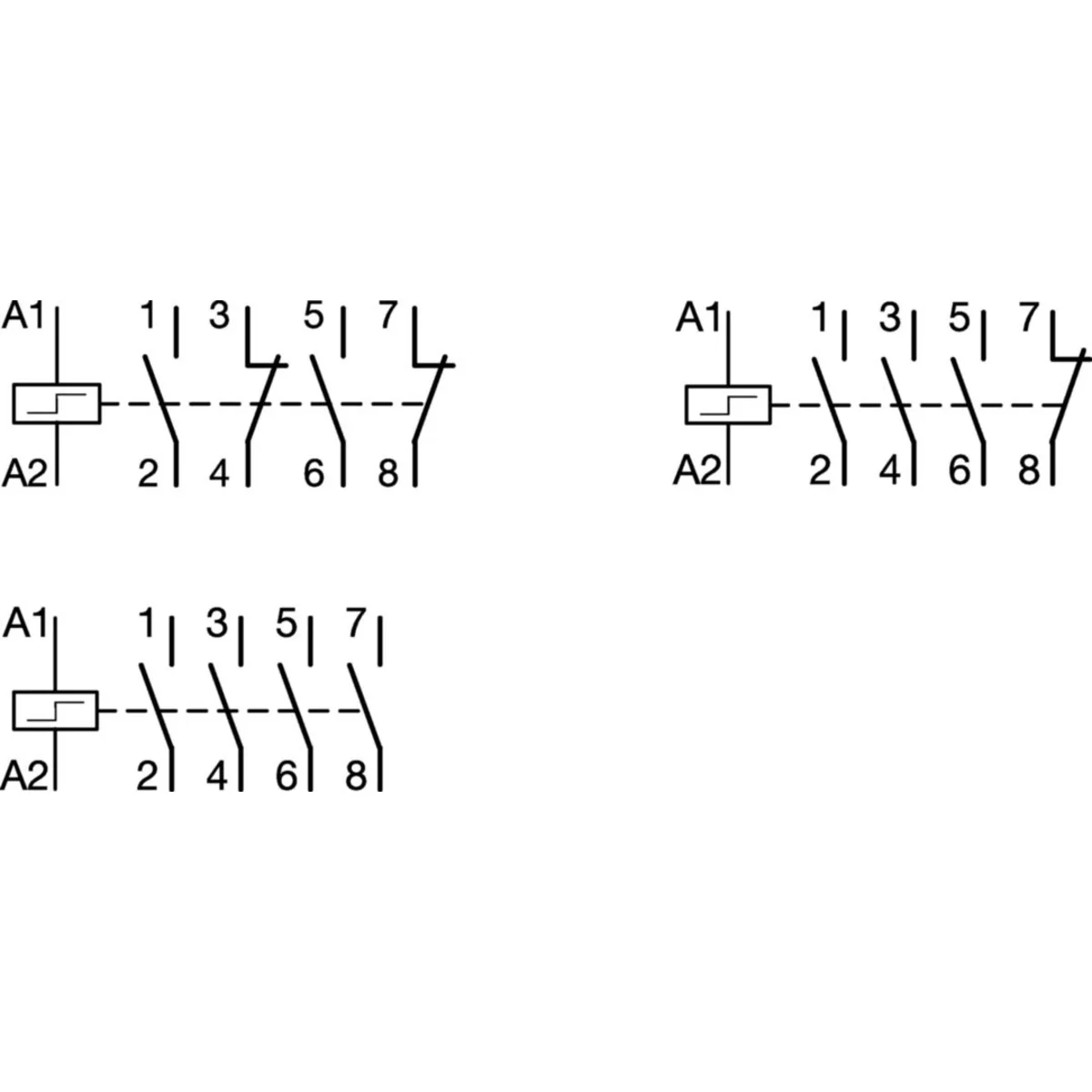

Bistable relay:
- 4NO,
- for controlling circuits up to 16A maximum,
- possibility of central switching and switch-off,
- possibility to connect auxiliary contacts,
- switch-on status indicator and manual override.
Technical data
-
Rated frequency [Hz]60
-
Maximum input power [VA]55
-
AC control voltage [V]24
-
Rated current [A]16
-
Level of securityIP20
-
Width [mm]35
-
Height [mm]83
-
Operating temperature range [°C]from -5 to 40
-
Number of modules2
-
Manual controlYes
-
Wire cross-section (cord) [mm²]1 - 6
-
PKWIU27.12.24.0
-
Depth [mm]63
-
Tightening torque [Nm]1.6
-
Rated insulation voltage [V]400
-
Contact type4 NO
-
power loss [W]4.8
-
Connection typeWith a screw
-
Mechanical durability (number of cycles)500000
-
Rated switching voltage [V]250/400
-
Setting [A]16
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]1.5 - 10
Other technical data
-
FunctionMechanical switch
-
Width in number of modular spacings35
-
Number of contacts as normally open contact4
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Control voltage 212 ... 12 V
-
Frequency control voltage 250 ... 60 Hz
-
Supply voltage250 ... 400 V
-
Max. switching current (cos phi = 0.6)16 A
-
Mounting methodDIN rail
-
Built-in depth63 mm
-
Number of contacts as normally closed contact0
-
Control voltage 124 ... 24 V
-
Frequency control voltage 150 ... 60 Hz
-
Type of control voltage 2DC
-
Rated switch current16 A
-
Voltage type (supply voltage)AC
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,261 | 0,285 | 17,225 | 436,400 |
| Width (m) | 0,035 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,083 | 0,040 | 0,215 | 1,050 |
| Depth (m) | 0,071 | 0,095 | 0,365 | 1,200 |
