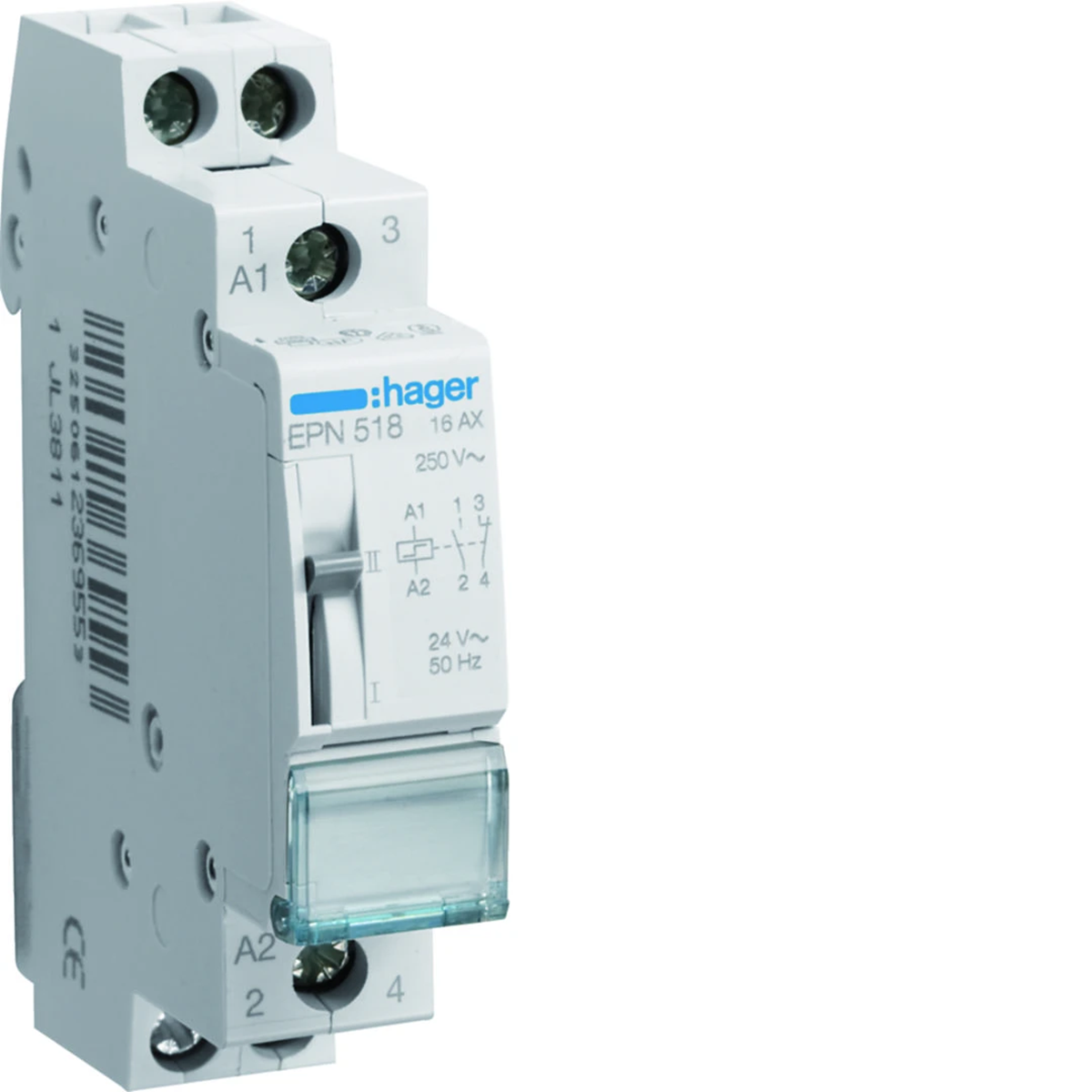

Bistable relay 24VAC/12VDC 1NO+1NC 16A EPN518
Lokaler Index:
APE011HAGE
Katalognummer:
EPN518
EAN-Code:
3250612369553
Preis:
31,16 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung

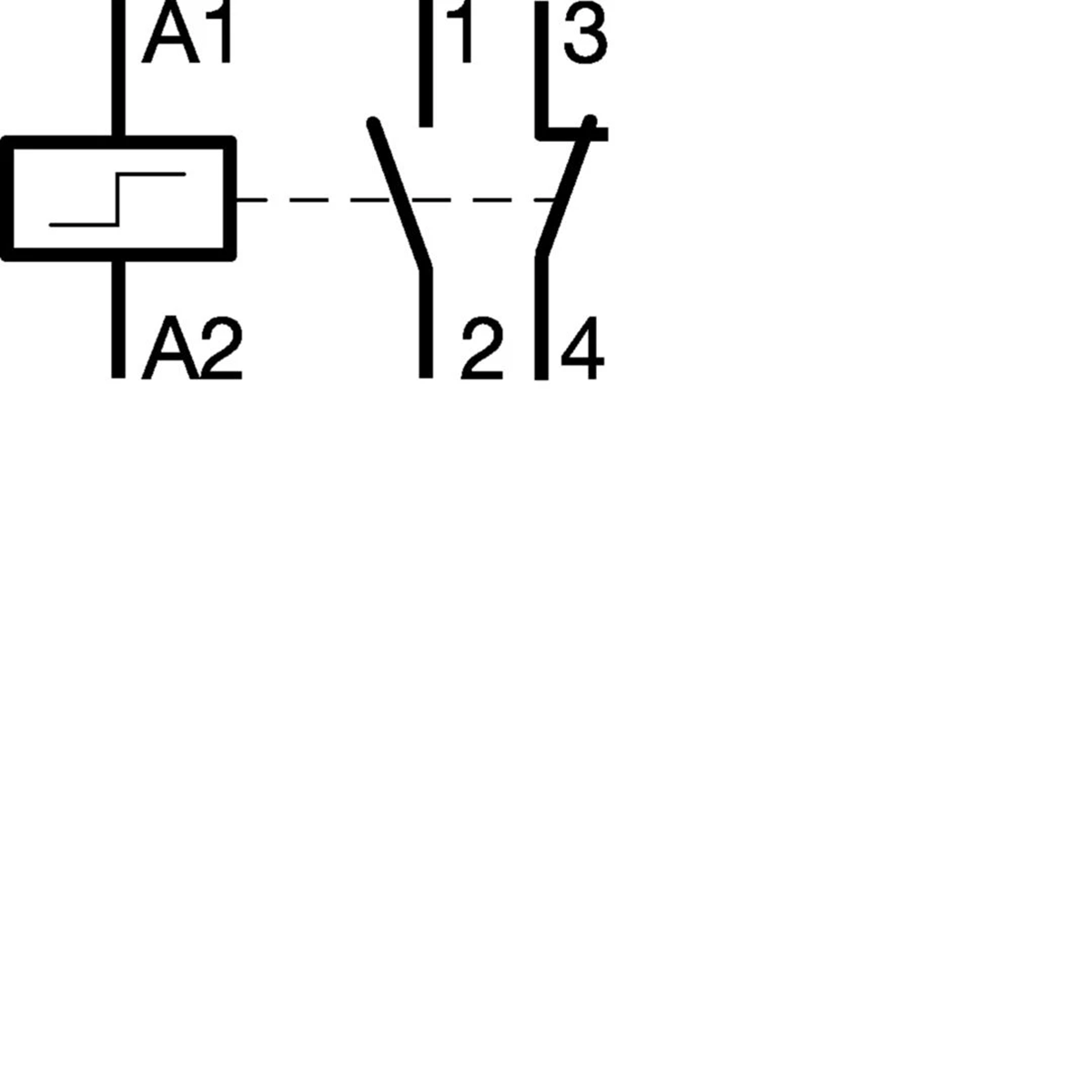

Bistable relay:
- 1NO+1NC,
- for controlling circuits up to 16A maximum,
- possibility of central on and off,
- possibility to connect auxiliary contacts,
- switch-on status indicator and manual override.
Technische Daten
-
Rated frequency [Hz]60
-
Maximum input power [VA]25
-
AC control voltage [V]24
-
Rated current [A]16
-
Level of securityIP20
-
Width [mm]17.5
-
Height [mm]83
-
Operating temperature range [°C]from -5 to 40
-
Number of modules1
-
Manual controlYes
-
Wire cross-section (cord) [mm²]1 - 6
-
PKWIU27.12.24.0
-
Depth [mm]63
-
Tightening torque [Nm]1.6
-
Rated insulation voltage [V]250
-
Contact type1NC + 1NO
-
power loss [W]1.2
-
Connection typeWith a screw
-
Mechanical durability (number of cycles)500000
-
Rated switching voltage [V]250
-
Setting [A]16
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]1.5 - 10
Weitere technische Daten
-
FunctionMechanical switch
-
Width in number of modular spacings17.5
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Control voltage 212 ... 12 V
-
Frequency control voltage 250 ... 60 Hz
-
Supply voltage250 ... 250 V
-
Max. switching current (cos phi = 0.6)16 A
-
Mounting methodDIN rail
-
Built-in depth63 mm
-
Number of contacts as normally closed contact1
-
Control voltage 124 ... 24 V
-
Frequency control voltage 150 ... 60 Hz
-
Type of control voltage 2DC
-
Rated switch current16 A
-
Voltage type (supply voltage)AC
Hersteller-Details
-
HerstellerHager Electro S.A.S.
-
AdresseFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta |
| Menge | 1 stk. | 108 stk. | 2592 stk. |
| Gewicht (kg) | 0,140 | 15,550 | 373,240 |
| Breite (m) | 0,070 | 0,310 | 0,800 |
| Länge (m) | 0,020 | 0,220 | 1,050 |
| Tiefe (m) | 0,090 | 0,360 | 1,200 |
