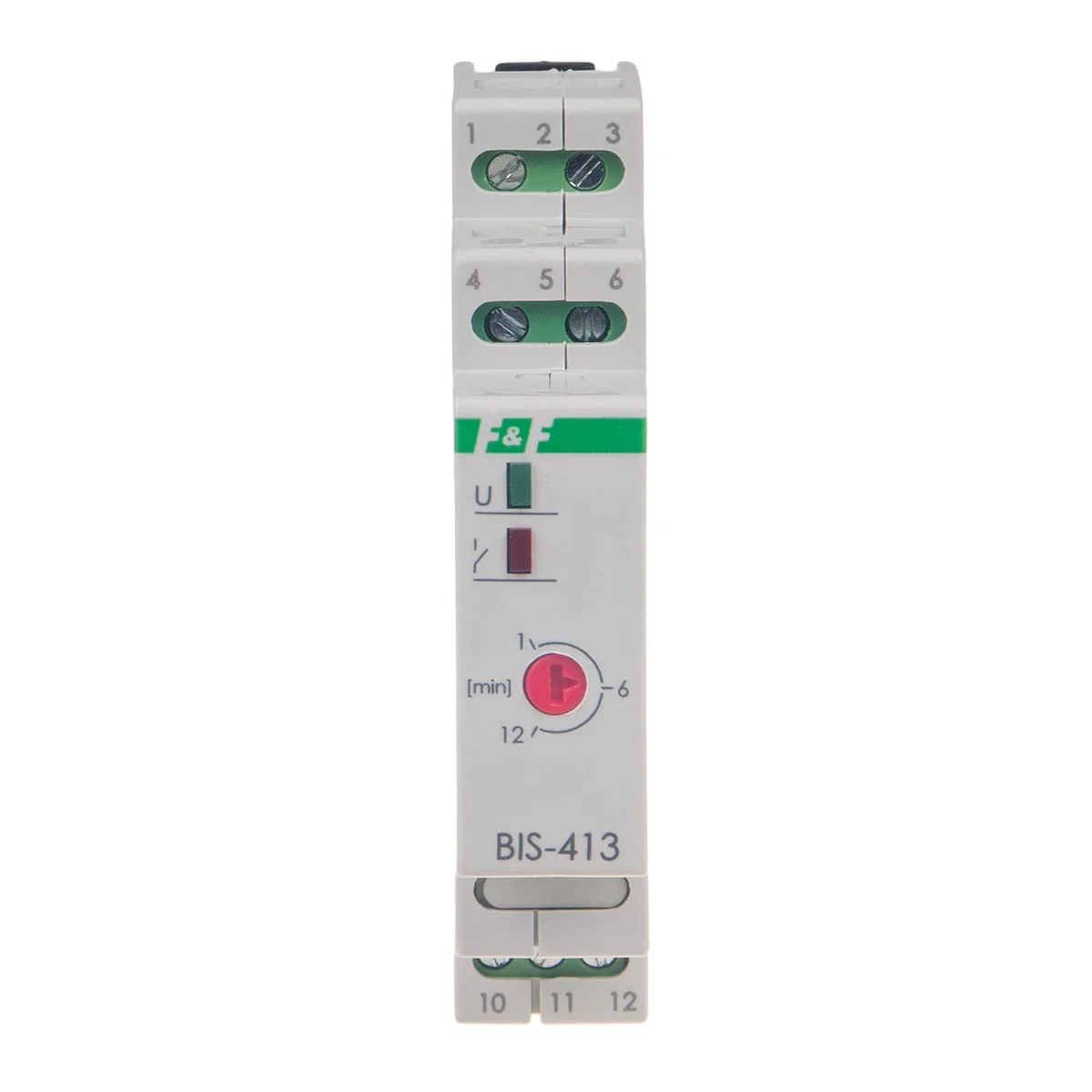

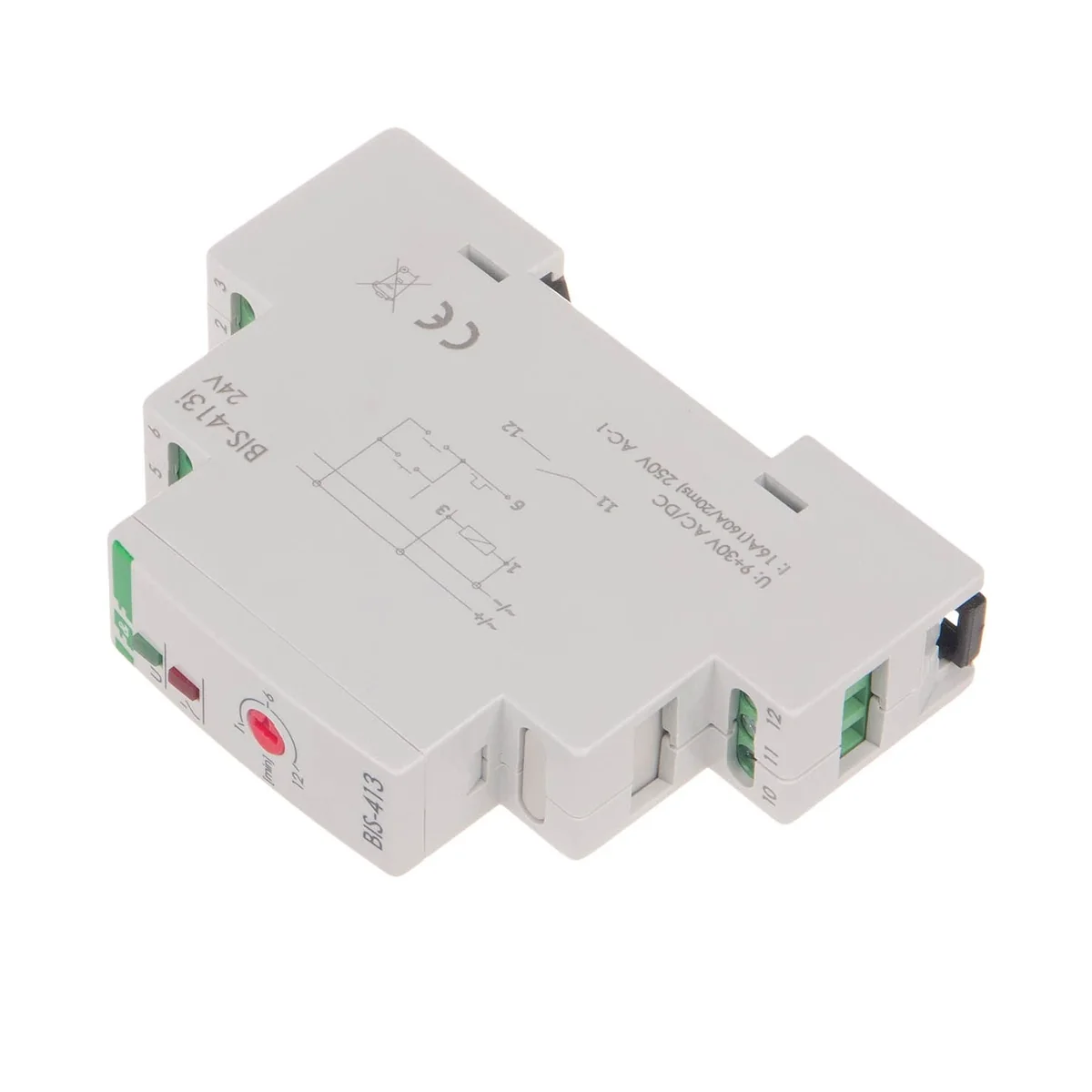

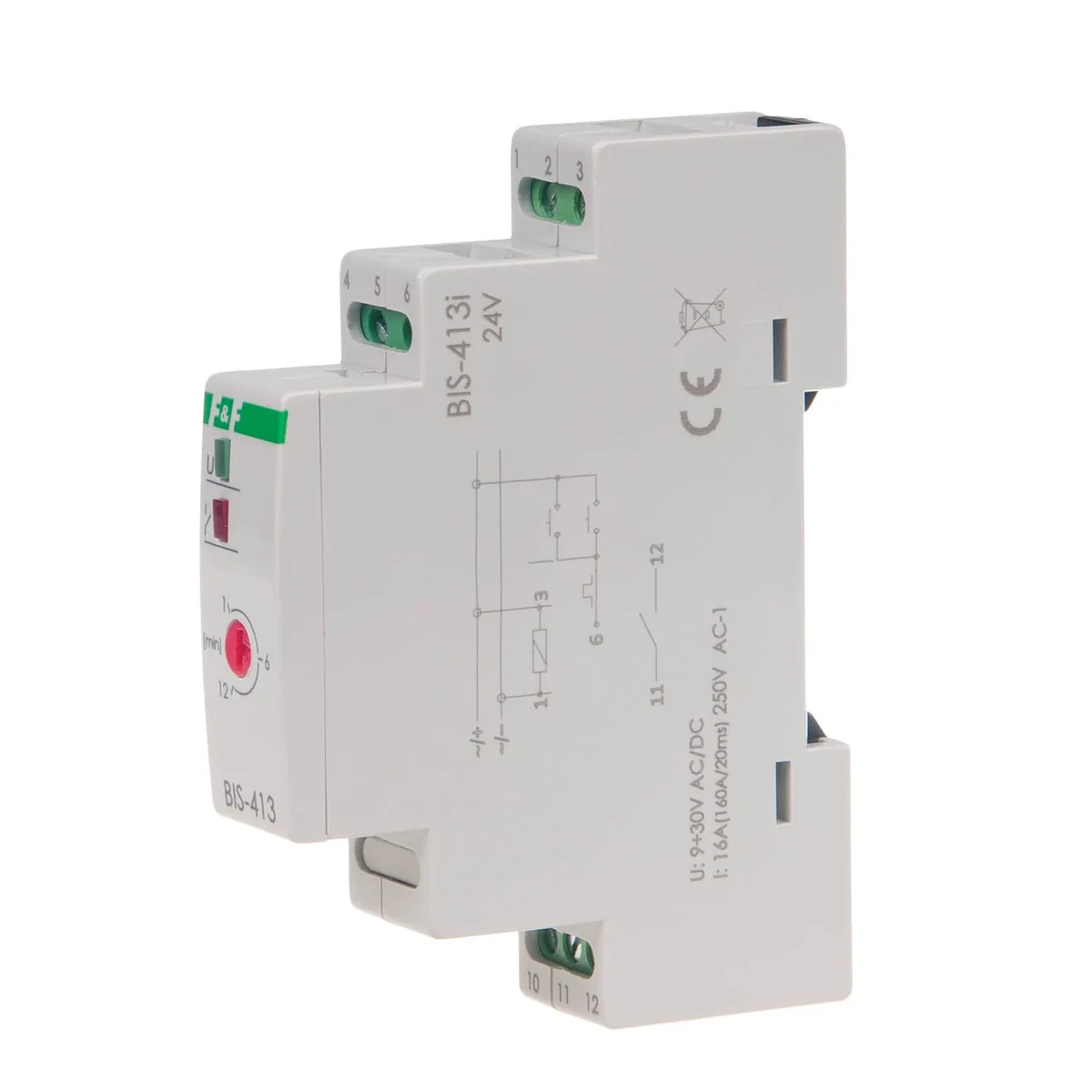

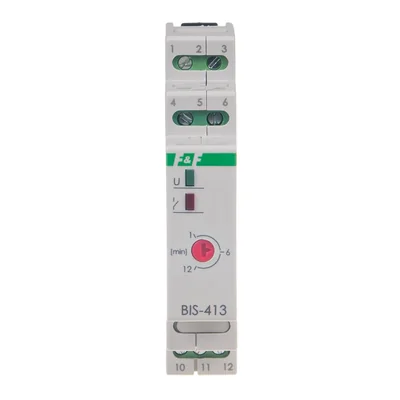

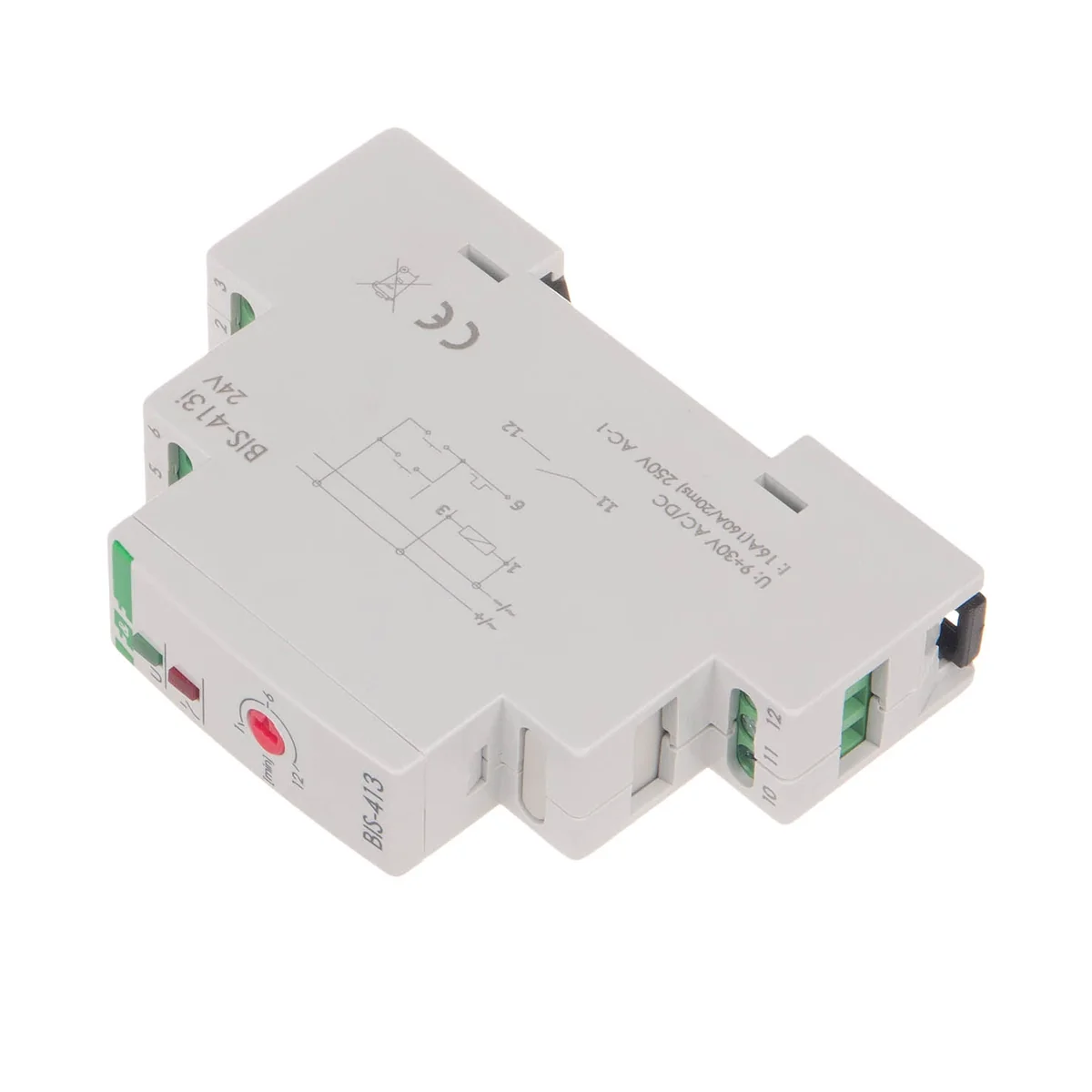

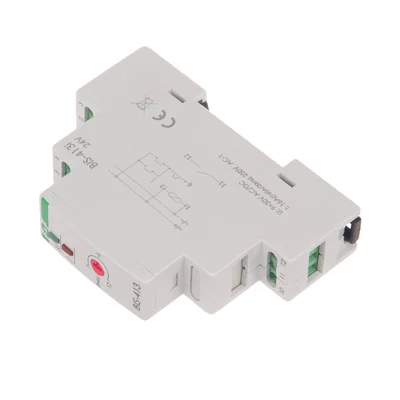

Bistable relay 24V, 0.6W BIS-413-LED-24V

local index:
APE058FIFQ
Catalog No:
BIS-413-LED-24V
EAN code:
5908312598701
Manufacturer: F&F
Rated voltage [V]: 24
Power consumption in standby mode [W]: 0.15
Level of security: IP20
Price:
27,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 1 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Relay version “i” is with a contact adapted to work with receivers with high starting current, such as: LED fluorescent lamps, ESL fluorescent lamps, electronic transformers, discharge lamps, etc.
   < /p>


Purpose
Electronic bistable relay BIS-413 impulse switch is a device that allows switching on/off lighting or other device for a given period of time or permanently. The operation of the device is controlled by one or more momentary (bell) switches connected in parallel.

Operation

24V version:
The receiver is switched on after a current impulse caused by pressing any momentary (bell) button connected to the relay. The receiver will be switched off after the next pulse or automatically after the set switch-off time. Pressing the control button twice within 1 second will switch on the lighting permanently, until the next impulse is given, which will turn off the relay.


Specifications

< td>Red LED< tr>
power
     ;             BIS-413 230V100÷265V AC
                  BIS-413 24V9÷30V AC/DC
                  BIS-413i 230V100÷265V AC
                  BIS-413i 24V9÷30V AC/DC
contact/load current < /td>
                 BIS-413 230V1×NO/NC / <16A
       ;           BIS-413 24V1×NO/NC / <16A
       ;           BIS-413i 230V1×NO / <16 (16A/20ms)
                  BIS-413i 24V1×NO / <16 (16A/20ms)
triggering delay 0.1÷0.2s
off time - adjustable1÷12min.
power indicationgreen LED
operation indication
power consumption
     standby0.15W
     activation state0.6W
working temperature-25÷50°C
connection2.5mm screw terminals²
tightening torque 0.4Nm
dimensions1 module (18mm)
mountingon a 35mm rail
degree of protectionIP20

Technical data

  • Rated voltage [V]
    24
  • Level of security
    IP20
  • Power consumption in operating mode [W]
    0.6
  • PKWIU
    27.12.23.0
  • Power consumption in standby mode [W]
    0.15
  • Working temperature [°C]
    -25 - +50
  • Current [A]
    9-30

Other technical data

  • Function
    Electronic switch
  • Width in number of modular spacings
    1
  • Control voltage 1
    9 ... 30 V
  • Frequency control voltage 1
    50 ... 50 Hz
  • Supply voltage
    9 ... 30 V
  • Max. incandescent lamp load
    3000 W
  • Max. load fluorescent lamp (Duo circuit)
    1500 VA
  • Max. switching current (cos phi = 0.6)
    8 A
  • Mounting method
    DIN rail
  • Built-in depth
    0 mm
  • Type of control voltage 1
    AC/DC
  • Rated switch current
    8 A
  • Voltage type (supply voltage)
    AC/DC
  • Max. load fluorescent lamp
    1500 VA
  • Max. load fluorescent lamp (parallel compensated)
    1500 VA
  • Suitable for manual operation
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,071
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
